Sun Step – 1 step

  • Straight steel staircase for outdoor use
  • Step elements available individually
  • Height can be easily varied by the number of steps
  • No risk of slipping thanks to studded steps
  • All steel parts hot-dip galvanised and therefore extremely resistant to corrosion
  • Railing and mounting kit sold separately
  • Maximum achievable height: 3150 mm

228,00 € incl. tax excl. shipping costs*

Description

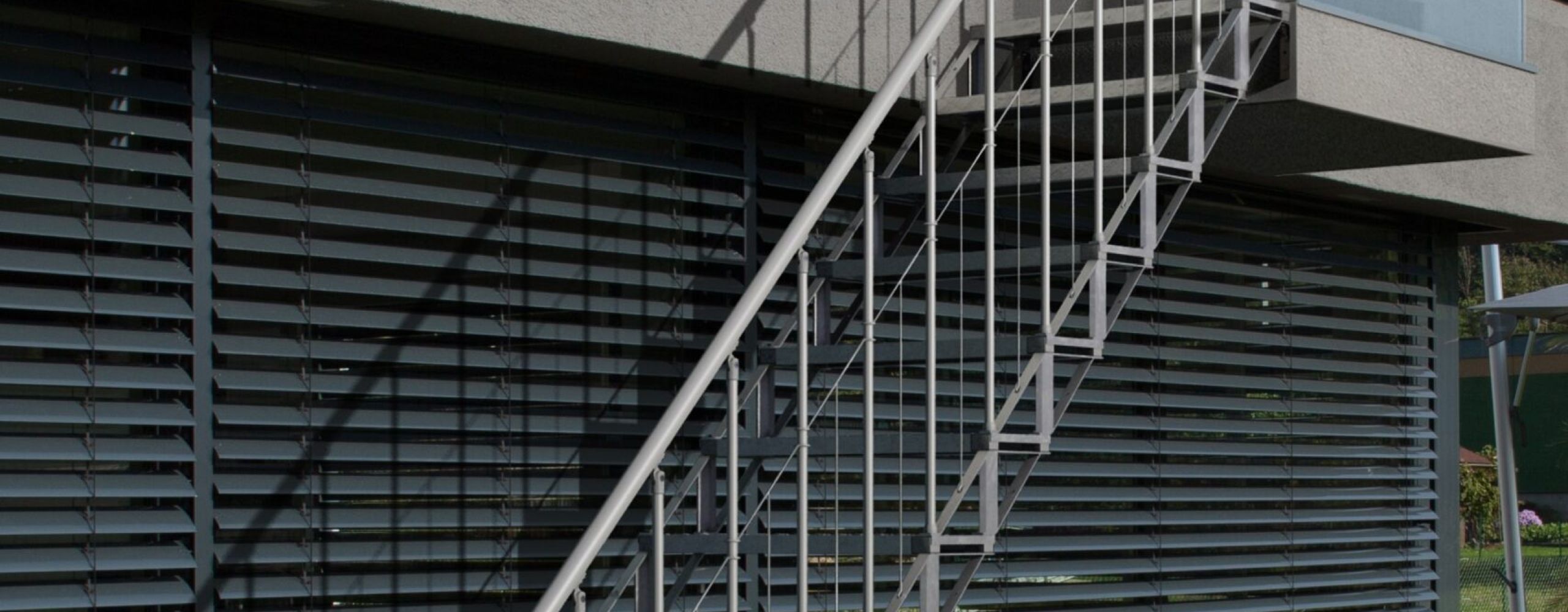

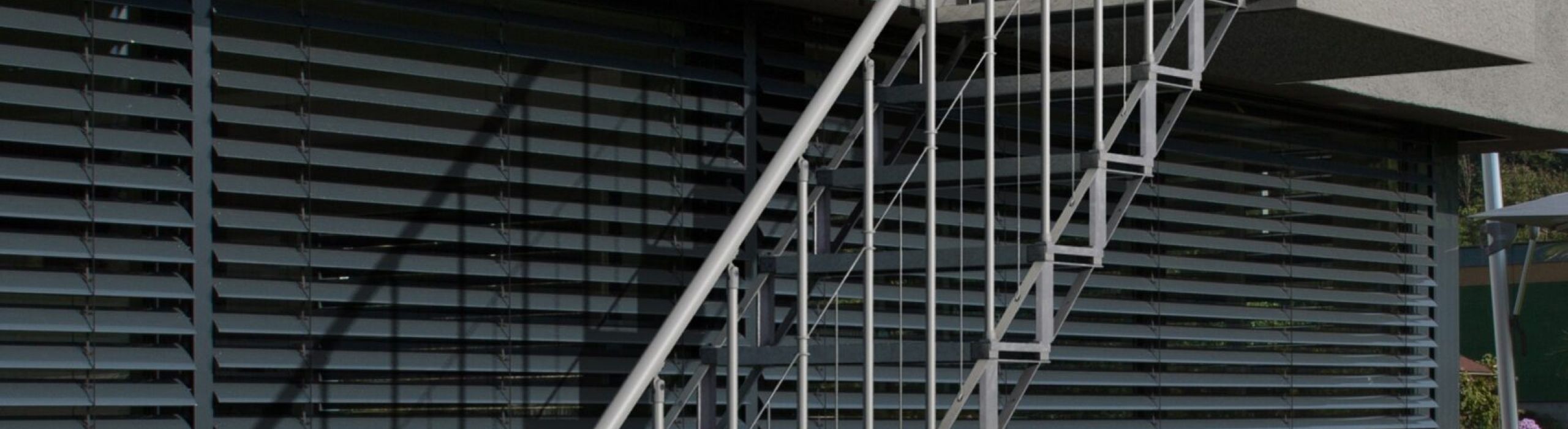

The straight Sun Step outdoor staircase provides sturdy access to elevated outdoor areas. The raised surface pattern on the treads improves grip when climbing up and down. An optional steel railing with an aluminium handrail is available separately.

Flexible height adjustment

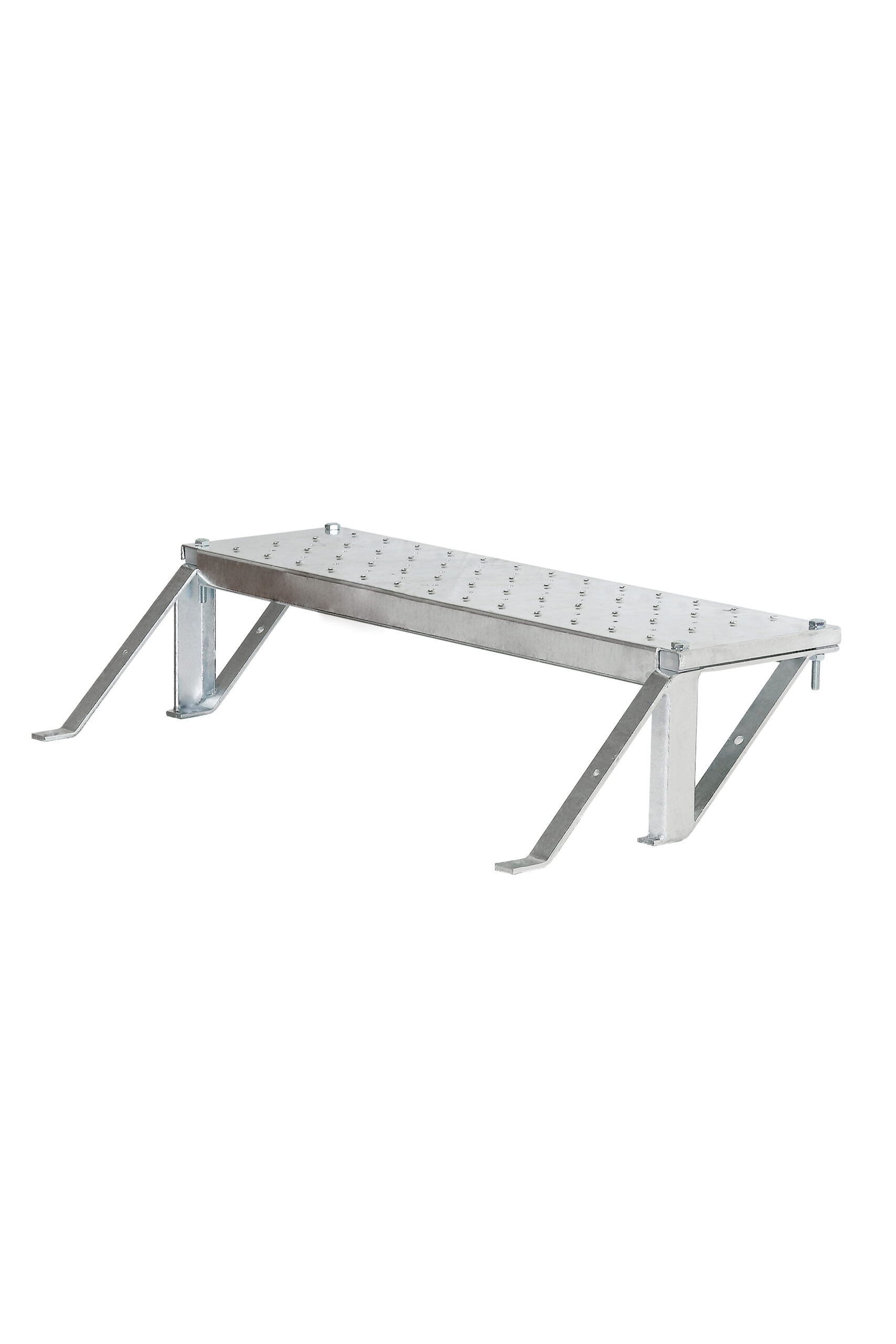

The Sun Step is sold as individual tread elements. This allows you to choose the number of treads to suit the required height. The rise of each tread can also be adjusted between 185 and 225 mm.

With a maximum of 13 treads or 14 rises, the staircase can cover a height of up to 3,150 mm.

Designed for outdoor use

The treads are made of hot-dip galvanised steel. This makes them weather-resistant and protects them against corrosion and wear.

Technical data

Basic data
Steps Steel galvanised
Stair stringers Steel galvanised
Railing rods Steel galvanised
Handrail Aluminium powder-coated
Max. number of steps 13
Dimensions
Basic size 880 x 240-2880 mm
Rise per step 185-225 mm
Max. storey height (with 13 steps / 14 rises) 3150 mm
Rise angle 46-52°
Tread depth 220 mm
Free passage width 700 mm
Tread thickness 40 mm
Railing height 900 mm
Railing rod diameter 22 mm
Handrail diameter 50 mm

Installation Video
