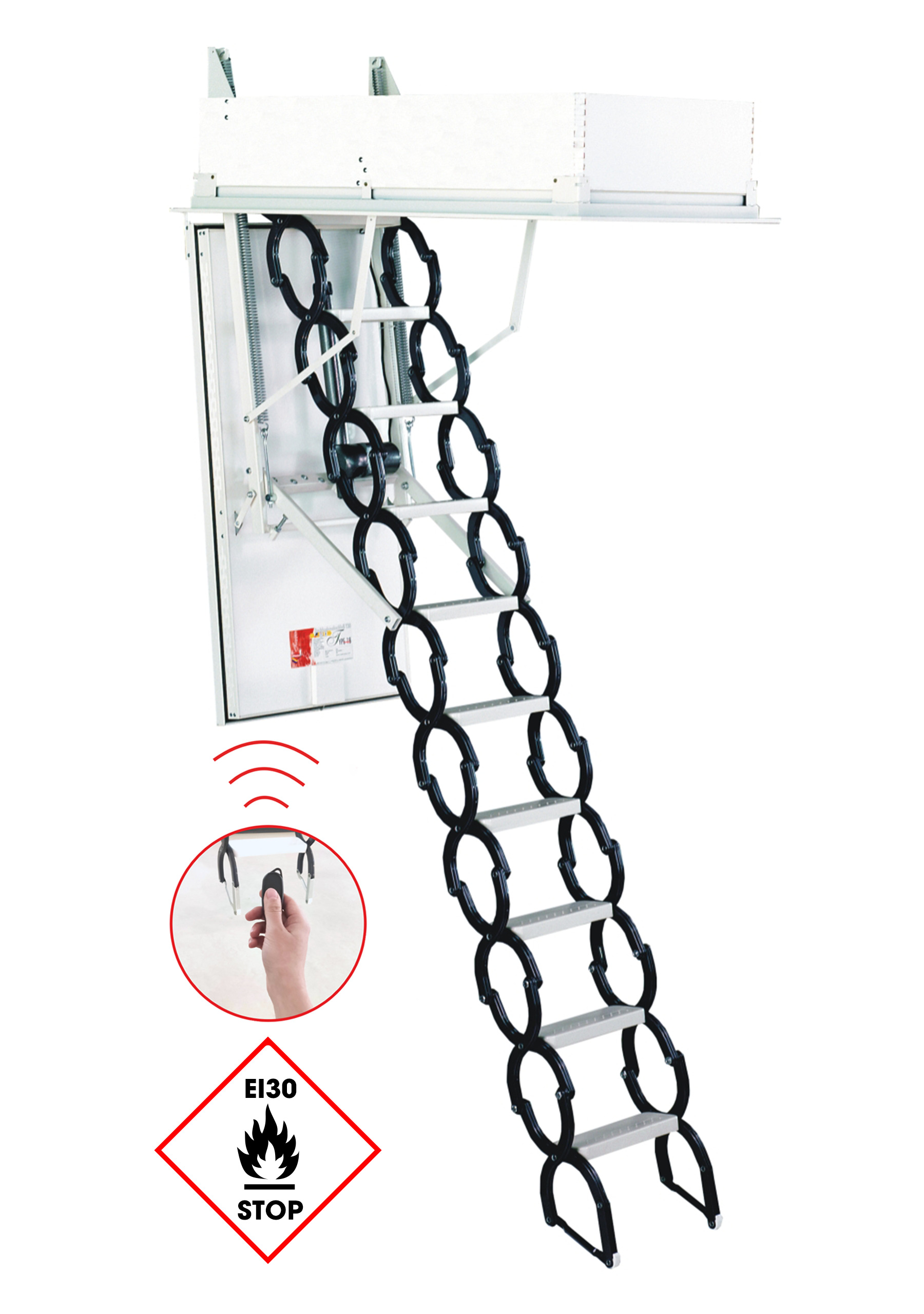

Electric attic staircase Type 18 Univers with metal scissor ladder system, white lid, and all-around insulation. Integrated remote control and EI30 fire protection marking visible.

Type 18 Univers

  • Fully automatic scissor stairs with fire-retardant effect
  • Simply retract and extend with radio remote control
  • Fire-retardant EI230 tested according to EN1363 and EN1634
  • U-value: 1.3 W/m2K
  • Four sizes for different ceiling openings: 120×60, 120×70, 130×70 and 140×70 cm
  • Maximum room height: 2900 mm
Add to wishlist

4.453,20 € incl. tax excl. shipping costs*

SKU: N/A Categories: , , , Tags: , , , ,

Description

The Type 18 Univers electric attic ladder brings you comfort at the touch of a button. Its integrated motor automatically extends and retracts the concertina ladder using a remote control. Simply connect the ladder to a power socket.

The Type 18 Univers provides at least 30 minutes of fire resistance and is tested in accordance with EN 1363 and EN 1634.

Four sizes to choose from

The Type 18 Univers is available for ceiling openings measuring 120 × 60 cm, 120 × 70 cm, 130 × 70 cm or 140 × 70 cm. It is suitable for room heights of up to 2,900 mm.

The white lower hatch panel blends discreetly into your ceiling when closed. The metal ladder is available with a black or white powder-coated finish.

Sturdy construction

The concertina sections and treads are made of powder-coated steel. The casing is made of MDF. This combination creates a sturdy construction and provides secure access when climbing up and down.

Technical data

120/60
Frame size (L x W x H) 1190 x 590 x 310 mm
Ceiling opening size (L x W) 1200 x 600 mm
Floor to ceiling height max. 2900 mm
Fold-out space 580 mm
Basic size 1250 mm
Swivel range top cover to the rear / to the side 1650 / 1060 mm
120/70
Frame size (L x W x H) 1190 x 690 x 310 mm
Ceiling opening size (L x W) 1200 x 700 mm
Floor to ceiling height max. 2900 mm
Fold-out space 580 mm
Basic size 1250 mm
Swivel range top cover to the rear / to the side 1650 / 1160 mm
130/70
Frame size (L x W x H) 1290 x 690 x 310 mm
Ceiling opening size (L x W) 1300 x 700 mm
Floor to ceiling height max. 2900 mm
Fold-out space 480 mm
Basic size 1250 mm
Swivel range top cover to the rear / to the side 1650 / 1160 mm
140/70
Frame size (L x W x H) 1390 x 690 x 310 mm
Ceiling opening size (L x W) 1400 x 700 mm
Floor to ceiling height max. 2900 mm
Fold-out space 380 mm
Basic size 1250 mm
Swivel range top cover to the rear / to the side 1650 / 1160 mm

Downloads

Assembly instructions

Technical datasheet

Fire protection certificate

Maintenance and care instructions

Installation Video
