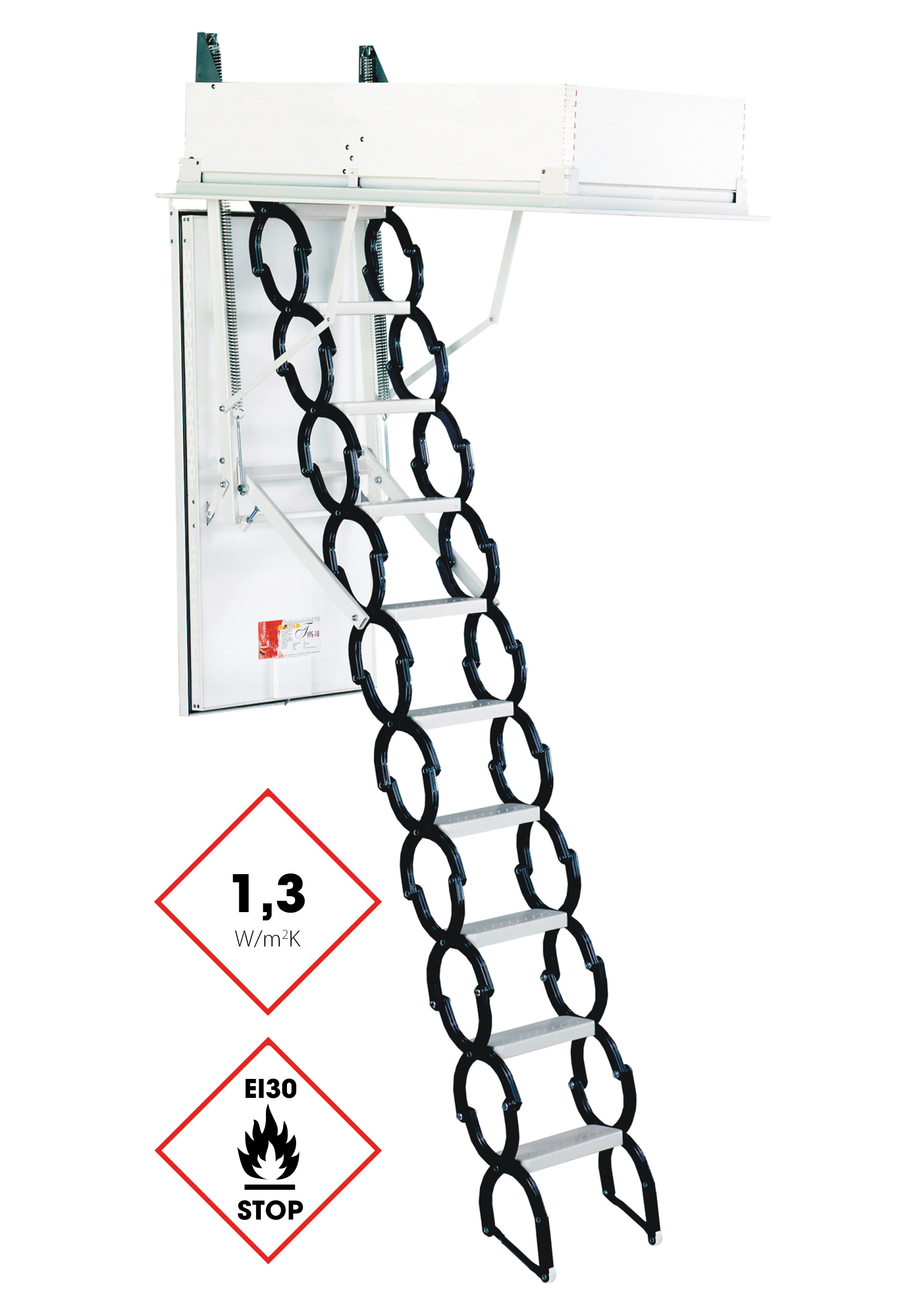

Attic staircase Type 18 Prestige
Attic staircase Type 18 Prestige

Type 18 Prestige

  • Fire-retardant scissor staircase
  • Fire-retardant EI230 tested according to EN1363 and EN1634
  • U-value: 1.3 W/m2K
  • Thermal separation of frame and hatch box
  • Four size options: 120×60, 120×70, 130×70 and 140×70 cm
  • Maximum room height: 2900 mm

Export as PDF
Add to wishlist

€ 2,631.60 incl. Tax excl. Shipping Costs*

SKU: N/A Categories: , , Tags: , , , ,

  • Description

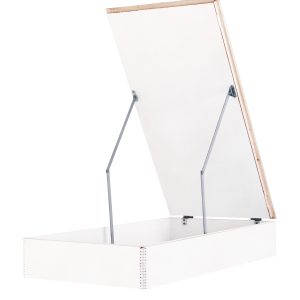

    Anyone looking for a fire-retardant loft ladder is well advised to choose the Type 18 Prestige. It is classified in fire resistance class EI230 according to EN 1363 and EN 1634. This means that it can withstand a fire for at least 30 minutes. Moreover, the 31 cm high lining box together with the 6.5 cm thick lid provide good thermal insulation with a U-value of 1.3 W/m2K.

    Flexible design.

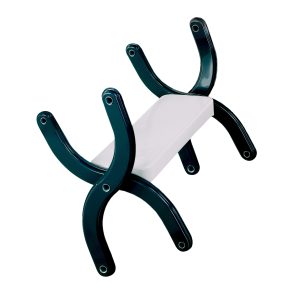

    The Type 18 Prestige is produced in four different sizes. Depending on the variant, it thus fits into ceiling openings with a length and width of 120×60, 120×70, 130×70 or 140×70 cm. The scissor staircase can be extended to a length of up to 290 cm. A height extension element is also available as an option for the Type 18 Prestige. With this you can extend the staircase by up to 25 cm and achieve a maximum room height of 315 cm.

    Sustainable use.

    Minka scissor stairs are made of powder-coated steel. This makes them stable and resistant to scratches and other wear and tear. To support a safe ascent, a telescopic handrail can be optionally attached to the Type 18 Prestige.

  • Technical data

    120/60
    Frame size (L x W x H) 1190 x 590 x 280 mm
    Ceiling opening size (L x W) 1200 x 600 mm
    Floor to ceiling height max. 2900 mm
    Fold-out space 580 mm
    Basic size 1250 mm
    120/70
    Frame size (L x W x H) 1190 x 690 x 280 mm
    Ceiling opening size (L x W) 1200 x 700 mm
    Floor to ceiling height max. 2900 mm
    Fold-out space 580 mm
    Basic size 1250 mm
    130/70
    Frame size (L x W x H) 1290 x 690 x 280 mm
    Ceiling opening size (L x W) 1300 x 700 mm
    Floor to ceiling height max. 2900 mm
    Fold-out space 480 mm
    Basic size 1250 mm
    140/70
    Frame size (L x W x H) 1390 x 690 x 280 mm
    Ceiling opening size (L x W) 1400 x 700 mm
    Floor to ceiling height max. 2900 mm
    Fold-out space 380 mm
    Basic size 1250 mm

  • Downloads

    Assembly instructions

    Technical datasheet
