Height extension for Quatro & Quatro Turn

  • Additional step for space-saving staircases Quatro and Quatro Turn
  • Extension of Quatro and Quatro Turn by 190-230 mm
  • Maximum attainable storey height with one height extension: 3210 mm
  • When purchasing, please ensure that the height extension has the same configuration as your staircase and install a maximum of two height extensions per staircase.

Export as PDF
Add to wishlist

178,00 € incl. Tax excl. Shipping Costs*

SKU: N/A Category: Tags: , ,

Description

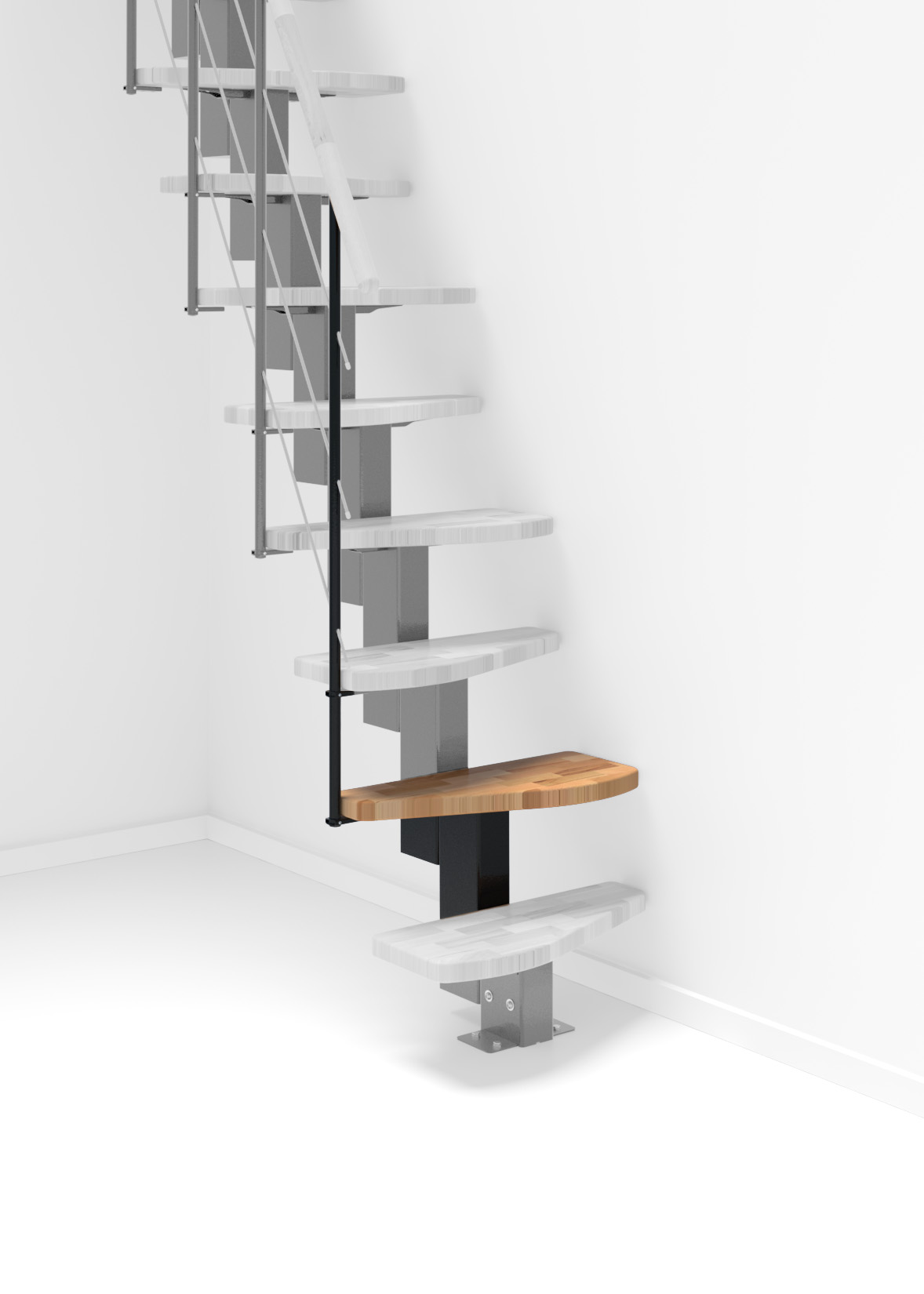

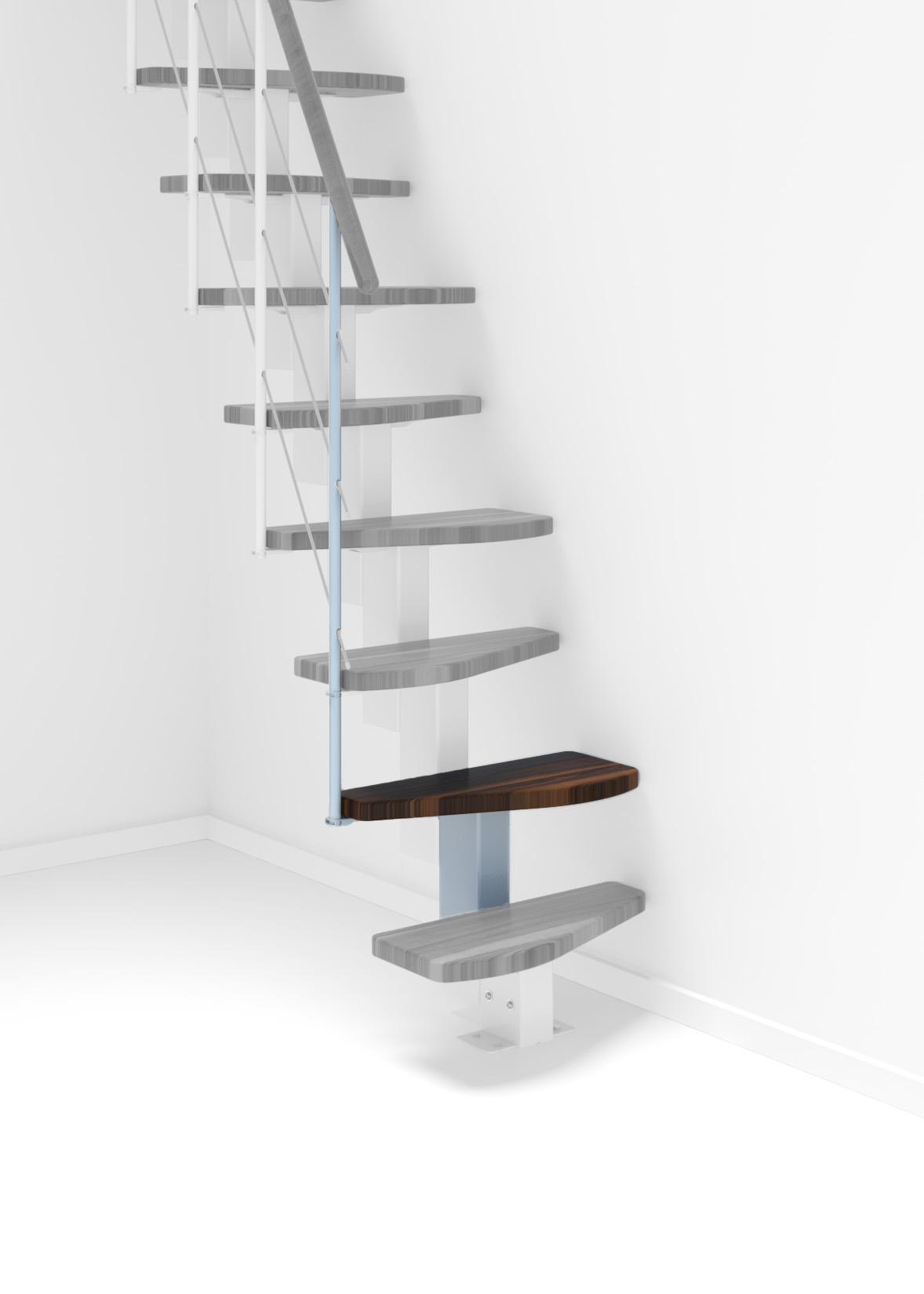

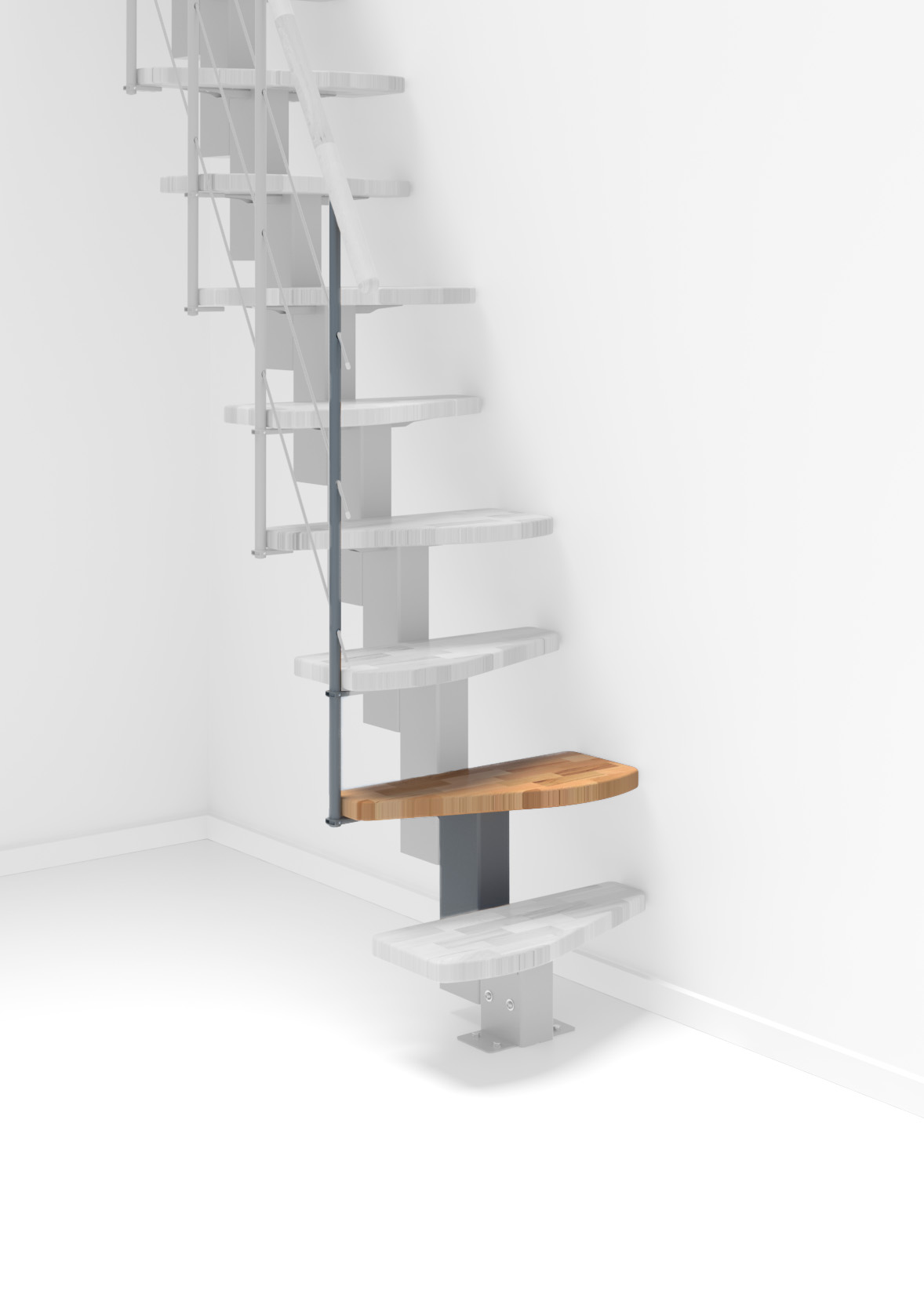

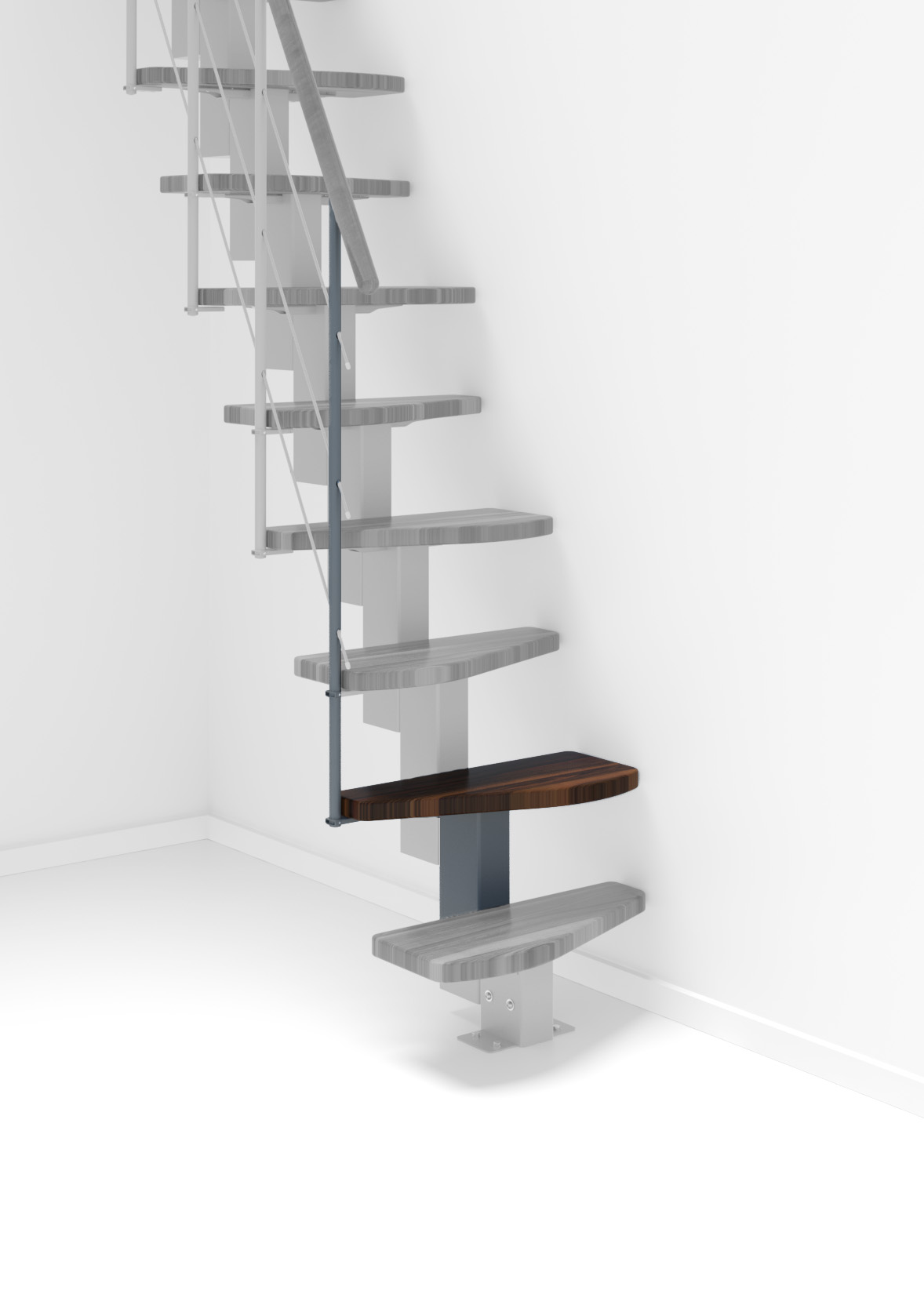

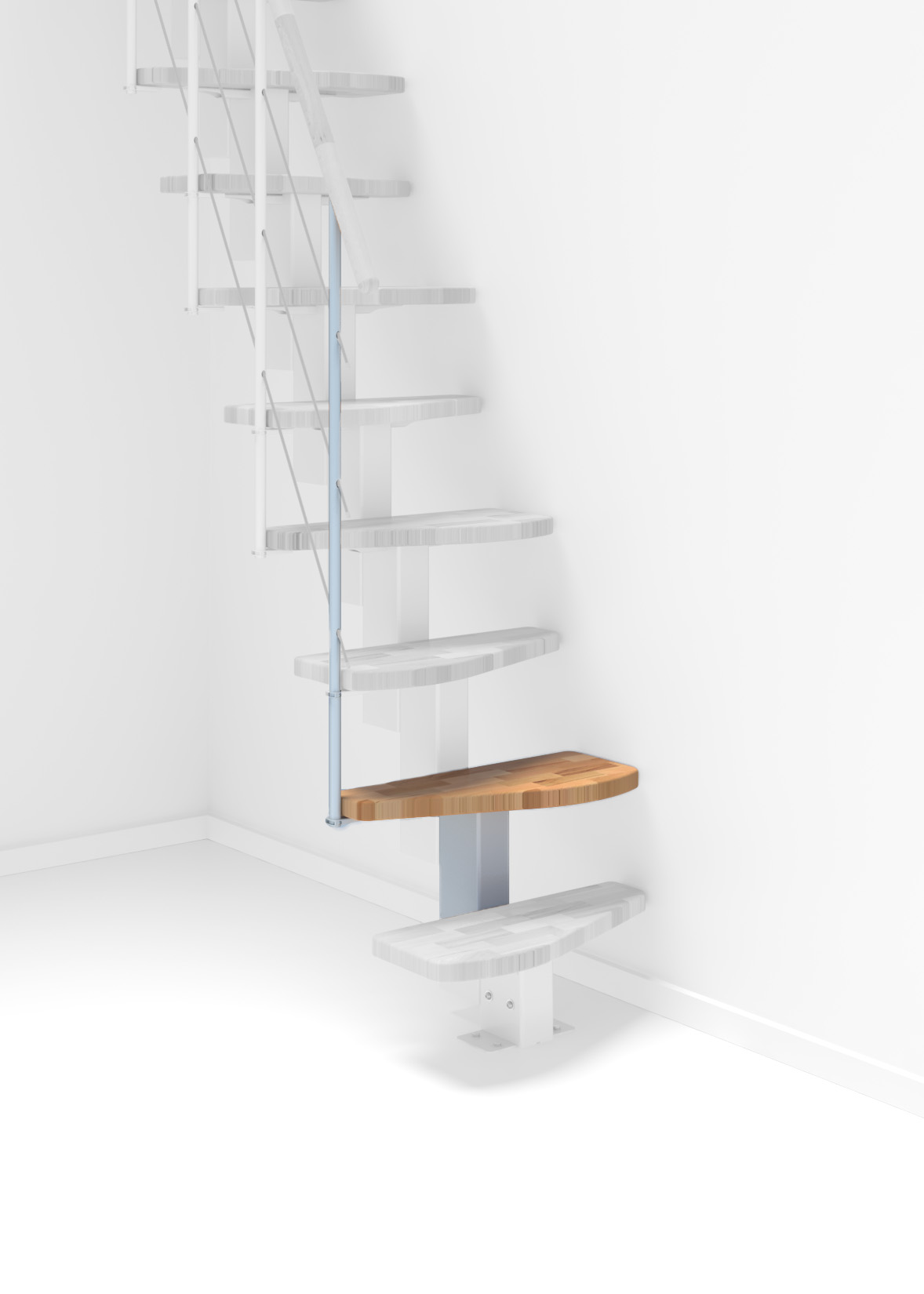

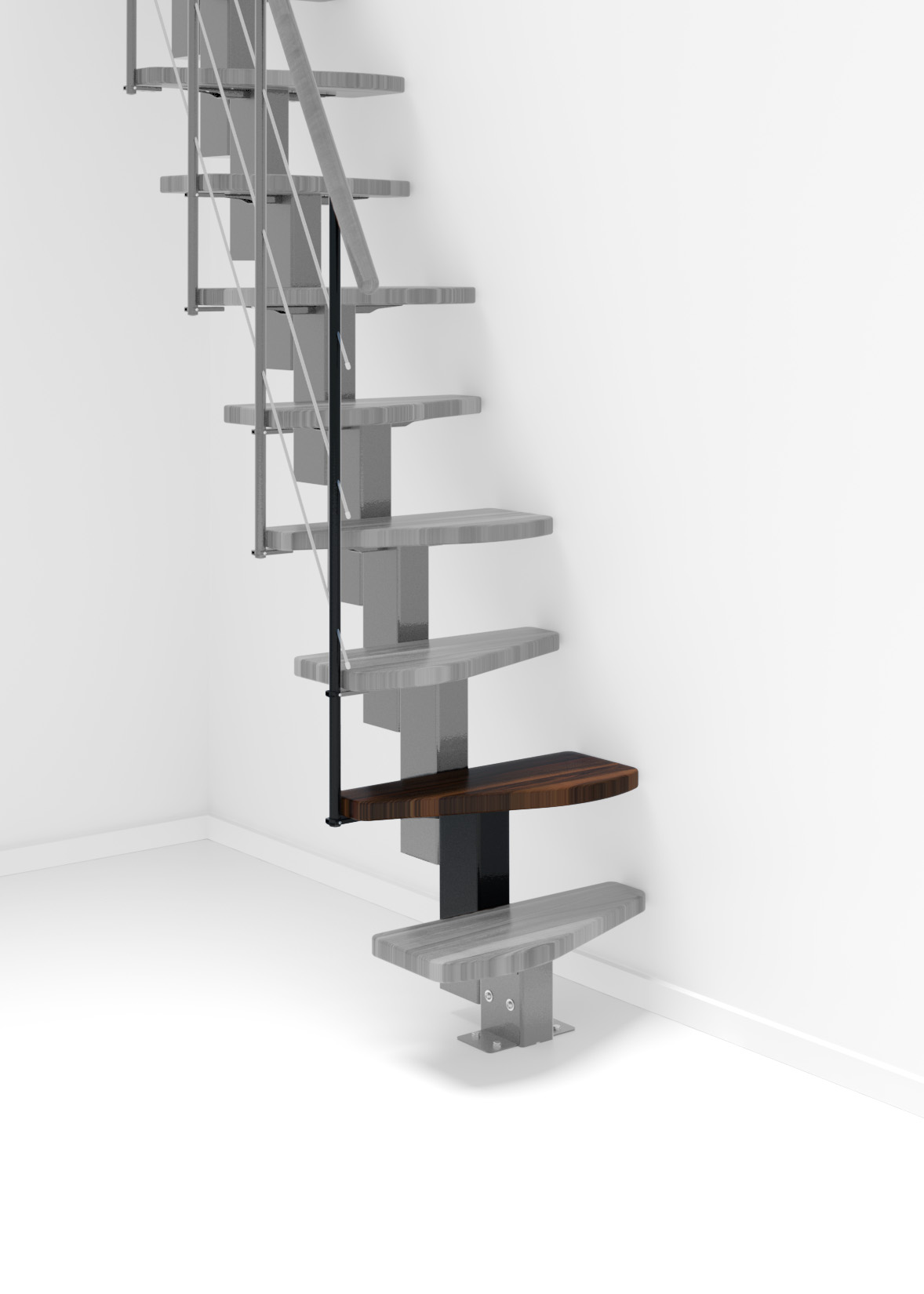

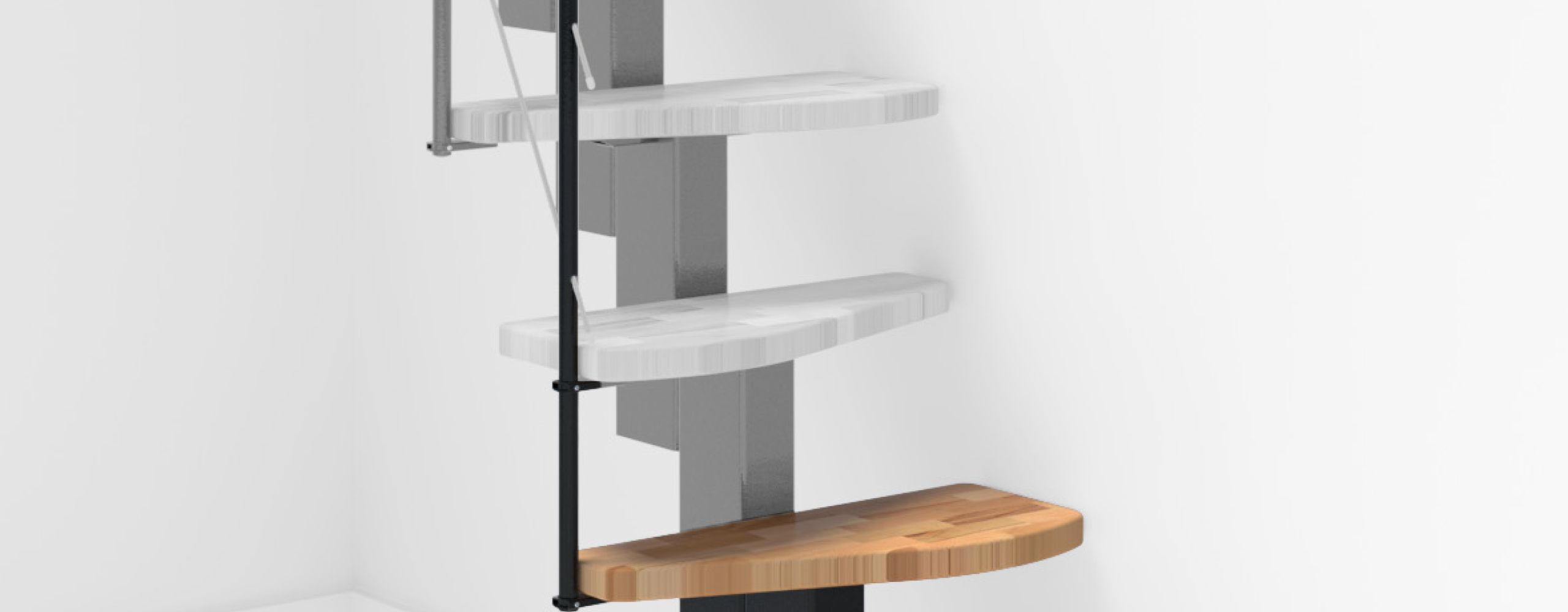

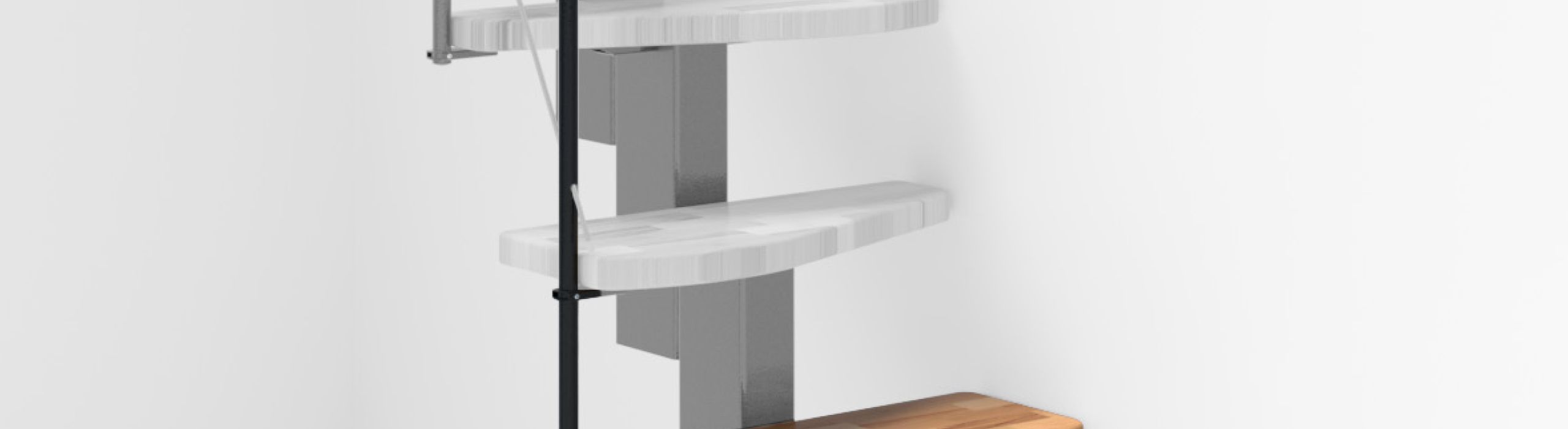

The height extension for the space-saving staircases Quatro and Quatro Turn consists of a wooden step, a rectangular support element and the corresponding accessories for assembly. Please make sure to configure the height extension in the same wood and metal colour as your staircase.

With this height extension, you can extend the Quatro or Quatro Turn space-saving staircases by 190-230 mm. Thus you achieve a total storey height of max. 3210 mm if you install one additional step.

Please install a maximum of one height extension with these staircases! If two or more additional steps are installed, stability is no longer guaranteed.

Technical data

Basic data
Steps Beech lacquered or beech stained to walnut
Handrail Beech lacquered or beech stained to walnut
Metal parts Steel powder-coated in grey, black or white
Bottom chords Stainless Steel
Dimensions Quatro
Basic size 1675 x 650 mm
Max. storey height 2980 mm
Max. storey height with one height extension 3210 mm
Tread depth 210 mm
Rise per step 190 - 230 mm
Free passage width 600 mm
Tread thickness 35 mm
Railing height 900 mm
Railing rod diameter 22 mm
Handrail diameter 40 mm
Number of steps 13
Dimensions Quatro Turn
Max. storey height 2980 mm
Max. storey height with one height extension 3210 mm
Tread depth 210 mm
Rise per step 190 - 230 mm
Free passage width 600 mm
Tread thickness 35 mm
Railing height 900 mm
Railing rod diameter 22 mm
Handrail diameter 40 mm
Number of steps 12 + 1 platform

Downloads

Assembly instructions Quatro

Assembly instructions Quatro Turn

Technical datasheet Quatro

Technical datasheet Quatro Turn
