Spiral Wood
- Sturdy spiral staircase with steps and handrail in lacquered solid wood
- Four wood variants for steps: Beech, walnut, oak and white
- Bar railing and spindle made of powder-coated steel
- Metal parts available in three different colours: black, grey and white
- Three possible diameters: 120, 140 or 160 cm
- Maximum storey height: 3055 mm
€ 2,839.20 – € 3,583.20 incl. Tax excl. Shipping Costs*
-
Description

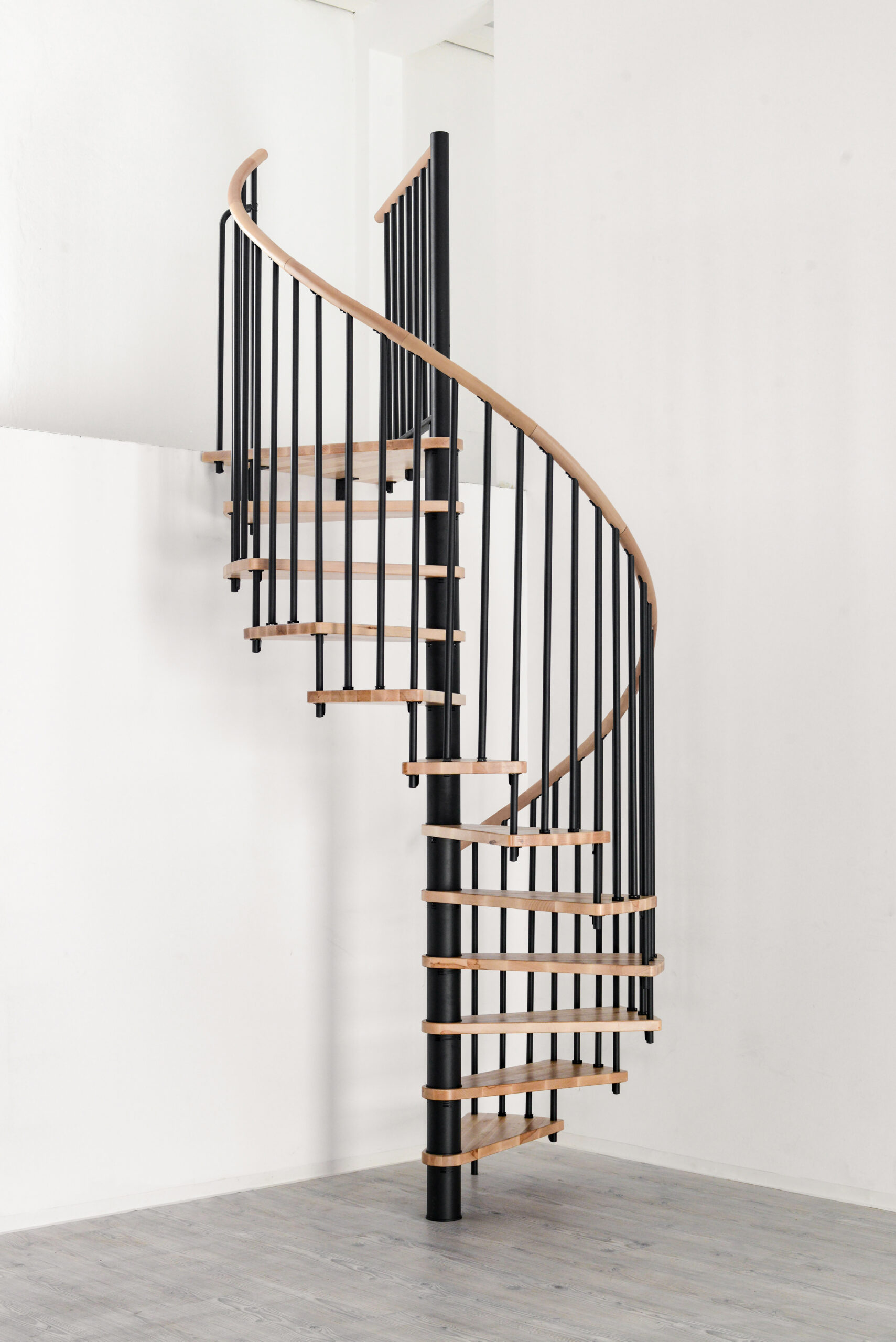

A steel frame combined with 35 mm thick steps and a handrail made of real solid wood – the staircase Spiral Wood is the epitome of stability. The bar railing provides additional safety when climbing the stairs. This also makes the Spiral Wood the ideal choice for families.
Flexible design.
With the spiral staircase Spiral Wood, the personalisation options are particularly extensive. The wood of the steps and handrail can be chosen in four different colours: Beech, beech stained to walnut, oak and beech stained white. To match the type of wood, the metal parts can be powder-coated in black, grey or white.
But the Spiral Wood also offers choice in terms of size – depending on the space available, you can opt for a diameter of 120, 140 or 160 cm. This means that a total of 36 different configurations are possible.
Sustainable use.
The wood of the steps and the handrail are covered with a high-quality lacquer. For the metal parts, the powder coating ensures a long service life for the materials. This means that the spiral staircase Spiral Wood can withstand scratches and other wear and tear for a very long time.
-
Technical data
Basic dataSteps Beech, oak, beech stained to walnut or beech stained whiteHandrail Beech, oak, beech stained to walnut or beech stained whiteWood surface Transparent lacqueredSpindle tubes Steel powder-coated in grey, black or whiteRailing rods Steel powder-coated in grey, black or whiteNumber of steps 12 + 1 platformSpiral Wood 120Radius 600 mmMax. storey height 3055 mmMax. storey height with one height extension 3290 mmMax. storey height with two height extensions 3525 mmTread depth 210 mmFree passage width 486 mmTread thickness 35 mmRise per step 190-235 mmRotation per step 30,2°Platform width 650 mmRotation of platform 50°Spindle diameter 108 mmRailing height 1000 mmHandrail diameter 40 mmSpiral Wood 140Radius 700 mmMax. storey height 3055 mmMax. storey height with one height extension 3290 mmMax. storey height with two height extensions 3525 mmTread depth 236 mmFree passage width 586 mmTread thickness 35 mmRise per step 190-235 mmRotation per step 26,2°Platform width 750 mmRotation of platform 50°Spindle diameter 108 mmRailing height 1000 mmHandrail diameter 40 mmSpiral Wood 160Radius 800 mmMax. storey height 3055 mmMax. storey height with one height extension 3290 mmMax. storey height with two height extensions 3525 mmTread depth 244 mmFree passage width 686 mmTread thickness 35 mmRise per step 190-235 mmRotation per step 22,2°Platform width 850 mmRotation of platform 50°Spindle diameter 108 mmRailing height 1000 mmHandrail diameter 40 mm -
Downloads
Matching products
-

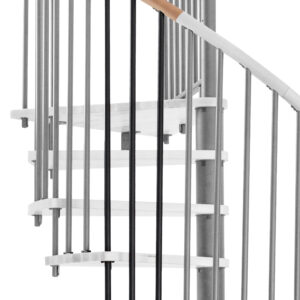

Height extension for Spiral Wood
