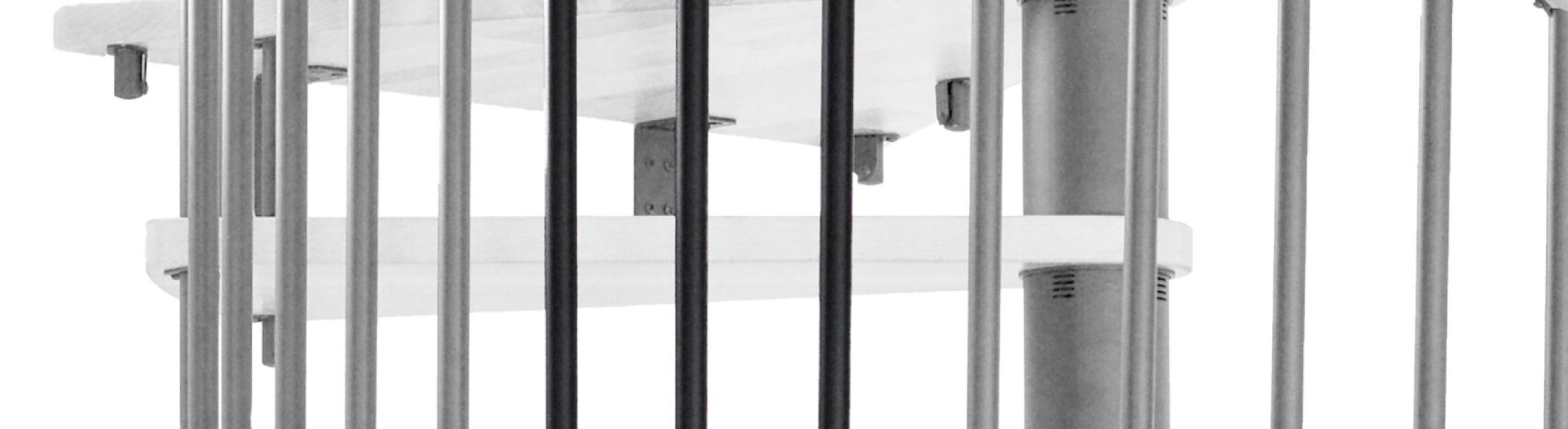

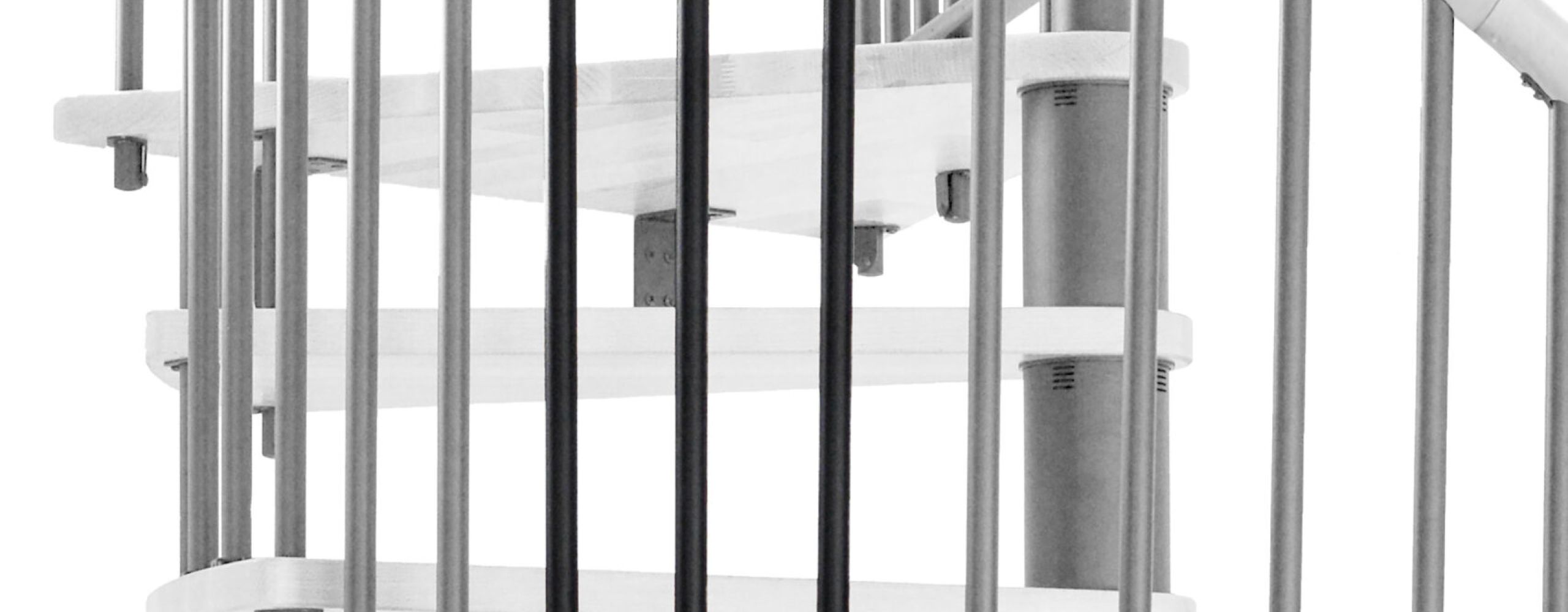

Height extension Spiral Wood beech black
Height extension Spiral Wood beech black
Height extension Spiral Wood white black
Height extension Spiral Wood walnut grey
Height extension Spiral Wood oak black

Height extension for Spiral Wood

  • Additional step for spiral staircase Spiral Wood
  • Extension of Spiral Wood by 190-235 mm
  • Maximum attainable storey height with one height extension: 3290 mm
  • Maximum attainable storey height with two height extensions: 3525 mm
  • When purchasing, please ensure that the height extension has the same configuration as your staircase and install a maximum of two height extensions per staircase.

Export as PDF
Add to wishlist

333,60 € incl. tax excl. shipping costs*

SKU: N/A Category: Tags: ,

Description

The height extension for the spiral staircase Spiral Wood consists of an additional wooden step, a spindle tube and several metal rods for the railing. The steel elements can be powder-coated in black, grey or white. The steps are available in diameters of 120, 140 and 160 cm and in the wood tones beech, walnut, oak and white. When configuring the height extension, please make sure that you select the same features as for your staircase.

With one additional spindle element and one additional step, the spiral staircase Spiral Wood can be extended by 190-235 mm. In total, with one height extension you reach a maximum storey height of 3290 mm. If you install two height extensions, you can achieve floors with a height of up to 3525 mm.

Please install a maximum of two height extensions per staircase! If three or more additional steps are installed, stability is no longer guaranteed.

Technical data

Basic data
Steps Beech, oak, beech stained to walnut or beech stained white
Handrail Beech, oak, beech stained to walnut or beech stained white
Wood surface Transparent lacquered
Spindle tubes Steel powder-coated in grey, black or white
Railing rods Steel powder-coated in grey, black or white
Number of steps 12 + 1 platform
Spiral Wood 120
Radius 600 mm
Max. storey height 3055 mm
Max. storey height with one height extension 3290 mm
Max. storey height with two height extensions 3525 mm
Tread depth 210 mm
Free passage width 486 mm
Tread thickness 35 mm
Rise per step 190-235 mm
Rotation per step 30,2°
Platform width 650 mm
Rotation of platform 50°
Spindle diameter 108 mm
Railing height 1000 mm
Handrail diameter 40 mm
Spiral Wood 140
Radius 700 mm
Max. storey height 3055 mm
Max. storey height with one height extension 3290 mm
Max. storey height with two height extensions 3525 mm
Tread depth 236 mm
Free passage width 586 mm
Tread thickness 35 mm
Rise per step 190-235 mm
Rotation per step 26,2°
Platform width 750 mm
Rotation of platform 50°
Spindle diameter 108 mm
Railing height 1000 mm
Handrail diameter 40 mm
Spiral Wood 160
Radius 800 mm
Max. storey height 3055 mm
Max. storey height with one height extension 3290 mm
Max. storey height with two height extensions 3525 mm
Tread depth 244 mm
Free passage width 686 mm
Tread thickness 35 mm
Rise per step 190-235 mm
Rotation per step 22,2°
Platform width 850 mm
Rotation of platform 50°
Spindle diameter 108 mm
Railing height 1000 mm
Handrail diameter 40 mm

Downloads

Assembly instructions height extension

Assembly instructions staircase

Technical datasheet
