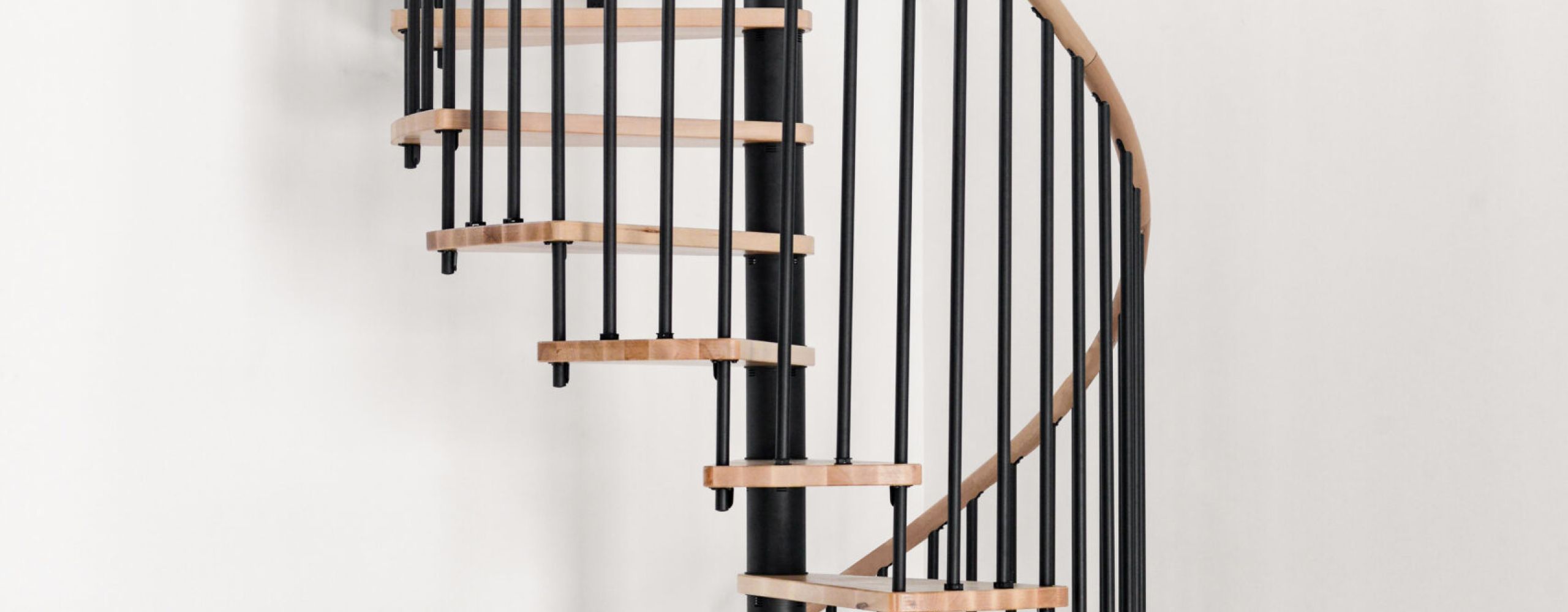

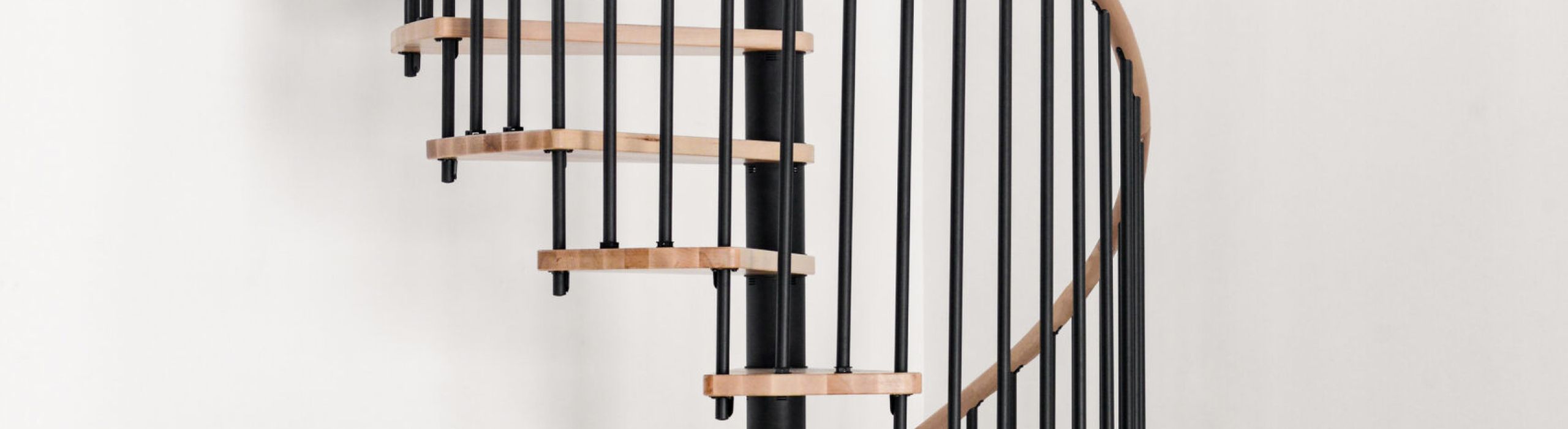

Spiral staircase Spiral Wood

Spiral Wood

  • Sturdy spiral staircase with steps and handrail in lacquered solid wood
  • Four wood variants for steps: Beech, walnut, oak and white
  • Bar railing and spindle made of powder-coated steel
  • Metal parts available in three different colours: black, grey and white
  • Three possible diameters: 120, 140 or 160 cm
  • Maximum storey height: 3055 mm

Hier soll der Validierungstext stehen.Die Treppe ist für diese Raumhöhe geeignet.

 2,839.20 3,583.20 incl. Tax excl. Shipping Costs*

  • Description

    A steel frame combined with 35 mm thick steps and a handrail made of real solid wood – the staircase Spiral Wood is the epitome of stability. The bar railing provides additional safety when climbing the stairs. This also makes the Spiral Wood the ideal choice for families.

    Flexible design.

    With the spiral staircase Spiral Wood, the personalisation options are particularly extensive. The wood of the steps and handrail can be chosen in four different colours: Beech, beech stained to walnut, oak and beech stained white. To match the type of wood, the metal parts can be powder-coated in black, grey or white.

    But the Spiral Wood also offers choice in terms of size – depending on the space available, you can opt for a diameter of 120, 140 or 160 cm. This means that a total of 36 different configurations are possible.

    Sustainable use.

    The wood of the steps and the handrail are covered with a high-quality lacquer. For the metal parts, the powder coating ensures a long service life for the materials. This means that the spiral staircase Spiral Wood can withstand scratches and other wear and tear for a very long time.

  • Technical data

    Basic data
    Steps Beech, oak, beech stained to walnut or beech stained white
    Handrail Beech, oak, beech stained to walnut or beech stained white
    Wood surface Transparent lacquered
    Spindle tubes Steel powder-coated in grey, black or white
    Railing rods Steel powder-coated in grey, black or white
    Number of steps 12 + 1 platform
    Spiral Wood 120
    Radius 600 mm
    Max. storey height 3055 mm
    Max. storey height with one height extension 3290 mm
    Max. storey height with two height extensions 3525 mm
    Tread depth 210 mm
    Free passage width 486 mm
    Tread thickness 35 mm
    Rise per step 190-235 mm
    Rotation per step 30,2°
    Platform width 650 mm
    Rotation of platform 50°
    Spindle diameter 108 mm
    Railing height 1000 mm
    Handrail diameter 40 mm
    Spiral Wood 140
    Radius 700 mm
    Max. storey height 3055 mm
    Max. storey height with one height extension 3290 mm
    Max. storey height with two height extensions 3525 mm
    Tread depth 236 mm
    Free passage width 586 mm
    Tread thickness 35 mm
    Rise per step 190-235 mm
    Rotation per step 26,2°
    Platform width 750 mm
    Rotation of platform 50°
    Spindle diameter 108 mm
    Railing height 1000 mm
    Handrail diameter 40 mm
    Spiral Wood 160
    Radius 800 mm
    Max. storey height 3055 mm
    Max. storey height with one height extension 3290 mm
    Max. storey height with two height extensions 3525 mm
    Tread depth 244 mm
    Free passage width 686 mm
    Tread thickness 35 mm
    Rise per step 190-235 mm
    Rotation per step 22,2°
    Platform width 850 mm
    Rotation of platform 50°
    Spindle diameter 108 mm
    Railing height 1000 mm
    Handrail diameter 40 mm
