Height extension for Spiral Wood
- Additional step for spiral staircase Spiral Wood
- Extension of Spiral Wood by 190-235 mm
- Maximum attainable storey height with one height extension: 3290 mm
- Maximum attainable storey height with two height extensions: 3525 mm
- When purchasing, please ensure that the height extension has the same configuration as your staircase and install a maximum of two height extensions per staircase.
€ 333.60 incl. Tax excl. Shipping Costs*
-
Description

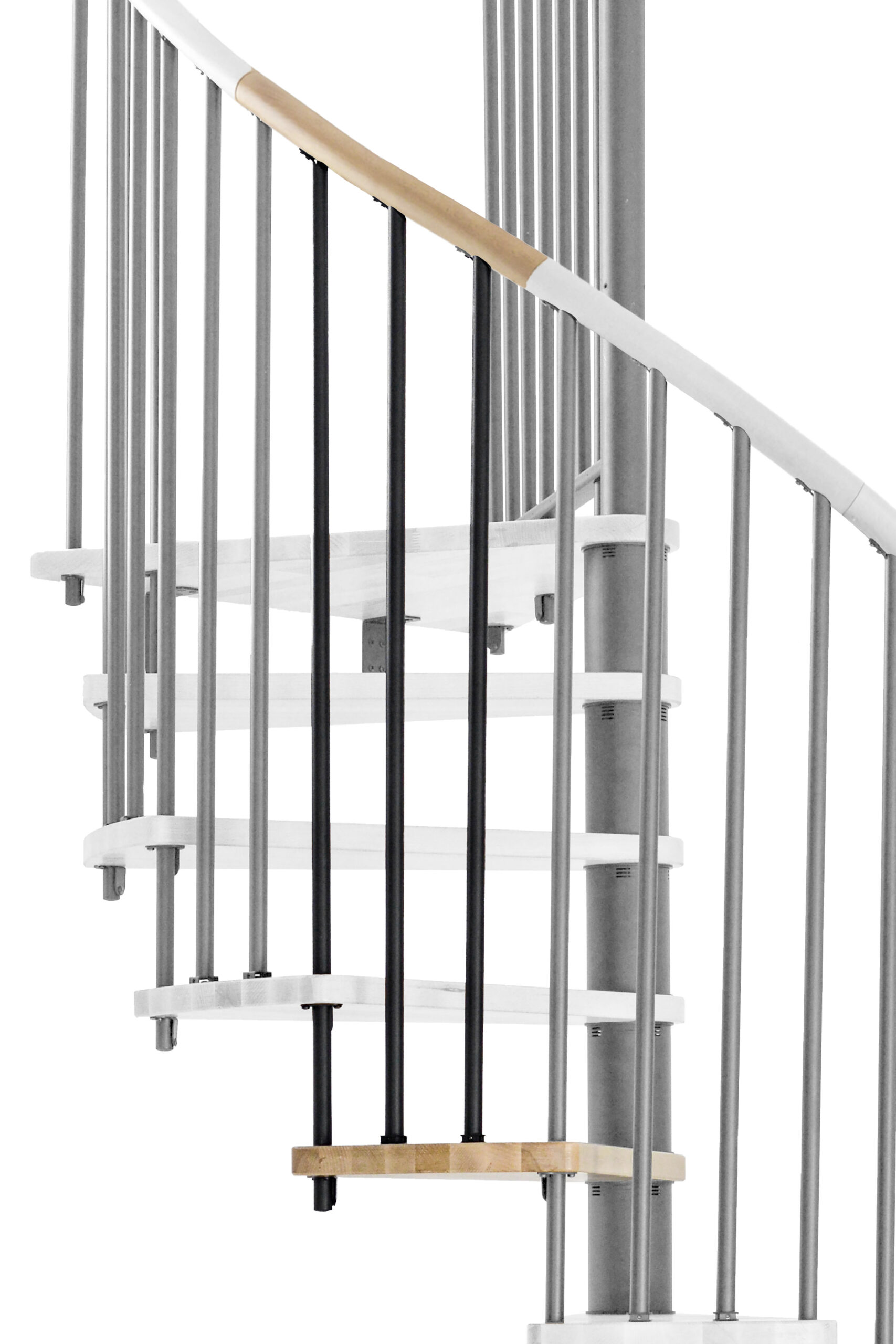

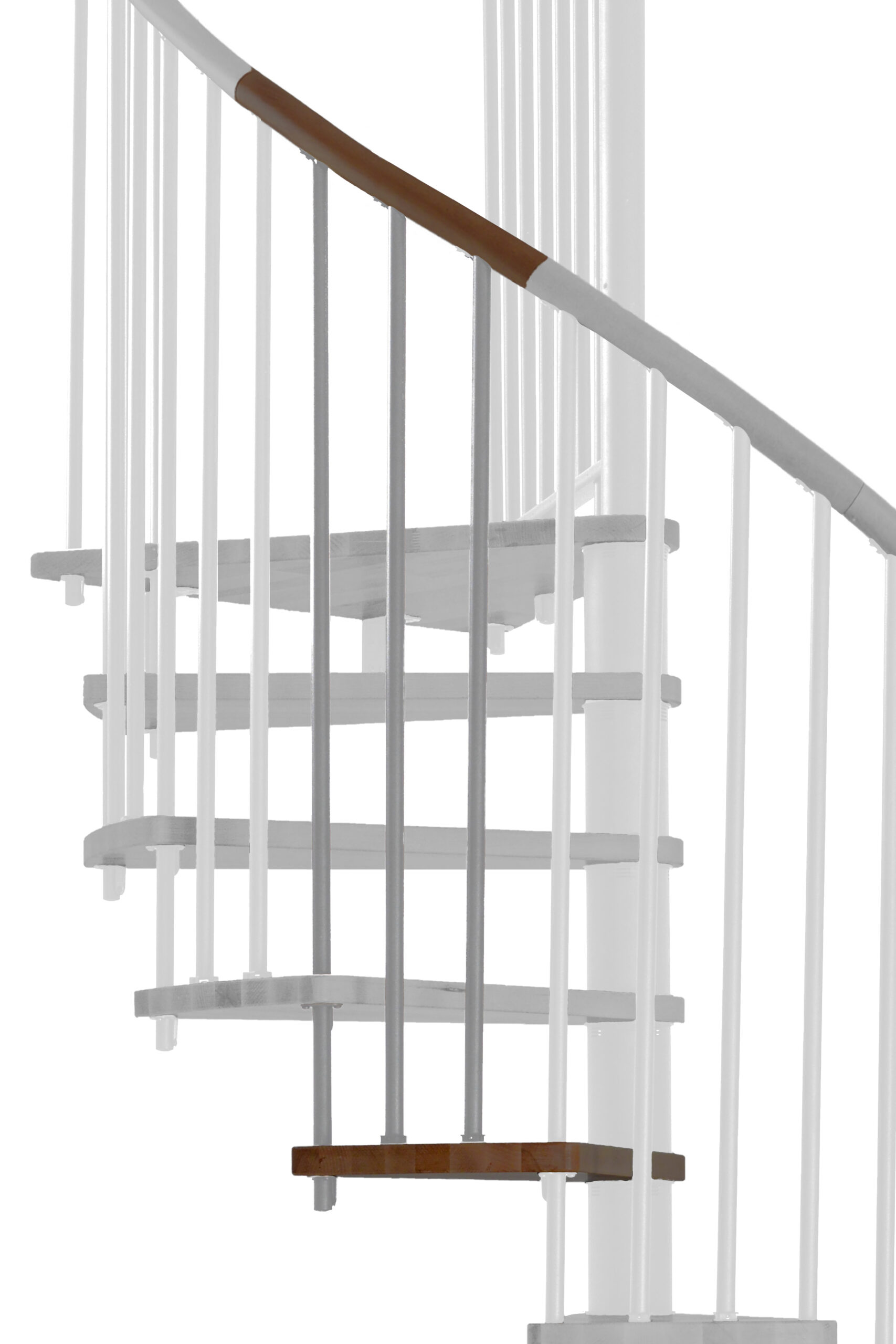

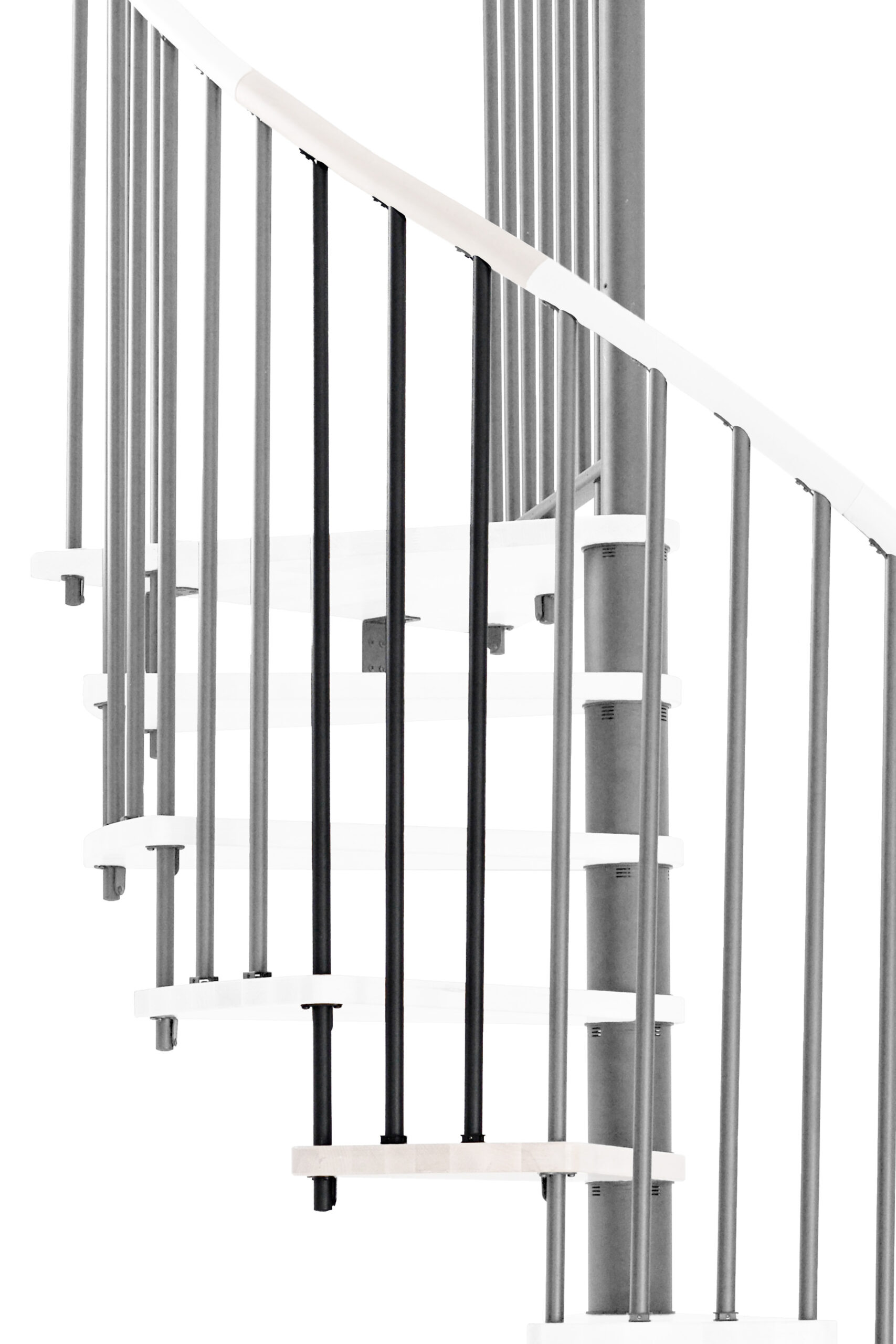

The height extension for the spiral staircase Spiral Wood consists of an additional wooden step, a spindle tube and several metal rods for the railing. The steel elements can be powder-coated in black, grey or white. The steps are available in diameters of 120, 140 and 160 cm and in the wood tones beech, walnut, oak and white. When configuring the height extension, please make sure that you select the same features as for your staircase.
With one additional spindle element and one additional step, the spiral staircase Spiral Wood can be extended by 190-235 mm. In total, with one height extension you reach a maximum storey height of 3290 mm. If you install two height extensions, you can achieve floors with a height of up to 3525 mm.
Please install a maximum of two height extensions per staircase! If three or more additional steps are installed, stability is no longer guaranteed.
-
Technical data
Basic dataSteps Beech, oak, beech stained to walnut or beech stained whiteHandrail Beech, oak, beech stained to walnut or beech stained whiteWood surface Transparent lacqueredSpindle tubes Steel powder-coated in grey, black or whiteRailing rods Steel powder-coated in grey, black or whiteNumber of steps 12 + 1 platformSpiral Wood 120Radius 600 mmMax. storey height 3055 mmMax. storey height with one height extension 3290 mmMax. storey height with two height extensions 3525 mmTread depth 210 mmFree passage width 486 mmTread thickness 35 mmRise per step 190-235 mmRotation per step 30,2°Platform width 650 mmRotation of platform 50°Spindle diameter 108 mmRailing height 1000 mmHandrail diameter 40 mmSpiral Wood 140Radius 700 mmMax. storey height 3055 mmMax. storey height with one height extension 3290 mmMax. storey height with two height extensions 3525 mmTread depth 236 mmFree passage width 586 mmTread thickness 35 mmRise per step 190-235 mmRotation per step 26,2°Platform width 750 mmRotation of platform 50°Spindle diameter 108 mmRailing height 1000 mmHandrail diameter 40 mmSpiral Wood 160Radius 800 mmMax. storey height 3055 mmMax. storey height with one height extension 3290 mmMax. storey height with two height extensions 3525 mmTread depth 244 mmFree passage width 686 mmTread thickness 35 mmRise per step 190-235 mmRotation per step 22,2°Platform width 850 mmRotation of platform 50°Spindle diameter 108 mmRailing height 1000 mmHandrail diameter 40 mm -
