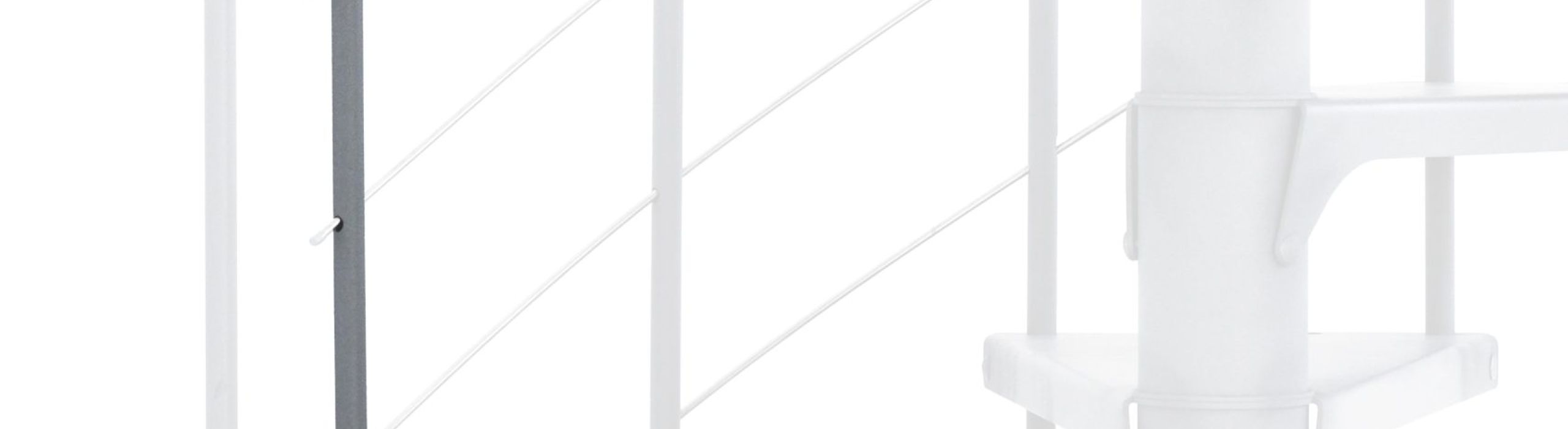

Height extension Spino Smart grey

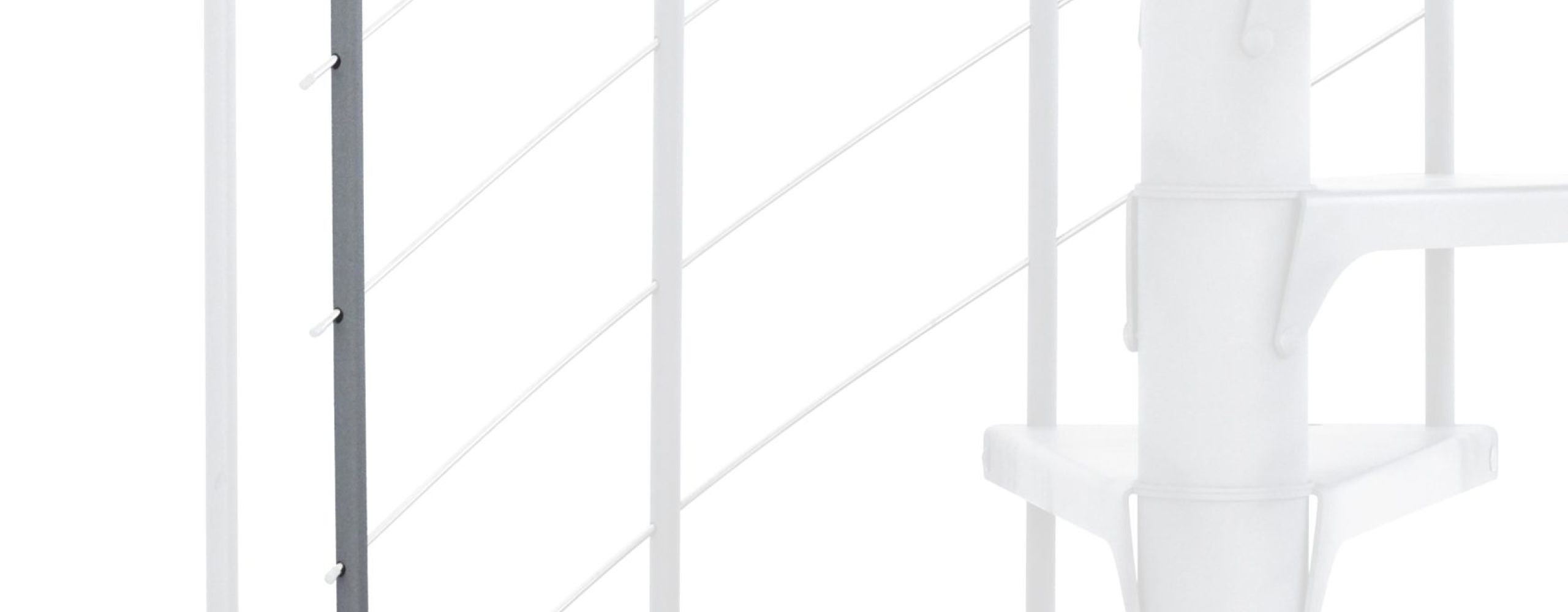

Height extension Spino Smart grey
Height extension Spino Smart black
Height extension Spino Smart white

Height extension for Spino Smart

COMING SOON
  • Additional step for spiral staircase Spino Smart
  • Extension of Spino Smart by 190-235 mm
  • Maximum attainable storey height with one height extension: 3290 mm
  • Maximum attainable storey height with two height extensions: 3525 mm
  • When purchasing, please ensure that the height extension has the same configuration as your staircase and install a maximum of two height extensions per staircase.

Export as PDF
Add to wishlist

€ 333.60 incl. Tax excl. Shipping Costs*

SKU: N/A Category: Tags: ,

  • Description

    The scope of delivery of the height extension for the spiral staircase Spino Smart includes an additional metal step, a spindle tube and matching railing parts. Just like the staircase, the height extension is available in the colours black, grey and white and in diameters of 120, 140 and 160 cm. When purchasing, please make sure to configure the height extension in the same colour and size as your staircase.

    With one additional spindle element including step, you can extend the height of your Spino Smart by 190 to 235 mm. With one height extension, you can achieve a total storey height of up to 3290 mm. If you install two additional steps, the staircase even reaches a height of 3525 mm.

    Please install a maximum of two height extensions per staircase! If three or more additional steps are installed, stability is no longer guaranteed.

  • Technical data

    Basic data
    Steps Steel powder-coated in grey, black or white
    Spindle tubes Steel powder-coated in grey, black or white
    Railing rods Steel powder-coated in grey, black or white
    Bottom chords Stainless Steel
    Handrail PVC grey, black or white
    Number of steps 12 + 1 platform
    120
    Radius 600 mm
    Max. storey height 3055 mm
    Max. storey height with one height extension 3290 mm
    Max. storey height with two height extensions 3525 mm
    Tread depth 196 mm
    Free passage width 486 mm
    Tread thickness 4 mm
    Rise per step 190-235 mm
    Rotation per step 29,6°
    Platform width 650 mm
    Rotation of platform 54°
    Spindle diameter 108 mm
    Railing height 1000 mm
    Handrail diameter 40 mm
    140
    Radius 700 mm
    Max. storey height 3055 mm
    Max. storey height with one height extension 3290 mm
    Max. storey height with two height extensions 3525 mm
    Tread depth 213 mm
    Free passage width 586 mm
    Tread thickness 4 mm
    Rise per step 190-235 mm
    Rotation per step 25°
    Platform width 750 mm
    Rotation of platform 54°
    Spindle diameter 108 mm
    Railing height 1000 mm
    Handrail diameter 40 mm
    160
    Radius 800 mm
    Max. storey height 3055 mm
    Max. storey height with one height extension 3290 mm
    Max. storey height with two height extensions 3525 mm
    Tread depth 223 mm
    Free passage width 686 mm
    Tread thickness 4 mm
    Rise per step 190-235 mm
    Rotation per step 21,9°
    Platform width 850 mm
    Rotation of platform 54°
    Spindle diameter 108 mm
    Railing height 1000 mm
    Handrail diameter 40 mm

  • Downloads

    Assembly instructions

    Technical datasheet
