Height extension Spino Smart grey

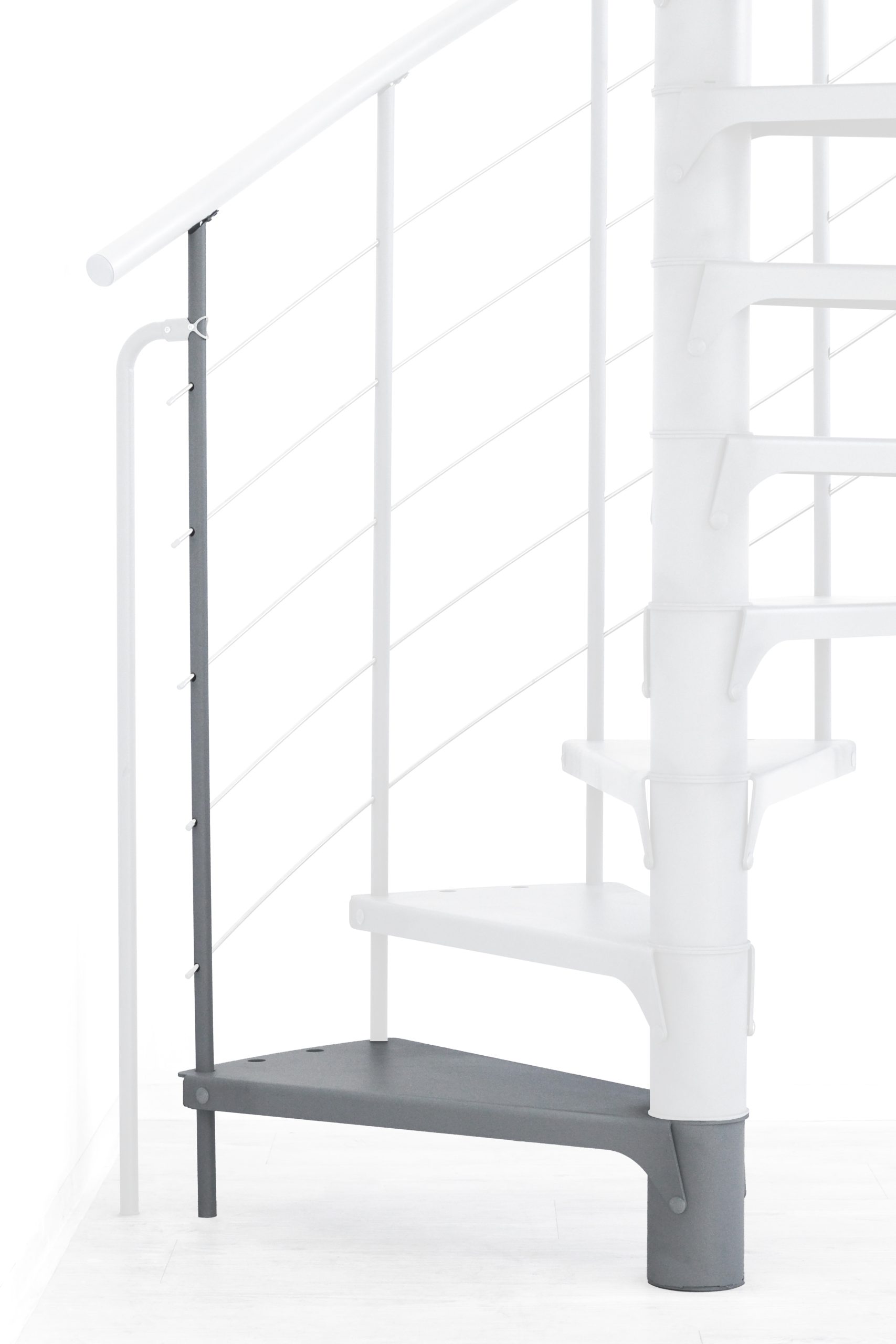

Height extension Spino Smart grey
Height extension Spino Smart black

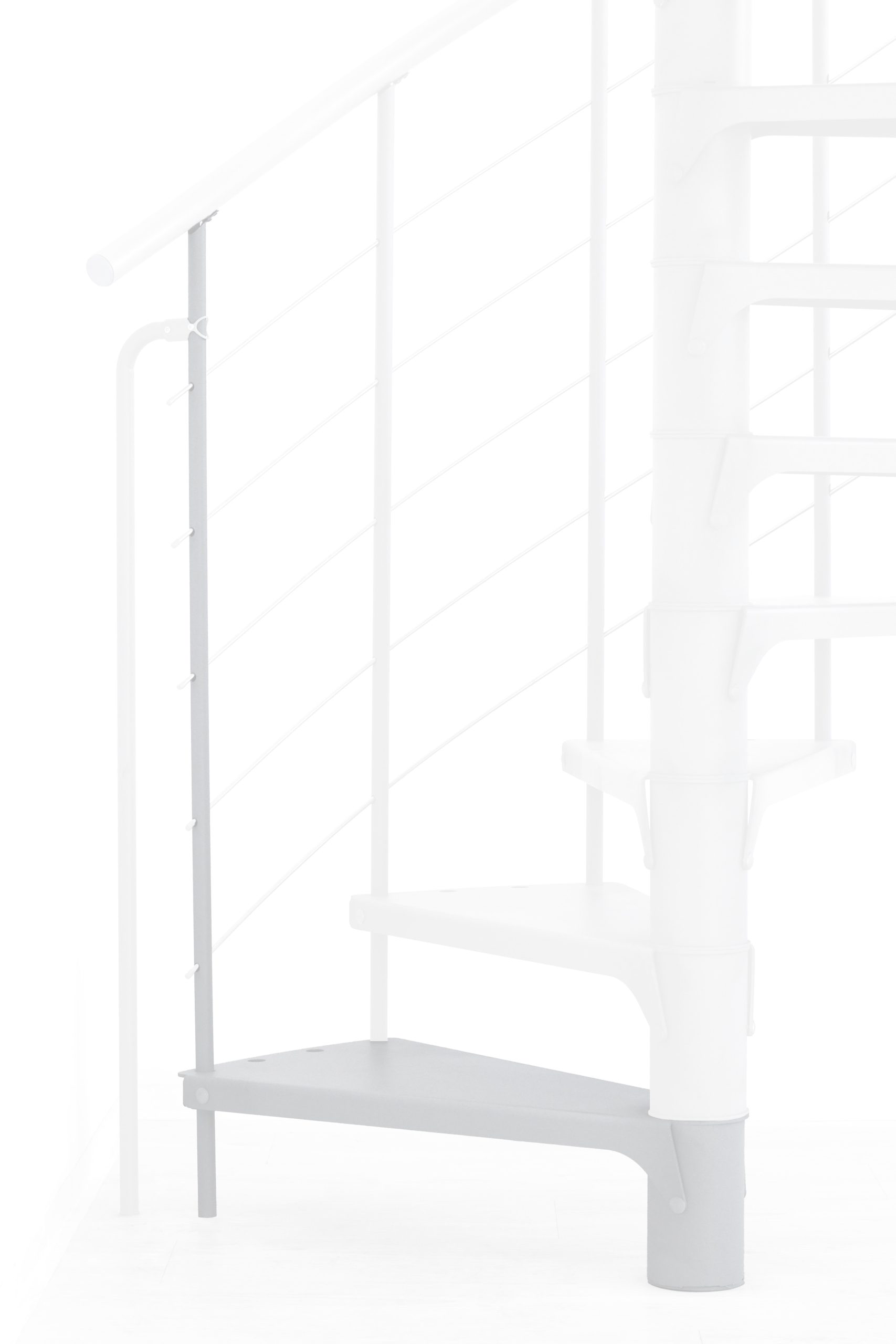

Height extension Spino Smart white

Height extension for Spino Smart

COMING SOON
  • Additional step for spiral staircase Spino Smart
  • Extension of Spino Smart by 190-235 mm
  • Maximum attainable storey height with one height extension: 3290 mm
  • Maximum attainable storey height with two height extensions: 3525 mm
  • When purchasing, please ensure that the height extension has the same configuration as your staircase and install a maximum of two height extensions per staircase.

Export as PDF
Add to wishlist

333,60 € incl. tax excl. shipping costs*

SKU: N/A Category: Tags: ,

Description

The scope of delivery of the height extension for the spiral staircase Spino Smart includes an additional metal step, a spindle tube and matching railing parts. Just like the staircase, the height extension is available in the colours black, grey and white and in diameters of 120, 140 and 160 cm. When purchasing, please make sure to configure the height extension in the same colour and size as your staircase.

With one additional spindle element including step, you can extend the height of your Spino Smart by 190 to 235 mm. With one height extension, you can achieve a total storey height of up to 3290 mm. If you install two additional steps, the staircase even reaches a height of 3525 mm.

Please install a maximum of two height extensions per staircase! If three or more additional steps are installed, stability is no longer guaranteed.

Technical data

Basic data
Steps Steel powder-coated in grey, black or white
Spindle tubes Steel powder-coated in grey, black or white
Railing rods Steel powder-coated in grey, black or white
Bottom chords Stainless Steel
Handrail PVC grey, black or white
Number of steps 12 + 1 platform
120
Radius 600 mm
Max. storey height 3055 mm
Max. storey height with one height extension 3290 mm
Max. storey height with two height extensions 3525 mm
Tread depth 196 mm
Free passage width 486 mm
Tread thickness 4 mm
Rise per step 190-235 mm
Rotation per step 29,6°
Platform width 650 mm
Rotation of platform 54°
Spindle diameter 108 mm
Railing height 1000 mm
Handrail diameter 40 mm
140
Radius 700 mm
Max. storey height 3055 mm
Max. storey height with one height extension 3290 mm
Max. storey height with two height extensions 3525 mm
Tread depth 213 mm
Free passage width 586 mm
Tread thickness 4 mm
Rise per step 190-235 mm
Rotation per step 25°
Platform width 750 mm
Rotation of platform 54°
Spindle diameter 108 mm
Railing height 1000 mm
Handrail diameter 40 mm
160
Radius 800 mm
Max. storey height 3055 mm
Max. storey height with one height extension 3290 mm
Max. storey height with two height extensions 3525 mm
Tread depth 223 mm
Free passage width 686 mm
Tread thickness 4 mm
Rise per step 190-235 mm
Rotation per step 21,9°
Platform width 850 mm
Rotation of platform 54°
Spindle diameter 108 mm
Railing height 1000 mm
Handrail diameter 40 mm

Downloads

Assembly instructions

Technical datasheet
