Spiral staircase Spino Smart

Spino Smart

COMING SOON

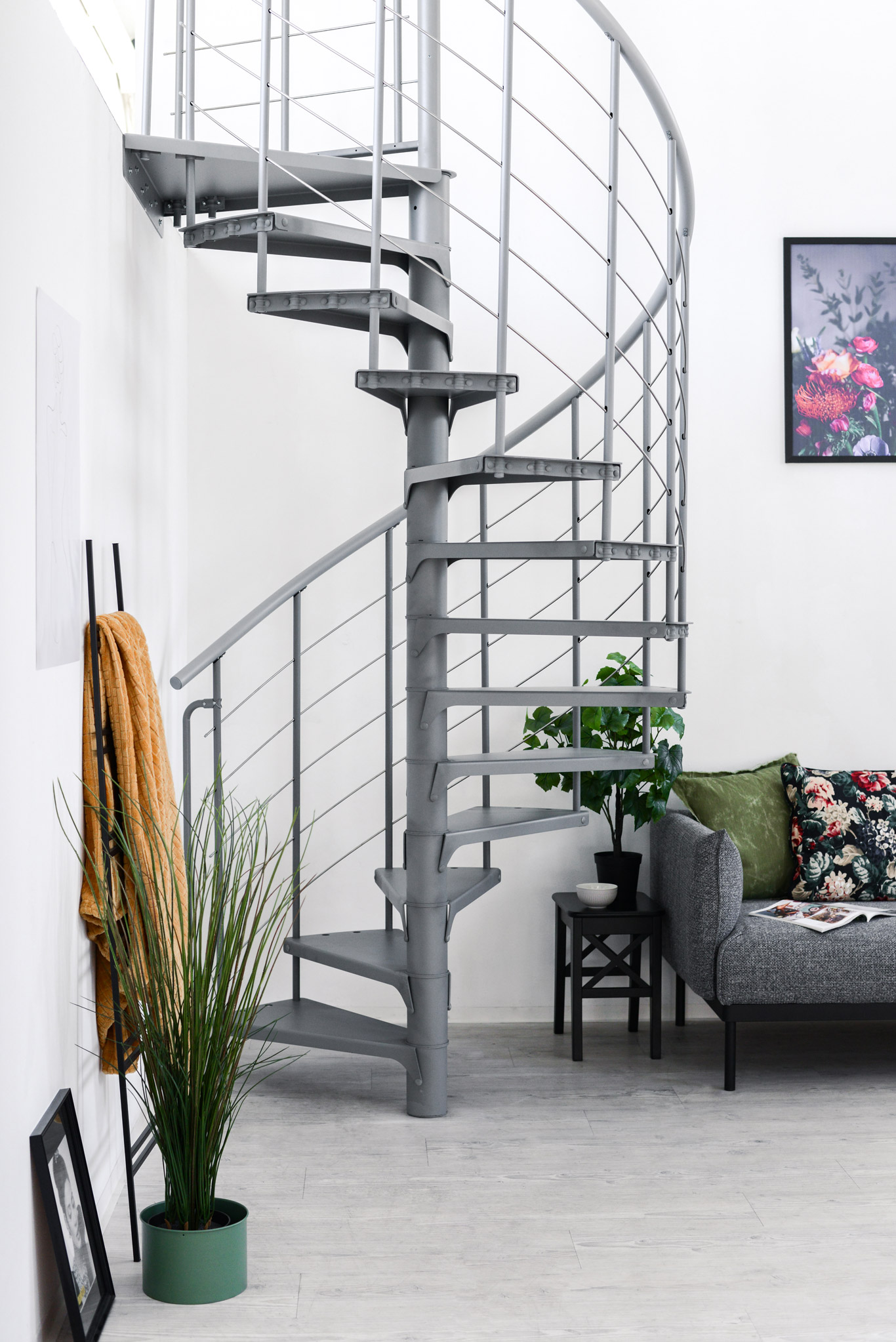

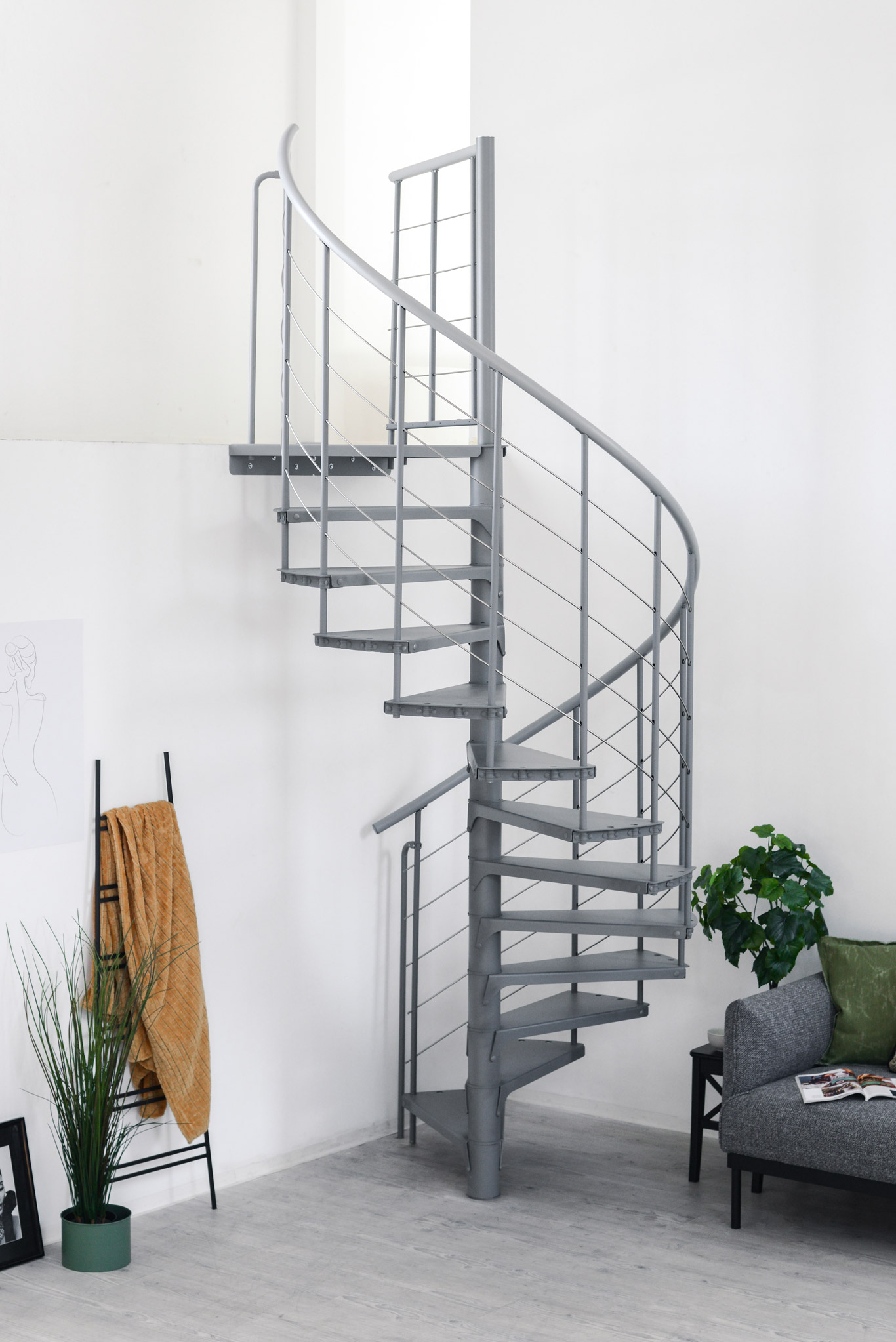

  • Striking metal spiral staircase for indoor use
  • Particularly suitable for industrial-style living spaces thanks to solid steel steps

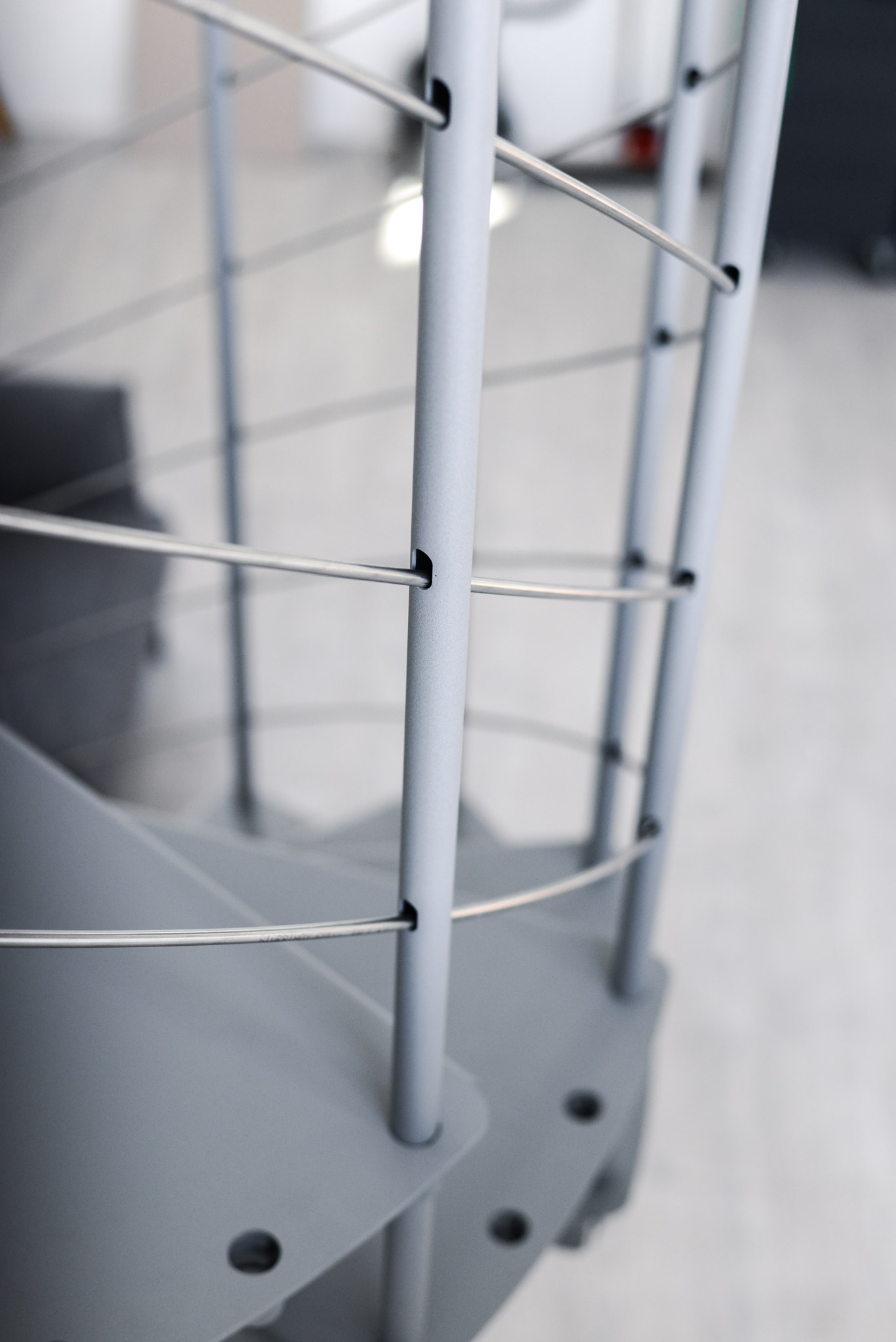

  • Railing with stainless steel bottom rails and handrail made of high quality PVC
  • Powder coated in black, grey or white
  • Three different diameters available: 120, 140 and 160 cm
  • Maximum storey height: 3055 mm

Hier soll der Validierungstext stehen.Die Treppe ist für diese Raumhöhe geeignet.

 2,612.40 2,976.00 incl. Tax excl. Shipping Costs*

Description

Bold but elegant – the Spino Smart steel spiral staircase skilfully combines solid steel steps with an elegant bottom rail banister. Especially in industrial style living rooms, the Spino Smart fits in perfectly, but it also complements various other furnishing styles.

Flexible design.

The Spino Smart spiral staircase can be powder-coated in three different colours. Those who prefer a striking look can opt for strong black. A little more discreet, in contrast, are the colour options grey and white. The latter blends particularly elegantly into the room. The Spino Smart also offers a choice of sizes: It is available in diameters of 120, 140 and 160 cm.

Sustainable use.

Since the Spino Smart is made of extremely high-quality materials, it is highly wear-resistant and has a long service life. The sturdy steel steps ensure that you can safely go up or down the staircase. The PVC handrail is comfortable to hold and provides additional support when climbing the stairs.

Technical data

Basic data

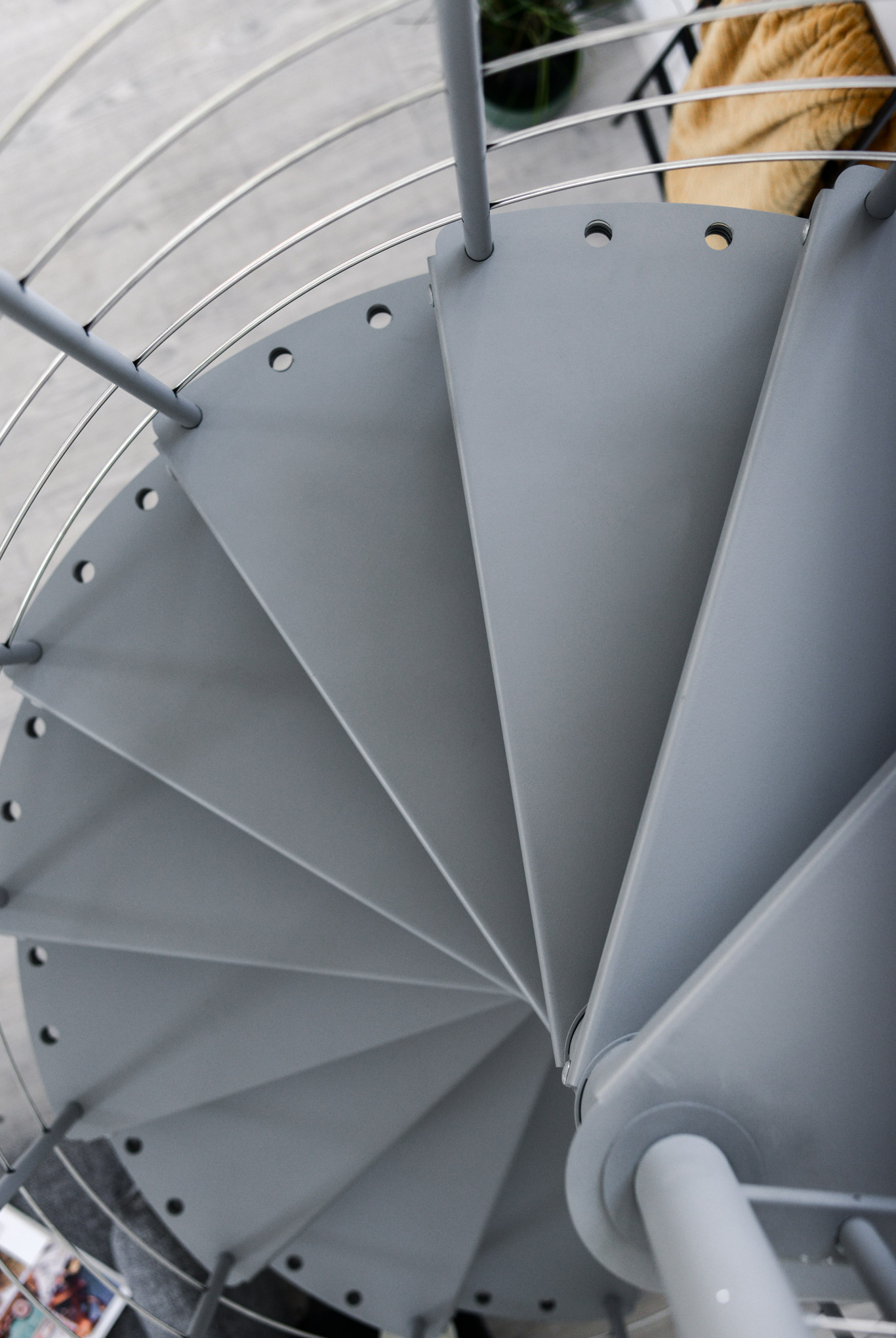

Steps Steel powder-coated in grey, black or white
Spindle tubes Steel powder-coated in grey, black or white
Railing rods Steel powder-coated in grey, black or white
Bottom chords Stainless Steel
Handrail PVC grey, black or white
Number of steps 12 + 1 platform
120
Radius 600 mm
Max. storey height 3055 mm

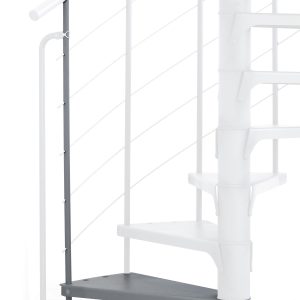

Max. storey height with one height extension 3290 mm
Max. storey height with two height extensions 3525 mm
Tread depth 196 mm
Free passage width 486 mm
Tread thickness 4 mm
Rise per step 190-235 mm
Rotation per step 29,6°
Platform width 650 mm
Rotation of platform 54°
Spindle diameter 108 mm
Railing height 1000 mm
Handrail diameter 40 mm
140
Radius 700 mm
Max. storey height 3055 mm
Max. storey height with one height extension 3290 mm
Max. storey height with two height extensions 3525 mm
Tread depth 213 mm
Free passage width 586 mm
Tread thickness 4 mm
Rise per step 190-235 mm
Rotation per step 25°
Platform width 750 mm
Rotation of platform 54°
Spindle diameter 108 mm
Railing height 1000 mm
Handrail diameter 40 mm
160
Radius 800 mm
Max. storey height 3055 mm
Max. storey height with one height extension 3290 mm
Max. storey height with two height extensions 3525 mm
Tread depth 223 mm
Free passage width 686 mm
Tread thickness 4 mm
Rise per step 190-235 mm
Rotation per step 21,9°
Platform width 850 mm
Rotation of platform 54°
Spindle diameter 108 mm
Railing height 1000 mm
Handrail diameter 40 mm

Downloads

Assembly instructions

Technical datasheet
