Spiral staircase Venezia

Venezia

  • Combination of wood and metal elements results in elegant and dynamic look
  • Particularly wide range of wood and colour variants
  • Lacquered wood in beech, walnut, white and oak
  • Powder-coated metal parts in black, grey or white
  • High-quality handrail made of lacquered wood
  • Available in a diameter of 120, 140 or 160 cm
  • Maximum storey height: 3094 mm

Hier soll der Validierungstext stehen.Die Treppe ist für diese Raumhöhe geeignet.

 2,839.20 3,583.20 incl. Tax excl. Shipping Costs*

SKU: N/A Categories: , Tags: ,
  • Description

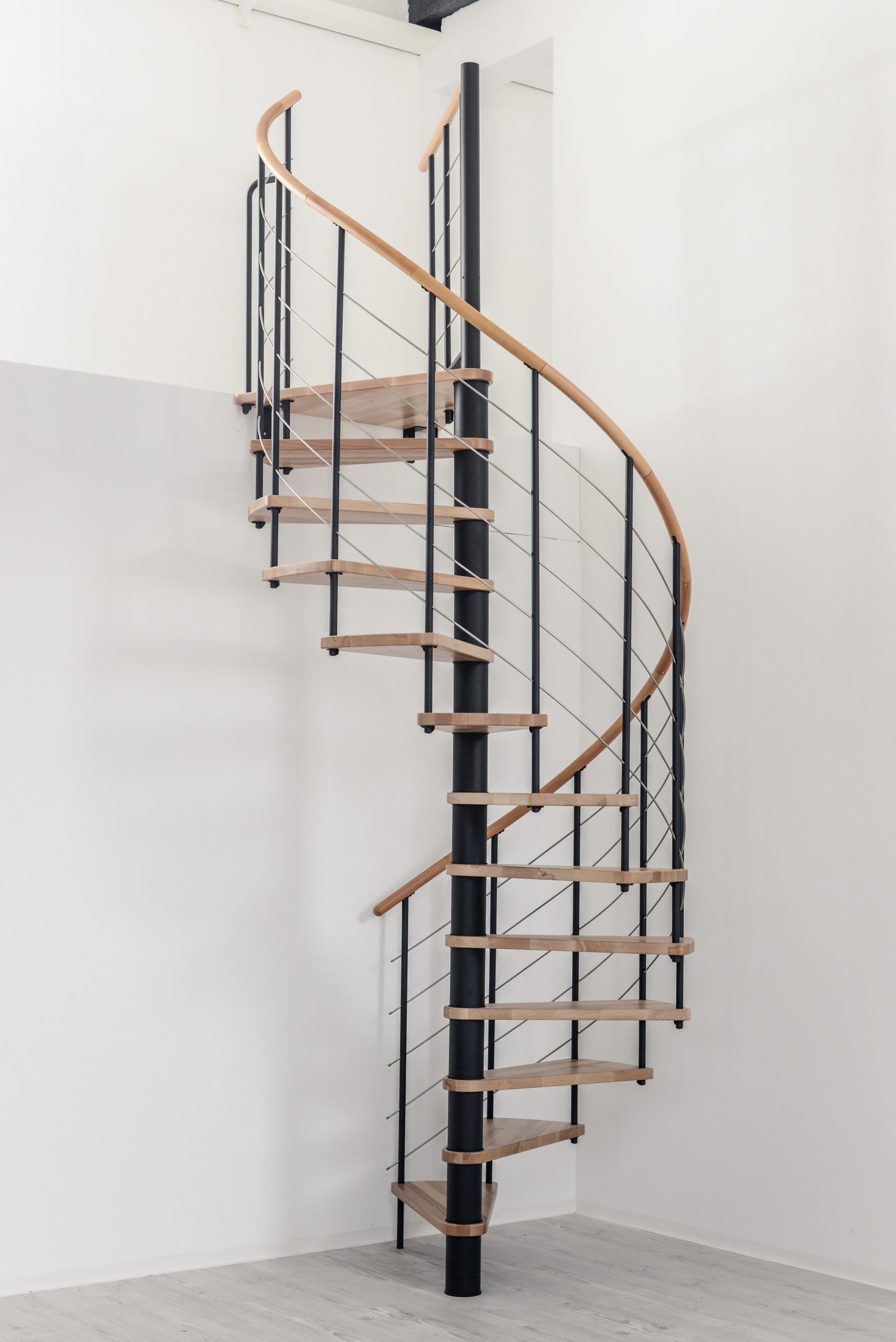

    High-quality wood combined with dynamic metal elements – that’s what makes the Venezia spiral staircase look so distinctive. The curved stainless steel lower girders wind elegantly upwards and make the Venezia a visual highlight in your home. The many wood variants ensure that the Venezia spiral staircase can be adapted to any room situation.

    Flexible design.

    The Venezia spiral staircase offers a particularly large selection of wood types. For the steps and handrail, you can choose between beech, walnut, oak and white to find the perfect match for your interior style. The metal parts are powder-coated in black, grey or white, depending on your preference. The Venezia also offers a wide range of size options with diameters of 120, 140 or 160 cm.

    Sustainable use.

    The metal parts of the Venezia are finished with a high-quality powder coating. Together with the stainless steel lower girders and the steps made of lacquered wood, the result is excellent quality and high damage resistance. With a Venezia spiral staircase from Minka, you and your family will have a safe companion on the way up for the rest of your life.

  • Technical data

    Basic data
    Steps Beech, oak, beech stained to walnut or beech white lacquered

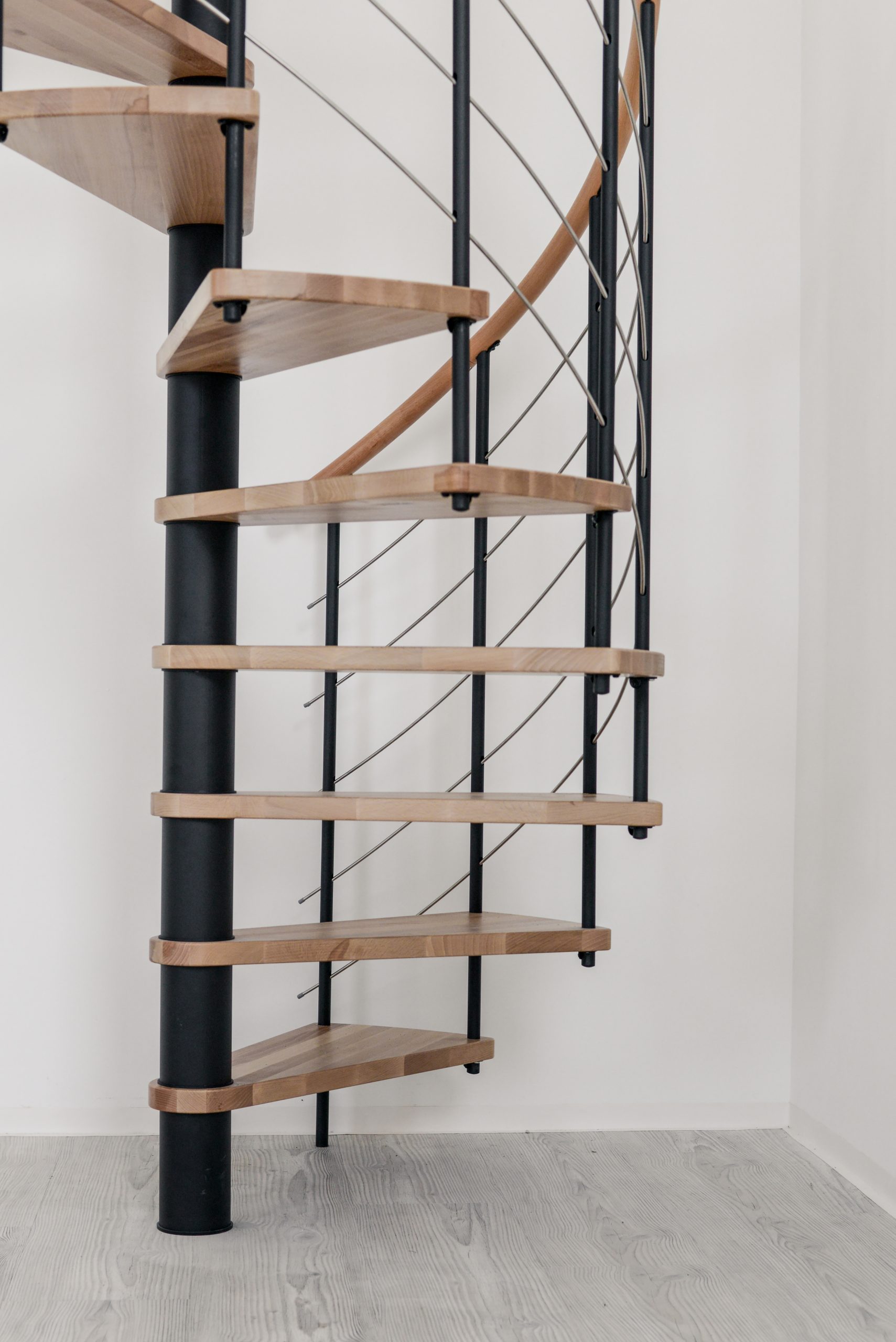

    Spindle tubes Steel powder-coated in grey, black or white

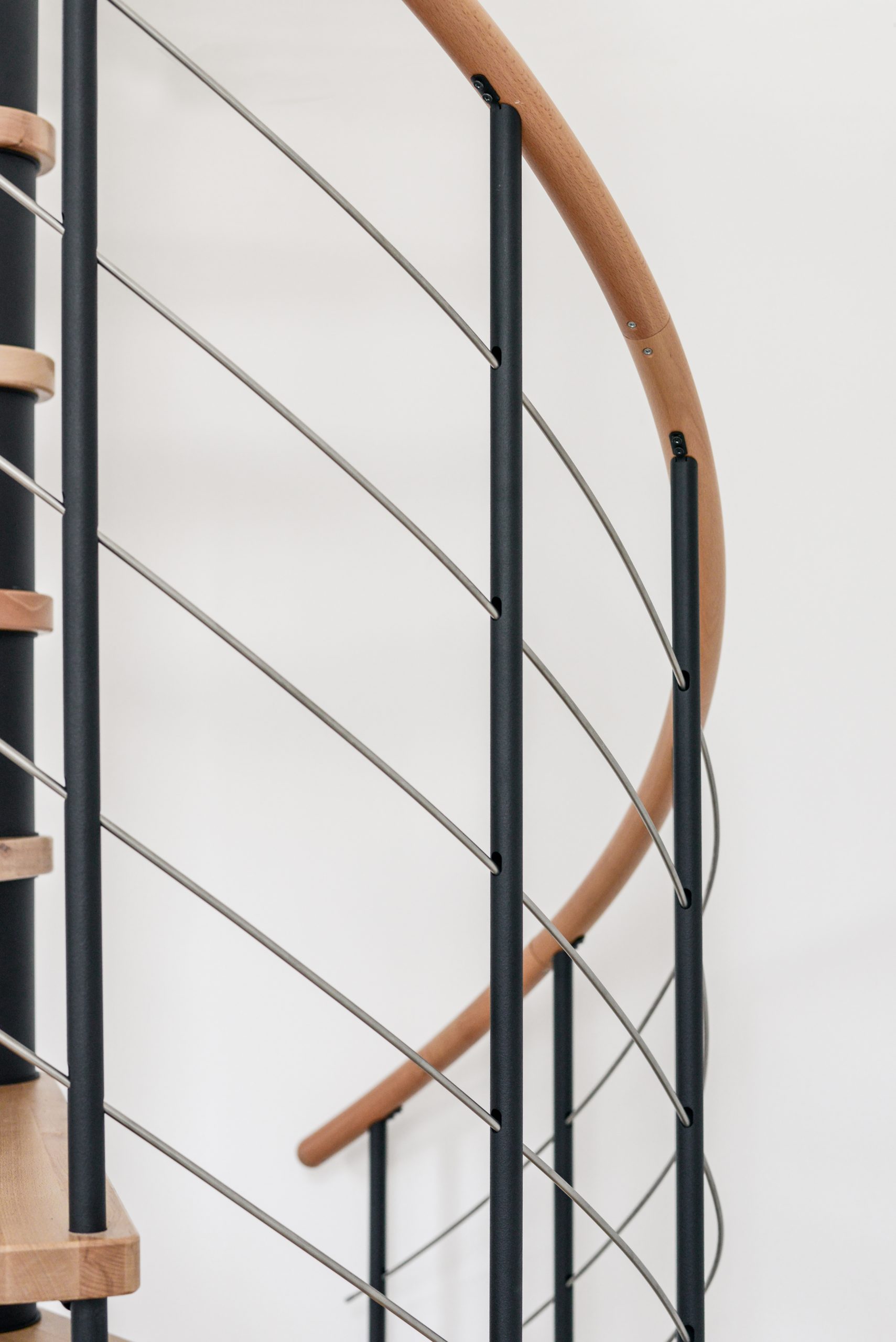

    Railing rods Steel powder-coated in grey, black or white
    Handrail Beech, oak, beech stained to walnut or beech white lacquered
    Bottom chords Stainless steel
    Number of steps 12 + 1 platform
    Venezia 120
    Radius 600 mm
    Max. storey height 3094 mm

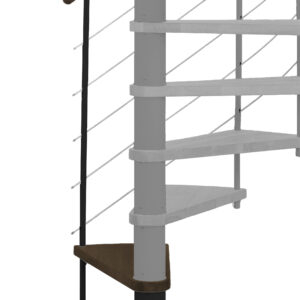

    Max. storey height with one height extension 3332 mm
    Max. storey height with two height extensions 3570 mm
    Tread depth 210 mm
    Free passage width 486 mm
    Tread thickness 35 mm
    Rise per step 220-238 mm
    Rotation per step 26°
    Platform width 650 mm
    Rotation of platform 50°
    Spindle diameter 127 mm
    Railing height 900 mm
    Handrail diameter 40 mm
    Venezia 140
    Radius 700 mm
    Max. storey height 3094 mm
    Max. storey height with one height extension 3332 mm
    Max. storey height with two height extensions 3570 mm
    Tread depth 236 mm
    Free passage width 586 mm
    Tread thickness 35 mm
    Rise per step 220-238 mm
    Rotation per step 26°
    Platform width 750 mm
    Rotation of platform 50°
    Spindle diameter 127 mm
    Railing height 900 mm
    Handrail diameter 40 mm
    Venezia 160
    Radius 800 mm
    Max. storey height 3094 mm
    Max. storey height with one height extension 3332 mm
    Max. storey height with two height extensions 3570 mm
    Tread depth 244 mm
    Free passage width 686 mm
    Tread thickness 35 mm
    Rise per step 220-238 mm
    Rotation per step 23°
    Platform width 850 mm
    Rotation of platform 50°
    Spindle diameter 127 mm
    Railing height 900 mm
    Handrail diameter 40 mm
