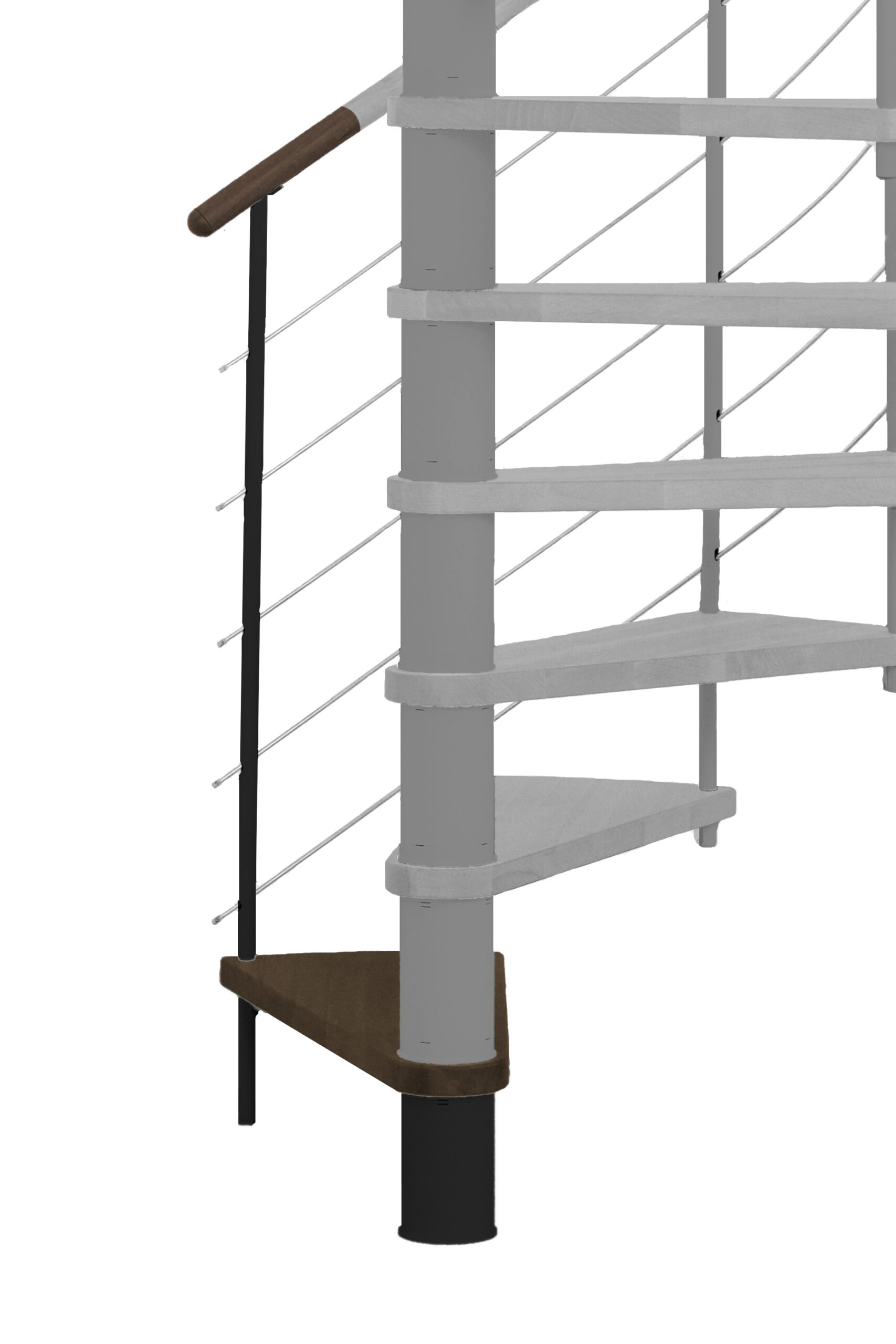

Height extension Venezia walnut black
Height extension Venezia walnut black

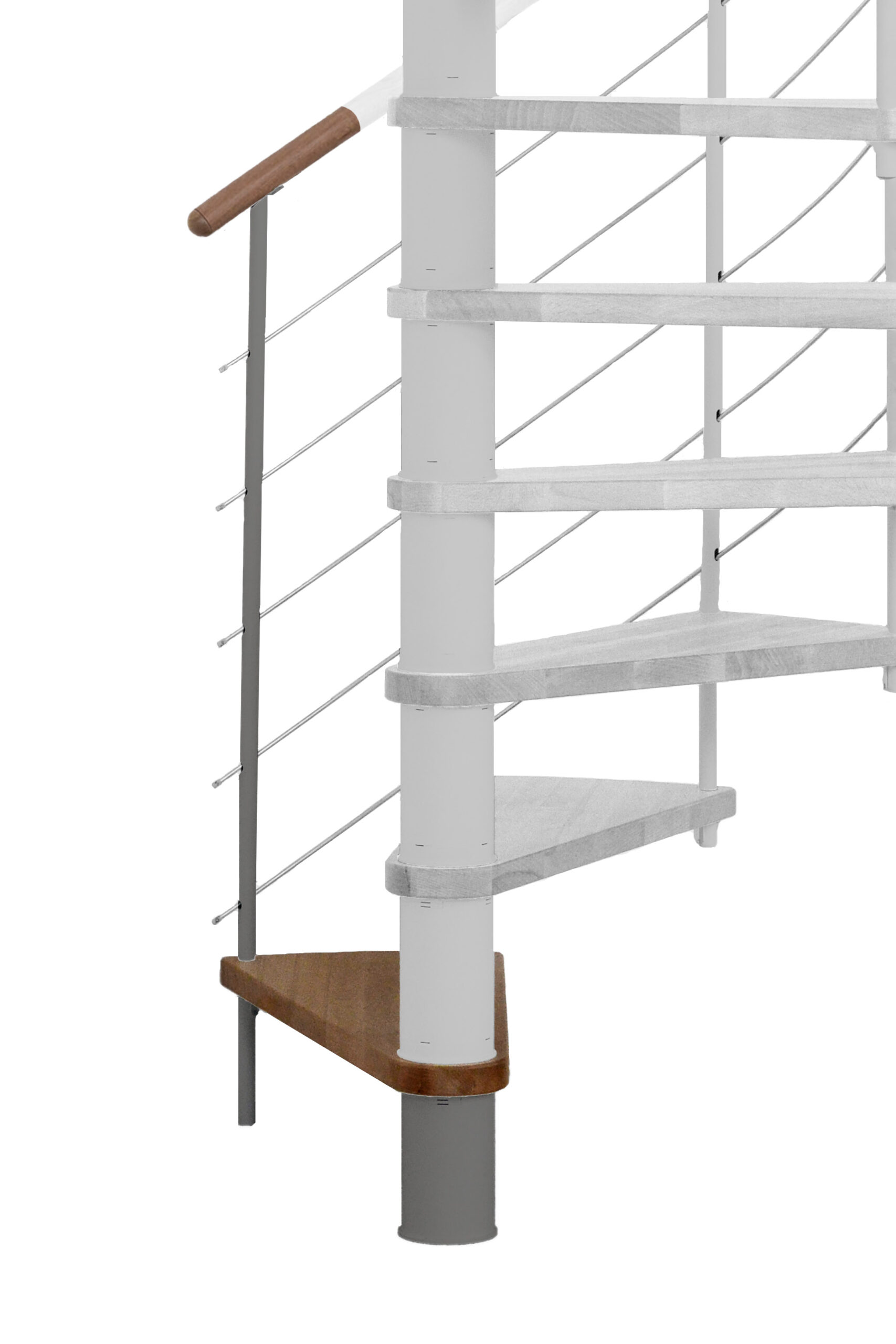

Height extension Venezia beech grey

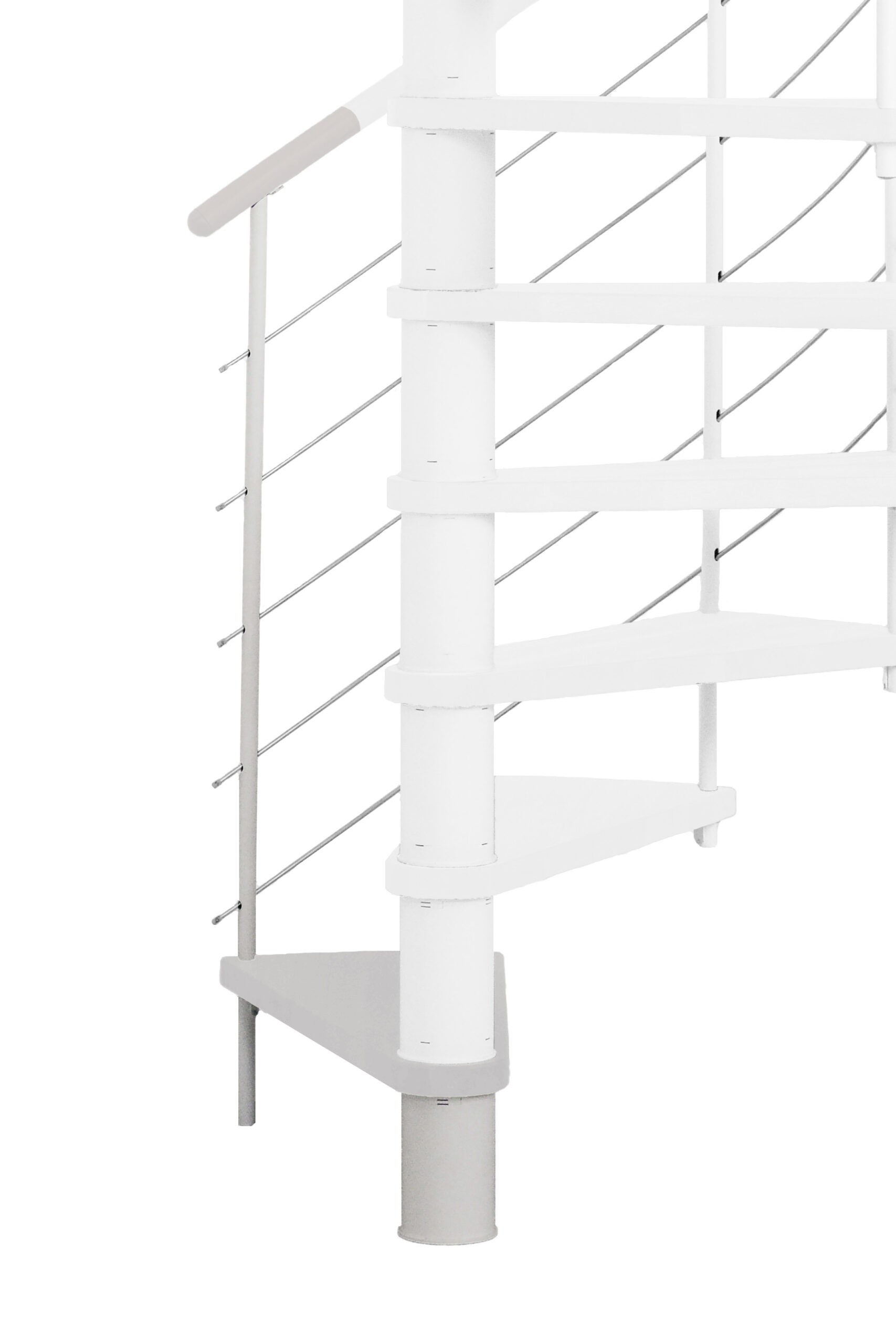

Height extension Venezia white white

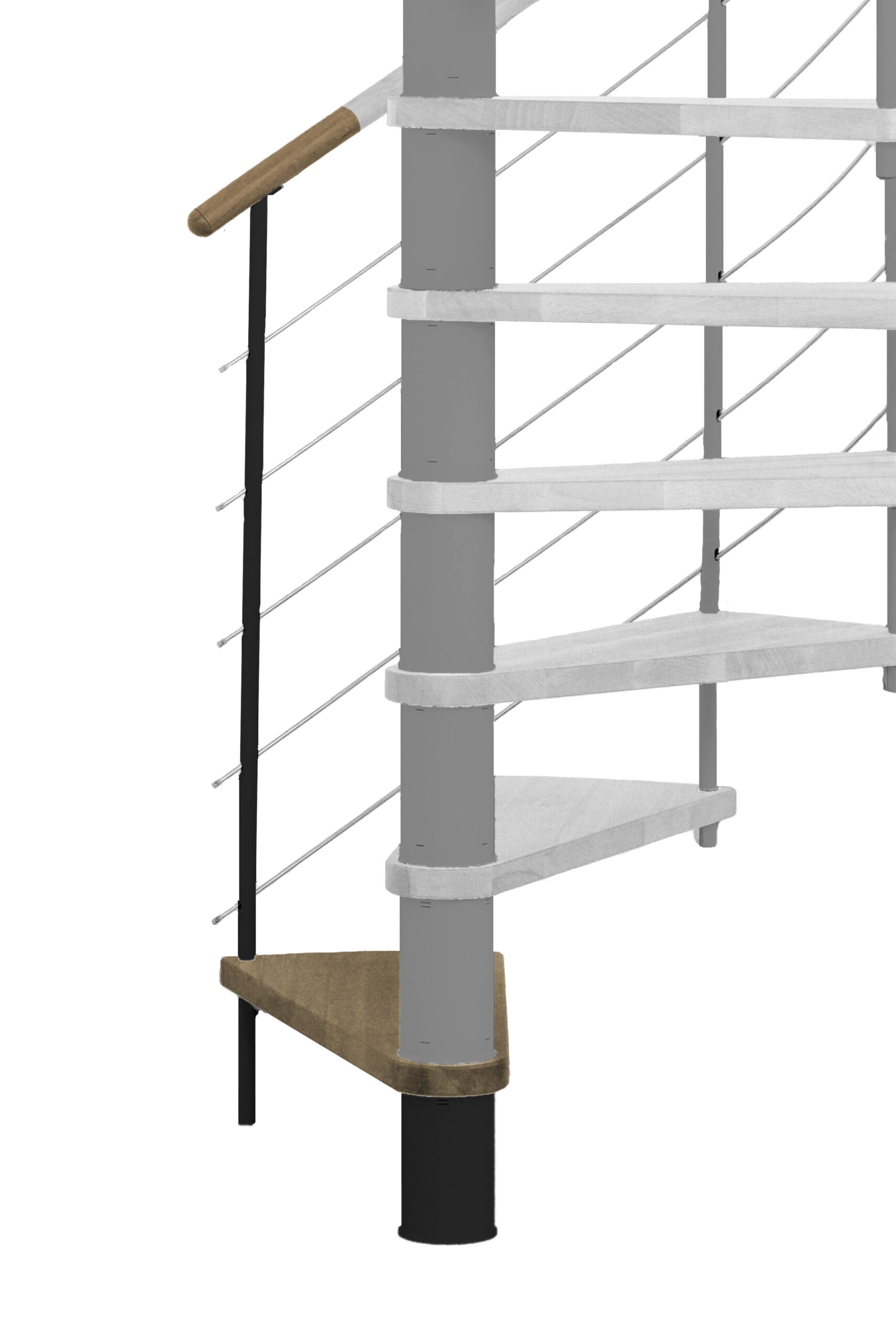

Height extension Venezia oak black

Height extension for Venezia

  • Additional step for spiral staircase Venezia
  • Extension of Venezia Smart by 190-235 mm
  • Maximum attainable storey height with one height extension: 3290 mm
  • Maximum attainable storey height with two height extensions: 3525 mm
  • When purchasing, please ensure that the height extension has the same configuration as your staircase and install a maximum of two height extensions per staircase.

Export as PDF
Add to wishlist

€ 333.60 incl. Tax excl. Shipping Costs*

SKU: N/A Category: Tags: ,

  • Description

    If you want to reach floors with a height of more than 305 cm with the spiral staircase Venezia, you need a height extension. The scope of delivery of the height extension includes an additional spindle element, a wooden step and various parts for the railing. All elements can be configured in the same way as the spiral staircase Venezia. When purchasing, please ensure that your staircase and the height extension have exactly the same colours and the same diameter.

    With one height extension, you can extend the Venezia spiral staircase by 190-235 mm. Thus, you can achieve a maximum storey height of up to 3290 mm if you install one additional step. If you use two height extensions, you can even climb floors with a maximum height of 3525 mm.

    Please install a maximum of two height extensions per staircase! If three or more additional steps are installed, stability is no longer guaranteed.

  • Technical data

    Basic data
    Steps Beech, oak, beech stained to walnut or beech stained white
    Handrail Beech, oak, beech stained to walnut or beech stained white
    Wood surface Transparent lacquered
    Spindle tubes Steel powder-coated in grey, black or white
    Railing rods Steel powder-coated in grey, black or white
    Bottom chords Stainless steel
    Number of steps 12 + 1 platform
    Venezia 120
    Radius 600 mm
    Max. storey height 3055 mm
    Max. storey height with one height extension 3290 mm
    Max. storey height with two height extensions 3525 mm
    Tread depth 210 mm
    Free passage width 486 mm
    Tread thickness 35 mm
    Rise per step 190-235 mm
    Rotation per step 30,2°
    Platform width 650 mm
    Rotation of platform 50°
    Spindle diameter 108 mm
    Railing height 1000 mm
    Handrail diameter 40 mm
    Venezia 140
    Radius 700 mm
    Max. storey height 3055 mm
    Max. storey height with one height extension 3290 mm
    Max. storey height with two height extensions 3525 mm
    Tread depth 236 mm
    Free passage width 586 mm
    Tread thickness 35 mm
    Rise per step 190-235 mm
    Rotation per step 26,2°
    Platform width 750 mm
    Rotation of platform 50°
    Spindle diameter 108 mm
    Railing height 1000 mm
    Handrail diameter 40 mm
    Venezia 160
    Radius 800 mm
    Max. storey height 3055 mm
    Max. storey height with one height extension 3290 mm
    Max. storey height with two height extensions 3525 mm
    Tread depth 244 mm
    Free passage width 686 mm
    Tread thickness 35 mm
    Rise per step 190-235 mm
    Rotation per step 22,2°
    Platform width 850 mm
    Rotation of platform 50°
    Spindle diameter 108 mm
    Railing height 1000 mm
    Handrail diameter 40 mm

  • Downloads

    Assembly instructions height extension

    Assembly instructions staircase

    Technical datasheet
