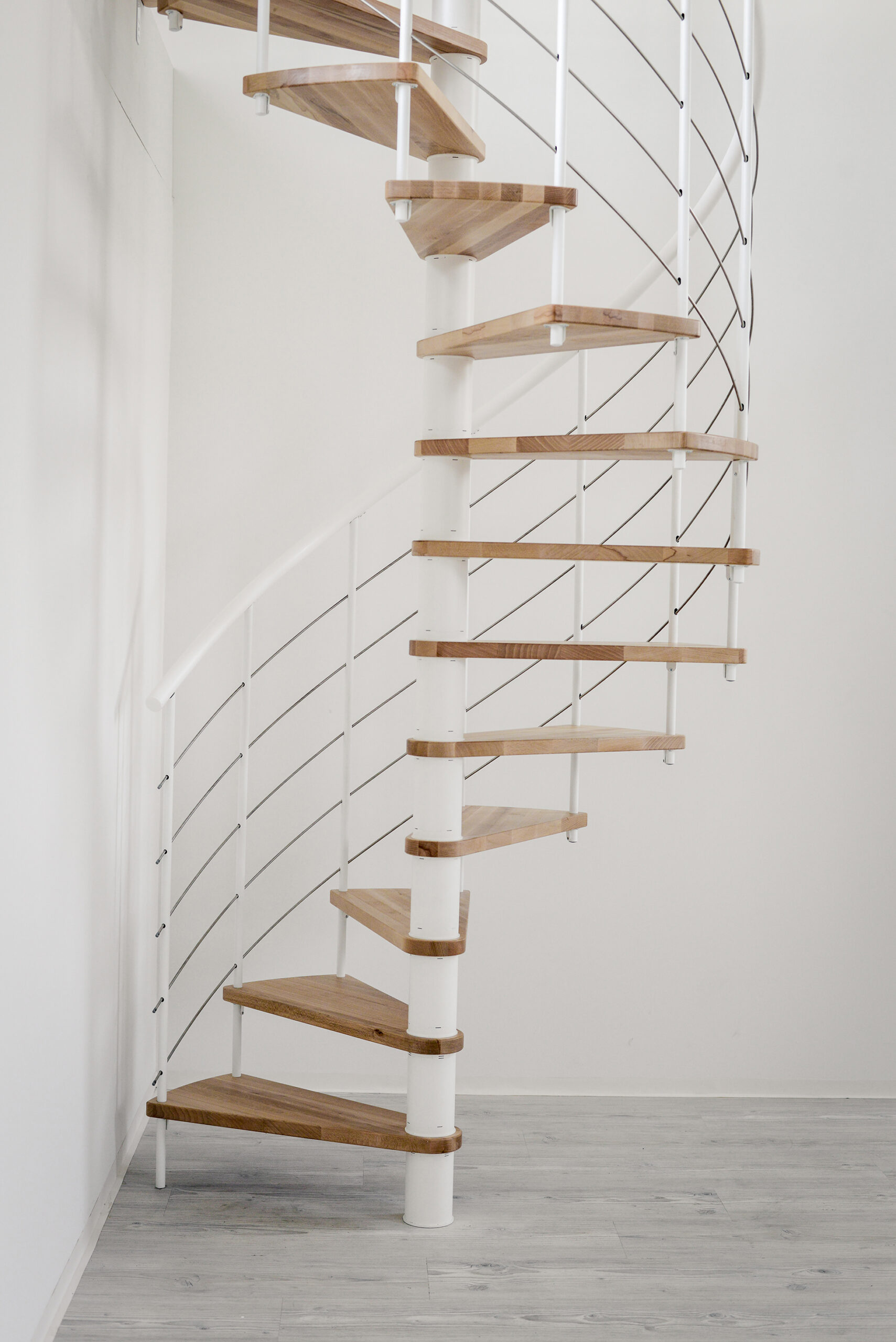

Spiral Staircase Venezia Smart

Venezia Smart

  • Italian flair for your individual living situation
  • Combination of narrow wooden steps and curved bottom chords creates a dynamic look
  • Particularly large selection of wood variants: beech, walnut, oak and white
  • Powder-coated metal parts in black, grey or white
  • Pleasant handrail made of PVC
  • Available in a diameter of 100, 120, 140 or 160 cm
  • Maximum storey height: 3055 mm

Hier soll der Validierungstext stehen.Die Treppe ist für diese Raumhöhe geeignet.

 2,406.00 3,432.00 incl. Tax excl. Shipping Costs*

  • Description

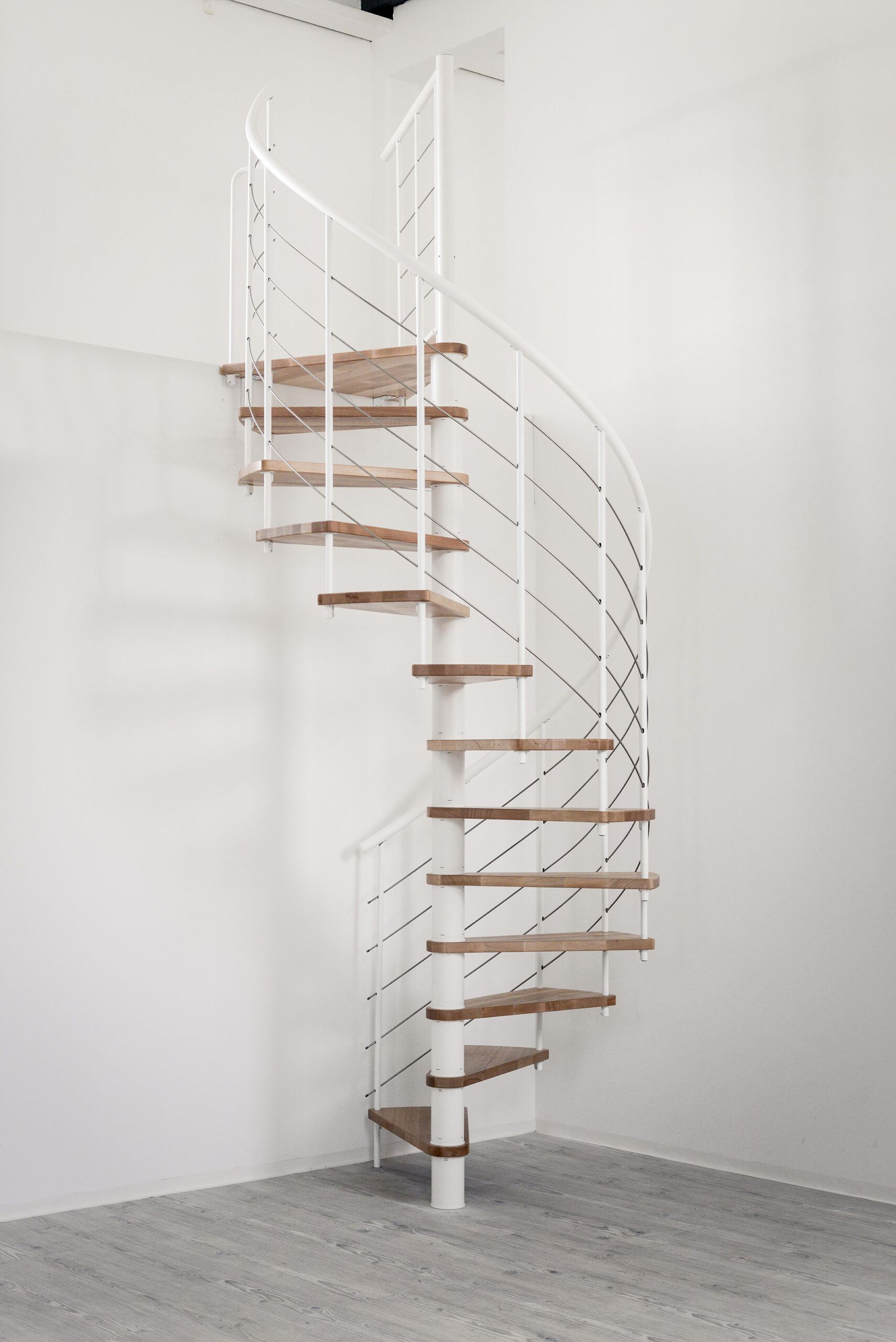

    The Venezia Smart spiral staircase delivers the light Italian flair directly to your home. The combination of narrow wooden steps and curved lower girders makes the staircase look dynamic and modern. Thanks to the wide choice of wood types and metal colours, the Venezia Smart perfectly complements many different furnishing styles. The PVC handrail makes the Venezia Smart the ideal choice for those who value a pleasant surface feel and a slightly lower price.

    Flexible design.

    The Venezia Smart is characterised by a wide variety of versions. Both the steps and the metal parts can be customised in colour. You can choose between beech, walnut, oak and white for the wood and black, grey and white for the metal parts and the handrail. The handrail of the Venezia Smart is made of high-quality PVC, which fits comfortably in the hand. This spiral staircase is available in a diameter of 100, 120, 140 or 160 cm.

    Sustainable use.

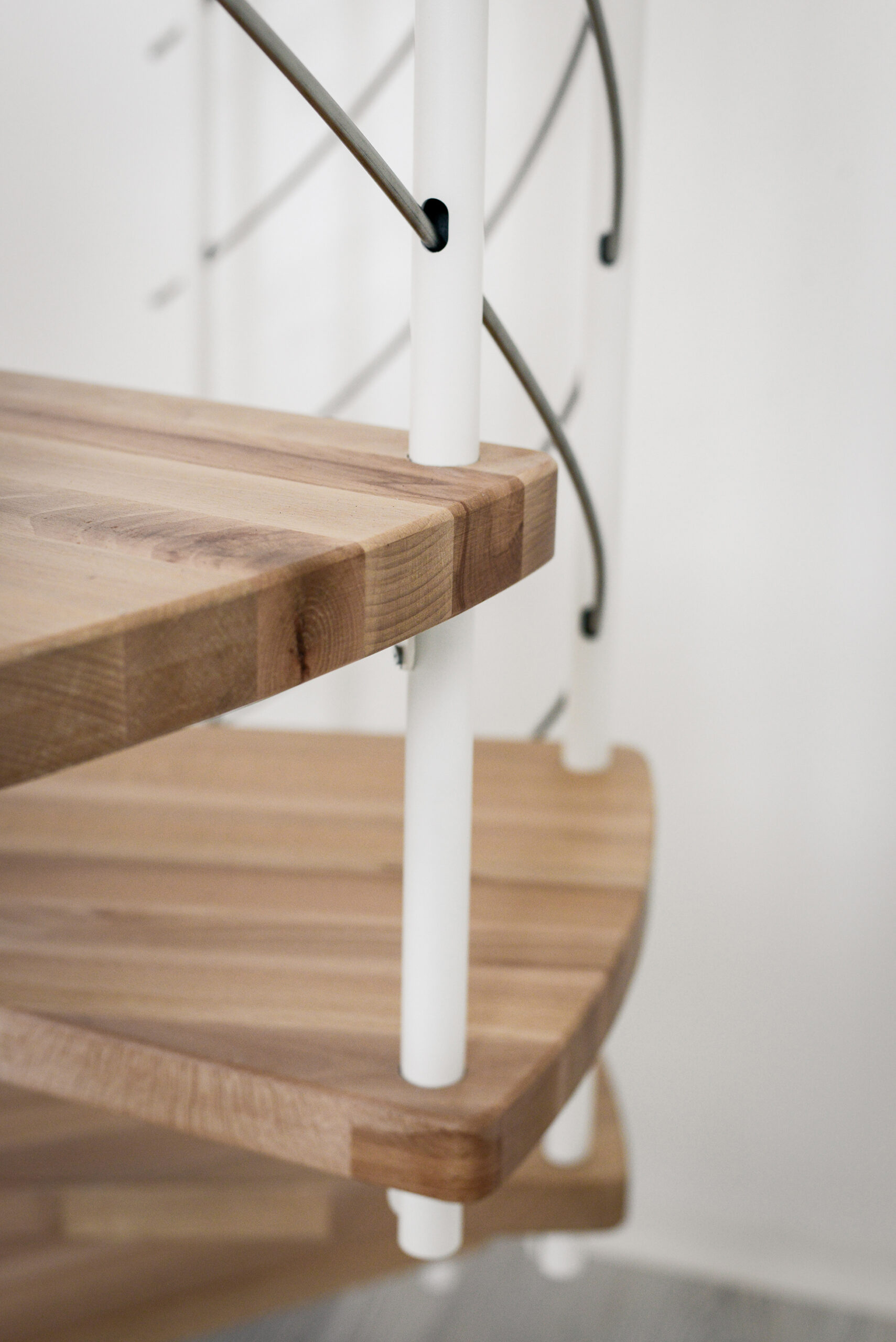

    With metal parts made of powder-coated steel and lower girders made of stainless steel, the Venezia Smart is extremely impact and scratch resistant. With the help of a lacquer finish, the steps are enhanced even more visually and qualitatively. In this way, Minka guarantees a long service life for the stairs, which is not only positive for you, but also for the environment.

  • Technical data

    Basic data
    Steps Beech, oak, beech stained to walnut or beech white lacquered
    Spindle tubes Steel powder-coated in grey, black or white
    Railing rods Steel powder-coated in grey, black or white

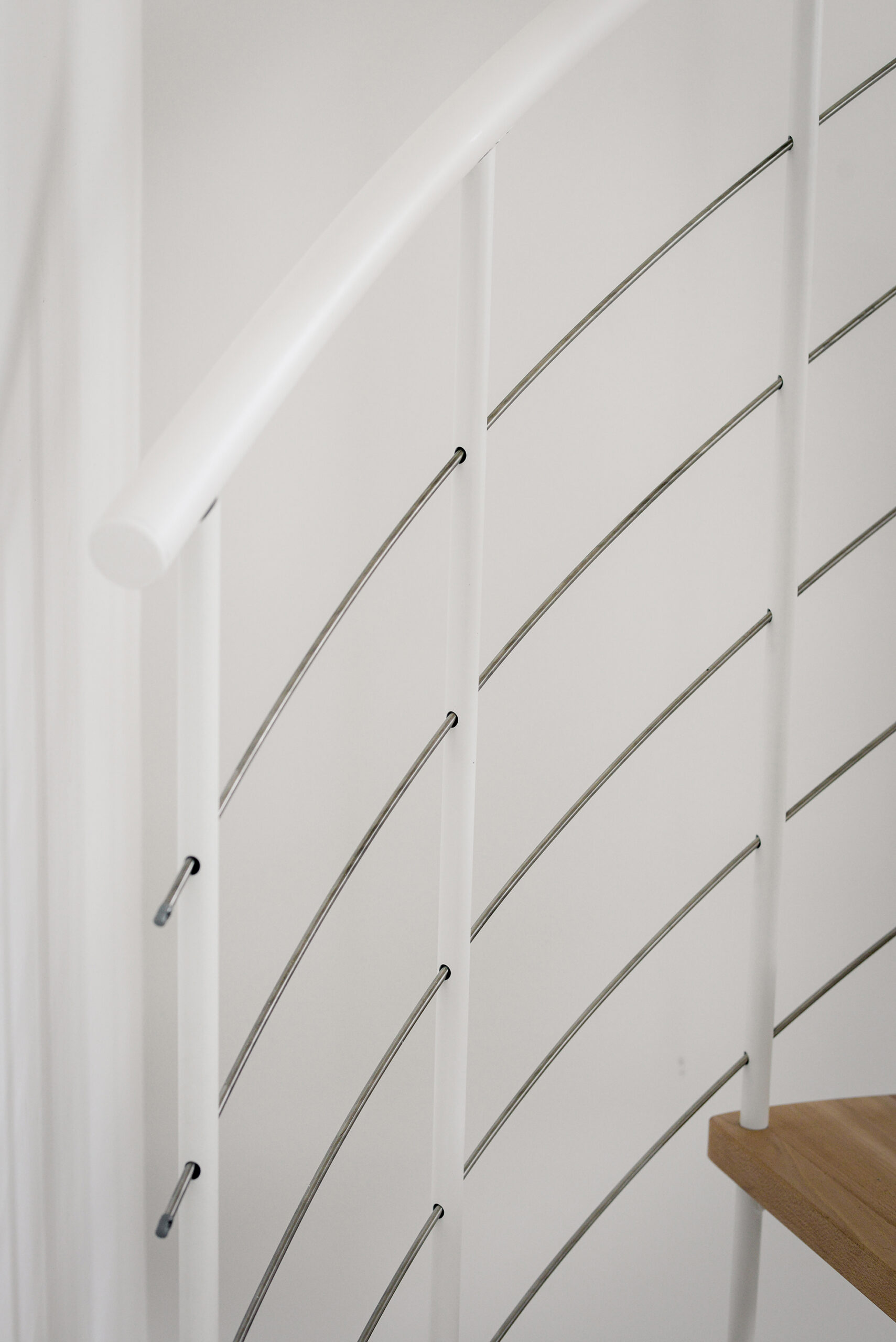

    Handrail PVC grey, black or white
    Bottom chords Stainless steel
    Number of steps 12 + 1 platform
    Venezia Smart 100
    Radius 500 mm
    Max. storey height 3055 mm

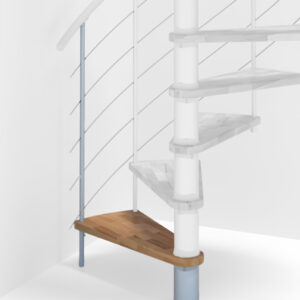

    Max. storey height with one height extension 3290 mm
    Max. storey height with two height extensions 3525 mm
    Tread depth 180 mm
    Free passage width 386 mm
    Tread thickness 35 mm
    Rise per step 190-235 mm
    Rotation per step 25°
    Platform width 550 mm
    Rotation of platform 50°
    Spindle diameter 108 mm
    Railing height 1000 mm
    Handrail diameter 40 mm
    Venezia Smart 120
    Radius 600 mm
    Max. storey height 3055 mm
    Max. storey height with one height extension 3290 mm
    Max. storey height with two height extensions 3525 mm
    Tread depth 210 mm
    Free passage width 486 mm
    Tread thickness 35 mm
    Rise per step 190-235 mm
    Rotation per step 30,2°
    Platform width 650 mm
    Rotation of platform 50°
    Spindle diameter 108 mm
    Railing height 1000 mm
    Handrail diameter 40 mm
    Venezia Smart 140
    Radius 700 mm
    Max. storey height 3055 mm
    Max. storey height with one height extension 3290 mm
    Max. storey height with two height extensions 3525 mm
    Tread depth 236 mm
    Free passage width 586 mm
    Tread thickness 35 mm
    Rise per step 190-235 mm
    Rotation per step 26,2°
    Platform width 750 mm
    Rotation of platform 50°
    Spindle diameter 108 mm
    Railing height 1000 mm
    Handrail diameter 40 mm
    Venezia Smart 160
    Radius 800 mm
    Max. storey height 3055 mm
    Max. storey height with one height extension 3290 mm
    Max. storey height with two height extensions 3525 mm
    Tread depth 244 mm
    Free passage width 686 mm
    Tread thickness 35 mm
    Rise per step 190-235 mm
    Rotation per step 22,2°
    Platform width 850 mm
    Rotation of platform 50°
    Spindle diameter 108 mm
    Railing height 1000 mm
    Handrail diameter 40 mm
