Height extension Venezia Smart beech white

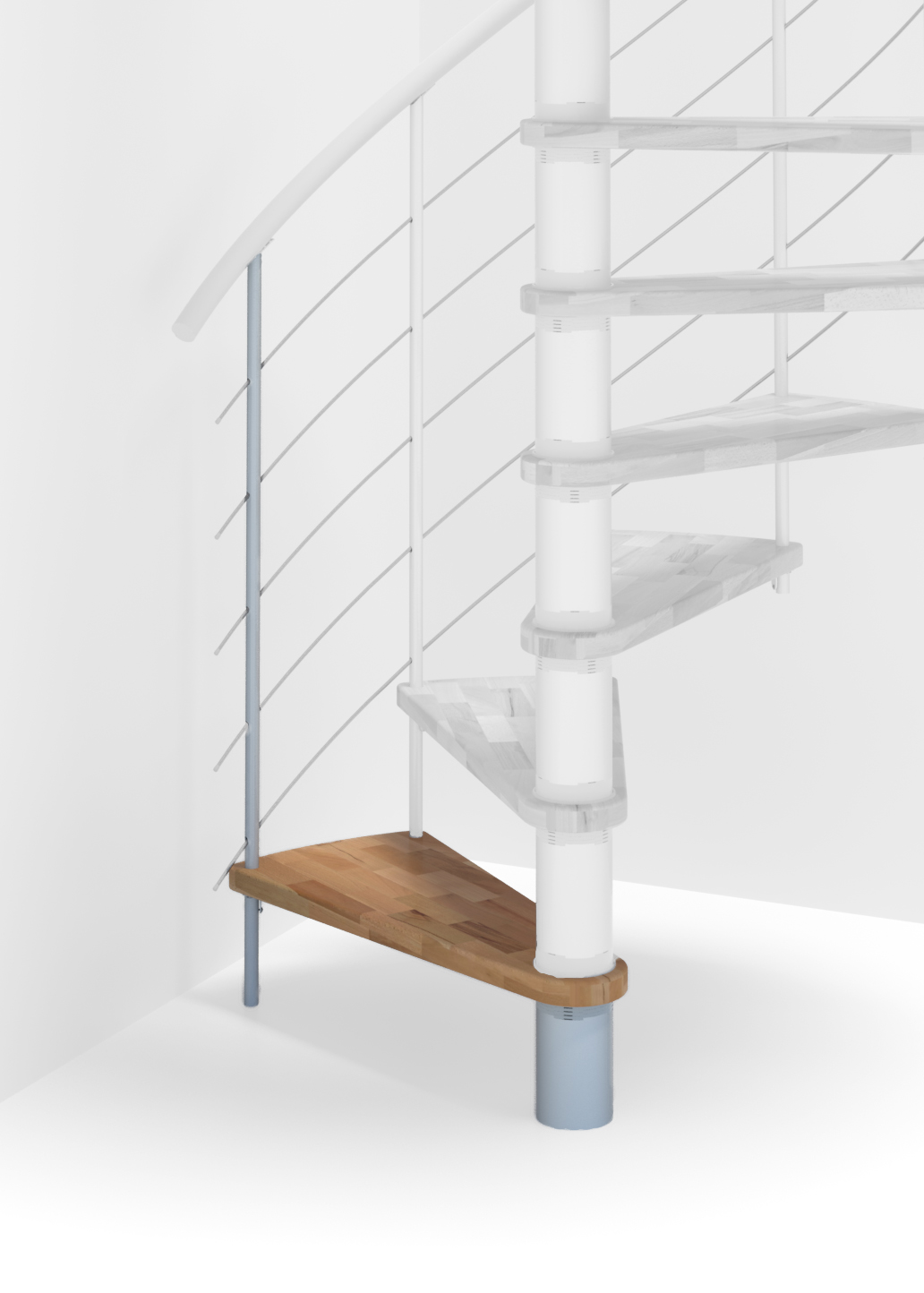

Height extension Venezia Smart beech white

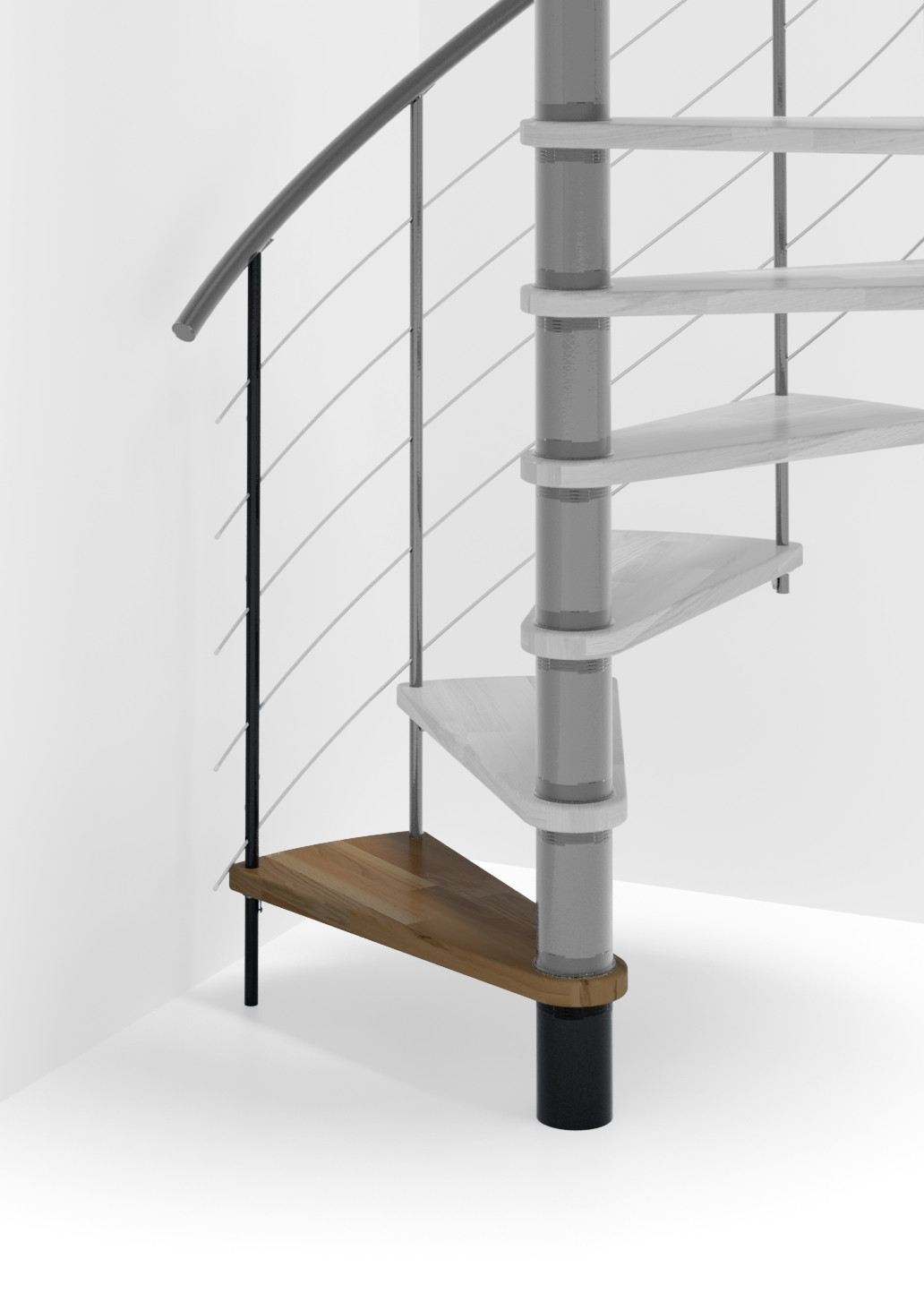

Height extension Venezia Smart oak black

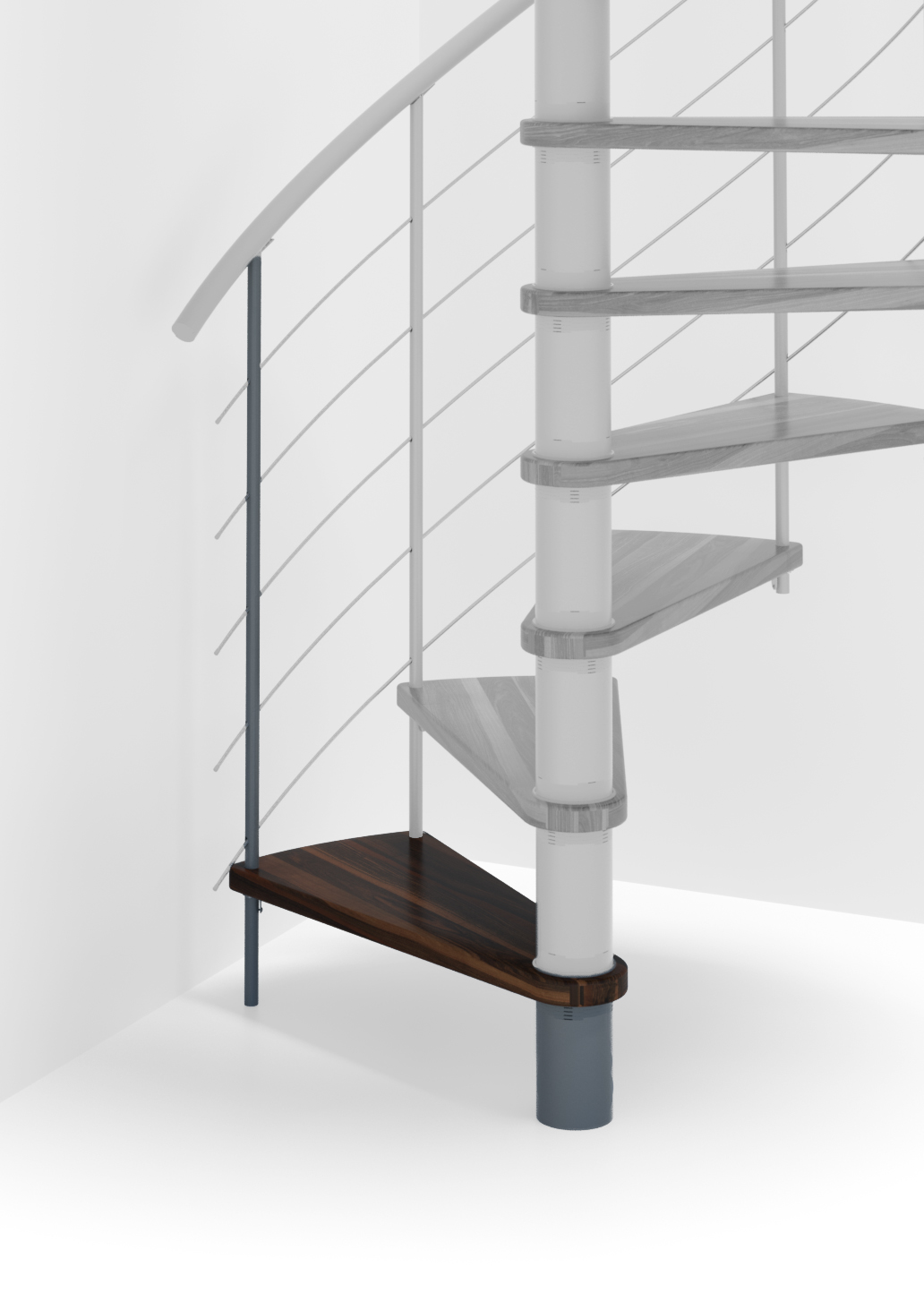

Height extension Venezia Smart walnut grey

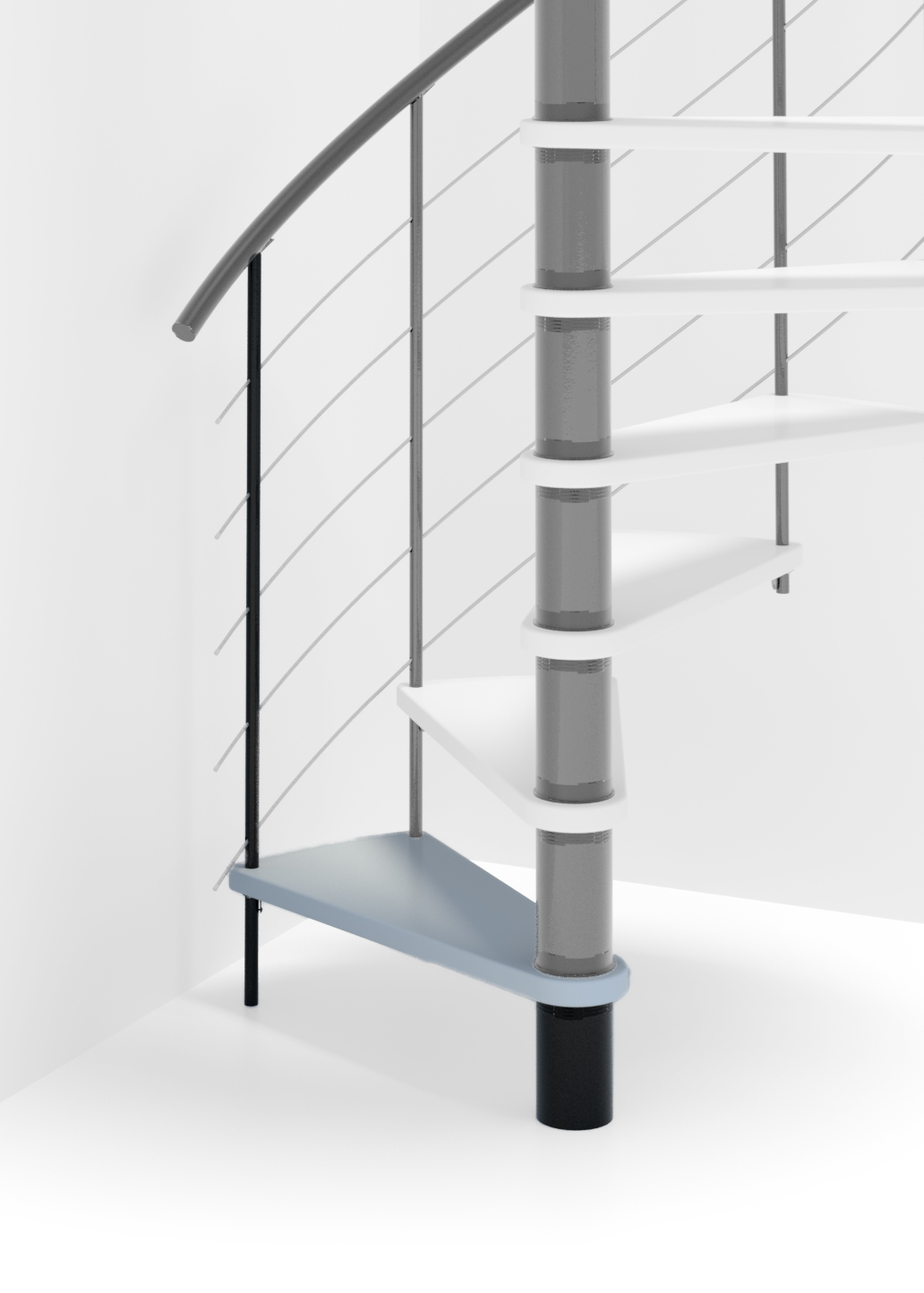

Height extension Venezia Smart white black

Height extension for Venezia Smart

  • Additional step for spiral staircase Venezia Smart
  • Extension of Venezia Smart by 190-235 mm
  • Maximum attainable storey height with one height extension: 3290 mm
  • Maximum attainable storey height with two height extensions: 3525 mm
  • When purchasing, please ensure that the height extension has the same configuration as your staircase and install a maximum of two height extensions per staircase.

Export as PDF
Add to wishlist

€ 333.60 incl. Tax excl. Shipping Costs*

SKU: N/A Category: Tags: ,

  • Description

    The height extension for the Venezia Smart spiral staircase consists of a wooden step, a spindle element and some smaller metal components. These can be adapted exactly to your staircase – please make sure to configure your staircase and the matching height extension with the same diameter, the same type of wood and the same metal colour.

    With a height extension, you can extend the Venezia Smart spiral staircase by a height of 190-235 mm. This gives you a total storey height of max. 3290 mm if you install one extra step. If you order and install two height extensions, a storey height of up to 3525 mm is possible.

    Please install a maximum of two height extensions per staircase! If three or more additional steps are installed, stability is no longer guaranteed.

  • Technical data

    Basic data
    Steps Beech, oak, beech stained to walnut or beech stained white
    Wood surface Transparent lacquered
    Spindle tubes Steel powder-coated in grey, black or white
    Railing rods Steel powder-coated in grey, black or white
    Handrail PVC grey, black or white
    Bottom chords Stainless steel
    Number of steps 12 + 1 platform
    Venezia Smart 100
    Radius 500 mm
    Max. storey height 3055 mm
    Max. storey height with one height extension 3290 mm
    Max. storey height with two height extensions 3525 mm
    Tread depth 180 mm
    Free passage width 386 mm
    Tread thickness 35 mm
    Rise per step 190-235 mm
    Rotation per step 25°
    Platform width 550 mm
    Rotation of platform 50°
    Spindle diameter 108 mm
    Railing height 1000 mm
    Handrail diameter 40 mm
    Venezia Smart 120
    Radius 600 mm
    Max. storey height 3055 mm
    Max. storey height with one height extension 3290 mm
    Max. storey height with two height extensions 3525 mm
    Tread depth 210 mm
    Free passage width 486 mm
    Tread thickness 35 mm
    Rise per step 190-235 mm
    Rotation per step 30,2°
    Platform width 650 mm
    Rotation of platform 50°
    Spindle diameter 108 mm
    Railing height 1000 mm
    Handrail diameter 40 mm
    Venezia Smart 140
    Radius 700 mm
    Max. storey height 3055 mm
    Max. storey height with one height extension 3290 mm
    Max. storey height with two height extensions 3525 mm
    Tread depth 236 mm
    Free passage width 586 mm
    Tread thickness 35 mm
    Rise per step 190-235 mm
    Rotation per step 26,2°
    Platform width 750 mm
    Rotation of platform 50°
    Spindle diameter 108 mm
    Railing height 1000 mm
    Handrail diameter 40 mm
    Venezia Smart 160
    Radius 800 mm
    Max. storey height 3055 mm
    Max. storey height with one height extension 3290 mm
    Max. storey height with two height extensions 3525 mm
    Tread depth 244 mm
    Free passage width 686 mm
    Tread thickness 35 mm
    Rise per step 190-235 mm
    Rotation per step 22,2°
    Platform width 850 mm
    Rotation of platform 50°
    Spindle diameter 108 mm
    Railing height 1000 mm
    Handrail diameter 40 mm

  • Downloads

    Assembly instructions height extension

    Assembly instructions staircase

    Technical datasheet
