Type 15 Exklusiv

  • Fire-retardant metal stairs with 38 cm high hatch box
  • Fire-retardant EI230 tested according to EN 1363 and EN 1634
  • U-value: 1.3 W/m2K

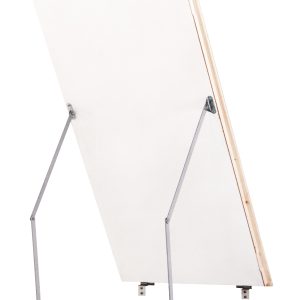

  • U-value with ISO upper lid: 0.7 W/m2K
  • Five sizes: 110×70, 120×60, 120×70, 130×70 or 140×70 cm
  • Maximum room height: 3000 mm

1.338,00 € – 1.447,20 € incl. tax excl. shipping costs*

Description

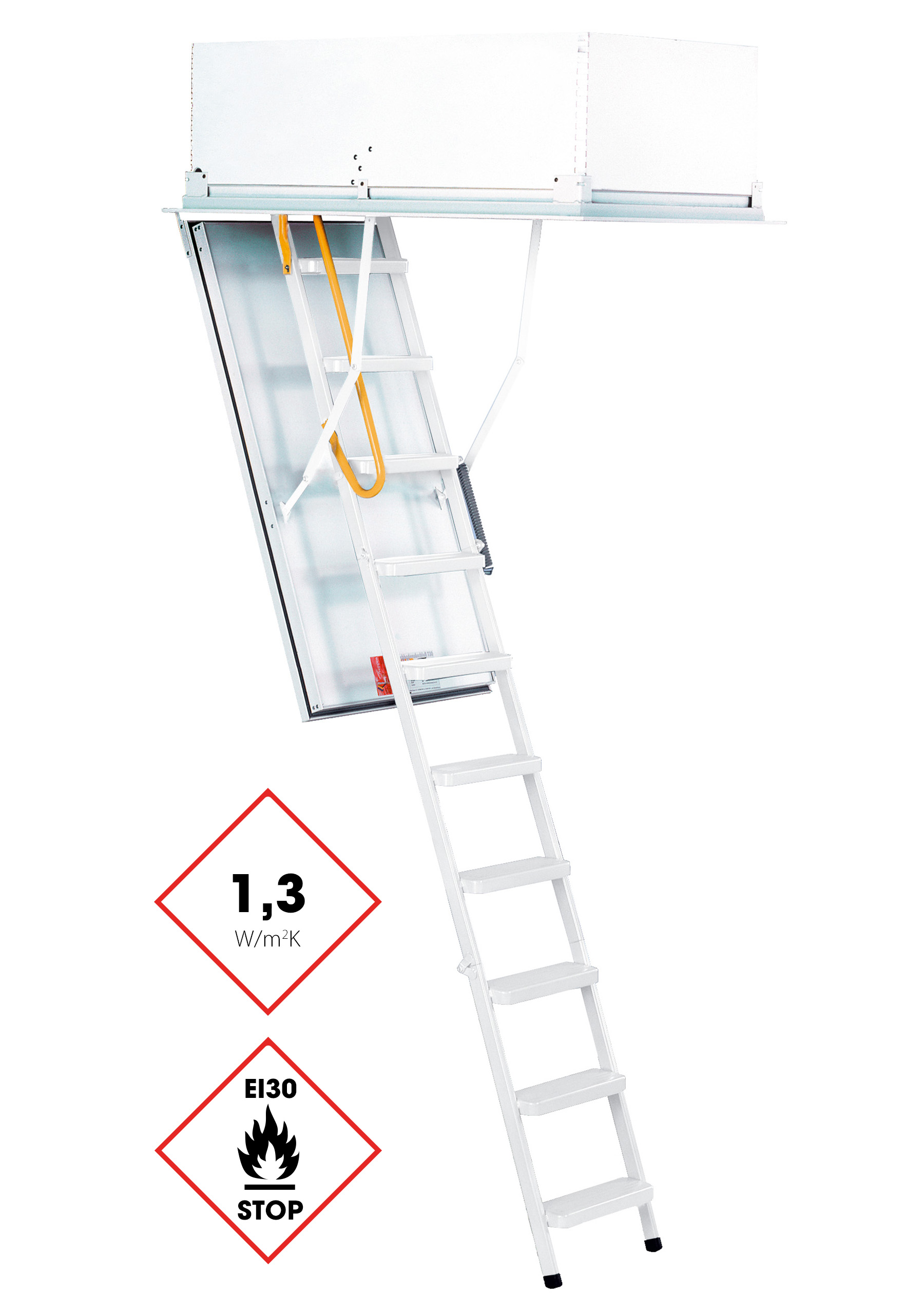

The Type 15 Exklusiv metal ladder combines a sturdy construction with tested fire protection. It has an EI₂30 fire resistance rating in accordance with EN 1363 and EN 1634. It therefore provides at least 30 minutes of fire resistance. The 38 cm high casing makes it particularly suitable for thick ceilings.

Five sizes to choose from

The Type 15 Exklusiv is available for ceiling openings measuring 110 × 70 cm, 120 × 60 cm, 120 × 70 cm, 130 × 70 cm or 140 × 70 cm. For the 130 × 70 cm and 140 × 70 cm versions, you can choose between a maximum room height of 275 or 300 cm.

Safe access to your attic

The metal stringers and treads have a white powder-coated finish. The coating creates a clean look and protects the surface against wear. Lightly grooved treads improve grip, while the steel safety handrail gives you additional support when climbing up and down.

Technical data

110/70
Frame size (L x W x H) 1090 x 690 x 380 mm
Ceiling opening size (L x W) 1100 x 700 mm
Floor to ceiling height max. 2630 mm
Fold-out space 500 mm
Basic size 1100 mm
Swivel range top cover to the rear / to the side 1520 / 1050 mm
120/60
Frame size (L x W x H) 1190 x 590 x 380 mm
Ceiling opening size (L x W) 1200 x 600 mm
Floor to ceiling height max. 2750 mm
Fold-out space 500 mm
Basic size 1200 mm
Swivel range top cover to the rear / to the side no rear opening of the top cover possible for this size / 950 mm
120/70
Frame size (L x W x H) 1190 x 690 x 380 mm
Ceiling opening size (L x W) 1200 x 700 mm
Floor to ceiling height max. 2750 mm
Fold-out space 500 mm
Basic size 1200 mm
Swivel range top cover to the rear / to the side 1520 / 1050 mm
130/70
Frame size (L x W x H) 1290 x 690 x 380 mm
Ceiling opening size (L x W) 1300 x 700 mm
Floor to ceiling height max. 2750 oder 3000 mm
Fold-out space 400 oder 500 mm
Basic size 1200 oder 1250 mm
Swivel range top cover to the rear / to the side 1520 / 1050 mm
140/70
Frame size (L x W x H) 1390 x 690 x 380 mm
Ceiling opening size (L x W) 1400 x 700 mm
Floor to ceiling height max. 2750 oder 3000 mm
Fold-out space 300 oder 400 mm
Basic size 1200 oder 1250 mm
Swivel range top cover to the rear / to the side 1520 / 1050 mm
