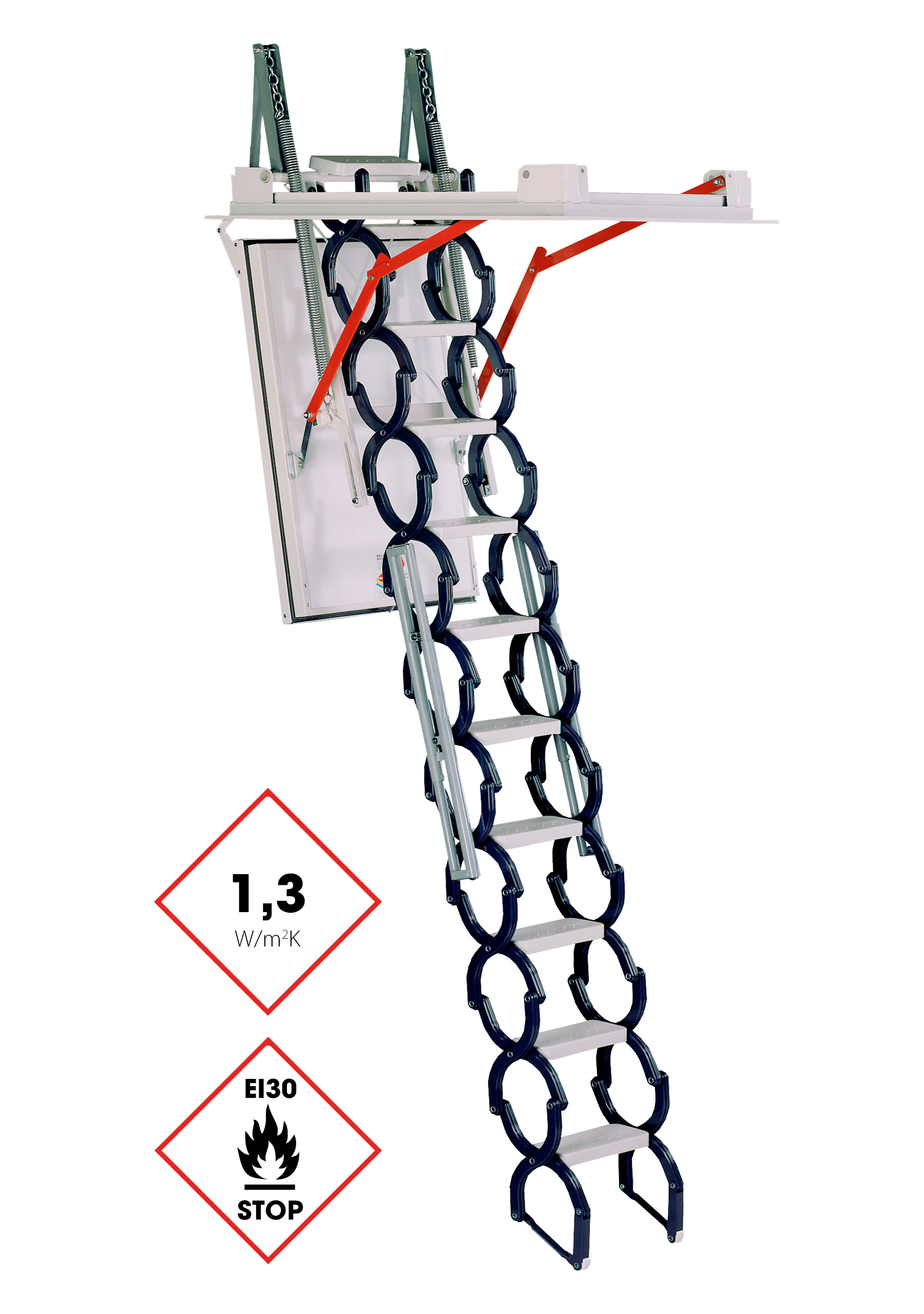

Attic staircase Type 118 M

Type 118M

  • Custom-made scissor staircase with 30-minute fire retardancy
  • Fire-retardant EI230 tested according to EN1363 and EN1634
  • No fold-out room required for a hatch length of 120 cm or more
  • U-value: 1.3 W/m2K
  • Hatch length freely selectable: 90-150 cm
  • Hatch width freely selectable: 60-90 cm
  • Maximum room height: 2650-3600 mm (depending on the hatch size)

3.831,00  incl. Tax excl. Shipping Costs*


The Type 118M from Minka is a custom-made and fire-retardant attic staircase. The steel frame is made exactly to your requirements within certain frame sizes. Therefore, please order this staircase by sending an enquiry via the contact form or by e-mail so that we know the required dimensions.

Flexible design.

For the length of the steel frame, all values from 90 to 150 cm are possible. The width can be between 60 and 90 cm. A matching hatch cover for your custom-made loft ladder Type 118M can be ordered separately if needed. The maximum height of the staircase is 265-360 cm, depending on the size of the ceiling opening.

The fire resistance of the Type 118M corresponds to class EI230, so that the staircase delays the spread of fire by 30 minutes. However, this model is also available as an EI260 version for an additional charge.

Sustainable use.

The attic staircase Type 118M has a scissor ladder made of powder-coated steel. The steps are equipped with light grooves, which provide a secure grip when climbing the stairs. With the 65 mm thick bottom cover, the Type 118M achieves a U-value of 1.3 W/m2K.

Technical data

Type 118M
Ceiling opening length 900-1500 mm
Ceiling opening width 600-900 mm
Hatch frame length 890-1490 mm
Hatch frame width 590-890 mm
Room height max. 2650-3600 mm
Basic size on request
Swivel range for top cover on request
