Type 1 Passiv Plus

  • Highly insulated passive house loft ladder from Austria
  • Fire-retardant EI260 tested according to EN1363 and EN1634
  • Air tightness class 4
  • U-value: 0.33 W/m2K
  • U-value with ISO upper lid: 0.19 W/m2K
  • Available in four different sizes: 110×70, 120×70, 130×70 and 140×70 cm
  • Maximum room height: 3000 mm

1.572,00 € – 1.681,20 € incl. tax excl. shipping costs*

Description

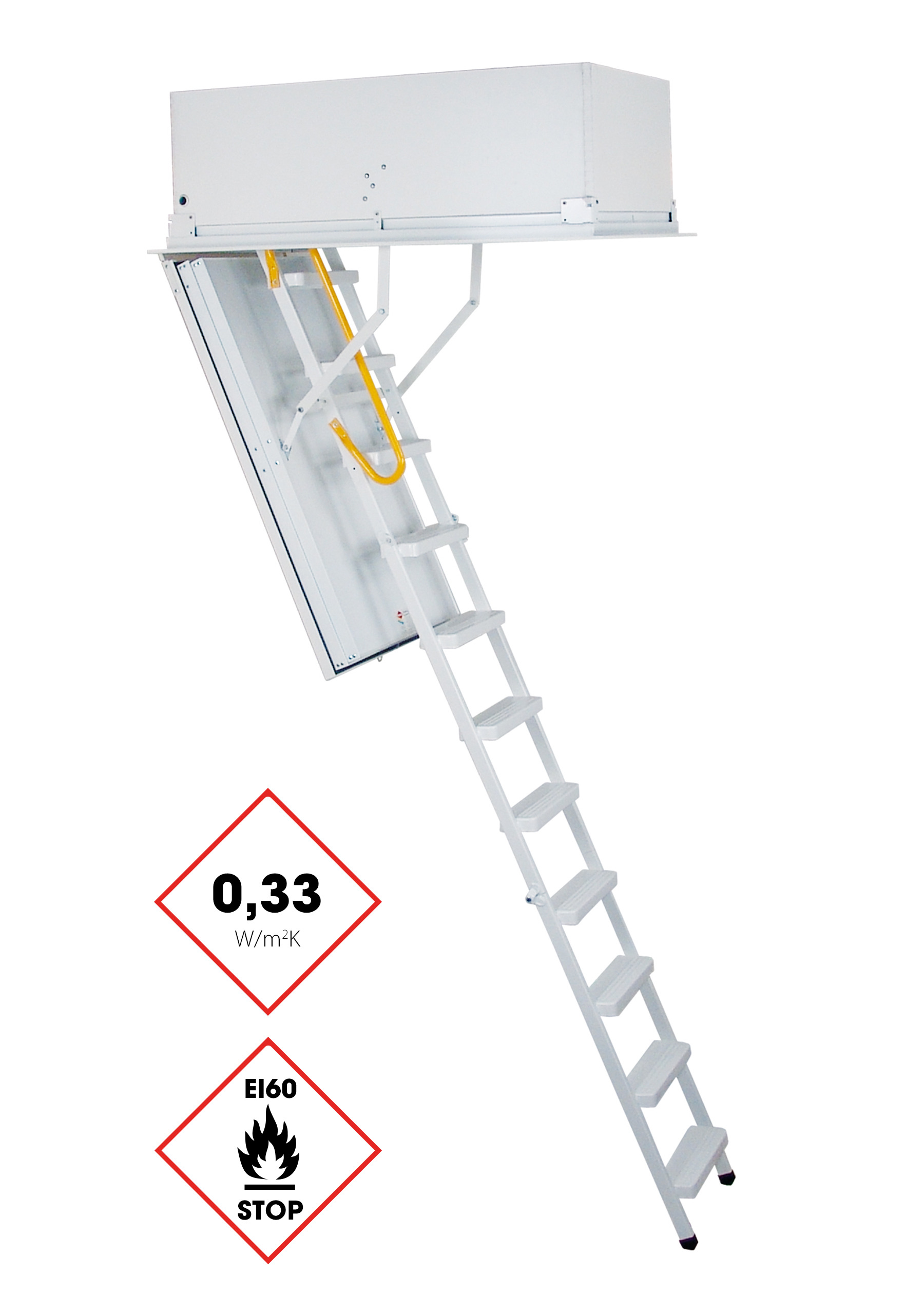

The Type 1 Passiv Plus attic ladder is suitable for use in passive houses and offers strong thermal insulation. It achieves a U-value of 0.33 W/m²K without an upper cover. With the matching ISO upper cover, the U-value improves to 0.19 W/m²K. It also meets the requirements of airtightness class 4.

The Type 1 Passiv Plus has an EI₂60 fire resistance rating and is tested in accordance with ÖNORM EN 1363 and EN 1634. It therefore provides at least 60 minutes of fire resistance.

Flexible for different room layouts

The Type 1 Passiv Plus is available for ceiling openings measuring 110 × 70 cm, 120 × 70 cm, 130 × 70 cm or 140 × 70 cm. Depending on the selected size, it is suitable for room heights of up to 300 cm.

An optional version with a divided middle section is available and does not require additional unfolding space. Apart from the yellow safety handrail, the entire attic ladder has a white finish.

Safe and comfortable access

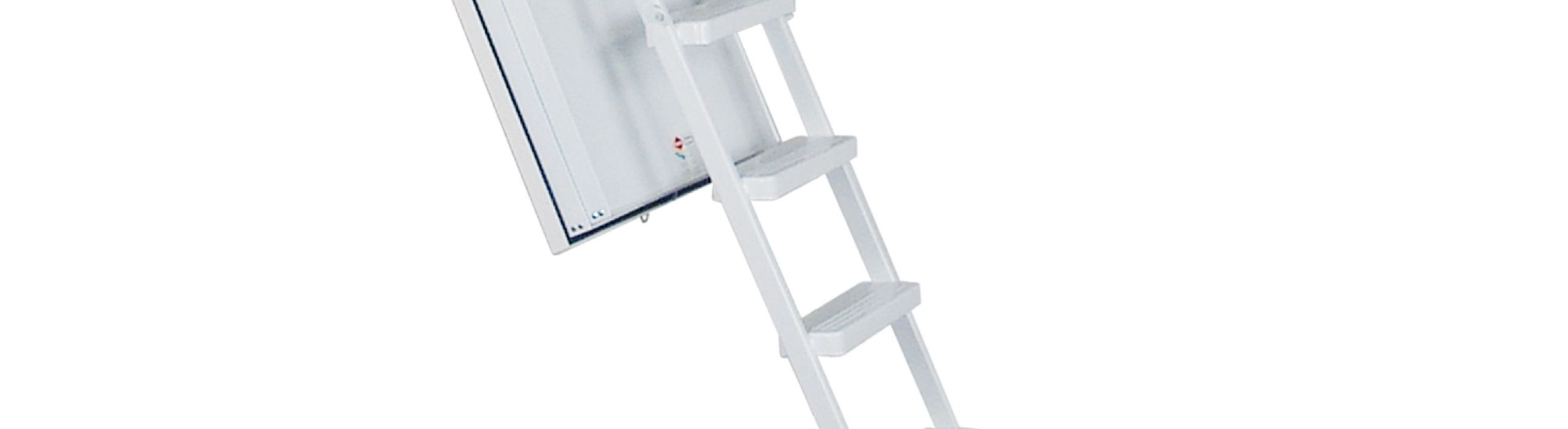

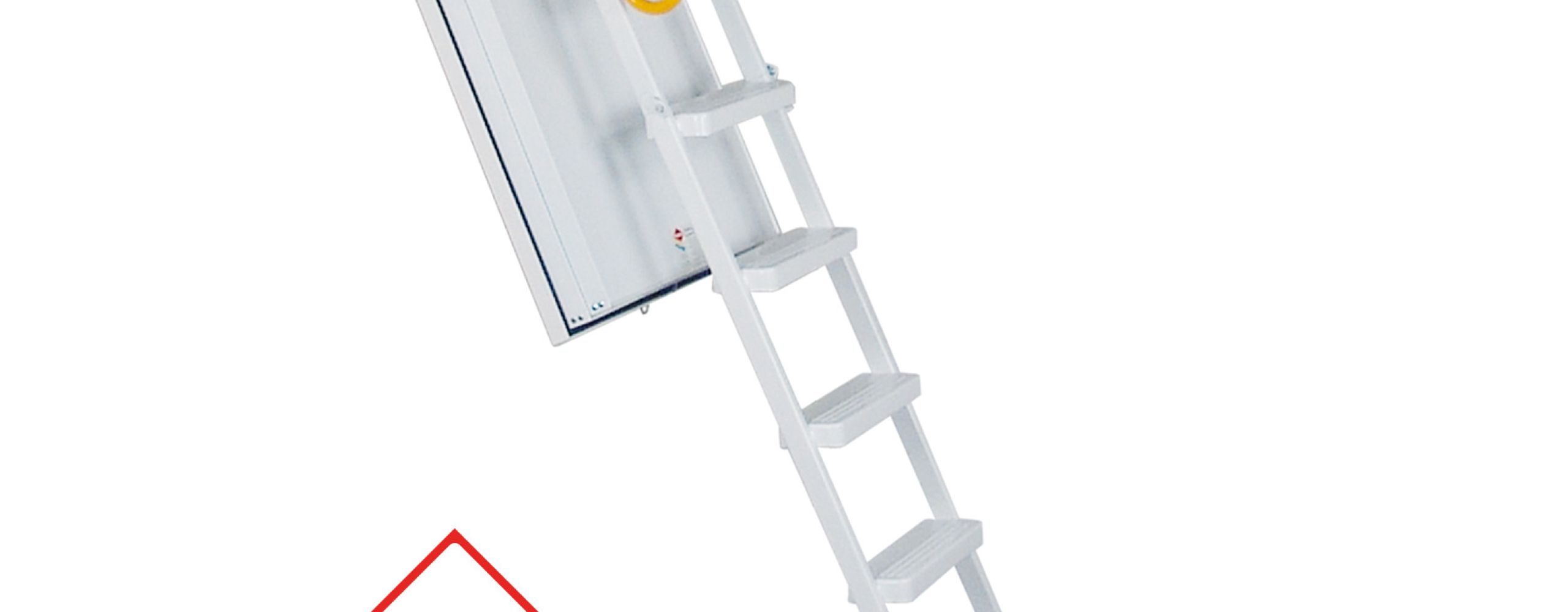

The powder-coated surface protects the metal components against wear and everyday use. Sturdy treads, the position of the top tread inside the casing and the included steel handrail give you secure support when climbing up and down.

Technical data

110/70
Frame size (L x W x H) 1090 x 690 x 455 mm
Ceiling opening size (L x W) 1100 x 700 mm
Floor to ceiling height max. 2650 mm
Fold-out space 600 mm
Basic size 1200 mm
Swivel range top cover to the rear 1490 mm
120/70
Frame size (L x W x H) 1190 x 690 x 455 mm
Ceiling opening size (L x W) 1200 x 700 mm
Floor to ceiling height max. 2700 mm
Fold-out space 500 mm
Basic size 1200 mm
Swivel range top cover to the rear 1590 mm
130/70
Frame size (L x W x H) 1290 x 690 x 455 mm
Ceiling opening size (L x W) 1300 x 700 mm
Floor to ceiling height max. 2700 mm
Fold-out space 500 mm
Basic size 1200 mm
Swivel range top cover to the rear 1690 mm
140/70
Frame size (L x W x H) 1390 x 690 x 455 mm
Ceiling opening size (L x W) 1400 x 700 mm
Floor to ceiling height max. 2700 or 3000 mm
Fold-out space 300 or 400 mm
Basic size 1200 or 1250 mm
Swivel range top cover to the rear 1790 mm
