Spiral staircase Switch
Spiral staircase Switch
Switch Detail 1
Switch Detail 2
Switch Detail 3

Switch

  • Exceptional spiral staircase made of wood and steel
  • Flexible design options thanks to turnable steps
  • Large selection of wood variants: Beech, oak, beech stained to walnut and stained white
  • Steel parts and PVC handrail in black, grey or white
  • Three diameters available: 120, 140 and 160 cm
  • Maximum storey height: 2951 mm

The validation text should appear here.The stairs are suitable for this room height.
Export as PDF
Add to wishlist

2.589,00 € – 3.242,00 € incl. Tax excl. Shipping Costs*

SKU: N/A Categories: , Tags: ,

Description

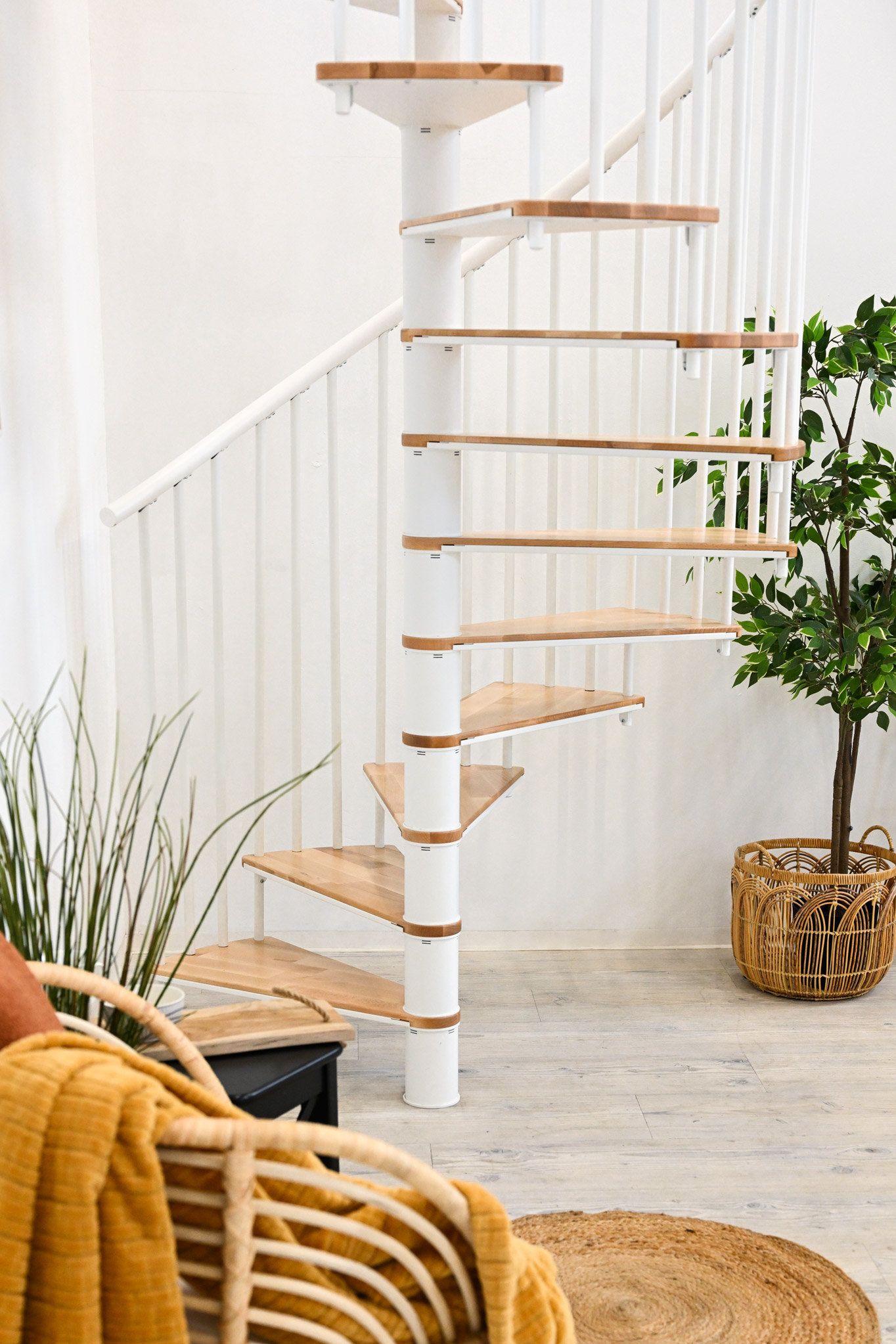

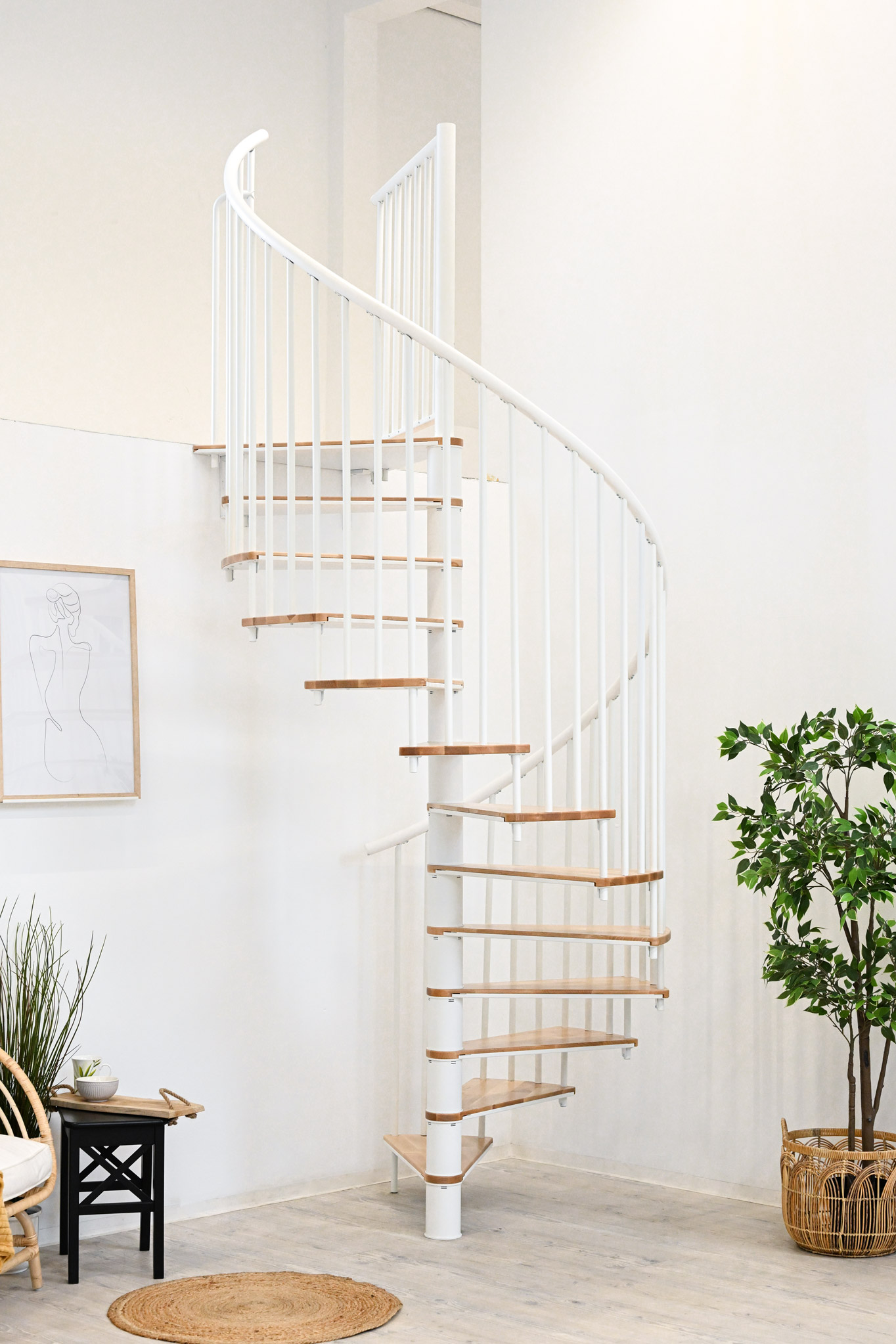

The spiral staircase Switch impresses with its unusual look with steps made of wood and steel. These can be installed with the wooden side facing upwards or with the metal side facing upwards – giving you flexible design options, just the way you want them.

Flexible design.

The spiral staircase Switch comes in a particularly wide range of colours. The steps are available in beech, oak, beech stained to walnut and beech stained white. Together with the metal colours black, grey and white, countless combinations can be created. Staircase diameters are available in 120, 140 and 160 cm.

Sustainable use.

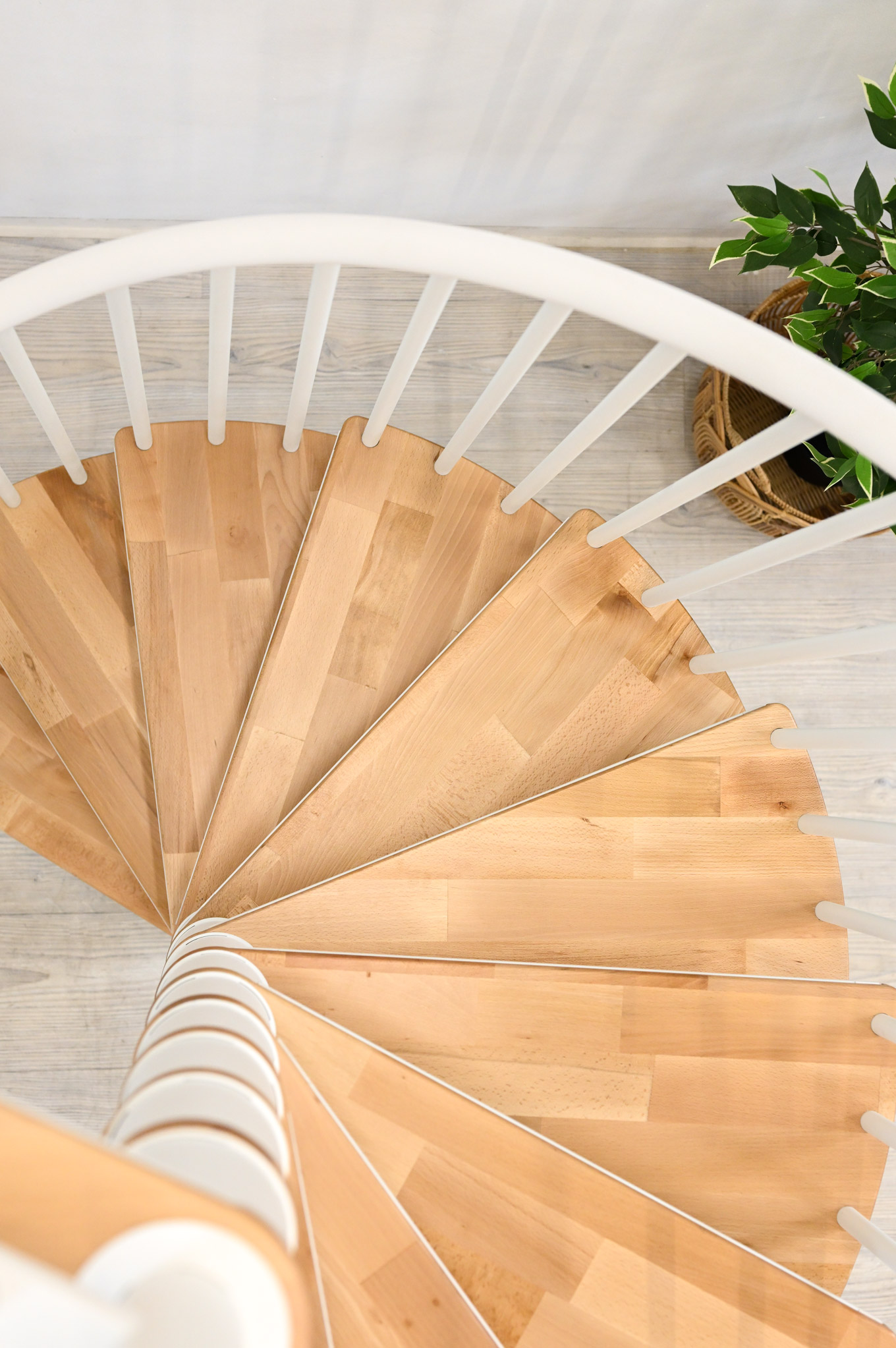

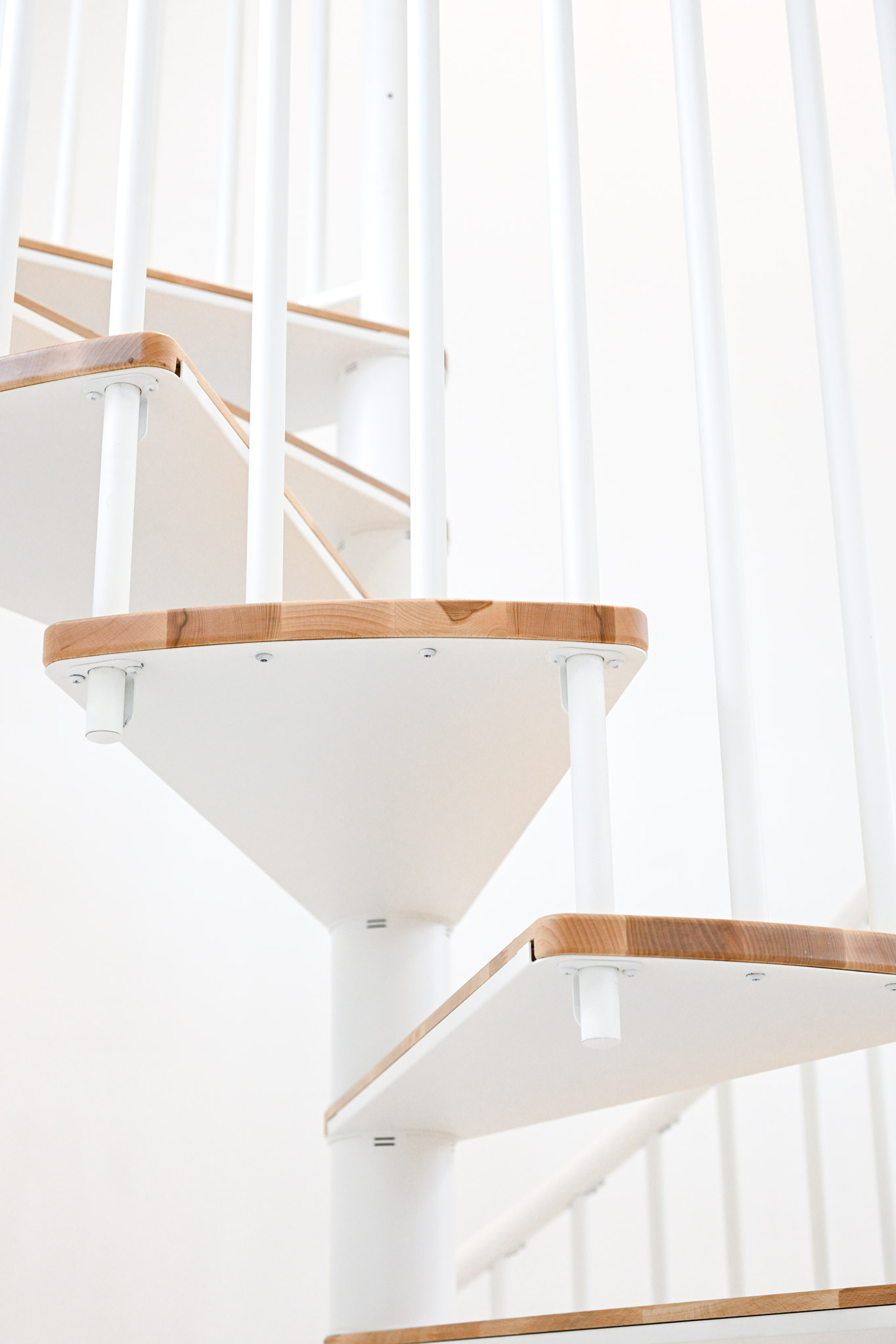

The Switch spiral staircase is extremely safe to walk on thanks to the vertical balusters and the handrail made of sturdy PVC. The powder-coated steel treads and the lacquering of the wood ensure that the steps are protected from scratches.

Technical data

Basic data
Steps Beech, oak, beech stained to walnut or beech stained white
Wood surface Transparent lacquered
Tread covers Steel powder-coated in grey, black or white
Spindle tubes Steel powder-coated in grey, black or white
Railing rods Steel powder-coated in grey, black or white
Handrail PVC grey, black or white
Number of steps 12 + 1 platform
Switch 120
Radius 600 mm
Max. storey height 2951 mm

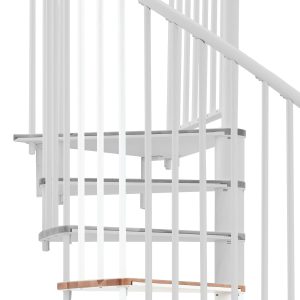

Max. storey height with one height extension 3178 mm
Max. storey height with two height extensions 3405 mm
Tread depth 210 mm
Free passage width 486 mm
Tread thickness 26,5 mm
Rise per step 182-227 mm
Rotation per step 29°
Platform width 650 mm
Rotation of platform 53°
Spindle diameter 108 mm
Baluster diameter 22 mm
Railing height 1000 mm
Handrail diameter 40 mm
Switch 140
Radius 700 mm
Max. storey height 2951 mm
Max. storey height with one height extension 3178 mm
Max. storey height with two height extensions 3405 mm
Tread depth 236 mm
Free passage width 586 mm
Tread thickness 26,5 mm
Rise per step 182-227 mm
Rotation per step 25°
Platform width 750 mm
Rotation of platform 53°
Spindle diameter 108 mm
Baluster diameter 22 mm
Railing height 1000 mm
Handrail diameter 40 mm
Switch 160
Radius 800 mm
Max. storey height 2951 mm
Max. storey height with one height extension 3178 mm
Max. storey height with two height extensions 3405 mm
Tread depth 244 mm
Free passage width 686 mm
Tread thickness 26,5 mm
Rise per step 182-227 mm
Rotation per step 22°
Platform width 850 mm
Rotation of platform 53°
Spindle diameter 108 mm
Baluster diameter 22 mm
Railing height 1000 mm
Handrail diameter 40 mm

Downloads

Assembly instructions

Technical datasheet
