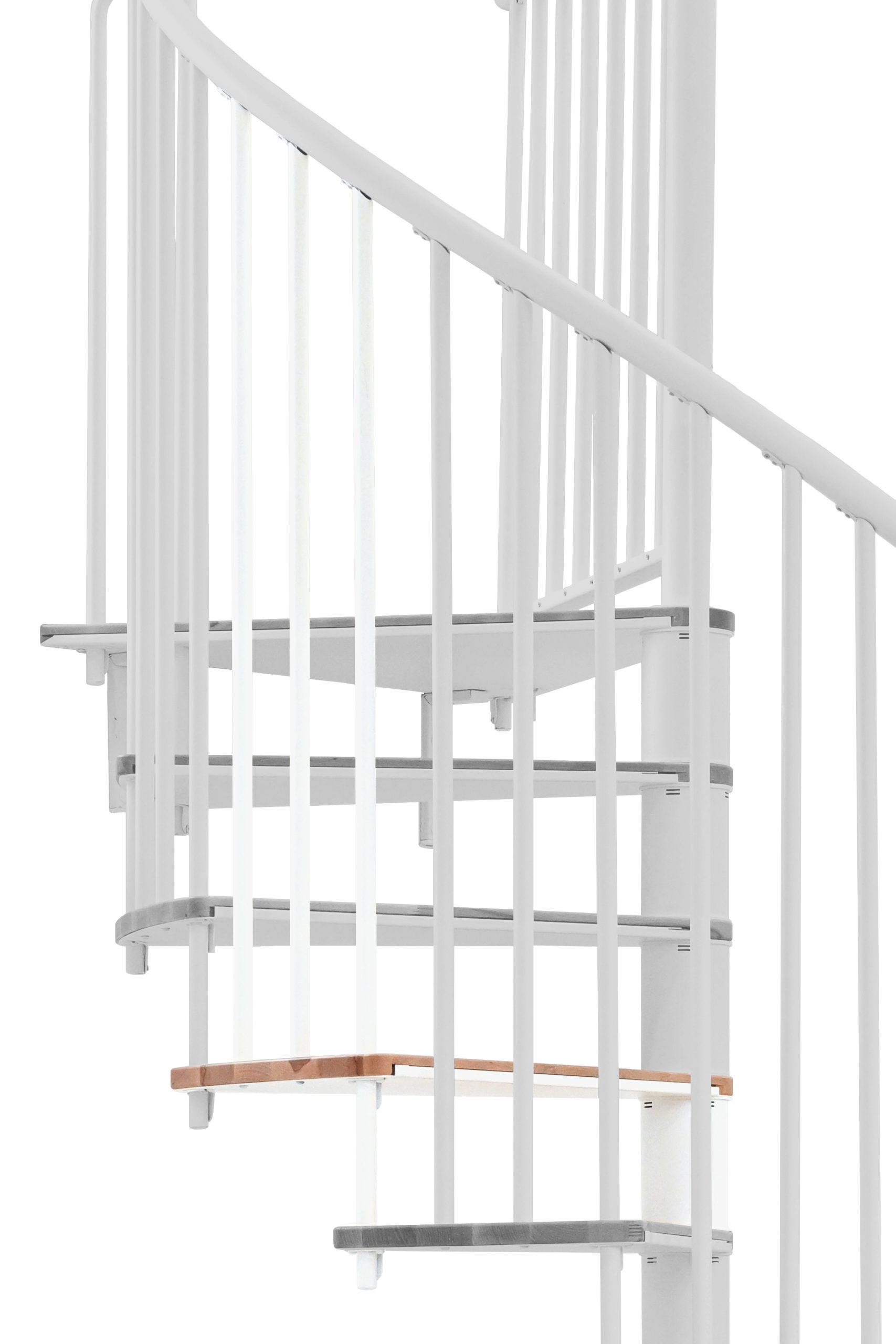

Height extension beech white
Height extension oak black

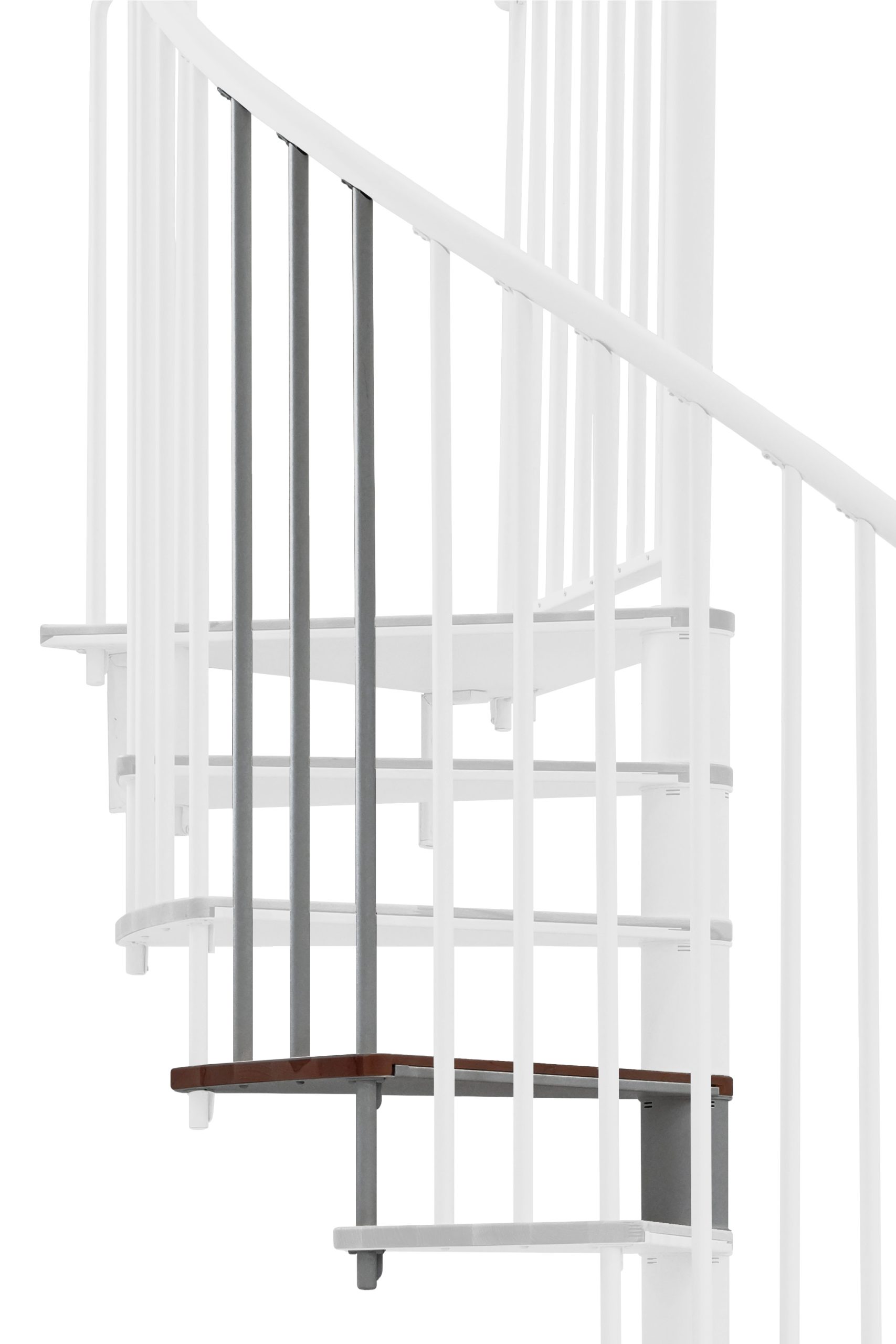

Height extension walnut grey

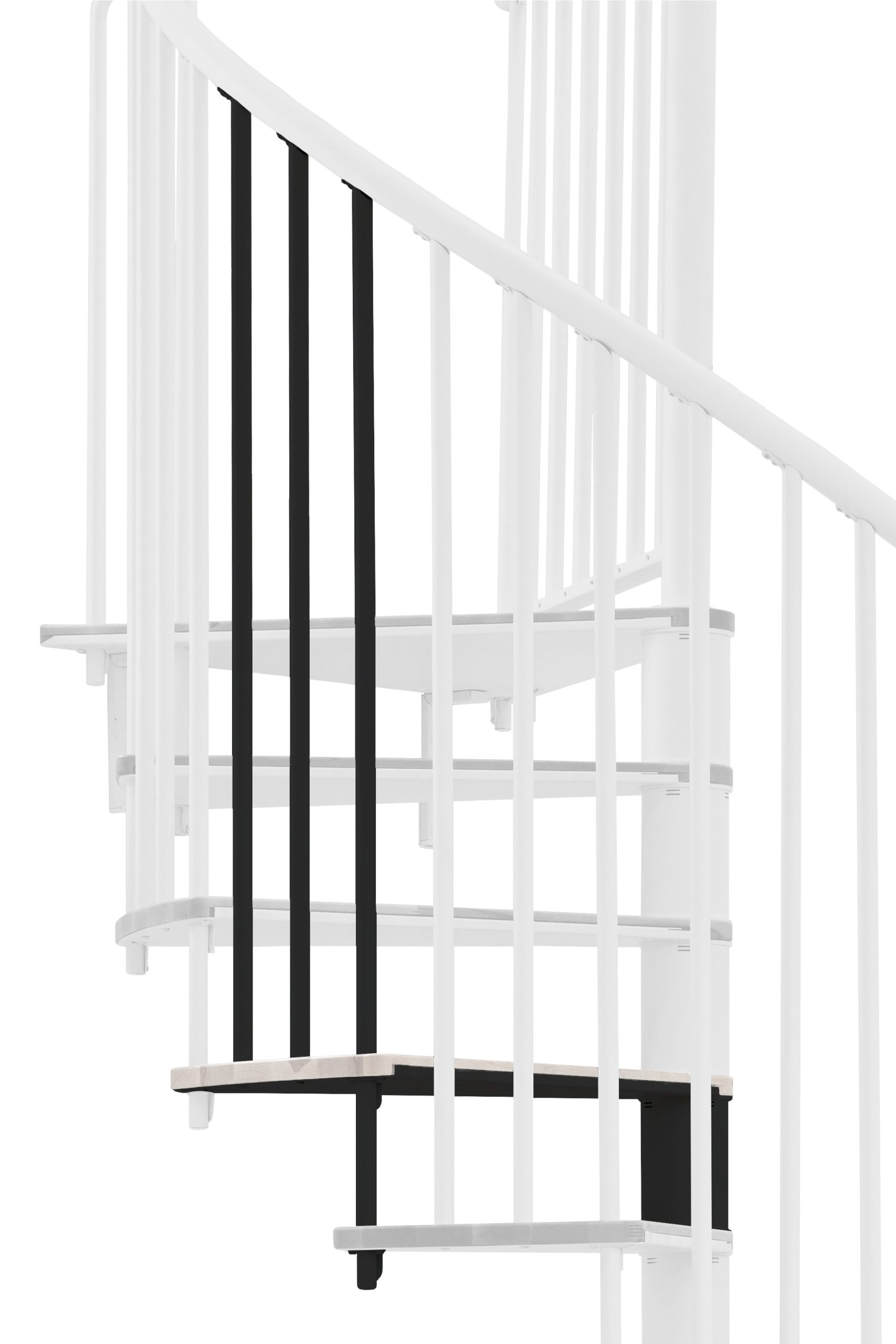

Height extension white black

Height extension for Switch

  • Additional step for spiral staircase Switch
  • Extension of Switch by 182-227 mm
  • Maximum attainable storey height with one height extension: 3178 mm
  • Maximum attainable storey height with two height extensions: 3405 mm
  • When purchasing, please ensure that the height extension has the same configuration as your staircase and install a maximum of two height extensions per staircase.

Export as PDF
Add to wishlist

€ 333.60 incl. Tax excl. Shipping Costs*

SKU: N/A Category: Tags: ,

  • Description

    If the height of the spiral staircase Switch is not sufficient for your room situation, you can help with up to two height extensions. The height extension consists of an additional step, a spindle element and balusters. These are available in the same wood types, metal colours and diameters as the Switch spiral staircase. When ordering, please ensure that the staircase data matches that of the height extension.

    The additional step including spindle tube has a flexible height of 182-227 mm. With one height extension, the spiral staircase Switch thus reaches a maximum storey height of up to 3178 mm. If you install two additional steps, even storeys up to 3405 mm are no longer a problem.

    Please install a maximum of two height extensions per staircase! If three or more additional steps are installed, stability is no longer guaranteed.

  • Technical data

    Basic data
    Steps Beech, oak, beech stained to walnut or beech stained white
    Wood surface Transparent lacquered
    Tread covers Steel powder-coated in grey, black or white
    Spindle tubes Steel powder-coated in grey, black or white
    Railing rods Steel powder-coated in grey, black or white
    Handrail PVC grey, black or white
    Number of steps 12 + 1 platform
    Switch 120
    Radius 600 mm
    Max. storey height 2951 mm
    Max. storey height with one height extension 3178 mm
    Max. storey height with two height extensions 3405 mm
    Tread depth 210 mm
    Free passage width 486 mm
    Tread thickness 26,5 mm
    Rise per step 182-227 mm
    Rotation per step 29°
    Platform width 650 mm
    Rotation of platform 53°
    Spindle diameter 108 mm
    Baluster diameter 22 mm
    Railing height 1000 mm
    Handrail diameter 40 mm
    Switch 140
    Radius 700 mm
    Max. storey height 2951 mm
    Max. storey height with one height extension 3178 mm
    Max. storey height with two height extensions 3405 mm
    Tread depth 236 mm
    Free passage width 586 mm
    Tread thickness 26,5 mm
    Rise per step 182-227 mm
    Rotation per step 25°
    Platform width 750 mm
    Rotation of platform 53°
    Spindle diameter 108 mm
    Baluster diameter 22 mm
    Railing height 1000 mm
    Handrail diameter 40 mm
    Switch 160
    Radius 800 mm
    Max. storey height 2951 mm
    Max. storey height with one height extension 3178 mm
    Max. storey height with two height extensions 3405 mm
    Tread depth 244 mm
    Free passage width 686 mm
    Tread thickness 26,5 mm
    Rise per step 182-227 mm
    Rotation per step 22°
    Platform width 850 mm
    Rotation of platform 53°
    Spindle diameter 108 mm
    Baluster diameter 22 mm
    Railing height 1000 mm
    Handrail diameter 40 mm

  • Downloads

    Assembly instructions staircase

    Technical datasheet
