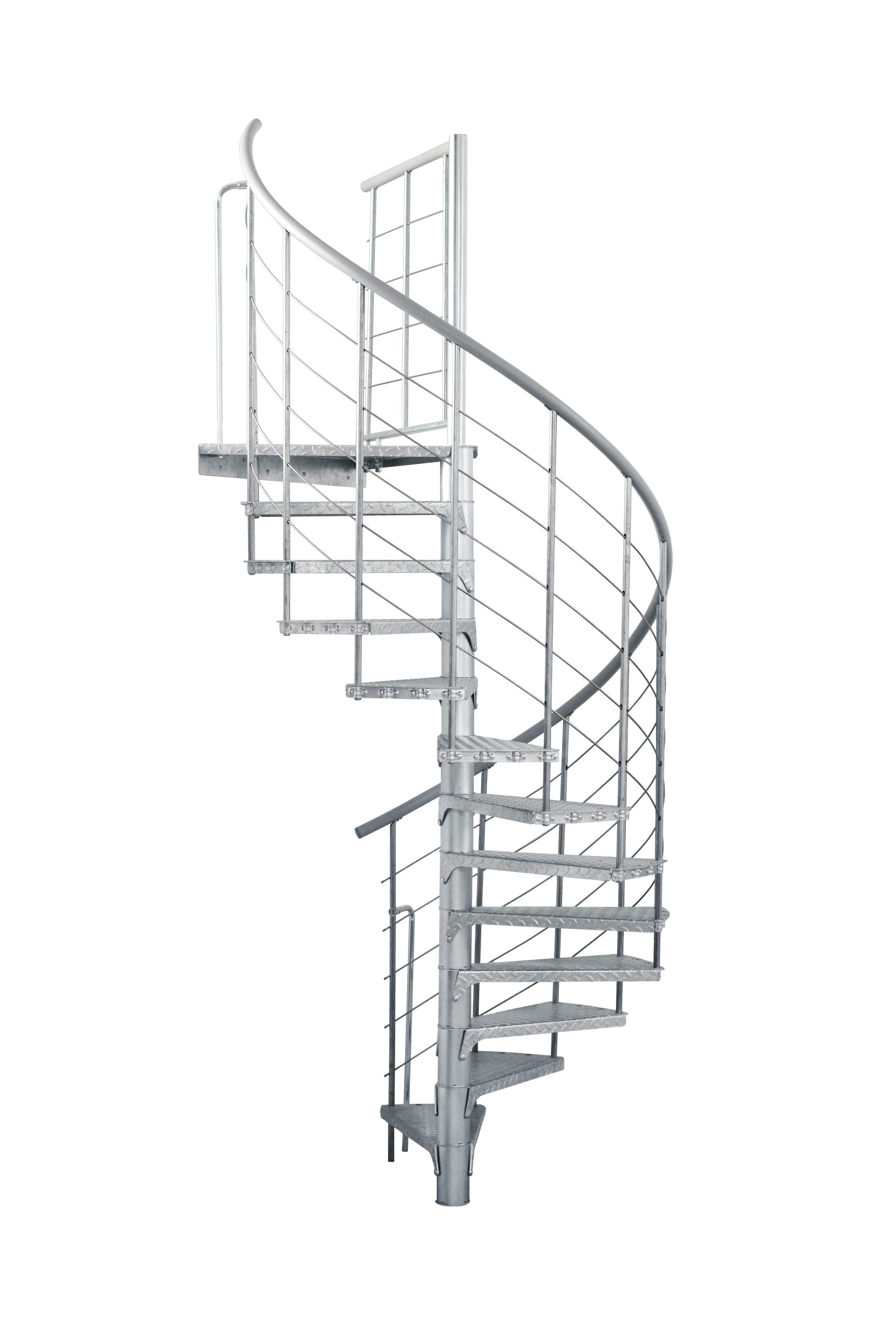

Spino Zink Smart spiral staircase made of galvanized metal with anti-slip checker plate steps and railing featuring vertical bars, horizontal cables, and a PVC handrail.

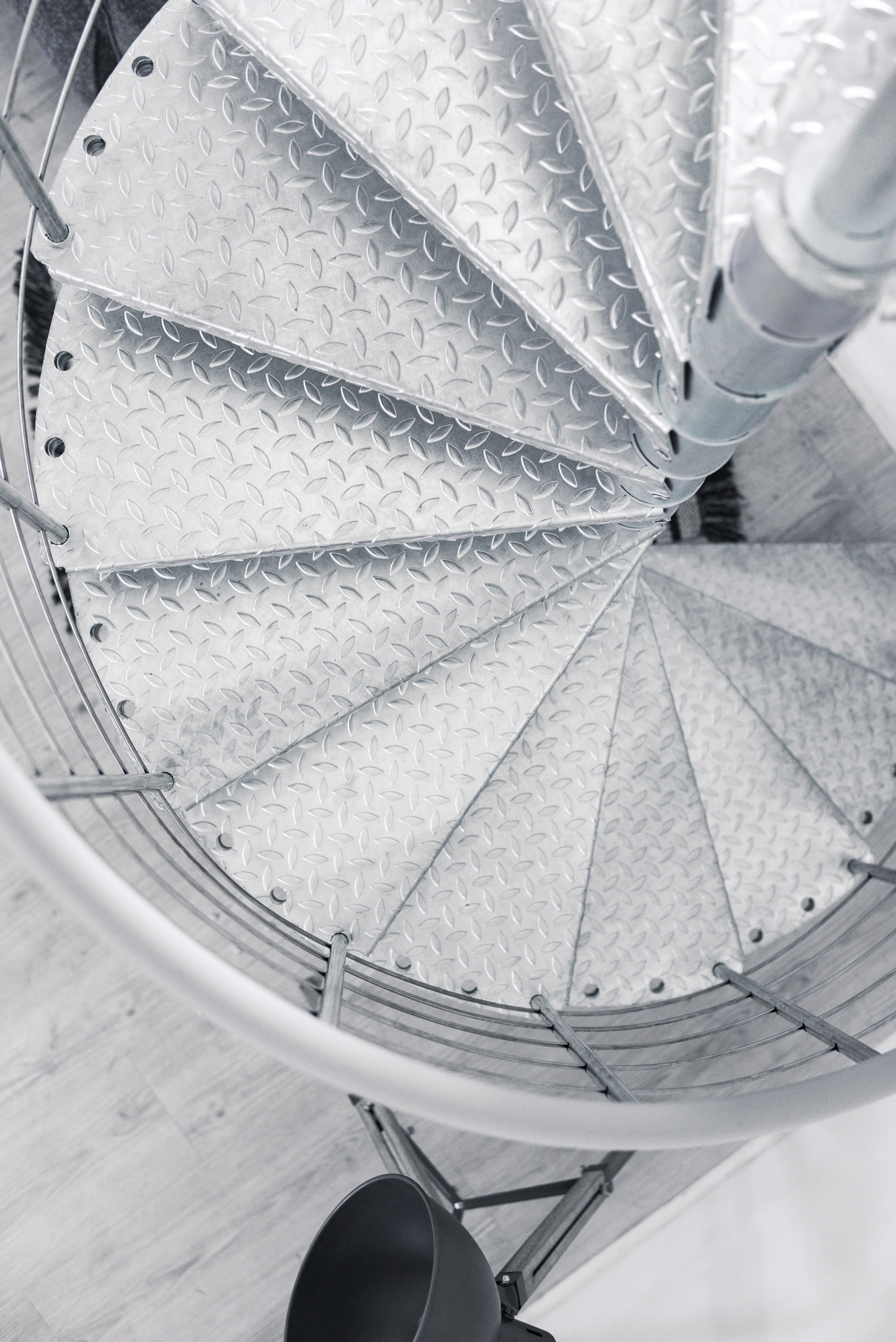

Top-down view of the Spino Zink Smart spiral staircase made of galvanized metal. The slip-resistant, diamond-patterned steps offer enhanced safety and secure footing, ideal for both indoor and outdoor use.

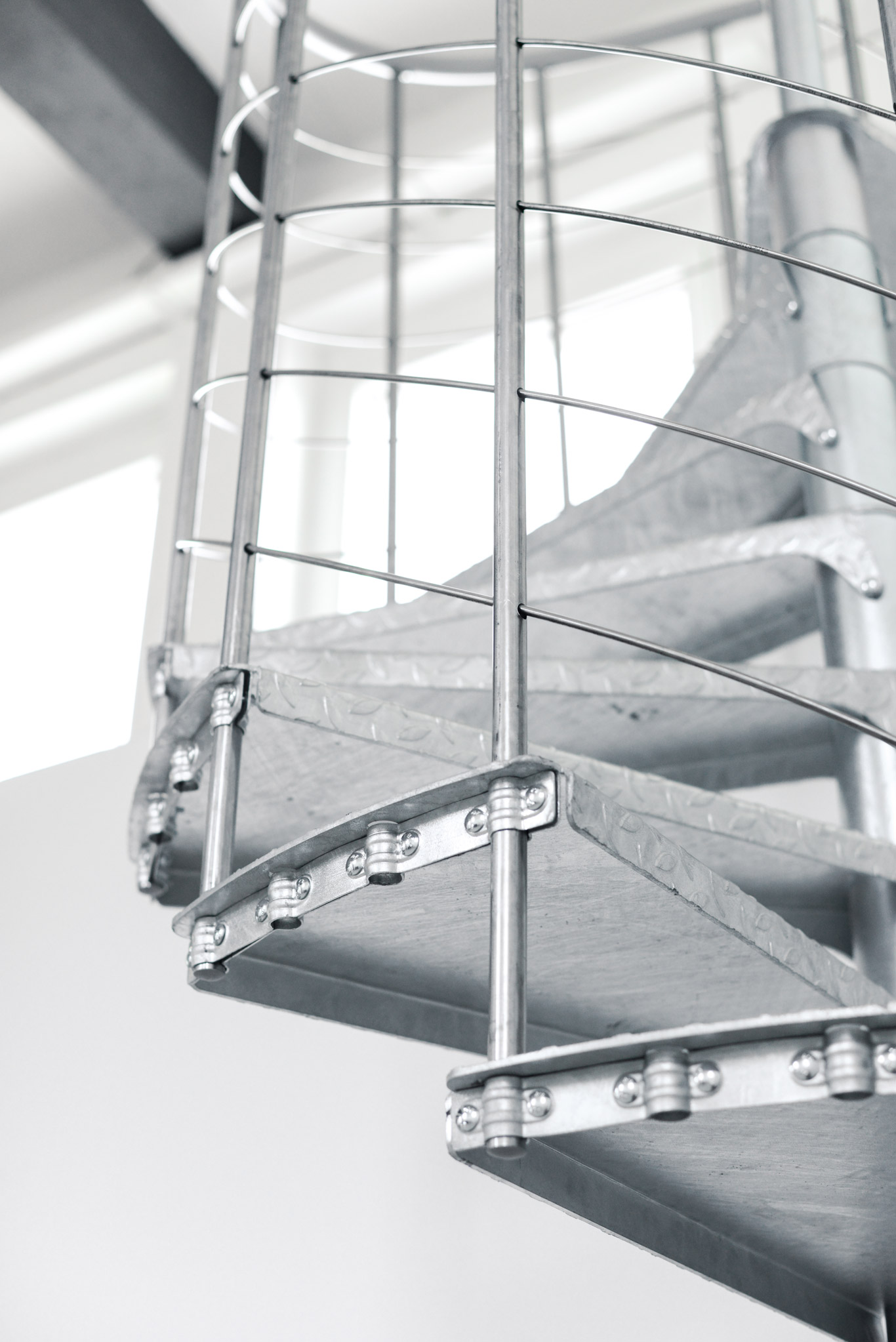

Close-up of the Spino Zink Smart spiral staircase featuring galvanized metal steps and a railing with vertical and horizontal bars. The sturdy construction ensures safety and accessibility in both indoor and outdoor environments.

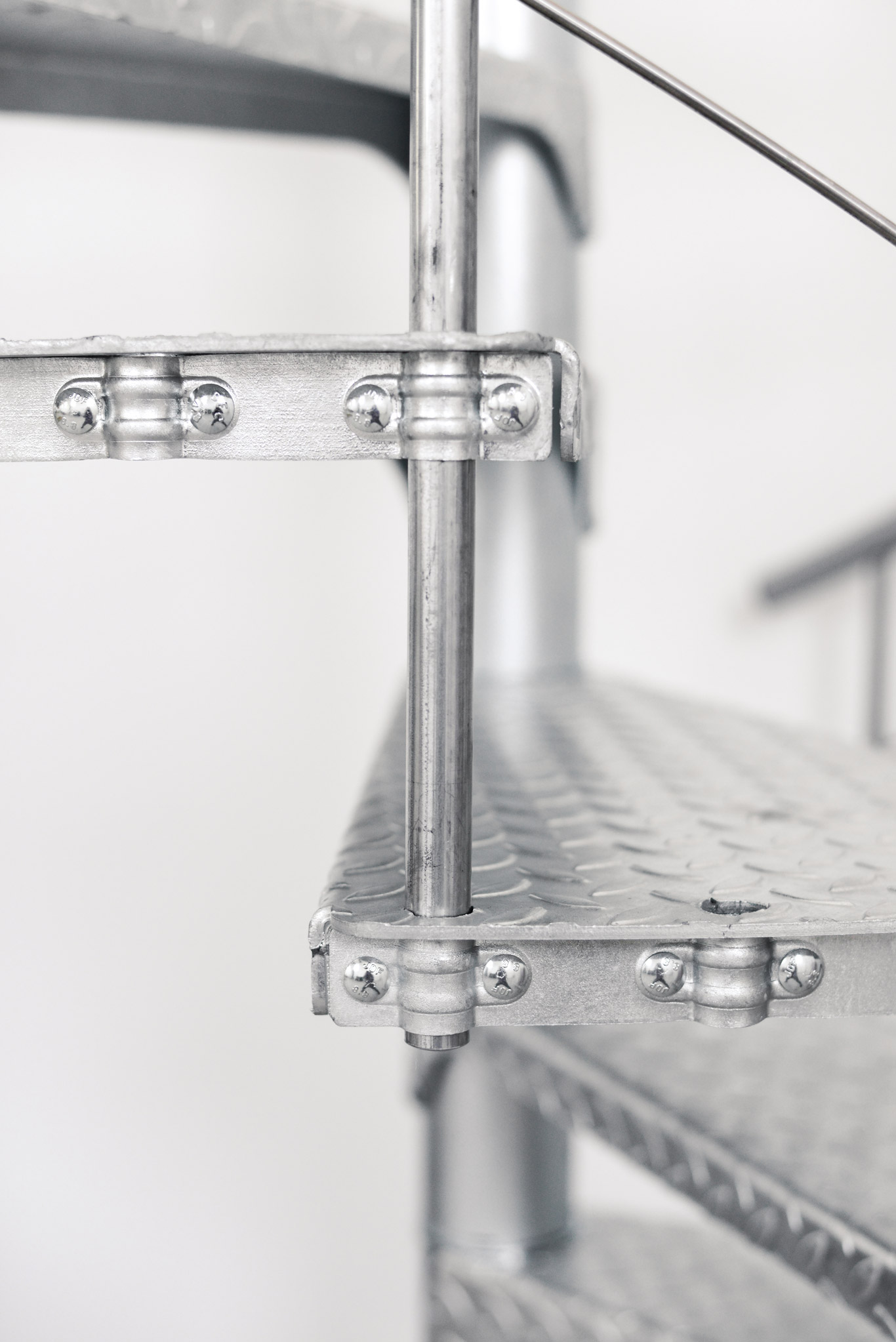

Close-up view of the Spino Zink Smart spiral staircase made of galvanized metal. The image shows a connection between the step and railing with clearly visible fastening elements.

Spino Zink Smart

  • Dynamic spiral staircase for outdoor use
  • Indoor use also possible
  • Steps with knobs allow safe stair climbing
  • Banister with stainless steel bottom chords and handrail made of high-quality PVC
  • Available in four diameters: 120, 14, 160 or 180 cm
  • Maximum storey height: 3055 mm

The validation text should appear here.The stairs are suitable for this room height.
Add to wishlist

2.612,40 € – 3.422,40 € incl. tax excl. shipping costs*

SKU: N/A Categories: , , Tags: , ,

Description

The Spino Zink Smart outdoor spiral staircase combines a galvanised steel construction with a modern, dynamic look. Studded treads improve grip when climbing up and down. This makes the staircase suitable for accessing terraces, elevated entrances or upper floors.

Horizontal stainless steel rails and a PVC handrail complete the galvanised railing.

Four sizes to choose from

The Spino Zink Smart is available with a diameter of 120, 140, 160 or 180 cm. This allows you to select the size that suits the available space.

The maximum floor-to-floor height is just over 3 metres. For lower heights, the number of treads can be reduced or the rise can be adjusted accordingly.

Designed for outdoor use

The galvanised finish protects the steel components against corrosion and weather conditions. The stainless steel rails and PVC handrail are also suitable for outdoor use.

Technical data

Basic data
Steps Steel galvanised
Spindle tubes Steel galvanised
Railing rods Steel galvanised
Bottom chords Stainless Steel
Handrail PVC
120
Radius 600 mm
Max. storey height 3055 mm
Max. storey height with one height extension 3290 mm
Max. storey height with two height extensions 3525 mm
Tread depth 196 mm
Free passage width 486 mm
Tread thickness 3 mm
Rise per step 190-235 mm
Rotation per step 29,6°
Platform width 650 mm
Rotation of platform 54°
Spindle diameter 108 mm
Railing height 1000 mm
Handrail diameter 40 mm
140
Radius 700 mm
Max. storey height 3055 mm
Max. storey height with one height extension 3290 mm
Max. storey height with two height extensions 3525 mm
Tread depth 213 mm
Free passage width 586 mm
Tread thickness 3 mm
Rise per step 190-235 mm
Rotation per step 25°
Platform width 750 mm
Rotation of platform 54°
Spindle diameter 108 mm
Railing height 1000 mm
Handrail diameter 40 mm
160
Radius 800 mm
Max. storey height 3055 mm
Max. storey height with one height extension 3290 mm
Max. storey height with two height extensions 3525 mm
Tread depth 223 mm
Free passage width 686 mm
Tread thickness 3 mm
Rise per step 190-235 mm
Rotation per step 21,9°
Platform width 850 mm
Rotation of platform 54°
Spindle diameter 108 mm
Railing height 1000 mm
Handrail diameter 40 mm
180
Radius 900 mm
Max. storey height 3055 mm
Max. storey height with one height extension 3290 mm
Max. storey height with two height extensions 3525 mm
Tread depth 233 mm
Free passage width 786 mm
Tread thickness 3 mm
Rise per step 190-235 mm
Rotation per step 19,4°
Platform width 950 mm
Rotation of platform 54°
Spindle diameter 108 mm
Railing height 1000 mm
Handrail diameter 40 mm
