Height extension for Spino Zink Smart

Height extension for Spino Zink Smart

COMING SOON
  • Additional step for spiral staircase Spino Zink Smart
  • Extension of Spino Zink Smart by 190-235 mm
  • Maximum attainable storey height with one height extension: 3290 mm
  • Maximum attainable storey height with two height extensions: 3525 mm
  • When purchasing, please ensure that the height extension has the same configuration as your staircase and install a maximum of two height extensions per staircase.

278,00  incl. Tax excl. Shipping Costs*

Description

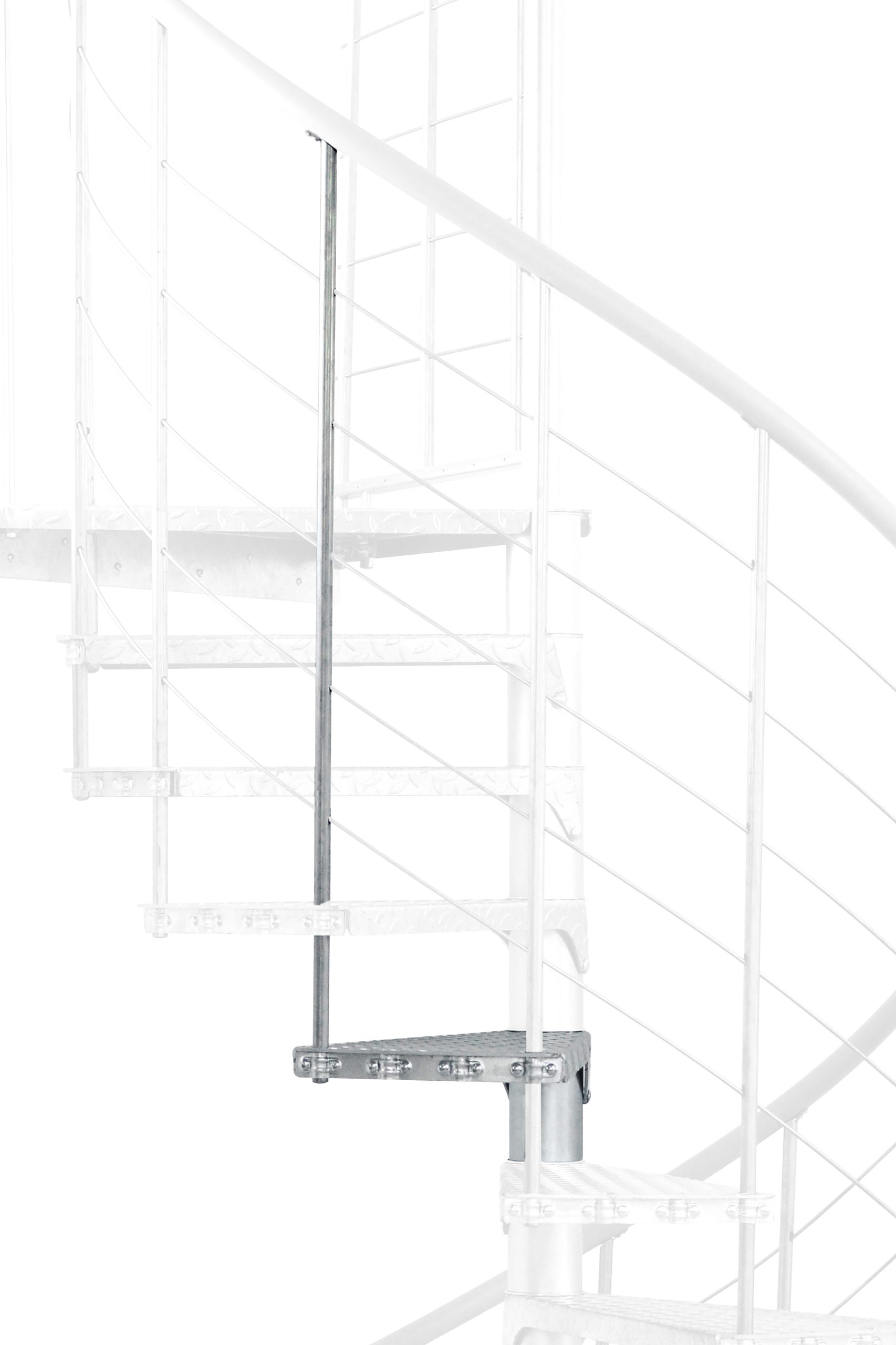

To make the outdoor staircase Spino Zink Smart suitable for storeys above 3055 mm, you can order the matching height extension. The height extension includes a spindle element, a stair tread and some parts for extending the railing. As with the staircase, the parts are made of galvanised steel. The steps are available in diameters of 120, 140, 160 and 180 cm. Please make sure you buy the height extension in the same size as your staircase.

With the additional step, you will achieve a height increase of 190-235 mm. In total, the Spino Zink Smart with one height extension has a maximum storey height of 3290 mm. If you fit two additional steps, you can climb storeys of up to 3525 mm.

Please install a maximum of two height extensions per staircase! If three or more additional steps are installed, stability is no longer guaranteed.

Technical data

Basic data
Steps Steel galvanised
Spindle tubes Steel galvanised
Railing rods Steel galvanised
Bottom chords Stainless Steel
Handrail PVC
120
Radius 600 mm
Max. storey height 3055 mm
Max. storey height with one height extension 3290 mm
Max. storey height with two height extensions 3525 mm
Tread depth 196 mm
Free passage width 486 mm
Tread thickness 4 mm
Rise per step 190-235 mm
Rotation per step 29,6°
Platform width 650 mm
Rotation of platform 54°
Spindle diameter 108 mm
Railing height 1000 mm
Handrail diameter 40 mm
140
Radius 700 mm
Max. storey height 3055 mm
Max. storey height with one height extension 3290 mm
Max. storey height with two height extensions 3525 mm
Tread depth 213 mm
Free passage width 586 mm
Tread thickness 4 mm
Rise per step 190-235 mm
Rotation per step 25°
Platform width 750 mm
Rotation of platform 54°
Spindle diameter 108 mm
Railing height 1000 mm
Handrail diameter 40 mm
160
Radius 800 mm
Max. storey height 3055 mm
Max. storey height with one height extension 3290 mm
Max. storey height with two height extensions 3525 mm
Tread depth 223 mm
Free passage width 686 mm
Tread thickness 4 mm
Rise per step 190-235 mm
Rotation per step 21,9°
Platform width 850 mm
Rotation of platform 54°
Spindle diameter 108 mm
Railing height 1000 mm
Handrail diameter 40 mm
180
Radius 900 mm
Max. storey height 3055 mm
Max. storey height with one height extension 3290 mm
Max. storey height with two height extensions 3525 mm
Tread depth 233 mm
Free passage width 786 mm
Tread thickness 4 mm
Rise per step 190-235 mm
Rotation per step 19,4°
Platform width 950 mm
Rotation of platform 54°
Spindle diameter 108 mm
Railing height 1000 mm
Handrail diameter 40 mm
