Spino Zink Color

Spino Zink Color

COMING SOON
  • Modern outdoor staircase as an eye-catcher in any garden
  • Double protection of the parts: Galvanised and powder-coated
  • Three colour options: Black, anthracite or white
  • Stainless steel bottom rails, handrail made of robust PVC
  • Available in four diameters: 120, 140, 160 or 180 cm
  • Maximum storey height: 3055 mm

This product is currently out of stock and unavailable.

Description

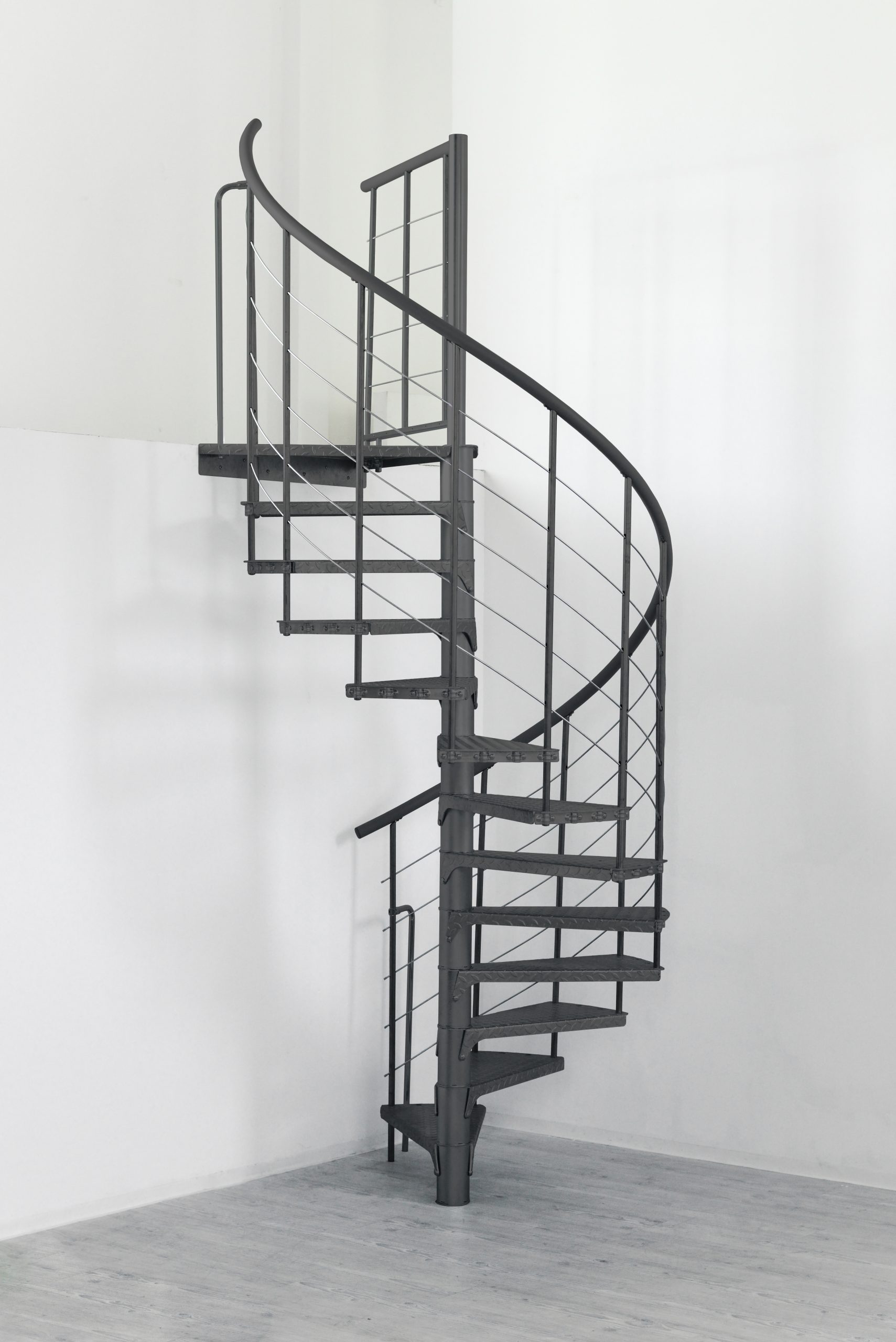

The outdoor staircase Spino Zinc Color is a real eye-catcher in any garden. With its robust galvanised steel structure and powder coating in various colours, it skilfully combines functionality and design.

Flexible design.

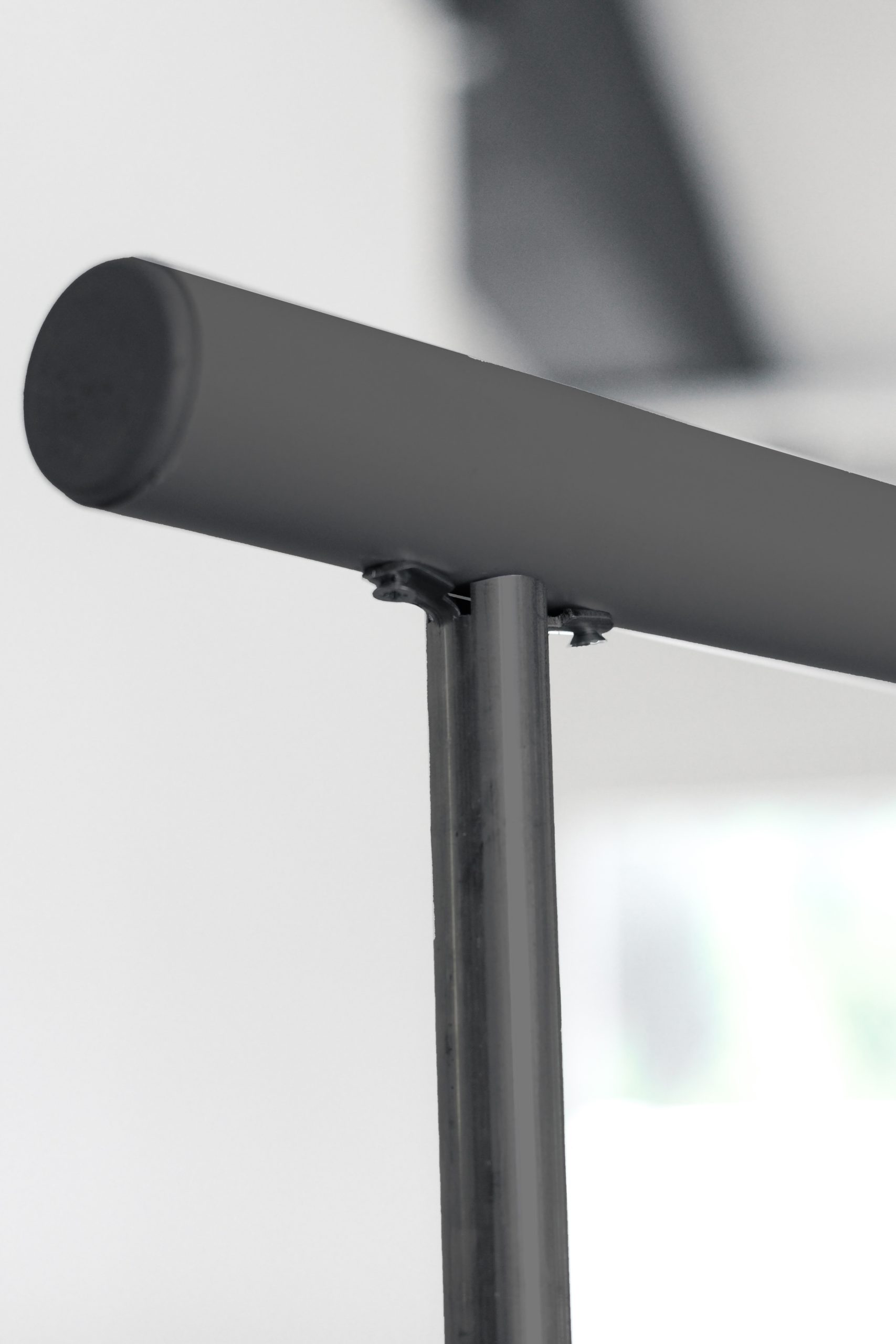

The steel parts of the spiral staircase Spino Zink Color are not only galvanised, but also powder-coated. There are three different colours to choose from: Black, anthracite and white. The PVC handrail comes in the matching colours and the bottom rails are made of stainless steel. Depending on how much space is available outside, diameters of 120, 140, 160 or 180 cm are available.

Sustainable use.

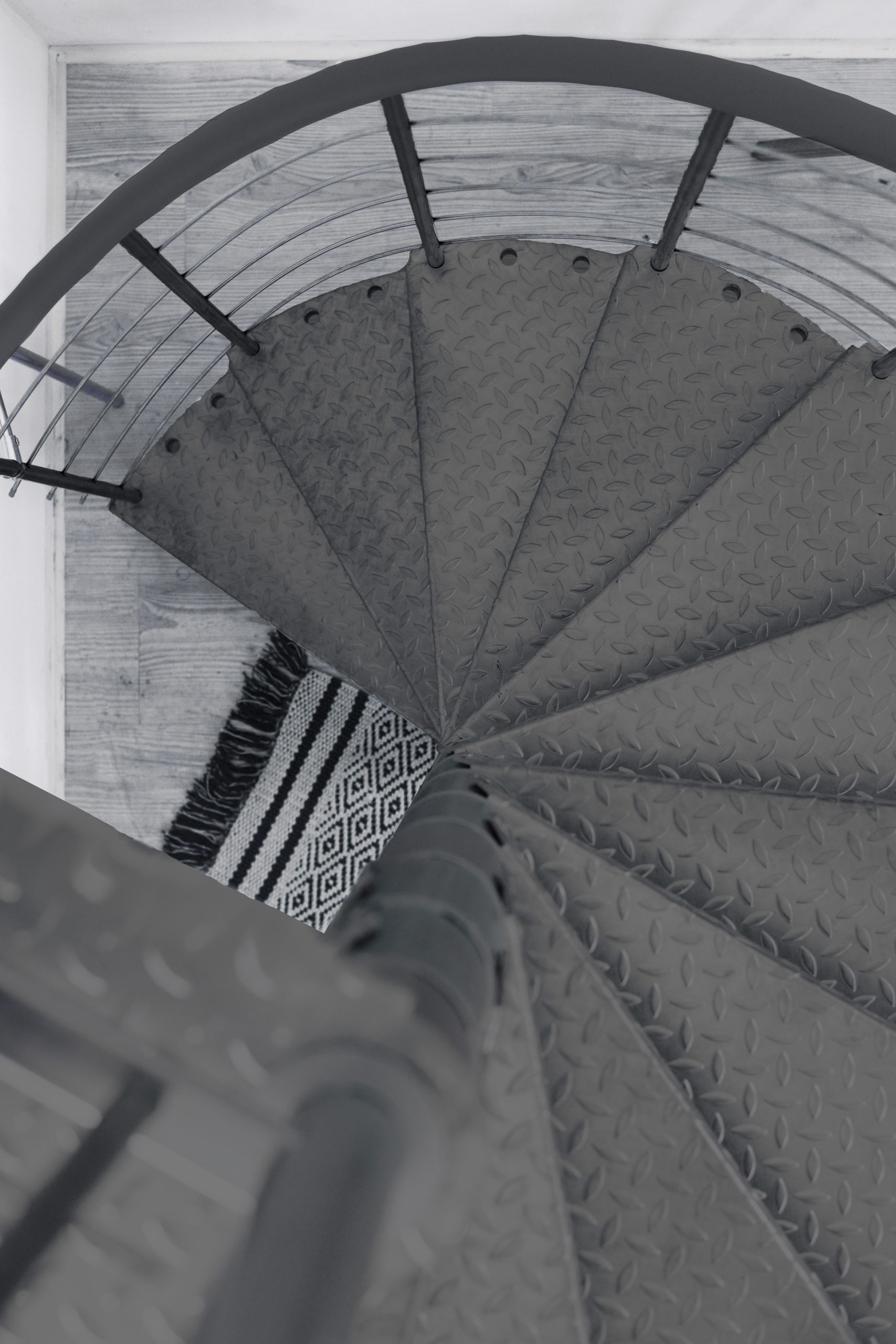

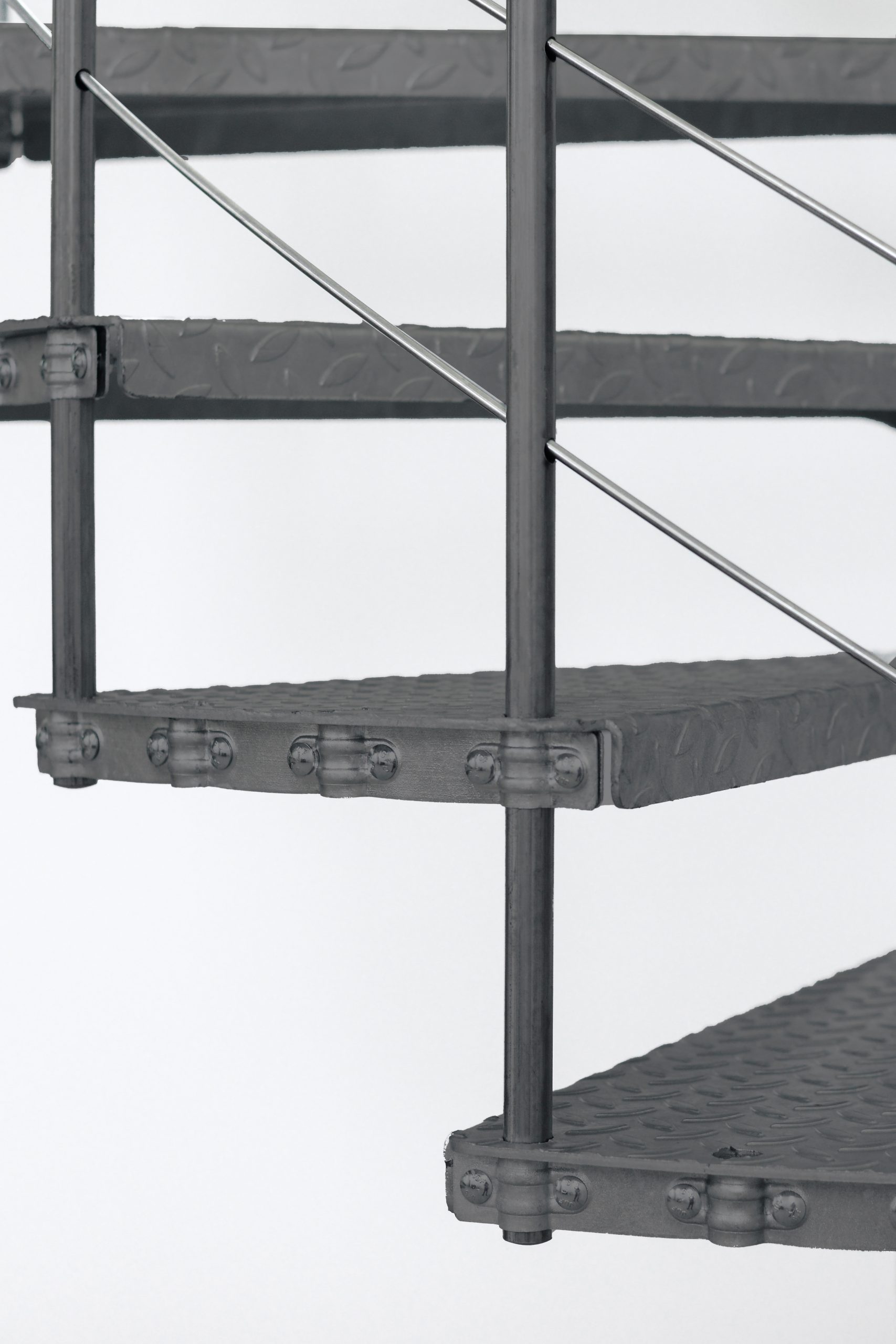

The galvanisation and additional powder coating of the steel parts provide double protection for the material. This makes the outdoor staircase Spino Zink Color resistant to corrosion and various environmental influences. The nubbed treads and the sturdy bottom railing ensure safe, non-slip stair climbing at all times.

Technical data

Basic data
Steps Steel galvanised and powder-coated in black, anthracite or white
Spindle tubes Steel galvanised and powder-coated in black, anthracite or white
Railing rods Steel galvanised and powder-coated in black, anthracite or white
Bottom chords Stainless steel
Handrail PVC black or white
120
Radius 600 mm
Max. storey height 3055 mm
Max. storey height with one height extension 3290 mm
Max. storey height with two height extensions 3525 mm
Tread depth 196 mm
Free passage width 486 mm
Tread thickness 4 mm
Rise per step 190-235 mm
Rotation per step 29,6°
Platform width 650 mm
Rotation of platform 54°
Spindle diameter 108 mm
Railing height 1000 mm
Handrail diameter 40 mm
140
Radius 700 mm
Max. storey height 3055 mm
Max. storey height with one height extension 3290 mm
Max. storey height with two height extensions 3525 mm
Tread depth 213 mm
Free passage width 586 mm
Tread thickness 4 mm
Rise per step 190-235 mm
Rotation per step 25°
Platform width 750 mm
Rotation of platform 54°
Spindle diameter 108 mm
Railing height 1000 mm
Handrail diameter 40 mm
160
Radius 800 mm
Max. storey height 3055 mm
Max. storey height with one height extension 3290 mm
Max. storey height with two height extensions 3525 mm
Tread depth 223 mm
Free passage width 686 mm
Tread thickness 4 mm
Rise per step 190-235 mm
Rotation per step 21,9°
Platform width 850 mm
Rotation of platform 54°
Spindle diameter 108 mm
Railing height 1000 mm
Handrail diameter 40 mm
180
Radius 900 mm
Max. storey height 3055 mm
Max. storey height with one height extension 3290 mm
Max. storey height with two height extensions 3525 mm
Tread depth 233 mm
Free passage width 786 mm
Tread thickness 4 mm
Rise per step 190-235 mm
Rotation per step 19,4°
Platform width 950 mm
Rotation of platform 54°
Spindle diameter 108 mm
Railing height 1000 mm
Handrail diameter 40 mm
