Spino Zink Color height extension anthracite

Height extension for Spino Zink Color

COMING SOON
  • Additional step for spiral staircase Spino Zink Color
  • Extension of Spino Zink Color by 190-235 mm
  • Maximum attainable storey height with one height extension: 3290 mm
  • Maximum attainable storey height with two height extensions: 3525 mm
  • When purchasing, please ensure that the height extension has the same configuration as your staircase and install a maximum of two height extensions per staircase.

This product is currently out of stock and unavailable.

Description

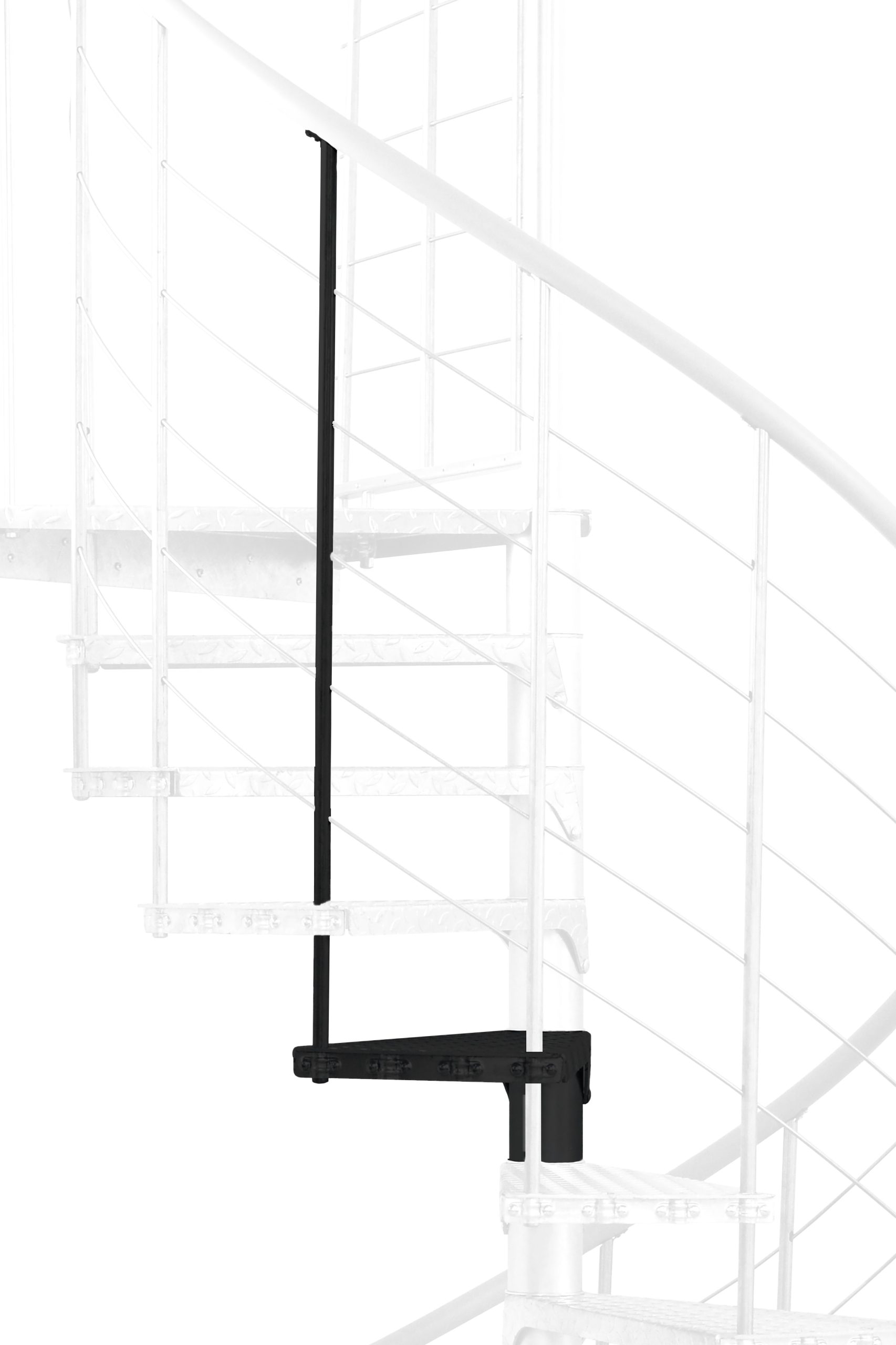

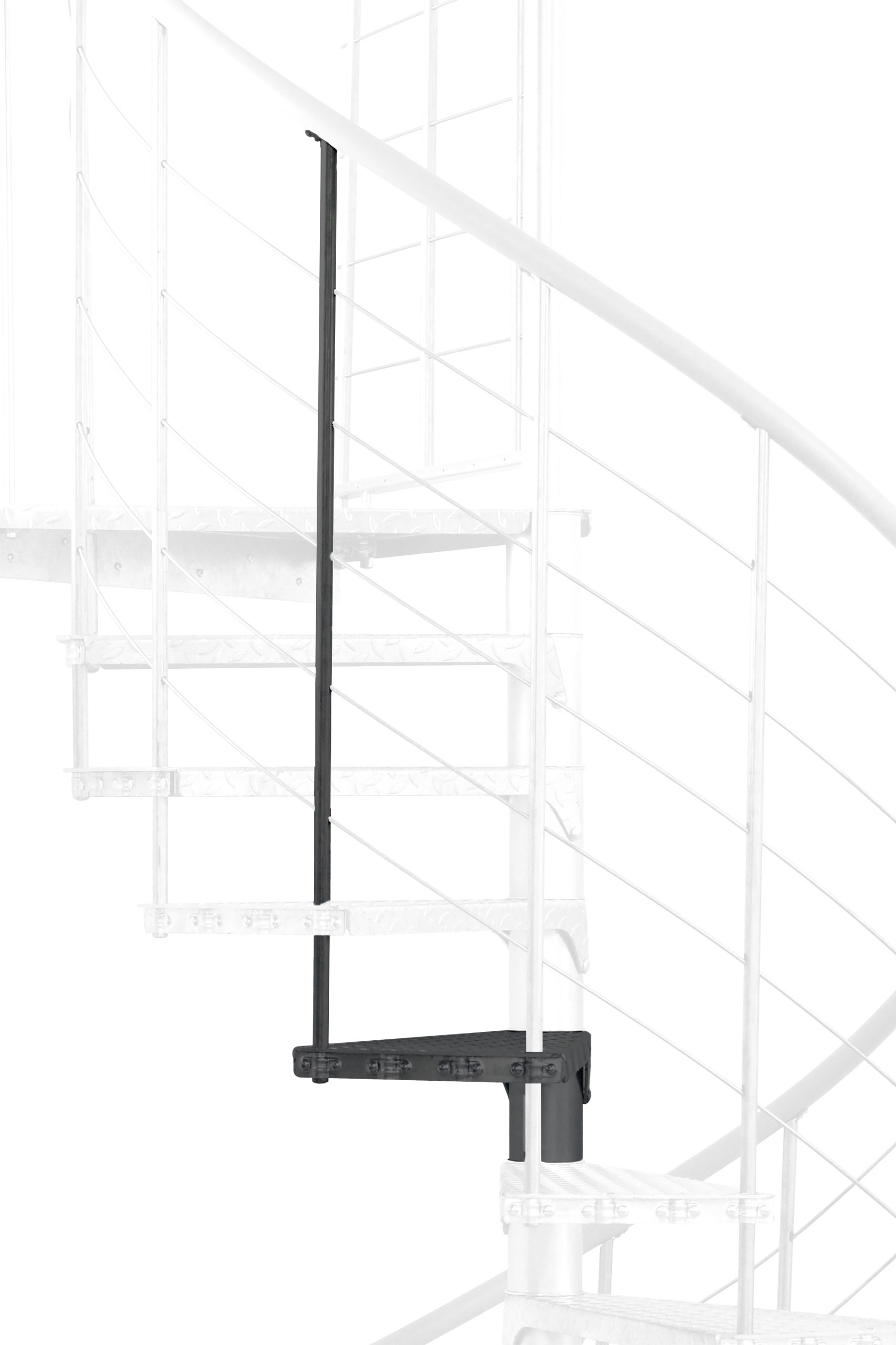

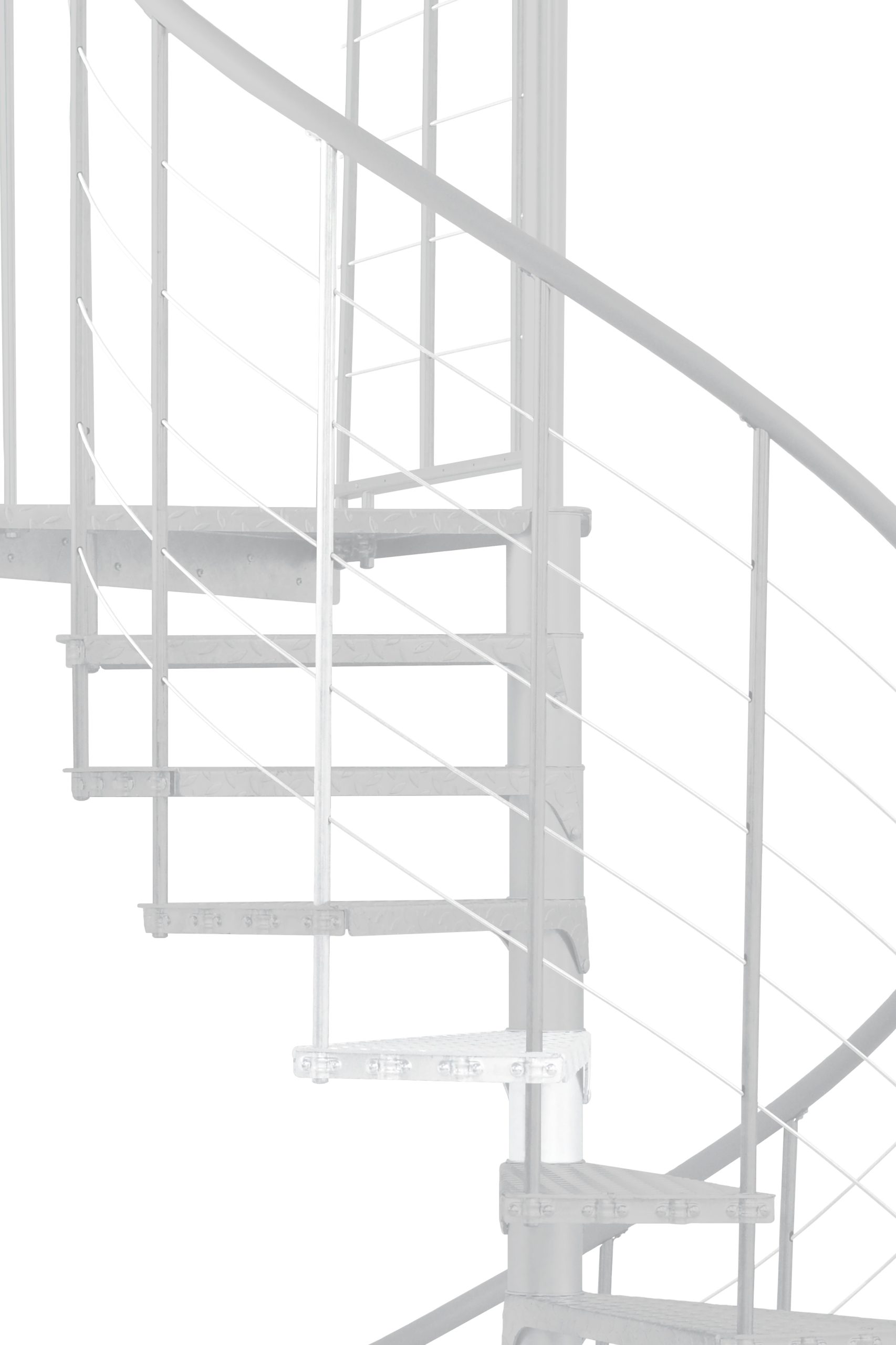

With the external staircase Spino Zink Color you can reach storeys of up to 3055 mm. If this is not enough for your situation, you can consider installing a height extension. This consists of an additional step, a spindle tube and various parts to extend the railing. The steel parts are galvanised and can be powder-coated in black, anthracite or white to match the staircase. As with the stairs, there is a choice of diameters 120, 140, 160 and 180 cm. When purchasing, please ensure that the height extension matches your spiral staircase Spino Zink Color.

The additional spindle element including step has a flexible height of 190-235 mm. With one height extension, you can extend the Spino Zink Color external staircase to a maximum storey height of up to 3290 mm. If you install two additional steps, even storeys with a height of up to 3525 mm are no problem.

Please install a maximum of two height extensions per staircase! If three or more additional steps are installed, stability is no longer guaranteed.

Technical data

Basic data
Steps Steel galvanised and powder-coated in black, anthracite or white
Spindle tubes Steel galvanised and powder-coated in black, anthracite or white
Railing rods Steel galvanised and powder-coated in black, anthracite or white
Bottom chords Stainless steel
Handrail PVC black or white
120
Radius 600 mm
Max. storey height 3055 mm
Max. storey height with one height extension 3290 mm
Max. storey height with two height extensions 3525 mm
Tread depth 196 mm
Free passage width 486 mm
Tread thickness 4 mm
Rise per step 190-235 mm
Rotation per step 29,6°
Platform width 650 mm
Rotation of platform 54°
Spindle diameter 108 mm
Railing height 1000 mm
Handrail diameter 40 mm
140
Radius 700 mm
Max. storey height 3055 mm
Max. storey height with one height extension 3290 mm
Max. storey height with two height extensions 3525 mm
Tread depth 213 mm
Free passage width 586 mm
Tread thickness 4 mm
Rise per step 190-235 mm
Rotation per step 25°
Platform width 750 mm
Rotation of platform 54°
Spindle diameter 108 mm
Railing height 1000 mm
Handrail diameter 40 mm
160
Radius 800 mm
Max. storey height 3055 mm
Max. storey height with one height extension 3290 mm
Max. storey height with two height extensions 3525 mm
Tread depth 223 mm
Free passage width 686 mm
Tread thickness 4 mm
Rise per step 190-235 mm
Rotation per step 21,9°
Platform width 850 mm
Rotation of platform 54°
Spindle diameter 108 mm
Railing height 1000 mm
Handrail diameter 40 mm
180
Radius 900 mm
Max. storey height 3055 mm
Max. storey height with one height extension 3290 mm
Max. storey height with two height extensions 3525 mm
Tread depth 233 mm
Free passage width 786 mm
Tread thickness 4 mm
Rise per step 190-235 mm
Rotation per step 19,4°
Platform width 950 mm
Rotation of platform 54°
Spindle diameter 108 mm
Railing height 1000 mm
Handrail diameter 40 mm
