Outdoor staircase Rondo Zink Smart

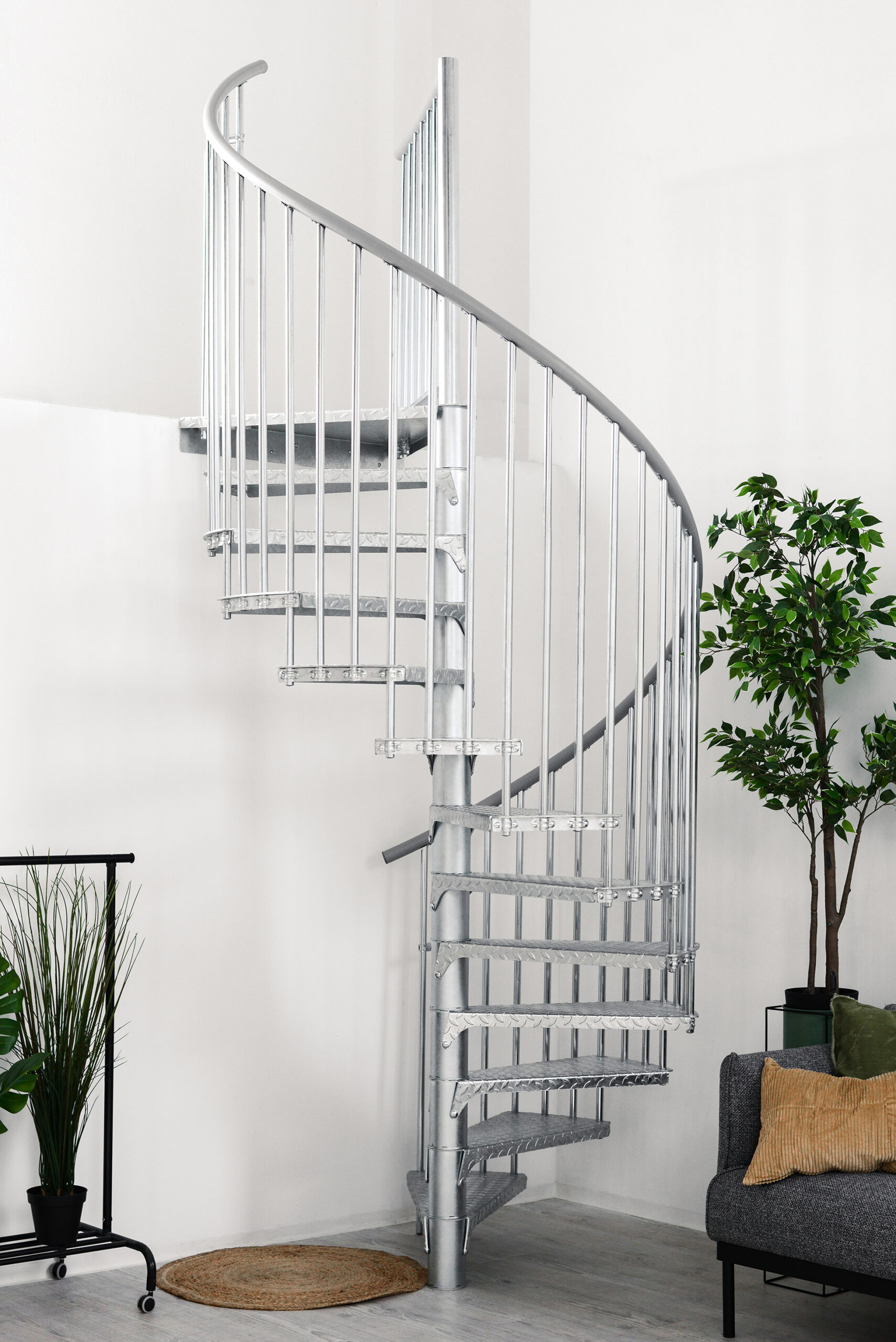

Outdoor staircase Rondo Zink Smart
Rondo Zink Smart Detail 1
Rondo Zink Smart Detail 2
Rondo Zink Smart Detail 3

Rondo Zink Smart

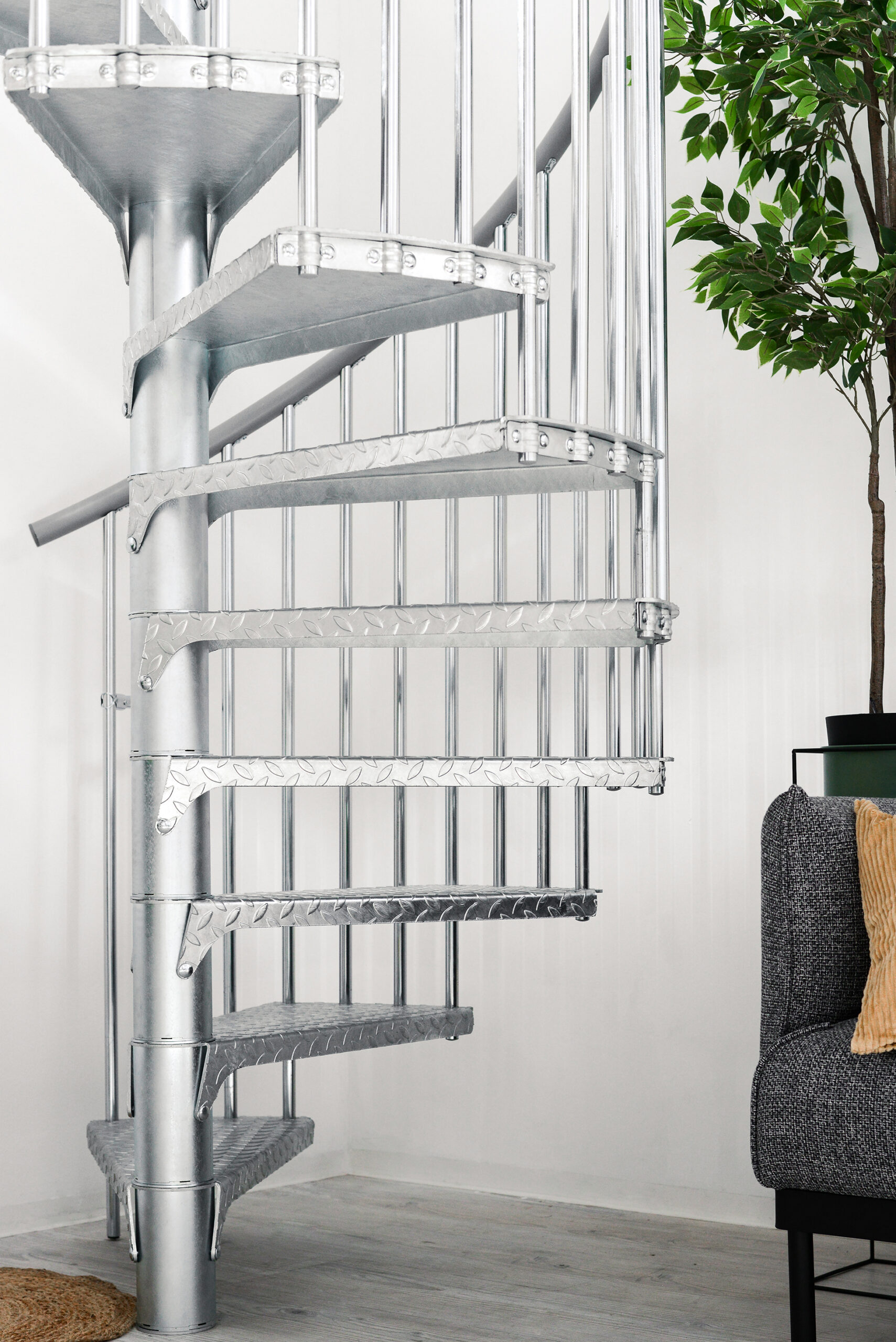

  • Galvanised spiral staircase for outdoor use

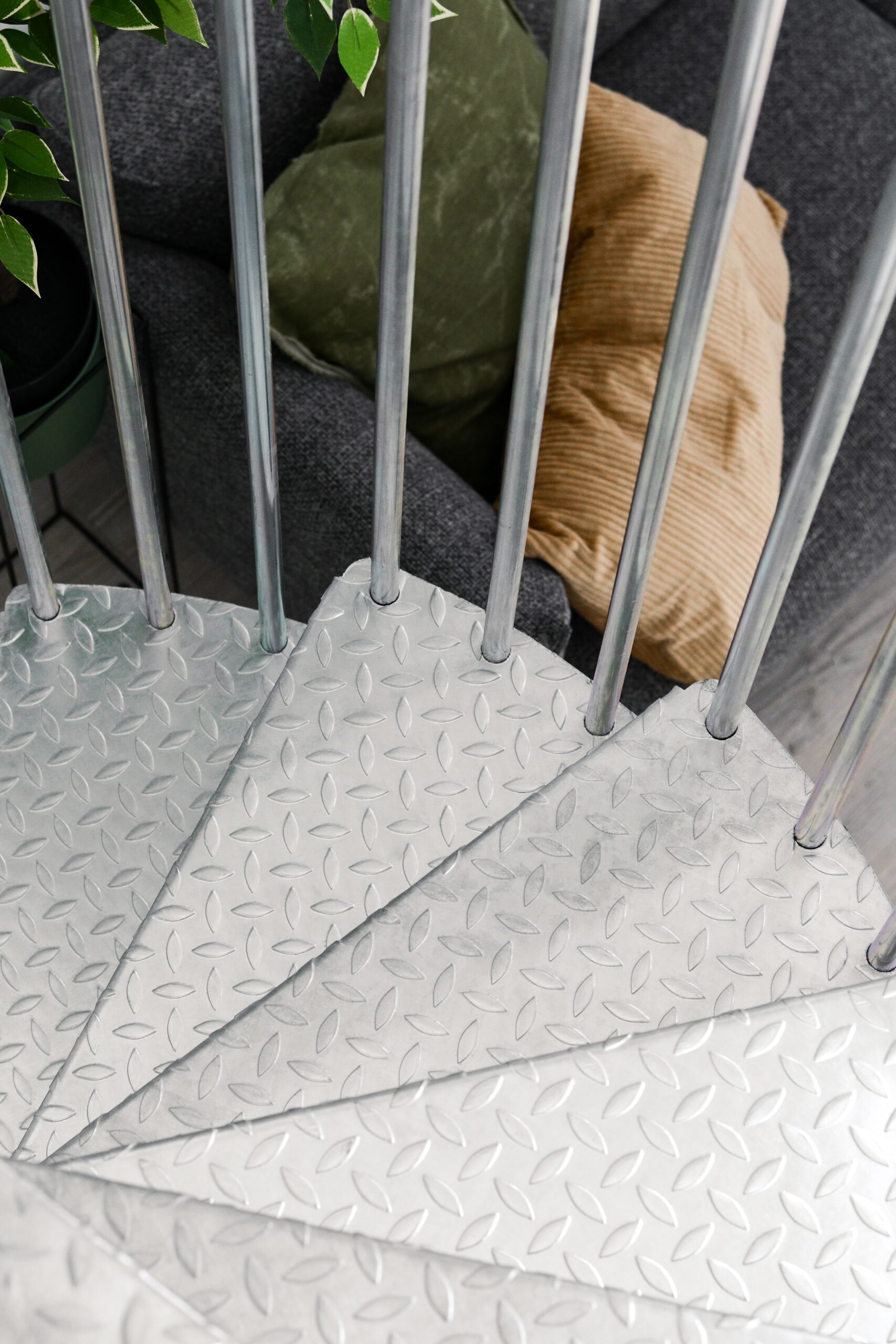

  • Studded steps provide a secure grip when climbing the stairs

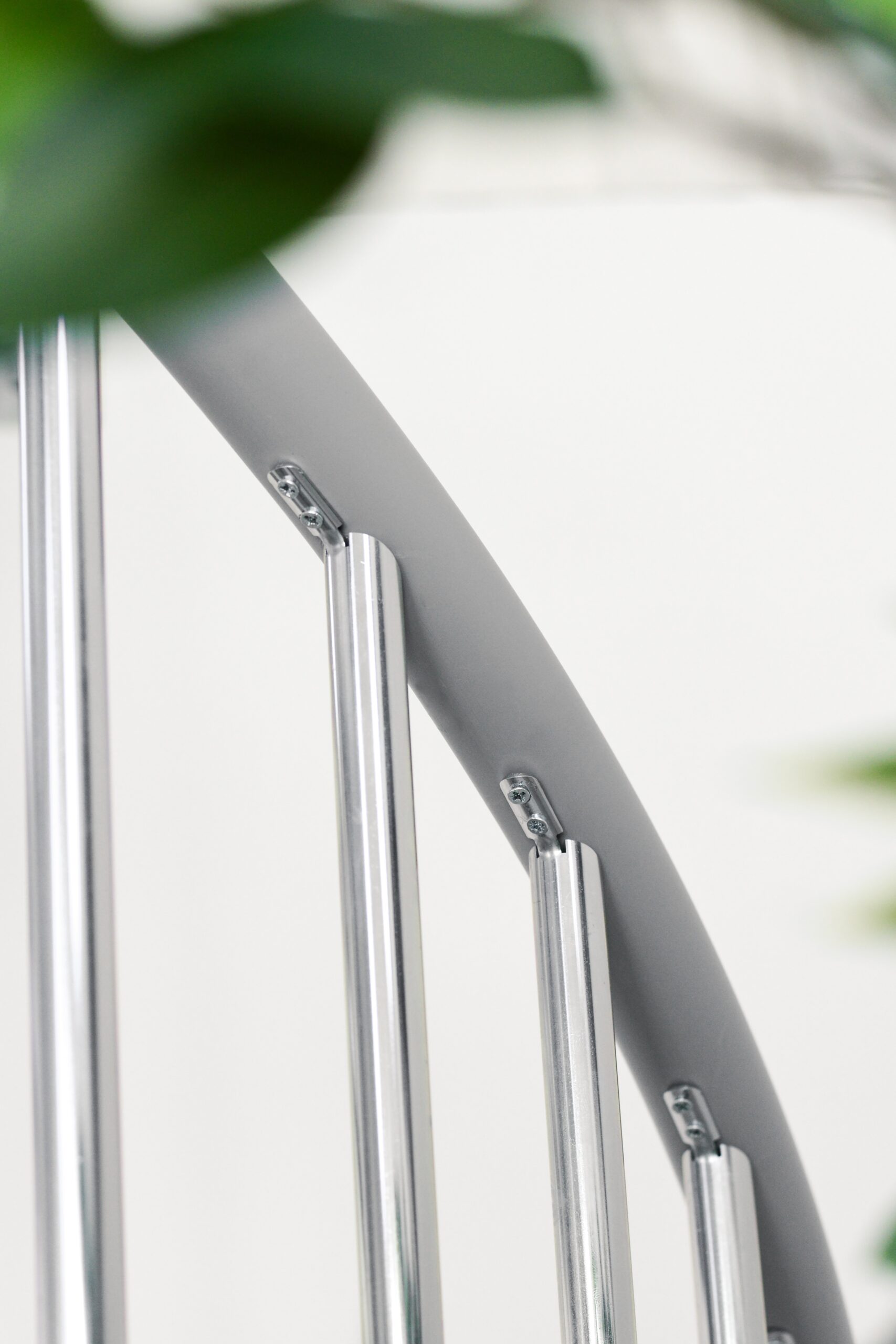

  • Railing with galvanised metal rods and handrail made of high-quality PVC
  • Four diameters: 120, 140, 160 or 180 cm
  • Maximum storey height: 3055 mm

Hier soll der Validierungstext stehen.Die Treppe ist für diese Raumhöhe geeignet.
Export as PDF
Add to wishlist

€ 2,612.40 – € 3,422.40 incl. Tax excl. Shipping Costs*

SKU: N/A Categories: , Tags: ,

  • Description

    With the galvanised spiral staircase Rondo Zink Smart, you can easily reach terraces, balconies or raised entrance doors outside. This model is also perfectly suitable as an emergency staircase. However, the Rondo Zink Smart is not only practical, but also a visual eye-catcher. For example, it can also be used indoors to create a unique and modern industrial interior look.

    Flexible design.

    The outdoor staircase Rondo Zink Smart is available in three different sizes. Depending on the space available, you can choose between a diameter of 120, 140, 160 or 180 cm. The height of the spindle elements can be adjusted, allowing you to adapt the overall height of the staircase exactly to your situation. Without height extensions, you can achieve a maximum storey height of 3055 mm with the Rondo Zink Smart.

    Sustainable use.

    The steel steps, the spindle elements and the railing of the Rondo Zink Smart are made of hot-dip galvanised steel. This makes them resistant to corrosion, wear and various other environmental influences. The handrail is made of a high-quality PVC that is not only weatherproof but also very comfortable to hold.

  • Technical data

    Basic data
    Steps Steel galvanised
    Spindle tubes Steel galvanised
    Railing rods Steel galvanised
    Handrail PVC grey
    Number of steps 12 + 1 platform
    120
    Radius 600 mm
    Max. storey height 3055 mm
    Max. storey height with one height extension 3290 mm
    Max. storey height with two height extensions 3525 mm
    Tread depth 196 mm
    Free passage width 486 mm
    Tread thickness 4 mm
    Rise per step 190-235 mm
    Rotation per step 29,6°
    Platform width 650 mm
    Rotation of platform 54°
    Spindle diameter 108 mm
    Railing height 1000 mm
    Handrail diameter 40 mm
    140
    Radius 700 mm
    Max. storey height 3055 mm
    Max. storey height with one height extension 3290 mm
    Max. storey height with two height extensions 3525 mm
    Tread depth 213 mm
    Free passage width 586 mm
    Tread thickness 4 mm
    Rise per step 190-235 mm
    Rotation per step 25°
    Platform width 750 mm
    Rotation of platform 54°
    Spindle diameter 108 mm
    Railing height 1000 mm
    Handrail diameter 40 mm
    160
    Radius 800 mm
    Max. storey height 3055 mm
    Max. storey height with one height extension 3290 mm
    Max. storey height with two height extensions 3525 mm
    Tread depth 223 mm
    Free passage width 686 mm
    Tread thickness 4 mm
    Rise per step 190-235 mm
    Rotation per step 21,9°
    Platform width 850 mm
    Rotation of platform 54°
    Spindle diameter 108 mm
    Railing height 1000 mm
    Handrail diameter 40 mm
    180
    Radius 900 mm
    Max. storey height 3055 mm
    Max. storey height with one height extension 3290 mm
    Max. storey height with two height extensions 3525 mm
    Tread depth 233 mm
    Free passage width 786 mm
    Tread thickness 4 mm
    Rise per step 190-235 mm
    Rotation per step 19,4°
    Platform width 950 mm
    Rotation of platform 54°
    Spindle diameter 108 mm
    Railing height 1000 mm
    Handrail diameter 40 mm

  • Downloads

    Assembly instructions Rondo Zink Smart

    Assembly instructions Rondo Zink Smart 180

    Technical datasheet
