Height extension for Rondo Zink Smart

  • Additional step for spiral staircase Rondo Zink Smart
  • Extension of Rondo Zink Smart by 190-235 mm
  • Maximum attainable storey height with one height extension: 3290 mm
  • Maximum attainable storey height with two height extensions: 3525 mm
  • When purchasing, please ensure that the height extension has the same configuration as your staircase and install a maximum of two height extensions per staircase.

Export as PDF
Add to wishlist

333,60 € incl. tax excl. shipping costs*

SKU: N/A Category: Tags: ,

Description

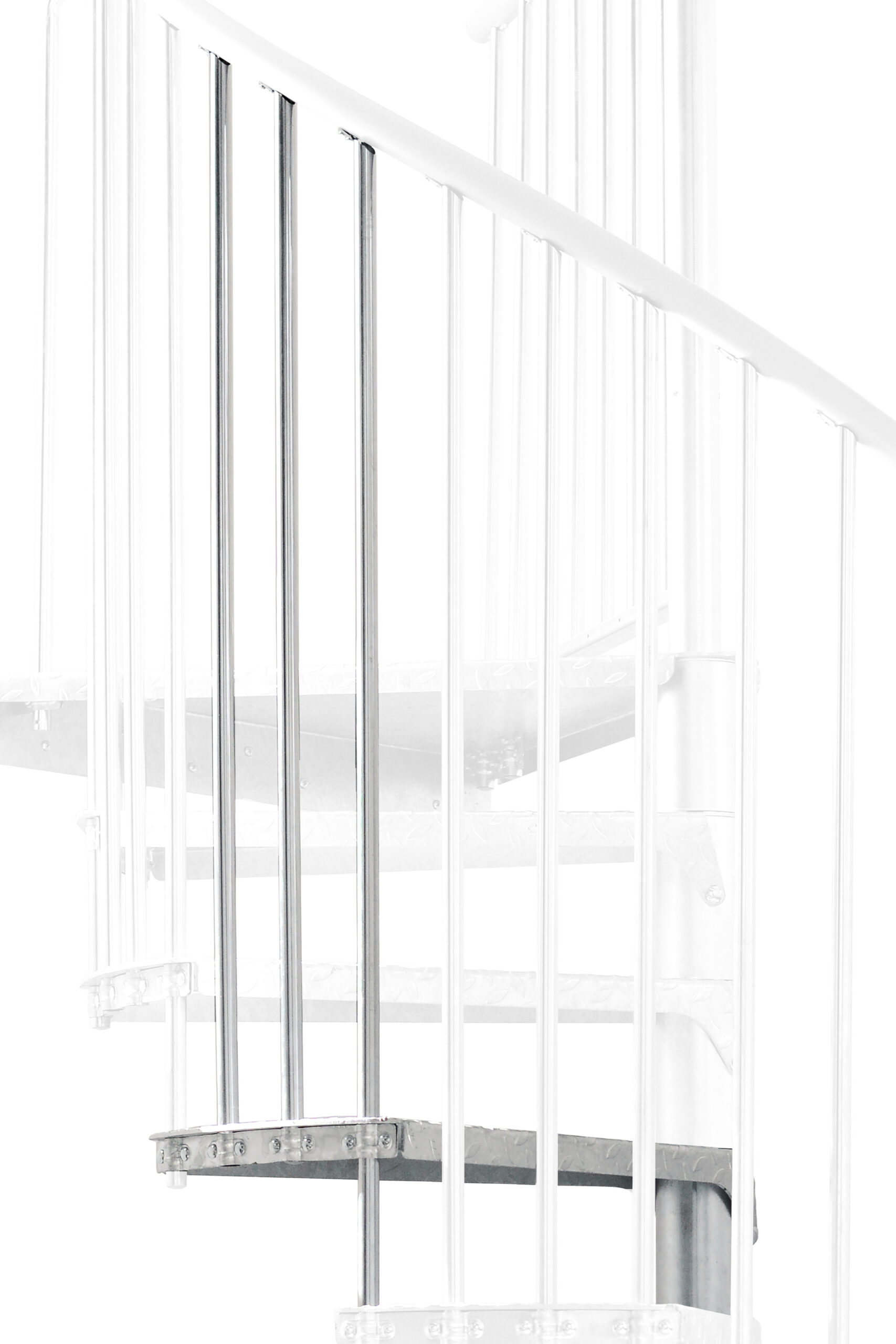

If the outdoor staircase Rondo Zink Plus is not high enough for your building project, you can extend it a little with a height extension. This consists of an additional step, a spindle element, railing rods and various small parts for assembly. When ordering, please ensure that the diameter of your staircase and the height extension are the same.

With the supplied additional step including spindle tube, you can extend the Rondo Zink Smart by 190-235 mm. With one height extension, you can thus achieve a maximum storey height of 3290 mm. With two additional steps installed, you can even climb storeys with a height of up to 3525 mm.

Please install a maximum of two height extensions per staircase! If three or more additional steps are installed, stability is no longer guaranteed.

Technical data

Basic data
Steps Steel galvanised
Spindle tubes Steel galvanised
Railing rods Steel galvanised
Handrail PVC grey
Number of steps 12 + 1 platform
120
Radius 600 mm
Max. storey height 3055 mm
Max. storey height with one height extension 3290 mm
Max. storey height with two height extensions 3525 mm
Tread depth 196 mm
Free passage width 486 mm
Tread thickness 4 mm
Rise per step 190-235 mm
Rotation per step 29,6°
Platform width 650 mm
Rotation of platform 54°
Spindle diameter 108 mm
Railing height 1000 mm
Handrail diameter 40 mm
140
Radius 700 mm
Max. storey height 3055 mm
Max. storey height with one height extension 3290 mm
Max. storey height with two height extensions 3525 mm
Tread depth 213 mm
Free passage width 586 mm
Tread thickness 4 mm
Rise per step 190-235 mm
Rotation per step 25°
Platform width 750 mm
Rotation of platform 54°
Spindle diameter 108 mm
Railing height 1000 mm
Handrail diameter 40 mm
160
Radius 800 mm
Max. storey height 3055 mm
Max. storey height with one height extension 3290 mm
Max. storey height with two height extensions 3525 mm
Tread depth 223 mm
Free passage width 686 mm
Tread thickness 4 mm
Rise per step 190-235 mm
Rotation per step 21,9°
Platform width 850 mm
Rotation of platform 54°
Spindle diameter 108 mm
Railing height 1000 mm
Handrail diameter 40 mm
180
Radius 900 mm
Max. storey height 3055 mm
Max. storey height with one height extension 3290 mm
Max. storey height with two height extensions 3525 mm
Tread depth 233 mm
Free passage width 786 mm
Tread thickness 4 mm
Rise per step 190-235 mm
Rotation per step 19,4°
Platform width 950 mm
Rotation of platform 54°
Spindle diameter 108 mm
Railing height 1000 mm
Handrail diameter 40 mm

Downloads

Assembly instructions Rondo Zink Smart

Assembly instructions Rondo Zink Smart 180

Assembly instructions height extension

Assembly instructions height extension 180

Technical datasheet
