Outdoor staircase Rondo Zink Plus

Rondo Zink Plus

  • Spiral outdoor staircase made of galvanised steel
  • Punched steel steps with knobs allow safe access without risk of slipping
  • Sturdy bar railing with handrail made of powder-coated aluminium
  • Available in three diameters: 120, 140 and 160 cm
  • Maximum storey height: 3003 mm

Hier soll der Validierungstext stehen.Die Treppe ist für diese Raumhöhe geeignet.

 2,612.40 2,976.00 incl. Tax excl. Shipping Costs*

Description

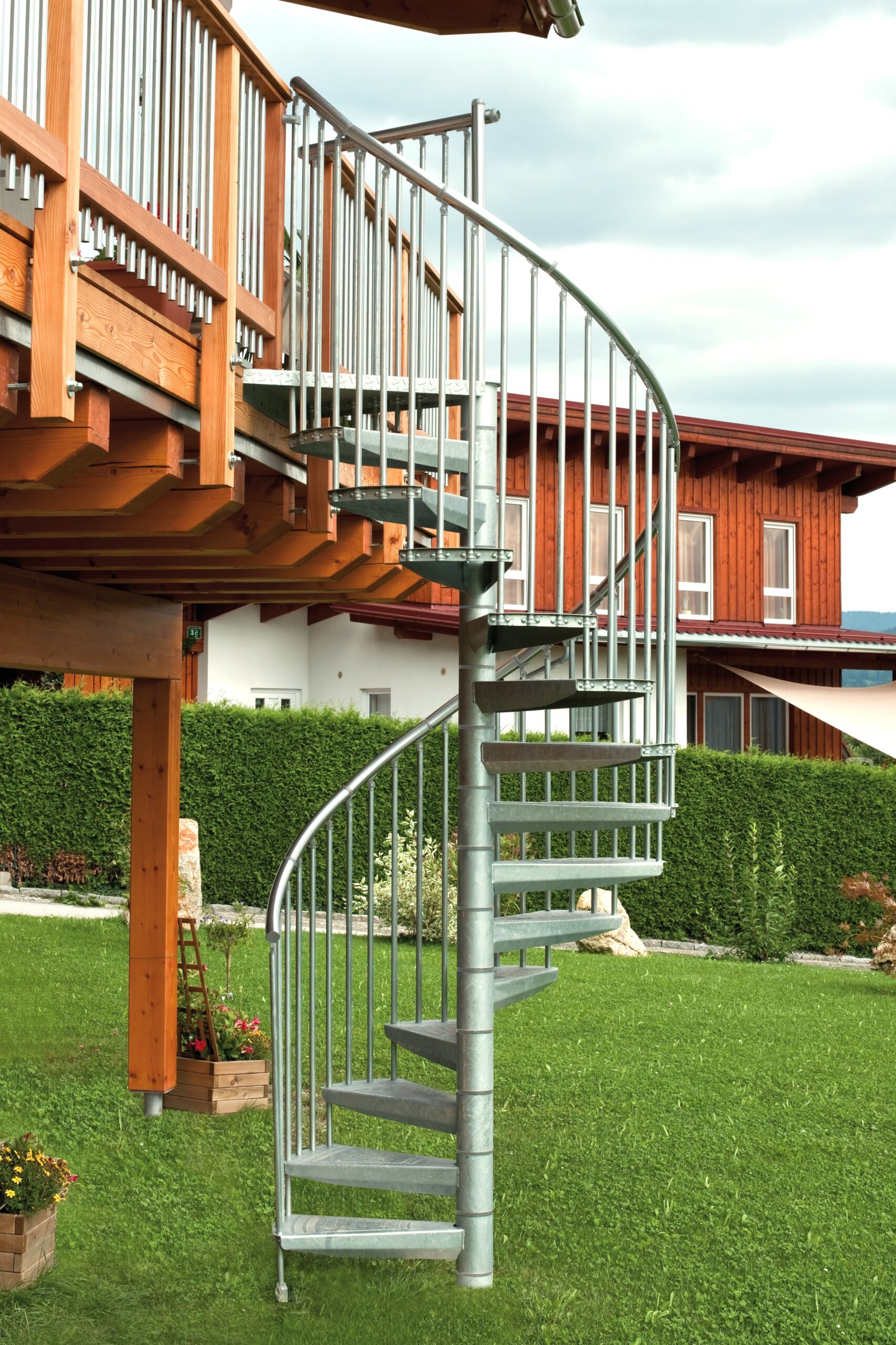

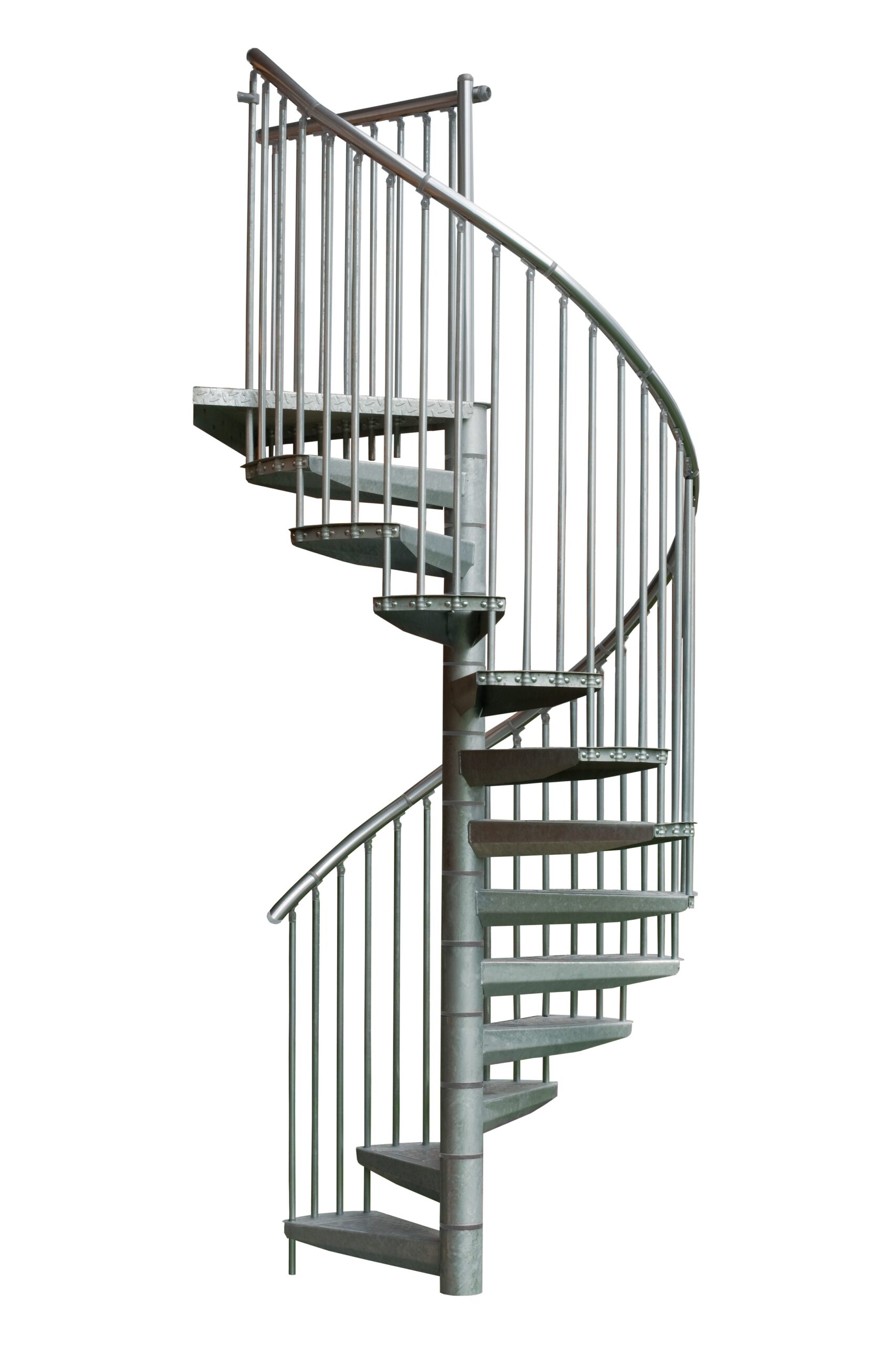

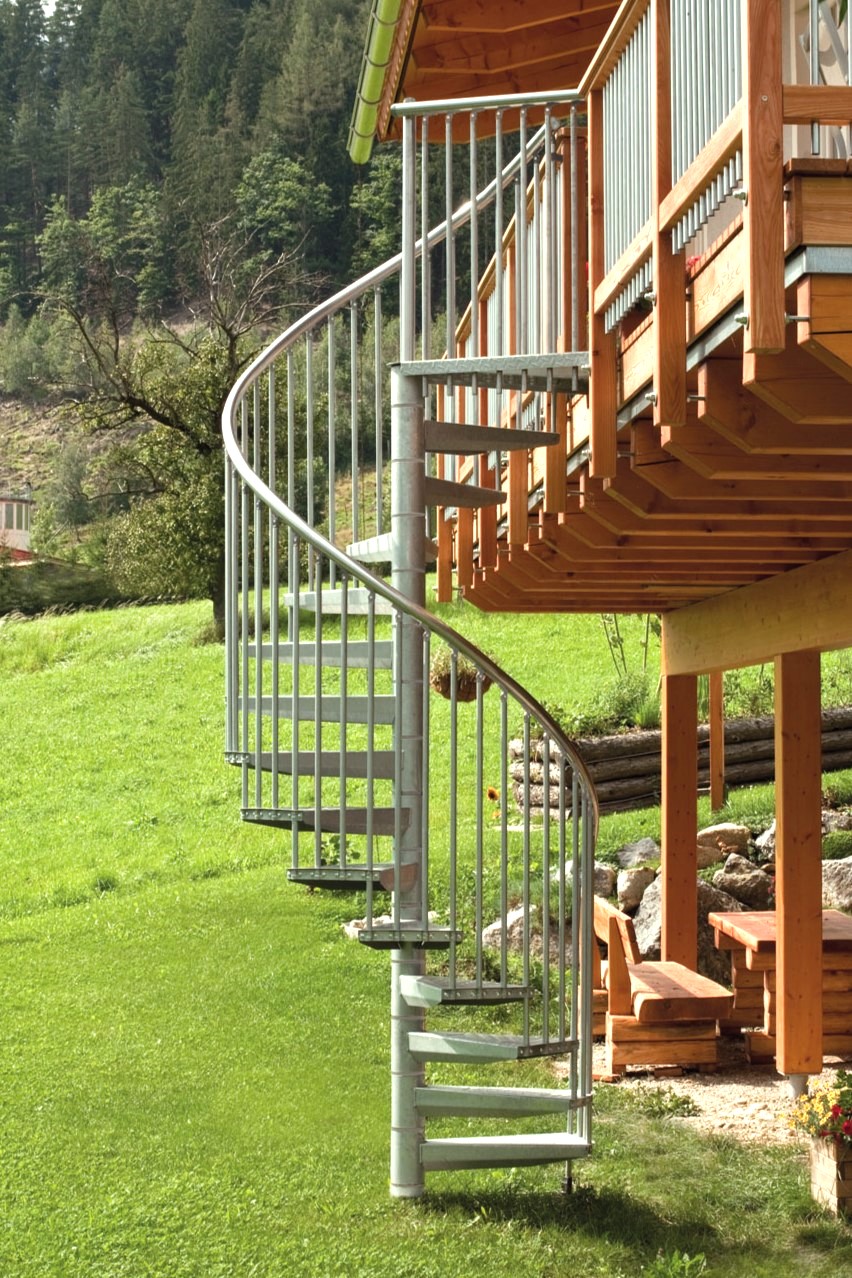

The spiral staircase Rondo Zink Plus consists almost entirely of galvanised or powder-coated metal parts. This makes it perfect for outdoor use. With the studded steps, the rod railing and the handrail made of aluminium, it is not only very safe to walk on, but is also a visual eye-catcher in your garden.

Flexible design.

With three different diameters – 120, 140 and 160 cm – the Rondo Zink Plus is suitable for various spatial conditions. The spindle elements can be flexibly adjusted in height, so that the storey height can also be varied as desired. With the Rondo Zink Plus outdoor staircase, you can reach floors with a total height of up to three metres.

Sustainable use.

Thanks to the high-quality materials, the spiral staircase Rondo Zink Plus is perfectly protected against various weather conditions and environmental influences. The nubbed steps also prevent any risk of slipping and enable safe stair climbing in all seasons.

Technical data

Basic data
Steps Galvanised steel
Spindle tubes Galvanised steel
Railing rods Galvanised steel
Handrail Aluminium powder-coated
Number of steps 12 + 1 platform
Rondo Zink Plus 120
Radius 600 mm
Max. storey height 3003 mm
Max. storey height with one height extension 3234 mm
Max. storey height with two height extensions 3465 mm
Rise per step 207-231 mm
Tread depth 196 mm
Free passage width 486 mm
Tread thickness 1,5 mm
Rotation per step 29,6°
Platform width 650 mm
Rotation of platform 60°
Spindle diameter 127 mm
Railing height 1000 mm
Handrail diameter 50 mm
Rondo Zink Plus 140
Radius 700 mm
Max. storey height 3003 mm
Max. storey height with one height extension 3234 mm
Max. storey height with two height extensions 3465 mm
Rise per step 207-231 mm
Tread depth 213 mm
Free passage width 586 mm
Tread thickness 1,5 mm
Rotation per step 25°
Platform width 750 mm
Rotation of platform 60°
Spindle diameter 127 mm
Railing height 1000 mm
Handrail diameter 50 mm
Rondo Zink Plus 160
Radius 800 mm
Max. storey height 3003 mm
Max. storey height with one height extension 3234 mm
Max. storey height with two height extensions 3465 mm
Rise per step 207-231 mm
Tread depth 223 mm
Free passage width 686 mm
Tread thickness 1,5 mm
Rotation per step 21,9°
Platform width 850 mm
Rotation of platform 60°
Spindle diameter 127 mm
Railing height 1000 mm
Handrail diameter 50 mm
