Height extension Rondo Zink Plus
Height extension Rondo Zink Plus

Height extension for Rondo Zink Plus

  • Additional step for spiral staircase Rondo Zink Plus
  • Extension of Rondo Zink Plus by 207-231 mm
  • Maximum attainable storey height with one height extension: 3234 mm
  • Maximum attainable storey height with two height extensions: 3465 mm
  • When purchasing, please ensure that the height extension has the same configuration as your staircase and install a maximum of two height extensions per staircase.

Export as PDF
Add to wishlist

278,00 € incl. Tax excl. Shipping Costs*

SKU: N/A Category: Tags: , ,

Description

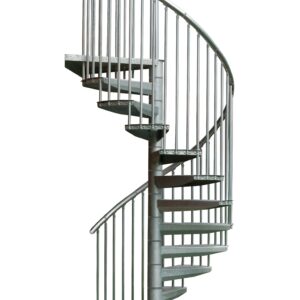

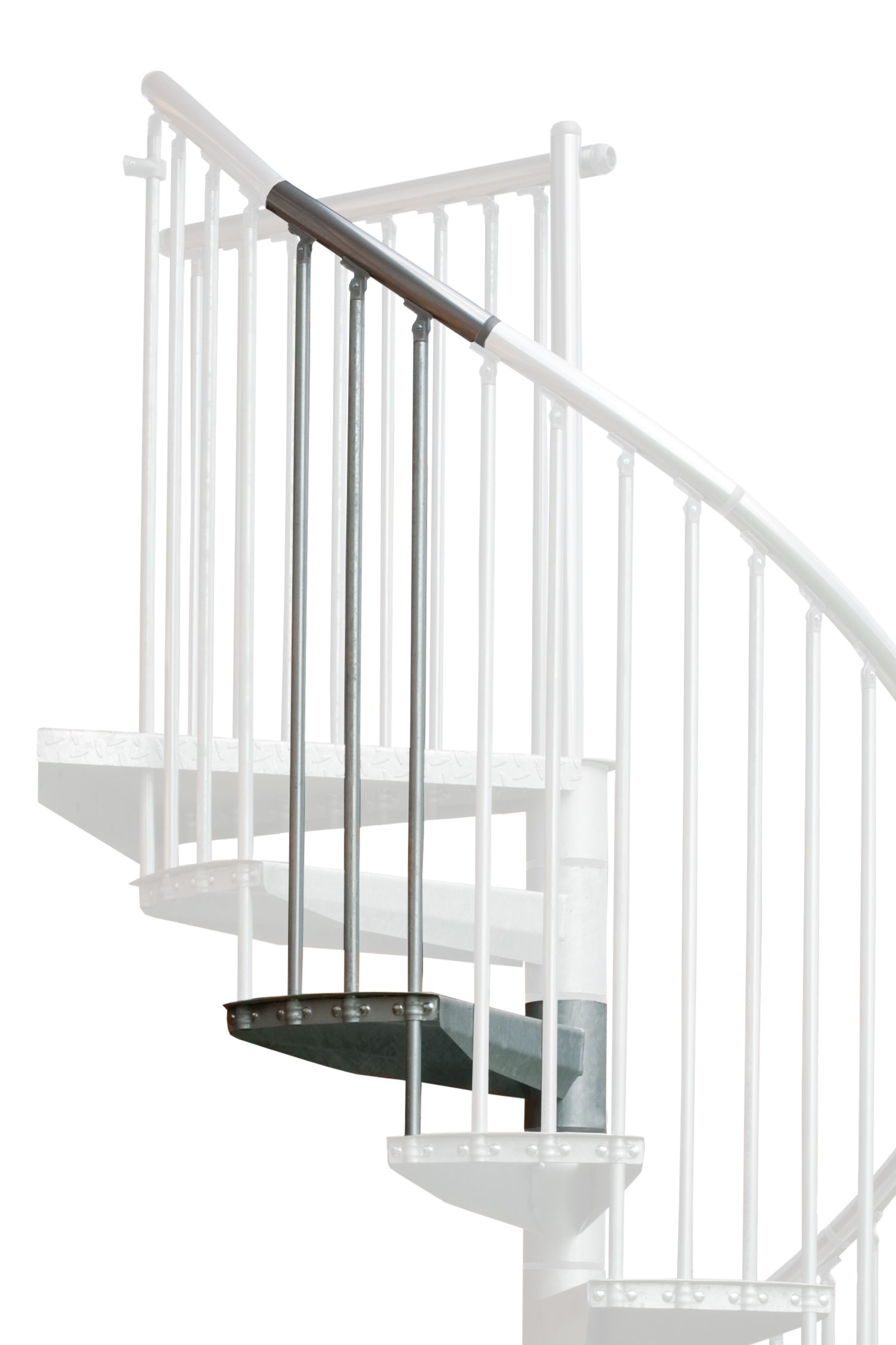

The height extension for the outdoor staircase Rondo Zink Plus includes a spindle element, an additional step, several railing rods and various parts for assembly. The step is available in three different sizes so that it fits the Rondo Zink Plus with diameters of 120, 140 and 160 cm. When buying, please make sure that the size of the staircase matches that of the height extension.

With the additional components, you can extend the spiral staircase Rondo Zink Plus by 207-231 mm. With one height extension, you thus achieve a maximum storey height of 3234 mm. If you install two additional steps, you can even climb floors with a height of up to 3465 mm.

Please install a maximum of two height extensions per staircase! If three or more additional steps are installed, stability is no longer guaranteed.

Technical data

Basic data
Steps Galvanised steel
Spindle tubes Galvanised steel
Railing rods Galvanised steel
Handrail Aluminium powder-coated
Number of steps 12 + 1 platform
Rondo Zink Plus 120
Radius 600 mm
Max. storey height 3003 mm
Max. storey height with one height extension 3234 mm
Max. storey height with two height extensions 3465 mm
Rise per step 207-231 mm
Tread depth 196 mm
Free passage width 486 mm
Tread thickness 1,5 mm
Rotation per step 29,6°
Platform width 650 mm
Rotation of platform 60°
Spindle diameter 127 mm
Railing height 1000 mm
Handrail diameter 50 mm
Rondo Zink Plus 140
Radius 700 mm
Max. storey height 3003 mm
Max. storey height with one height extension 3234 mm
Max. storey height with two height extensions 3465 mm
Rise per step 207-231 mm
Tread depth 213 mm
Free passage width 586 mm
Tread thickness 1,5 mm
Rotation per step 25°
Platform width 750 mm
Rotation of platform 60°
Spindle diameter 127 mm
Railing height 1000 mm
Handrail diameter 50 mm
Rondo Zink Plus 160
Radius 800 mm
Max. storey height 3003 mm
Max. storey height with one height extension 3234 mm
Max. storey height with two height extensions 3465 mm
Rise per step 207-231 mm
Tread depth 223 mm
Free passage width 686 mm
Tread thickness 1,5 mm
Rotation per step 21,9°
Platform width 850 mm
Rotation of platform 60°
Spindle diameter 127 mm
Railing height 1000 mm
Handrail diameter 50 mm

Downloads

Assembly instructions for staircase

Technical datasheet
