Spiral staircase Rondo Smart

Rondo Smart

COMING SOON
  • Modern metal spiral staircase in industrial style
  • Sturdy steps made of powder-coated steel
  • Railing with vertical steel rods and handrail made of high quality PVC
  • Three colours available thanks to powder coating: black, grey and white
  • Available in three diameters: 120, 140 and 160 cm
  • Maximum storey height: 3055 mm

Hier soll der Validierungstext stehen.Die Treppe ist für diese Raumhöhe geeignet.

 2,612.40 2,976.00 incl. Tax excl. Shipping Costs*

  • Description

    The metal spiral staircase Rondo Smart convinces with a modern design that is perfectly suited for living spaces in industrial design. However, you not only benefit from the look, but also from the high stability of the Rondo Smart. The solid steel steps, together with the pleasant PVC handrail, provide a secure hold on your way up.

    Flexible design.

    Both in terms of size and colour, the Rondo Smart spiral staircase offers flexibility. On the one hand, you can choose between three different diameters – 120, 140 and 160 cm. On the other hand, the Rondo Smart is available in three different colours. If you prefer a contrasting interior design for your home, the black and grey colour options are a good choice. The colour white, in contrast, is a little simpler, but just as elegant.

    Sustainable use.

    The spiral staircase Rondo Smart scores with a stable construction similar to that of outdoor staircases. The steel steps and the steel railing ensure that you always reach the next floor safely. To protect against wear and tear and for an even more beautiful appearance, all metal parts are covered with a high-quality powder coating.

  • Technical data

    Basic data
    Steps Steel powder-coated in grey, black or white
    Spindle tubes Steel powder-coated in grey, black or white
    Railing rods Steel powder-coated in grey, black or white
    Handrail PVC grey, black or white
    120
    Radius 600 mm
    Max. storey height 3055 mm

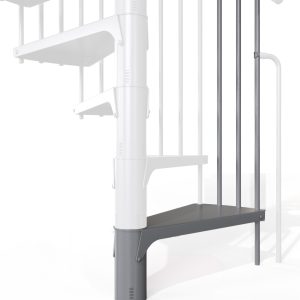

    Max. storey height with one height extension 3290 mm
    Max. storey height with two height extensions 3525 mm
    Tread depth 196 mm
    Free passage width 486 mm
    Tread thickness 4 mm
    Rise per step 190-235 mm
    Rotation per step 29,6°
    Platform width 650 mm
    Rotation of platform 54°
    Spindle diameter 108 mm
    Railing height 1000 mm
    Handrail diameter 40 mm
    140
    Radius 700 mm
    Max. storey height 3055 mm
    Max. storey height with one height extension 3290 mm
    Max. storey height with two height extensions 3525 mm
    Tread depth 213 mm
    Free passage width 586 mm
    Tread thickness 4 mm
    Rise per step 190-235 mm
    Rotation per step 25°
    Platform width 750 mm
    Rotation of platform 54°
    Spindle diameter 108 mm
    Railing height 1000 mm
    Handrail diameter 40 mm
    160
    Radius 800 mm
    Max. storey height 3055 mm
    Max. storey height with one height extension 3290 mm
    Max. storey height with two height extensions 3525 mm
    Tread depth 223 mm
    Free passage width 686 mm
    Tread thickness 4 mm
    Rise per step 190-235 mm
    Rotation per step 21,9°
    Platform width 850 mm
    Rotation of platform 54°
    Spindle diameter 108 mm
    Railing height 1000 mm
    Handrail diameter 40 mm
