Height extension for Rondo Smart

  • Additional step for spiral staircase Rondo Smart
  • Extension of Rondo Smart by 190-235 mm
  • Maximum attainable storey height with one height extension: 3290 mm
  • Maximum attainable storey height with two height extensions: 3525 mm
  • When purchasing, please ensure that the height extension has the same configuration as your staircase and install a maximum of two height extensions per staircase.

Export as PDF
Add to wishlist

278,00 € incl. Tax excl. Shipping Costs*

SKU: N/A Category: Tags: ,

Description

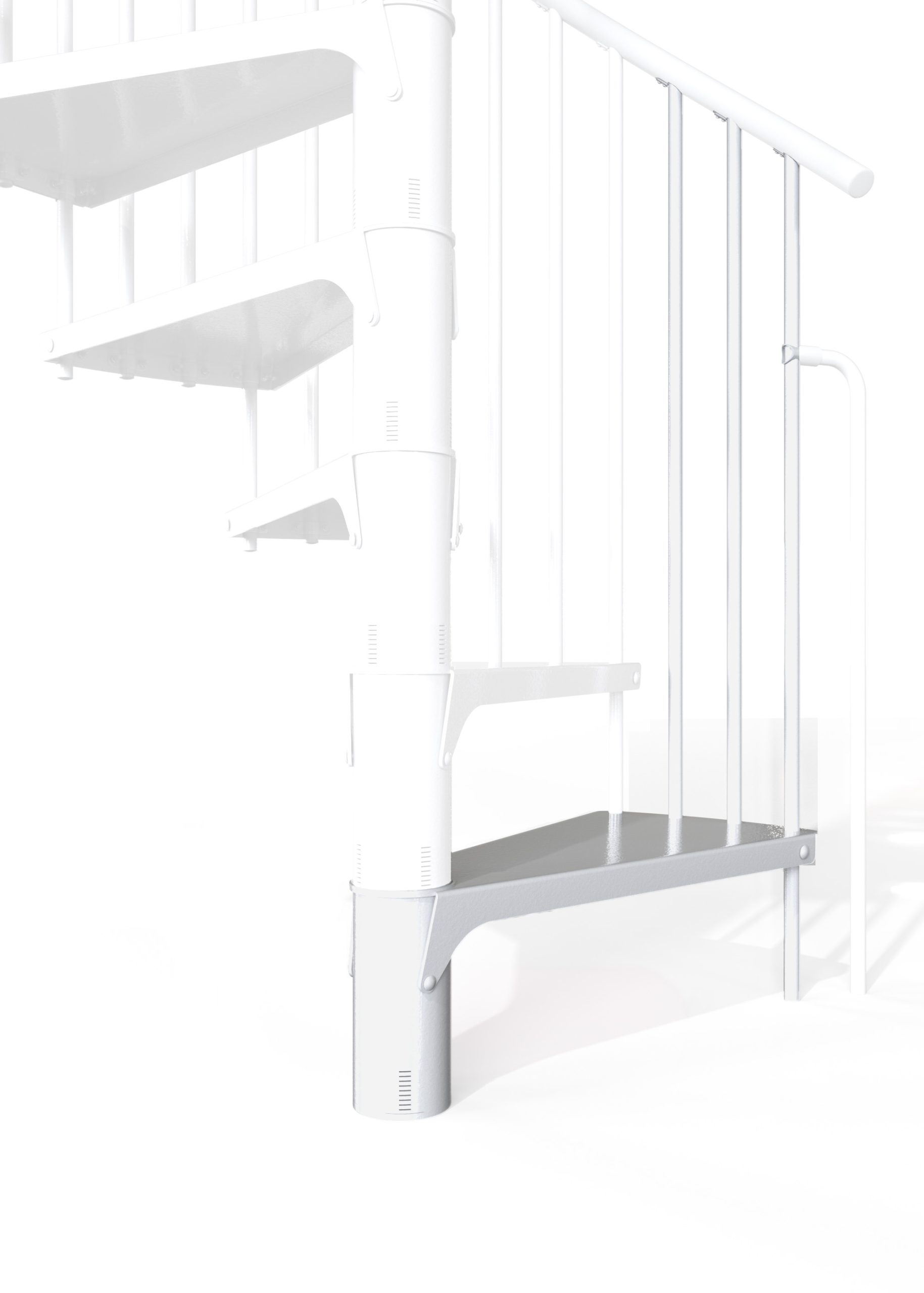

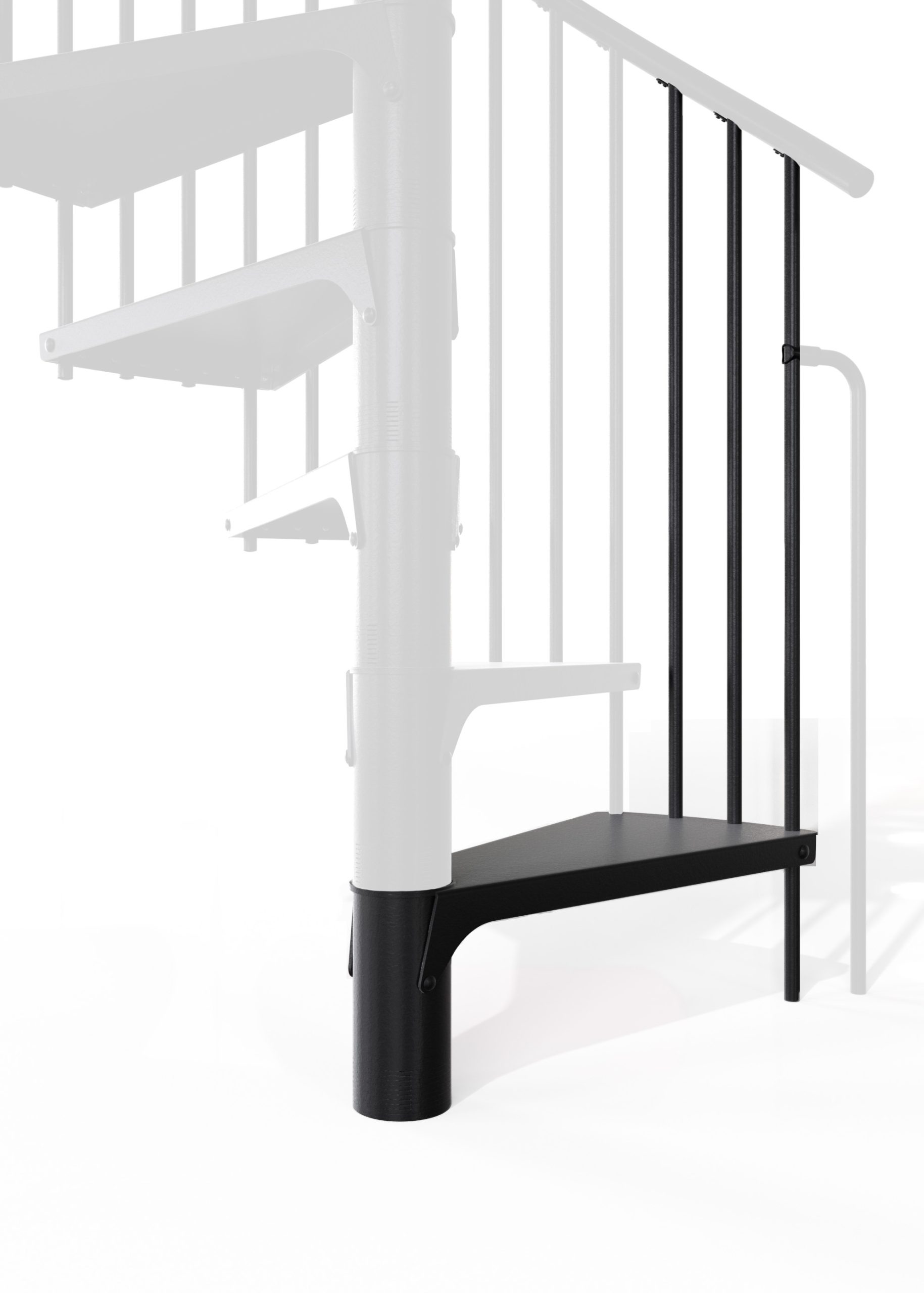

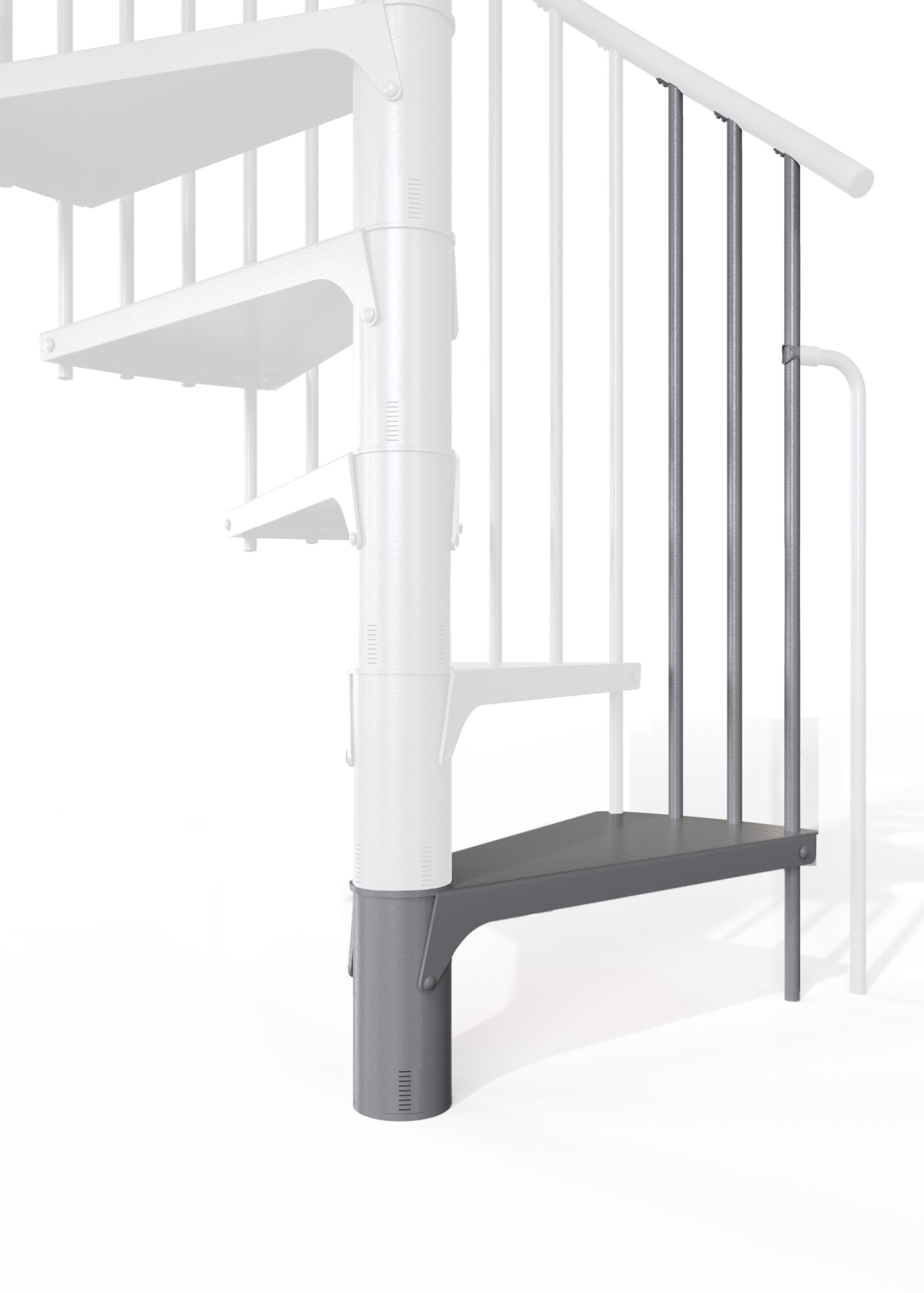

The height extension for the metal spiral staircase Rondo Smart consists of a metal step, a spindle element and additional railing rods. These components can be powder-coated in black, grey or white. The additional step is available in three sizes matching the diameters 120, 140 and 160 cm. When configuring, please ensure that the colour and size of the height extension match those of your staircase.

With one height extension you can increase the height of your Rondo Smart spiral staircase by 190-235 mm. This results in a total storey height of max. 3290 mm if you install one additional step. With two height extensions, you can even reach floors with a height of up to 3525 mm.

Please install a maximum of two height extensions per staircase! If three or more additional steps are installed, stability is no longer guaranteed.

Technical data

Basic data
Steps Steel powder-coated in grey, black or white
Spindle tubes Steel powder-coated in grey, black or white
Railing rods Steel powder-coated in grey, black or white
Handrail PVC grey, black or white
120
Radius 600 mm
Max. storey height 3055 mm
Max. storey height with one height extension 3290 mm
Max. storey height with two height extensions 3525 mm
Tread depth 196 mm
Free passage width 486 mm
Tread thickness 4 mm
Rise per step 190-235 mm
Rotation per step 29,6°
Platform width 650 mm
Rotation of platform 54°
Spindle diameter 108 mm
Railing height 1000 mm
Handrail diameter 40 mm
140
Radius 700 mm
Max. storey height 3055 mm
Max. storey height with one height extension 3290 mm
Max. storey height with two height extensions 3525 mm
Tread depth 213 mm
Free passage width 586 mm
Tread thickness 4 mm
Rise per step 190-235 mm
Rotation per step 25°
Platform width 750 mm
Rotation of platform 54°
Spindle diameter 108 mm
Railing height 1000 mm
Handrail diameter 40 mm
160
Radius 800 mm
Max. storey height 3055 mm
Max. storey height with one height extension 3290 mm
Max. storey height with two height extensions 3525 mm
Tread depth 223 mm
Free passage width 686 mm
Tread thickness 4 mm
Rise per step 190-235 mm
Rotation per step 21,9°
Platform width 850 mm
Rotation of platform 54°
Spindle diameter 108 mm
Railing height 1000 mm
Handrail diameter 40 mm

Downloads

Assembly instructions height extension

Assembly instructions staircase

Technical datasheet
