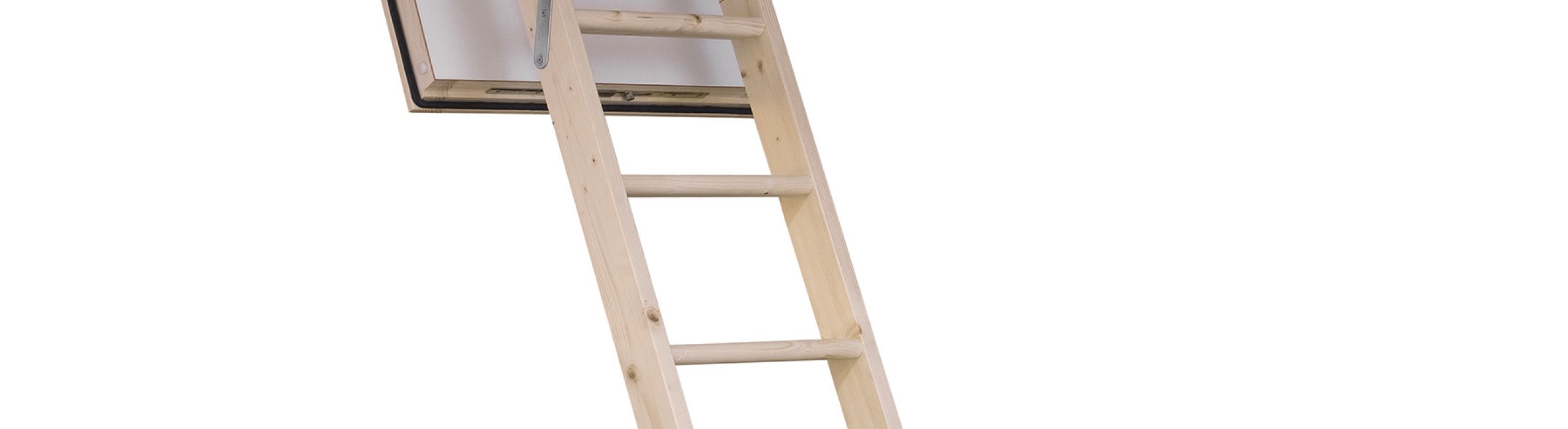

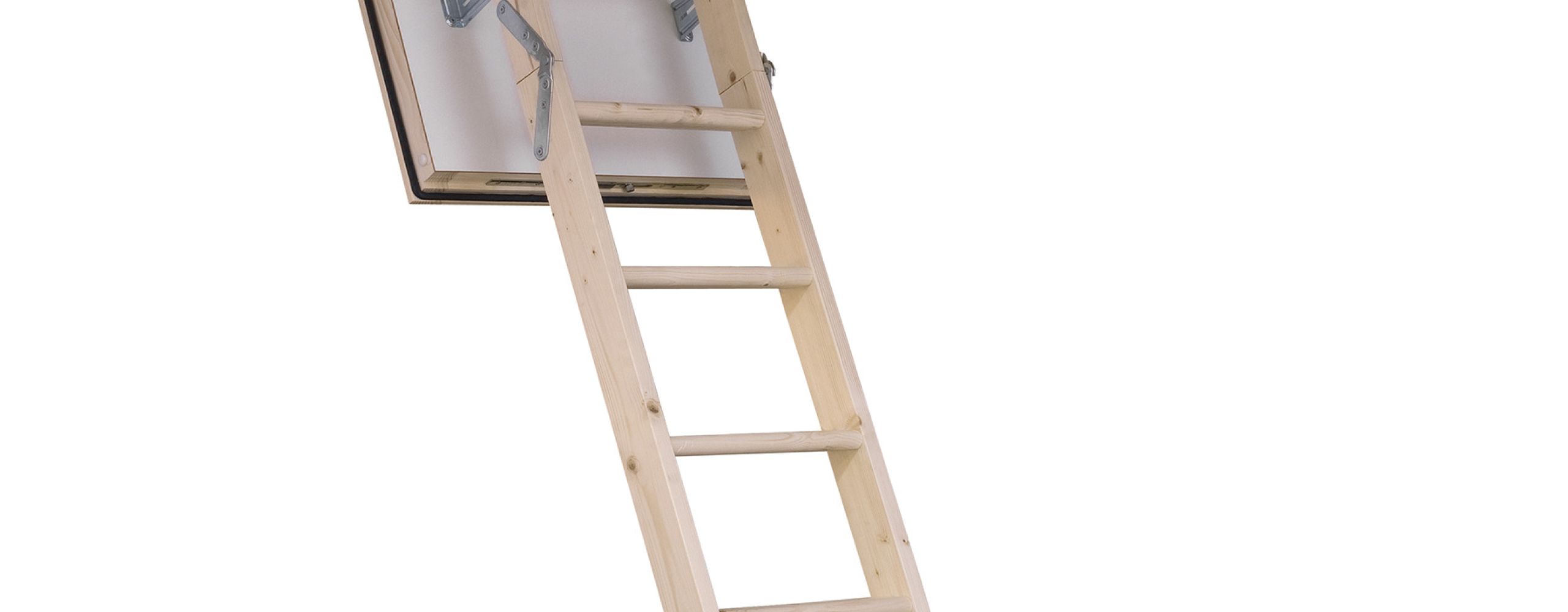

Attic staircase Polar 60 with insulated white trapdoor, three-part wooden ladder, and surrounding wooden hatch box. Visible are the yellow safety handle and the thermal insulation value of 0.64 W/m²K.

Polar 60

  • Classic wooden loft ladder with strong insulating effect
  • 2-point safety lock for high air tightness
  • 27 mm thick wooden steps and steel handrail ensure safe ascent and descent
  • U-value: 0.645 W/m2K
  • U-value with ISO upper lid: 0.24 W/m2K
  • Air tightness class 4
  • Five sizes for small to large ceiling openings: 86×70, 120×60, 120×70, 130×70 and 140×70 cm
  • Maximum room height: 2800 mm
Add to wishlist

454,80 € incl. tax excl. shipping costs*

SKU: N/A Categories: , , , Tags: , , , ,

Description

The Polar 60 attic ladder combines a sturdy solid wood construction with strong thermal insulation. It achieves a U-value of 0.645 W/m²K. With the matching ISO upper cover, the U-value improves to 0.24 W/m²K. The two-point safety lock also provides airtightness class 4.

Suitable for different ceiling openings

The Polar 60 is available in five sizes. It fits ceiling openings measuring 86 × 70 cm, 120 × 60 cm, 120 × 70 cm, 130 × 70 cm or 140 × 70 cm.

The ladder is designed for room heights of up to 280 cm. For lower rooms, you can shorten it to the required length.

Safe access to your attic

The yellow powder-coated steel handrail gives you additional support when climbing up and down. The sturdy wooden ladder provides comfortable access to your attic.

Technical data

86/70
Frame size (L x W x H) 850 x 690 x 130 mm
Ceiling opening size (L x W) 860 x 700 mm
Floor to ceiling height max. 2700 mm
Fold-out space 500 mm
Basic size 1150 mm
Ladder with 4 sections
Swivel range top cover to the rear no top cover possible for this size
120/60
Frame size (L x W x H) 1190 x 590 x 130 mm
Ceiling opening size (L x W) 1200 x 600 mm
Floor to ceiling height max. 2800 mm
Fold-out space 550 mm
Basic size 1200 mm
Swivel range top cover to the rear 1615 mm
120/70
Frame size (L x W x H) 1190 x 690 x 130 mm
Ceiling opening size (L x W) 1200 x 700 mm
Floor to ceiling height max. 2800 mm
Fold-out space 550 mm
Basic size 1200 mm
Swivel range top cover to the rear 1615 mm
130/70
Frame size (L x W x H) 1290 x 690 x 130 mm
Ceiling opening size (L x W) 1300 x 700 mm
Floor to ceiling height max. 2800 mm
Fold-out space 450 mm
Basic size 1200 mm
Swivel range top cover to the rear 1715 mm
140/70
Frame size (L x W x H) 1390 x 690 x 130 mm
Ceiling opening size (L x W) 1400 x 700 mm
Floor to ceiling height max. 2800 mm
Fold-out space 350 mm
Basic size 1200 mm
Swivel range top cover to the rear 1815 mm

Downloads

Assembly instructions

Technical datasheet

Maintenance and care instructions

Installation Video
