Height extension Fusion beech black
Height extension Fusion beech black
Height extension Fusion oak grey
Height extension Fusion walnut black
Height extension Fusion white white

Height extension for Fusion

  • Additional step for spiral staircase Fusion
  • Extension of Fusion by 182-227 mm
  • Maximum attainable storey height with one height extension: 3178 mm
  • Maximum attainable storey height with two height extensions: 3405 mm
  • When purchasing, please ensure that the height extension has the same configuration as your staircase and install a maximum of two height extensions per staircase.

Export as PDF
Add to wishlist

€ 333.60 incl. Tax excl. Shipping Costs*

SKU: N/A Category: Tags: , ,

  • Description

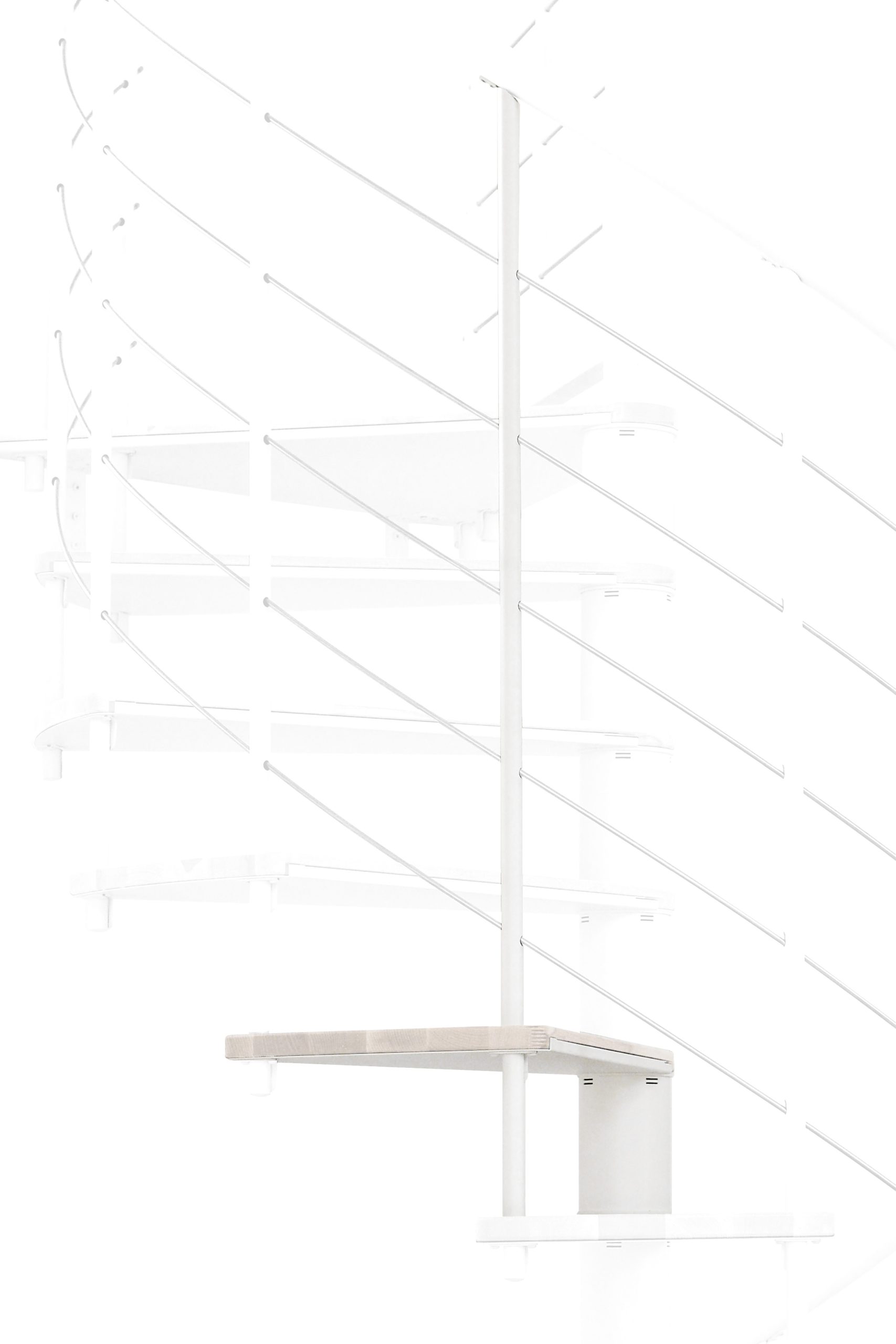

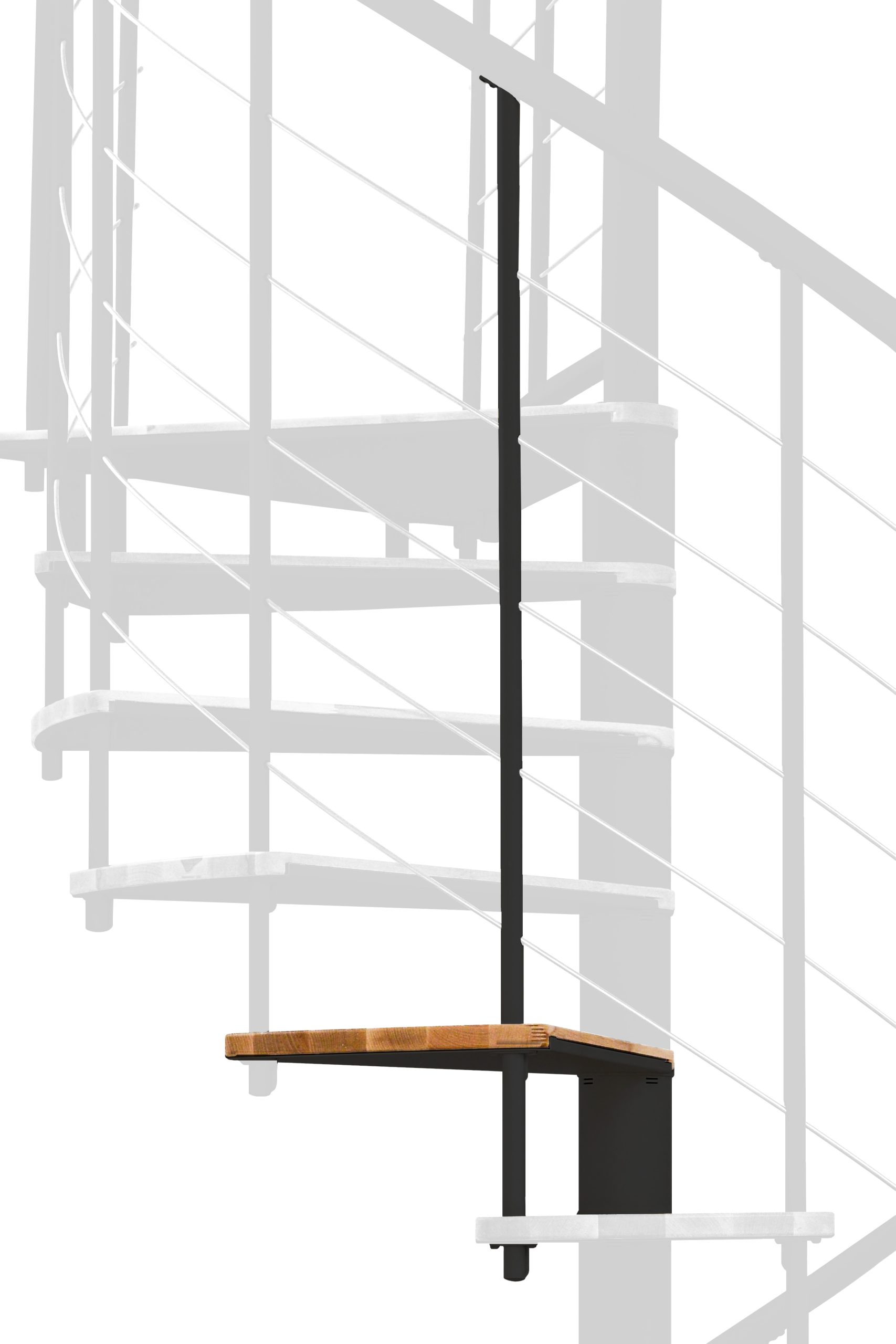

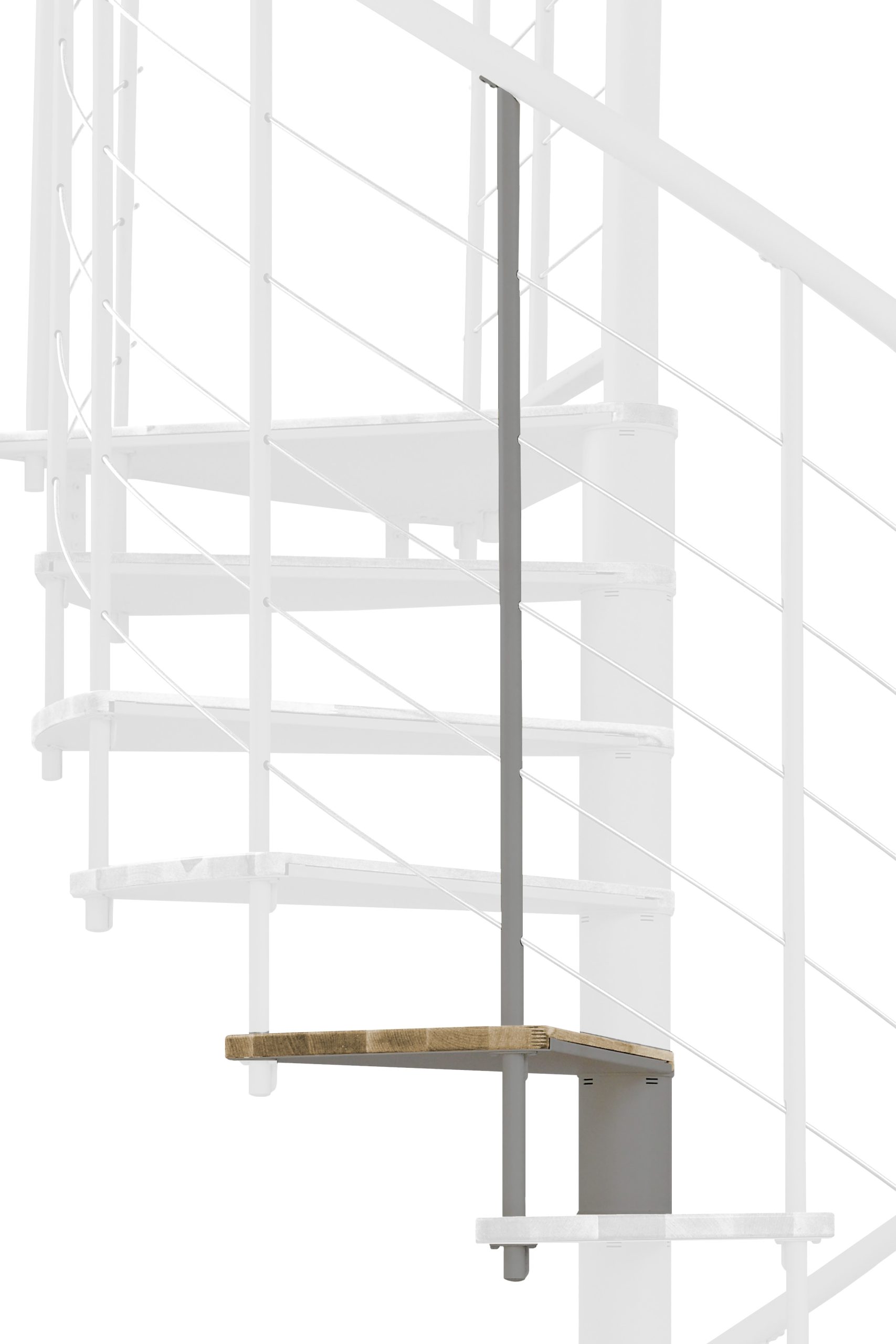

    The height extension for the Fusion includes a wooden step with the steel cover, a spindle tube and various parts for the banister. These additional elements allow you to extend the Fusion spiral staircase by one step.

    Like the staircase, the height extension can also be flexibly customised. You can choose between the wood types beech, walnut, oak and white as well as the metal colours black, grey and white. The diameter options are 120, 140 and 160 cm. When ordering, please ensure that the colour and size of the height extension matches your staircase.

    With each height extension, you achieve an additional height of 182-227 mm. In total, you can therefore extend the Fusion to a maximum storey height of 3178 mm if you install an additional step. With two height extensions, you can even extend the spiral staircase to a storey height of 3405 mm.

    Please install a maximum of two height extensions per staircase! If three or more additional steps are installed, stability is no longer guaranteed.

  • Technical data

    Basic data
    Steps Beech, oak, beech stained to walnut or beech stained white
    Wood surface Transparent lacquered
    Tread covers Steel powder-coated in grey, black or white
    Spindle tubes Steel powder-coated in grey, black or white
    Railing rods Steel powder-coated in grey, black or white
    Bottom chords Stainless steel
    Handrail PVC grey, black or white
    Number of steps 12 + 1 platform
    Fusion 120
    Radius 600 mm
    Max. storey height 2951 mm
    Max. storey height with one height extension 3178 mm
    Max. storey height with two height extensions 3405 mm
    Tread depth 210 mm
    Free passage width 486 mm
    Tread thickness 26,5 mm
    Rise per step 182-227 mm
    Rotation per step 29°
    Platform width 650 mm
    Rotation of platform 53°
    Spindle diameter 108 mm
    Baluster diameter 22 mm
    Railing height 1000 mm
    Handrail diameter 40 mm
    Fusion 140
    Radius 700 mm
    Max. storey height 2951 mm
    Max. storey height with one height extension 3178 mm
    Max. storey height with two height extensions 3405 mm
    Tread depth 236 mm
    Free passage width 586 mm
    Tread thickness 26,5 mm
    Rise per step 182-227 mm
    Rotation per step 25°
    Platform width 750 mm
    Rotation of platform 53°
    Spindle diameter 108 mm
    Baluster diameter 22 mm
    Railing height 1000 mm
    Handrail diameter 40 mm
    Fusion 160
    Radius 800 mm
    Max. storey height 2951 mm
    Max. storey height with one height extension 3178 mm
    Max. storey height with two height extensions 3405 mm
    Tread depth 244 mm
    Free passage width 686 mm
    Tread thickness 26,5 mm
    Rise per step 182-227 mm
    Rotation per step 22°
    Platform width 850 mm
    Rotation of platform 53°
    Spindle diameter 108 mm
    Baluster diameter 22 mm
    Railing height 1000 mm
    Handrail diameter 40 mm

  • Downloads

    Assembly instructions height extension

    Assembly instructions staircase

    Technical datasheet
