Spiral staircase Fusion

Fusion

  • Unique steps with a combination of wood and metal
  • Steps can be installed either with the metal side facing downwards or upwards
  • Wide range of wood variants: Beech, oak, walnut and white
  • Metal parts powder-coated in black, grey or white
  • Railing with stainless steel bottom rails and railing made of comfortable PVC
  • Available in three diameters: 120, 140 and 160 cm
  • Maximum storey height: 2951 mm

Hier soll der Validierungstext stehen.Die Treppe ist für diese Raumhöhe geeignet.

 3,106.80 3,890.40 incl. Tax excl. Shipping Costs*

SKU: N/A Categories: , Tags: ,
  • Description

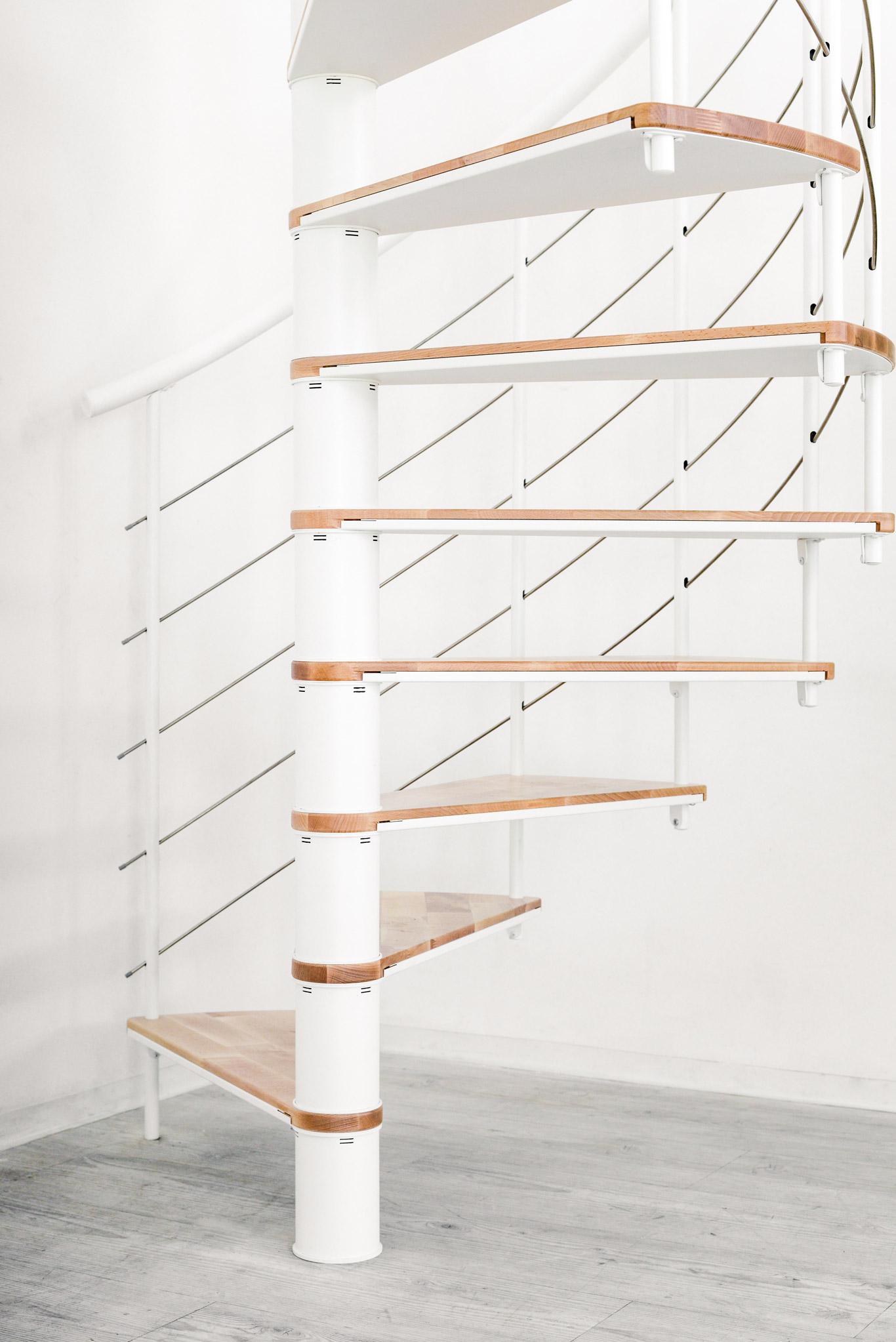

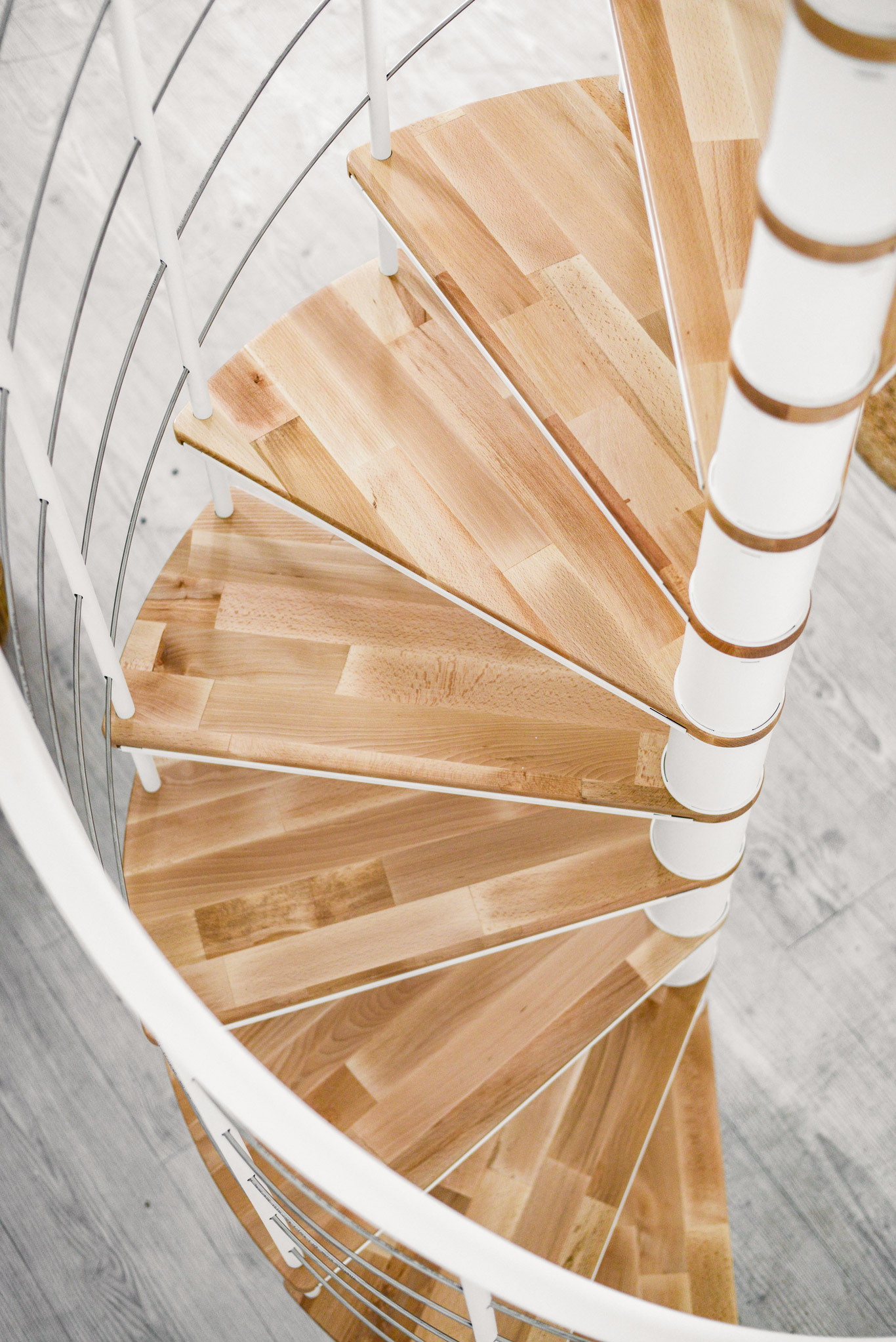

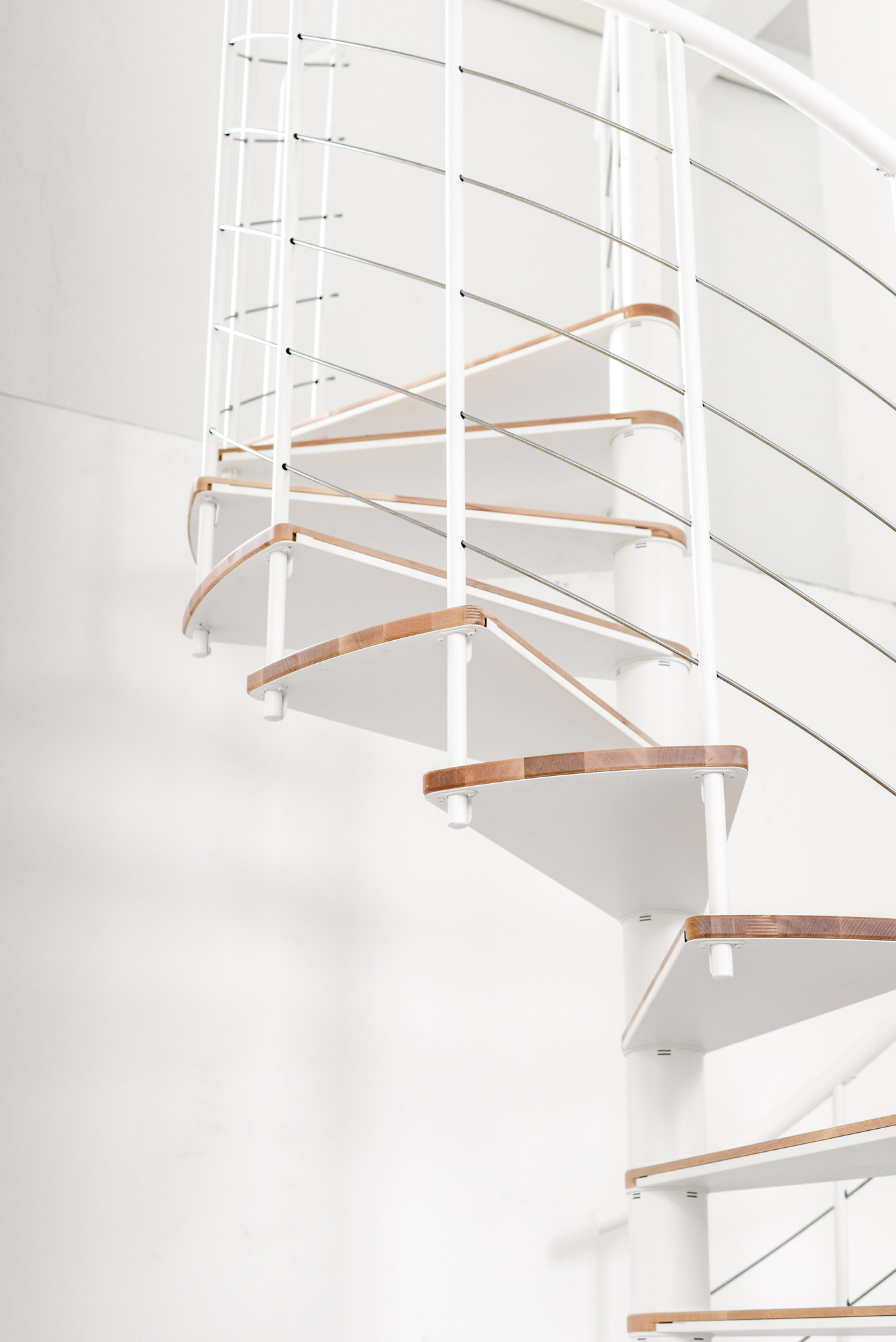

    The Fusion is a spiral staircase with very special steps: they are made of half solid wood and half powder-coated steel. The steps can be installed either with the metal side or the wooden side facing upwards. Depending on which surface you prefer for your home, you have individual design options with the Fusion spiral staircase.

    Flexible design.

    Flexible choice is not only available in terms of installation, but also in terms of colour. The Fusion is available in four different wood variants and three different metal colours. You can choose your favourite colour combination from beech, oak, walnut and white as well as black, grey and white.

    You can also personalise the spiral staircase Fusion in terms of size. You can choose from diameters of 120, 140 and 160 cm.

    Sustainable use.

    Together with the steel treads, the solid wood steps create an extremely robust walking surface. Thanks to the lacquering and powder coating of the materials, you don’t need to worry about scratches on the spiral staircase Fusion. The banister with stainless steel bottom rails and the handrail made of high-quality PVC ensure a comfortable grip and the necessary safety when climbing stairs.

  • Technical data

    Basic data
    Steps Beech, oak, beech stained to walnut or beech white lacquered
    Tread covers Steel powder-coated in grey, black or white
    Spindle tubes Steel powder-coated in grey, black or white
    Railing rods Steel powder-coated in grey, black or white
    Bottom chords Stainless steel
    Handrail PVC grey, black or white
    Number of steps 12 + 1 platform
    Fusion 120
    Radius 600 mm
    Max. storey height 2951 mm
    Max. storey height with one height extension 3178 mm
    Max. storey height with two height extensions 3405 mm
    Tread depth 210 mm
    Free passage width 486 mm
    Tread thickness 26,5 mm
    Rise per step 182-227 mm
    Rotation per step 29°
    Platform width 650 mm
    Rotation of platform 53°
    Spindle diameter 108 mm
    Baluster diameter 22 mm
    Railing height 1000 mm
    Handrail diameter 40 mm
    Fusion 140
    Radius 700 mm
    Max. storey height 2951 mm
    Max. storey height with one height extension 3178 mm
    Max. storey height with two height extensions 3405 mm
    Tread depth 236 mm
    Free passage width 586 mm
    Tread thickness 26,5 mm
    Rise per step 182-227 mm
    Rotation per step 25°
    Platform width 750 mm
    Rotation of platform 53°
    Spindle diameter 108 mm
    Baluster diameter 22 mm
    Railing height 1000 mm
    Handrail diameter 40 mm
    Fusion 160
    Radius 800 mm
    Max. storey height 2951 mm
    Max. storey height with one height extension 3178 mm
    Max. storey height with two height extensions 3405 mm
    Tread depth 244 mm
    Free passage width 686 mm
    Tread thickness 26,5 mm
    Rise per step 182-227 mm
    Rotation per step 22°
    Platform width 850 mm
    Rotation of platform 53°
    Spindle diameter 108 mm
    Baluster diameter 22 mm
    Railing height 1000 mm
    Handrail diameter 40 mm
