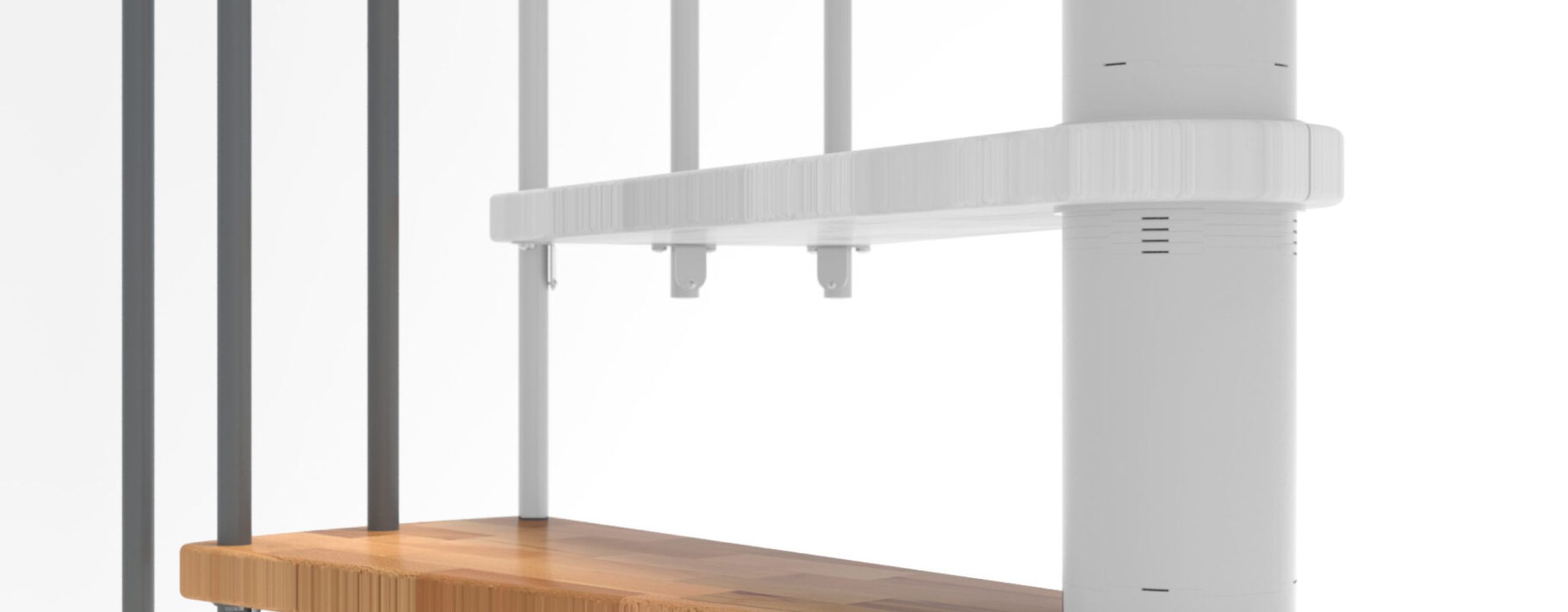

height extension Berlin beech grey
height extension Berlin beech grey
height extension Berlin beech black
height extension Berlin beech white

Height extension for Berlin

  • Additional step for spiral staircase Berlin
  • Extension of Berlin by 190-235 mm
  • Maximum attainable storey height with one height extension: 3055 mm
  • Maximum attainable storey height with two height extensions: 3290 mm
  • When purchasing, please ensure that the height extension has the same configuration as your staircase and install a maximum of two height extensions per staircase.

Export as PDF
Add to wishlist

278,00 € incl. Tax excl. Shipping Costs*

SKU: N/A Category: Tags: ,

Description

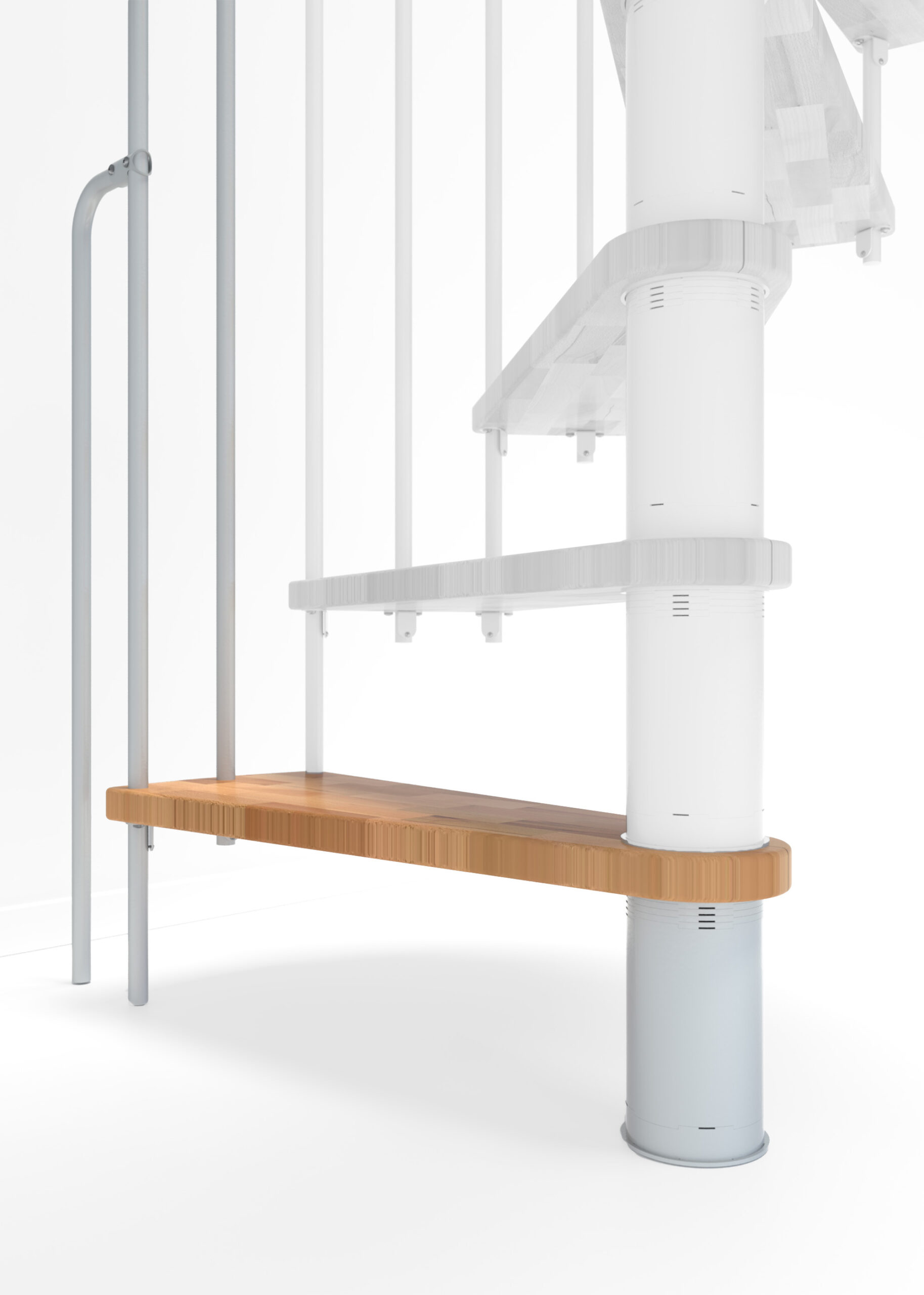

The height extension for spiral staircase Berlin includes an additional step and the corresponding metal parts for the spindle and the railing. You can configure these yourself, just like the staircase – when doing so, please make sure that the staircase and the height extension match in colour.

With a height extension, you can generate an additional rise of 190-235 mm. This means that you can achieve a maximum storey height of 3055 mm with one additional step. If you install two height extensions, the Berlin spiral staircase is even suitable for floors with a height of up to 3290 mm.

Please install a maximum of two height extensions per staircase! If three or more additional steps are installed, stability is no longer guaranteed.

Technical data

Basic data
Steps Beech lacquered
Spindle tubes Steel powder-coated in grey, black or white
Railing rods Steel powder-coated in grey, black or white
Handrail PVC grey, black or white
Number of steps 11 + 1 platform
Berlin 120
Basic size 1200 x 1250 mm
Radius 600 mm
Max. storey height 2820 mm
Max. storey height with one height extension 3055 mm
Max. storey height with two height extensions 3290 mm
Tread depth 180 mm
Free passage width 500 mm
Tread thickness 35 mm
Rise per step 190-235 mm
Rotation per step 26°
Rotation of platform 50°
Spindle diameter 108 mm
Railing height 1000 mm
Handrail diameter 40 mm
Berlin 140
Basic size 1400 x 1450 mm
Radius 700 mm
Max. storey height 2820 mm
Max. storey height with one height extension 3055 mm
Max. storey height with two height extensions 3290 mm
Tread depth 172 mm
Free passage width 600 mm
Tread thickness 35 mm
Rise per step 190-235 mm
Rotation per step 22°
Rotation of platform 50°
Spindle diameter 108 mm
Railing height 1000 mm
Handrail diameter 40 mm
