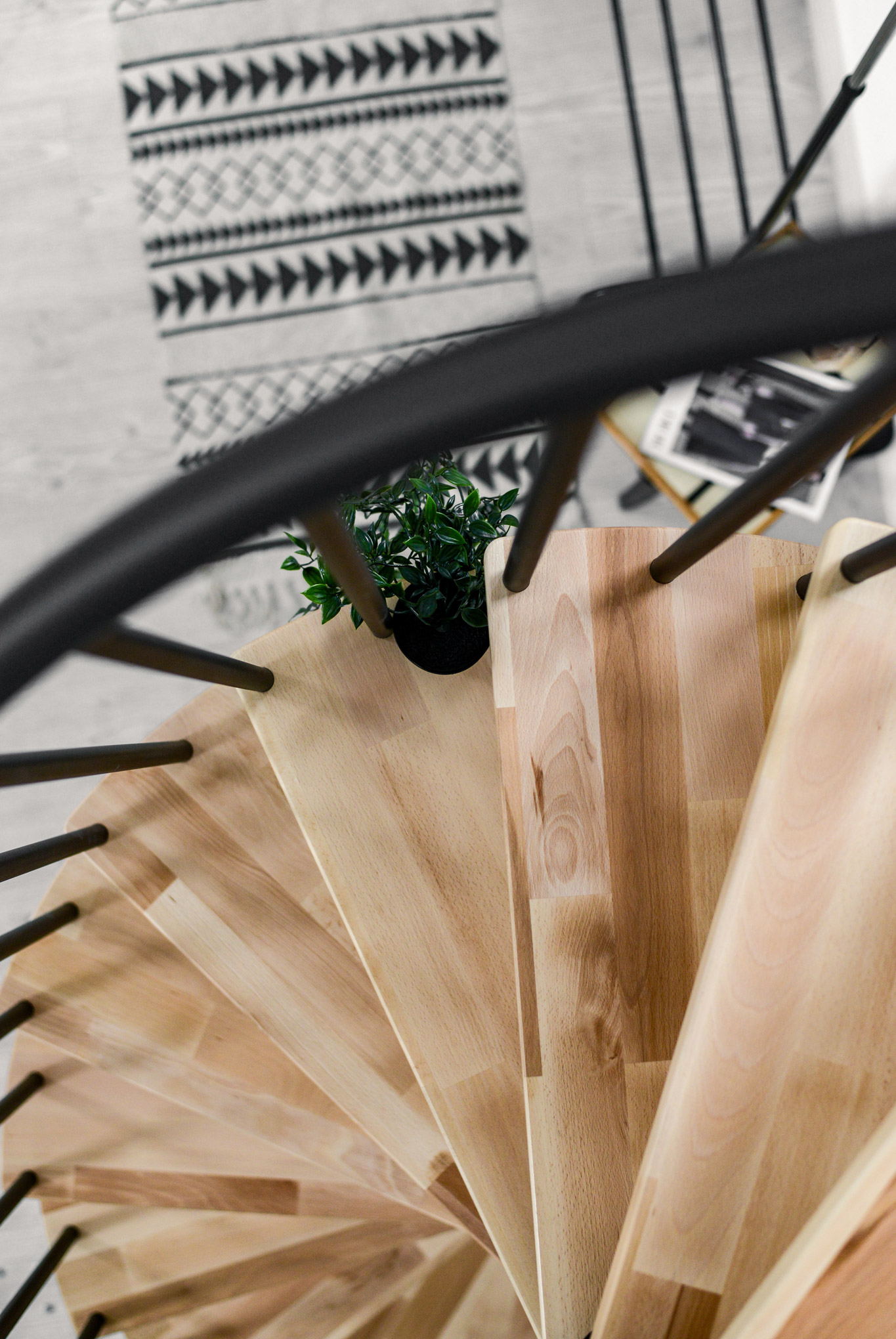

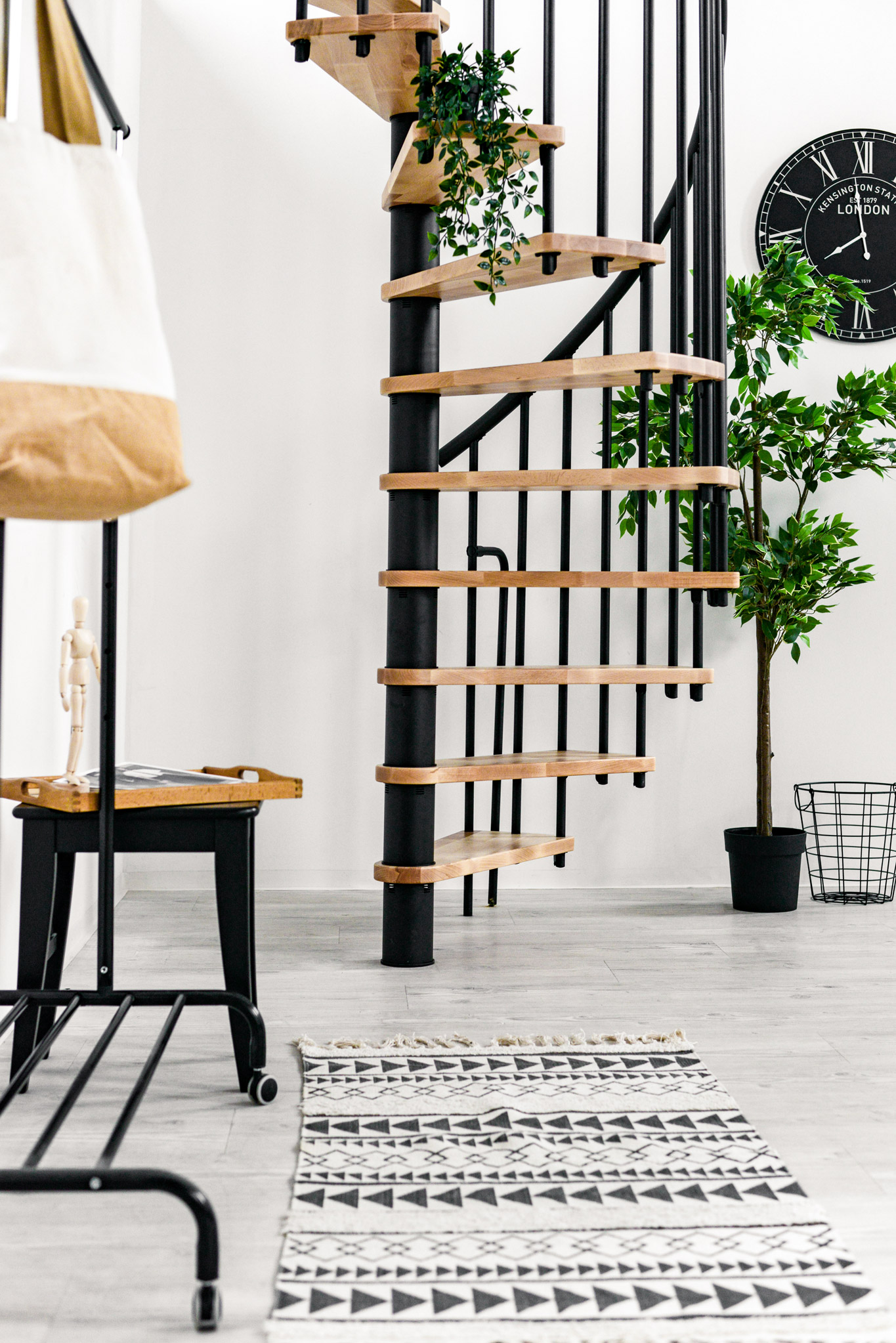

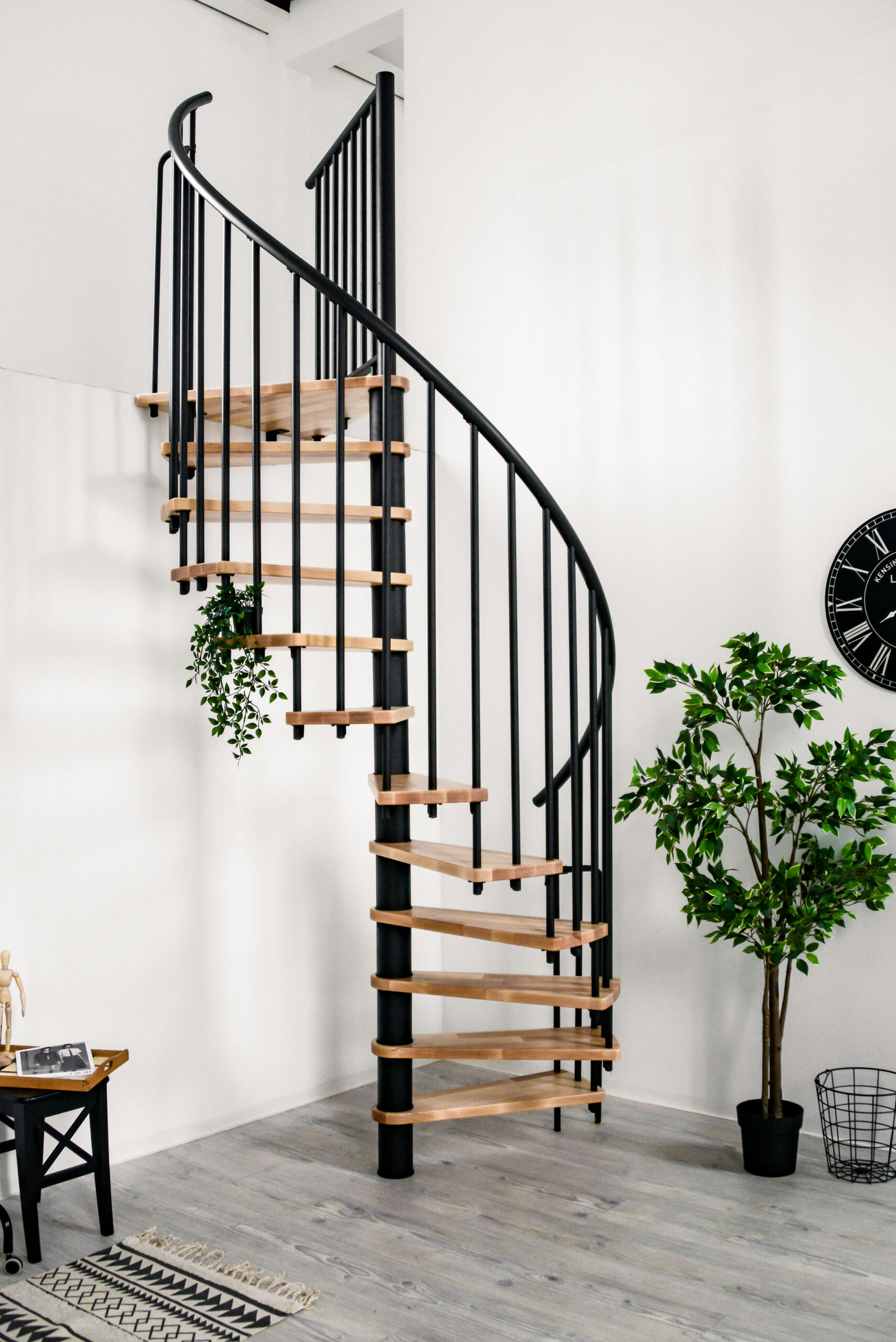

Spiral staircase Berlin

Berlin

  • Simple and sleek design
  • Especially safe to use thanks to sturdy spindle and railing bars

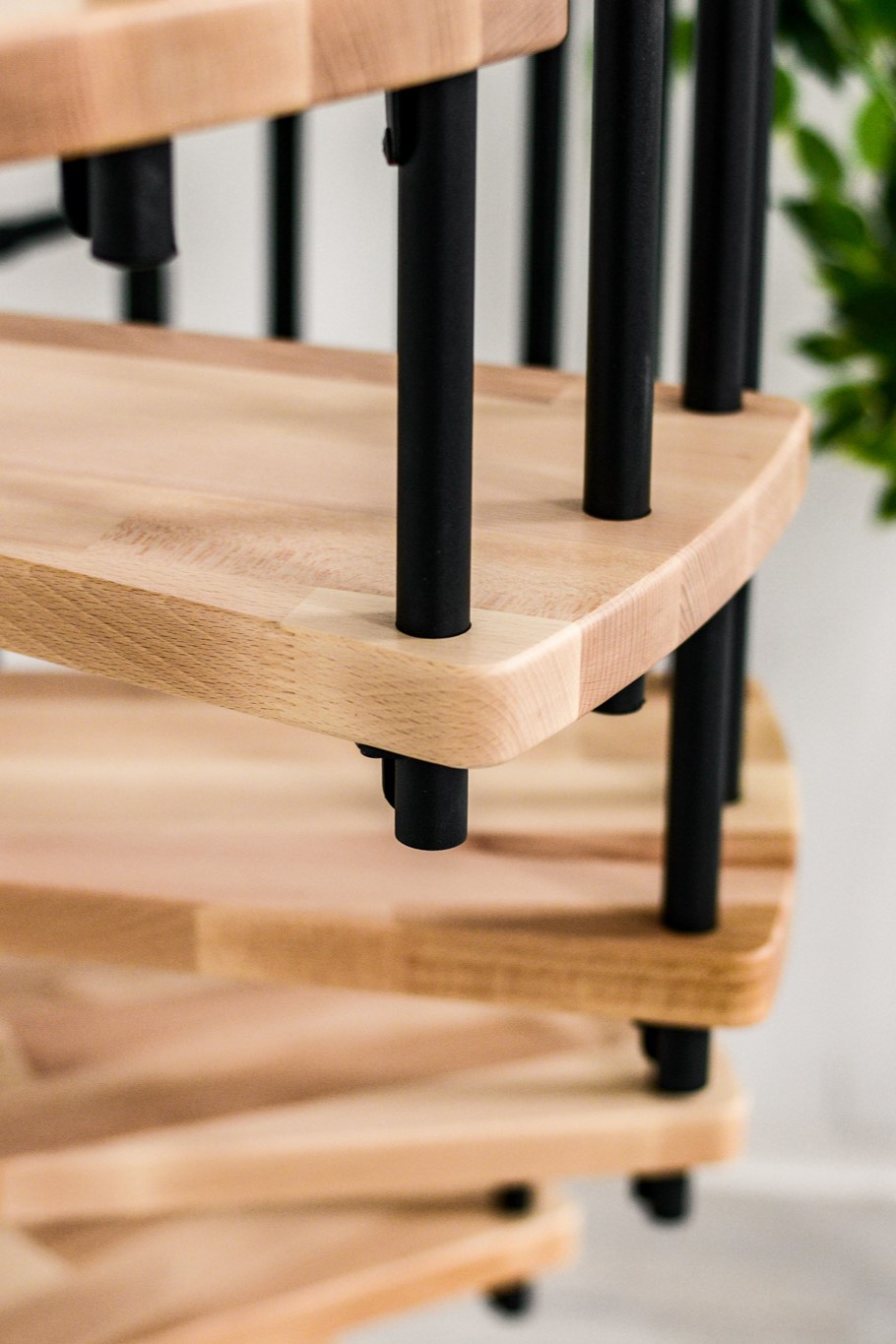

  • Steps in lacquered beech wood
  • Metal parts powder-coated in black, grey or white
  • Diameter 120 or 140 cm available
  • Maximum storey height: 2820 mm

Hier soll der Validierungstext stehen.Die Treppe ist für diese Raumhöhe geeignet.

 1,596.00 1,770.00 incl. Tax excl. Shipping Costs*

SKU: N/A Categories: , Tags: ,
  • Description

    The spiral staircase Berlin by Minka convinces with its simple yet elegant design. The combination of straight wooden steps and straight balusters creates a harmonious overall look that enhances the appearance of any room. But the Berlin spiral staircase is not only visually appealing – thanks to the stable spindle and railing, safe use is guaranteed.

    Flexible design.

    The steps of Berlin are made of lacquered beech wood, the metal parts of powder-coated steel and the handrail of high-quality PVC. The spindle and railing can be delivered in black, grey or white, depending on your preference. In terms of size, you can also freely choose between a diameter of 120 cm and 140 cm. Thus, you will definitely find the right combination for your individual living situation.

    Sustainable use.

    Like all staircases of Minka, the spiral staircase Berlin is also produced in Austria. Minka supplies the components from European countries, which ensures a higher quality and sustainability of the products. The lacquering of the steps and the powder coating of the metal parts make the Berlin extremely resistant to wear and tear. Therefore, you will certainly enjoy this staircase for a long time.

  • Technical data

    Basic data
    Steps Beech lacquered
    Spindle tubes Steel powder-coated in grey, black or white
    Railing rods Steel powder-coated in grey, black or white
    Handrail PVC grey, black or white
    Number of steps 11 + 1 platform
    Berlin 120
    Basic size 1200 x 1250 mm
    Radius 600 mm
    Max. storey height 2820 mm

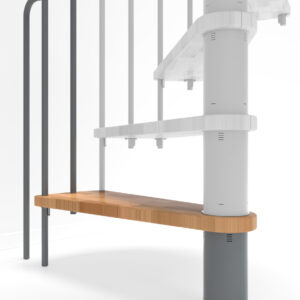

    Max. storey height with one height extension 3055 mm
    Max. storey height with two height extensions 3290 mm
    Tread depth 180 mm
    Free passage width 500 mm
    Tread thickness 35 mm
    Rise per step 190-235 mm
    Rotation per step 26°
    Rotation of platform 50°
    Spindle diameter 108 mm
    Railing height 1000 mm
    Handrail diameter 40 mm
    Berlin 140
    Basic size 1400 x 1450 mm
    Radius 700 mm
    Max. storey height 2820 mm
    Max. storey height with one height extension 3055 mm
    Max. storey height with two height extensions 3290 mm
    Tread depth 172 mm
    Free passage width 600 mm
    Tread thickness 35 mm
    Rise per step 190-235 mm
    Rotation per step 22°
    Rotation of platform 50°
    Spindle diameter 108 mm
    Railing height 1000 mm
    Handrail diameter 40 mm
