Euro Star

  • Scissor staircase with steel frame and high insulation thickness
  • Completely pre-assembled, therefore easy and quick to install at home
  • U-value: 1.1 W/m2K
  • Nine different sizes: 70×50, 70×70, 80×80, 90×60, 90×70, 90×90, 100×70, 120×60 and 120×70 cm
  • Maximum room height: 3000 mm

614,40 € incl. tax excl. shipping costs*

Description

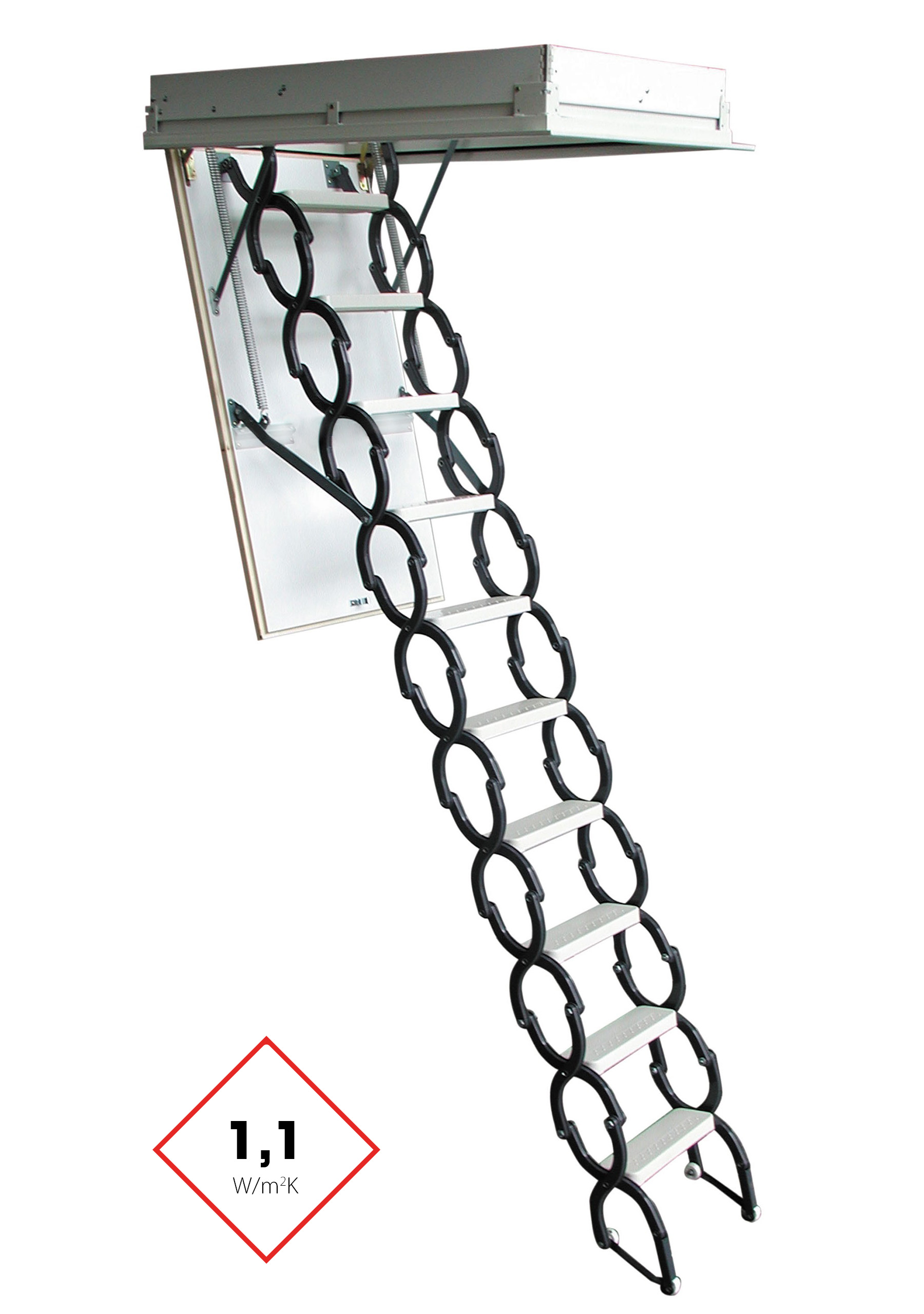

The Euro Star  attic ladder is a particularly compact solution for accessing your attic. It fits even very small ceiling openings and is easy to install thanks to its quick installation system. The 33 mm thick insulated hatch panel and continuous seal provide a U-value of 1.1 W/m²K.

Plenty of sizes, minimal space required

The Euro Star is available in nine sizes. It is suitable for structural ceiling openings measuring 70 × 50 cm, 70 × 70 cm, 80 × 80 cm, 90 × 60 cm, 90 × 70 cm, 90 × 90 cm, 100 × 70 cm, 120 × 60 cm or 120 × 70 cm. Depending on the selected version, it can be used for room heights of up to 300 cm.

The hatch panel and steel frame have a simple white finish. This allows the closed attic ladder to blend discreetly into your ceiling.

Compact and sturdy

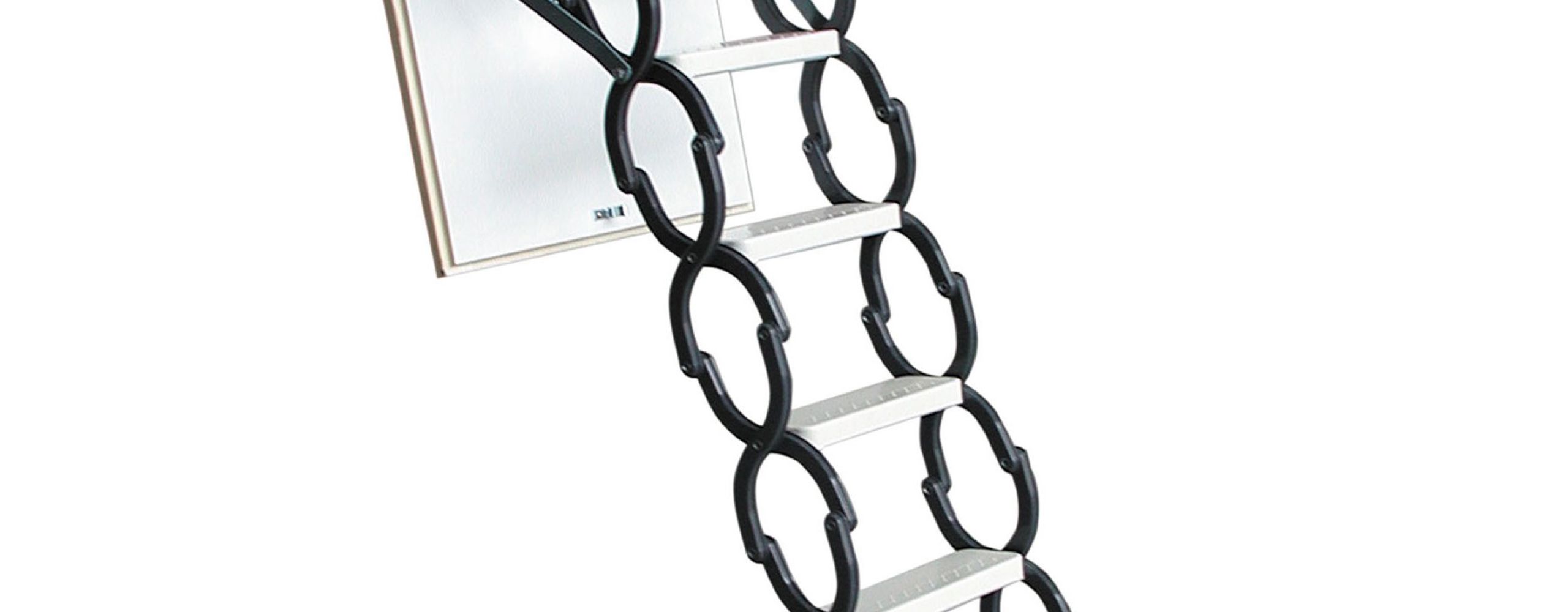

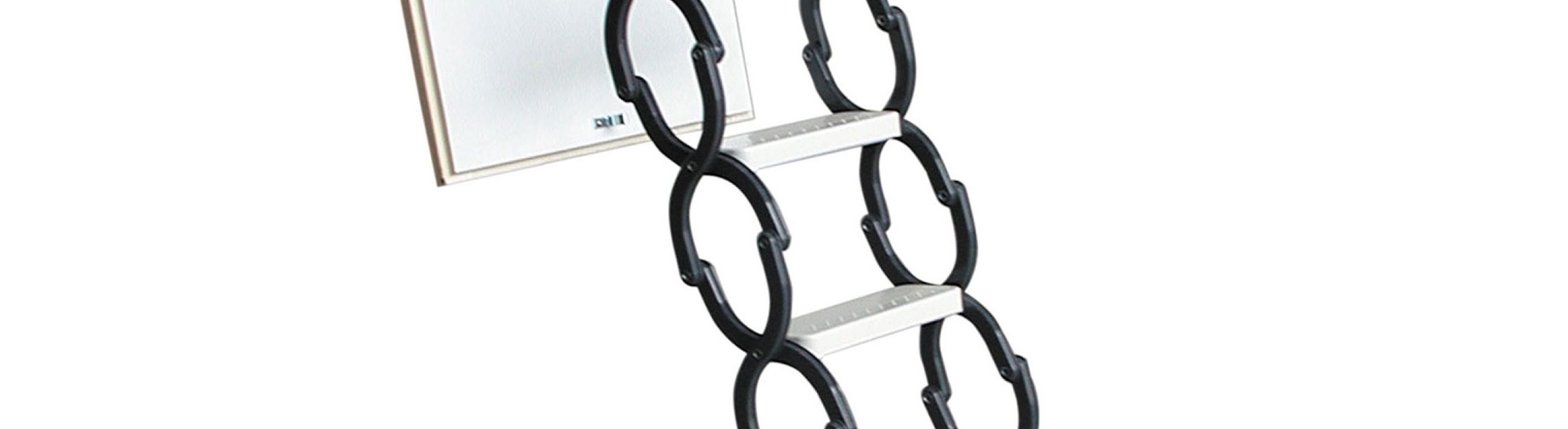

The treads and concertina sections are made of robust, powder-coated steel. The recessed latch is also made of metal. It keeps the retracted ladder securely inside the frame until you need it again.

Technical data

70/50
Frame size (L x W x H) 690 x 490 x 170 mm
Ceiling opening size (L x W) 700 x 500 mm
Floor to ceiling height max. 3000 mm
Fold-out space 950 mm
Basic size 1200 mm

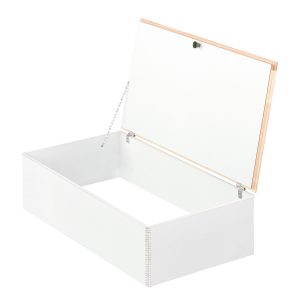

Swivel range top cover to the side no top cover possible for this size
70/70
Frame size (L x W x H) 690 x 690 x 170 mm
Ceiling opening size (L x W) 700 x 700 mm
Floor to ceiling height max. 3000 mm
Fold-out space 950 mm
Basic size 1200 mm
Swivel range top cover to the side no top cover possible for this size
80/80
Frame size (L x W x H) 790 x 790 x 170 mm
Ceiling opening size (L x W) 800 x 800 mm
Floor to ceiling height max. 3000 mm
Fold-out space 850 mm
Basic size 1200 mm
Swivel range top cover to the side no top cover possible for this size
90/60
Frame size (L x W x H) 890 x 590 x 170 mm
Ceiling opening size (L x W) 900 x 600 mm
Floor to ceiling height max. 3000 mm
Fold-out space 750 mm
Basic size 1200 mm
Swivel range top cover to the side 1055 mm
90/70
Frame size (L x W x H) 890 x 690 x 170 mm
Ceiling opening size (L x W) 900 x 700 mm
Floor to ceiling height max. 3000 mm
Fold-out space 750 mm
Basic size 1200 mm
Swivel range top cover to the side 1155 mm
90/90
Frame size (L x W x H) 890 x 890 x 170 mm
Ceiling opening size (L x W) 900 x 900 mm
Floor to ceiling height max. 3000 mm
Fold-out space 750 mm
Basic size 1200 mm
Swivel range top cover to the side no top cover possible for this size
100/70
Frame size (L x W x H) 990 x 690 x 170 mm
Ceiling opening size (L x W) 1000 x 700 mm
Floor to ceiling height max. 3000 mm
Fold-out space 650 mm
Basic size 1200 mm
Swivel range top cover to the side 1155 mm
120/60
Frame size (L x W x H) 1190 x 590 x 170 mm
Ceiling opening size (L x W) 1200 x 600 mm
Floor to ceiling height max. 3000 mm
Fold-out space 450 mm
Basic size 1200 mm
Swivel range top cover to the side 1055 mm
120/70
Frame size (L x W x H) 1190 x 690 x 170 mm
Ceiling opening size (L x W) 1200 x 700 mm
Floor to ceiling height max. 3000 mm
Fold-out space 450 mm
Basic size 1200 mm
Swivel range top cover to the side 1155 mm
