Spiral staircase Spiral Smart

Spiral Smart

  • Particularly suitable for families thanks to sturdy wooden steps and safe rod railing
  • Steps available in four variants: beech, walnut, oak and white
  • Metal parts powder-coated in black, grey or white
  • Handrail made of high-quality PVC
  • Four diameters: 100, 120, 140 and 160 cm
  • Maximum storey height: 3055 mm

Hier soll der Validierungstext stehen.Die Treppe ist für diese Raumhöhe geeignet.

 2,330.40 3,355.20 incl. Tax excl. Shipping Costs*

  • Description

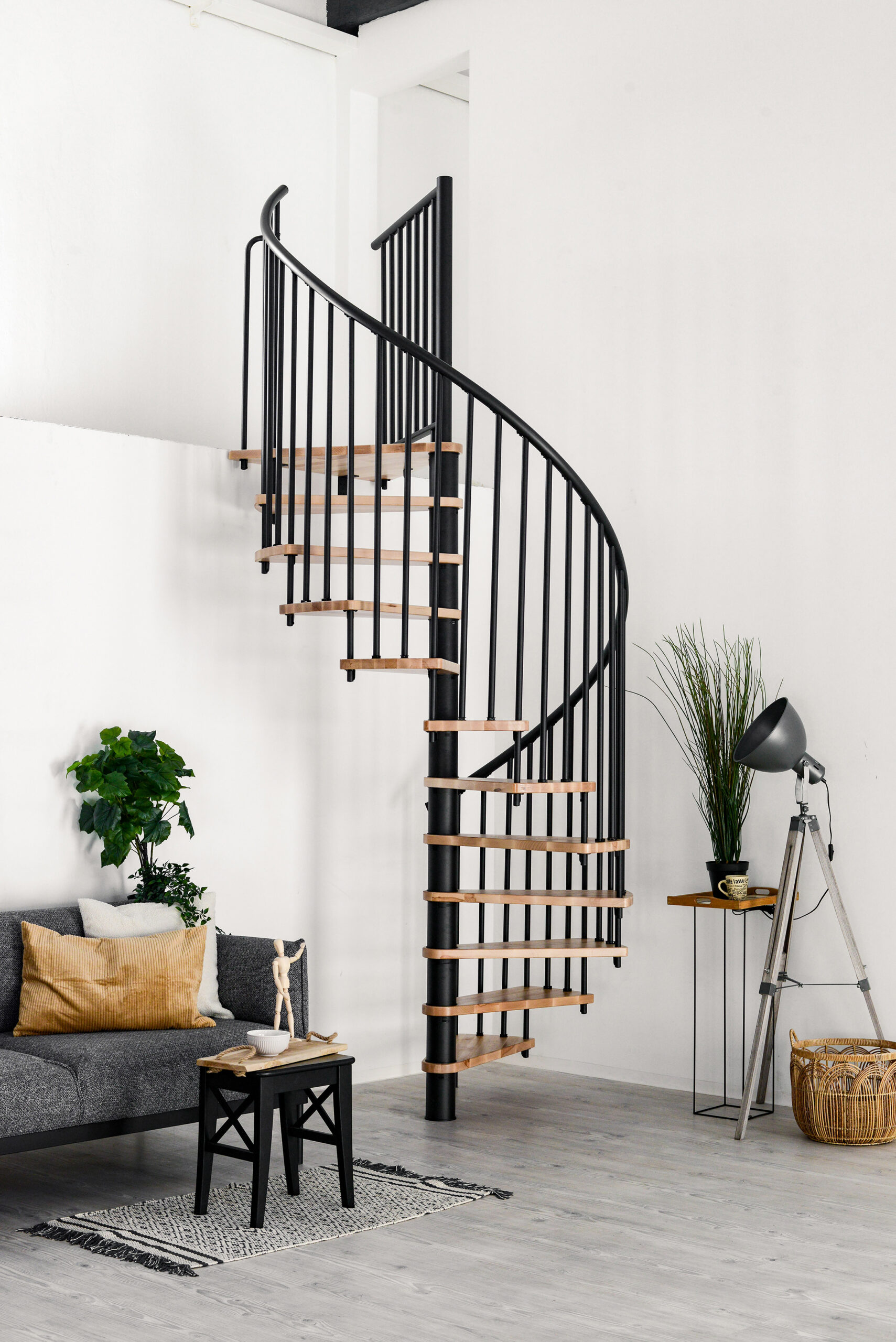

    The Spiral Smart is a versatile spiral staircase from Minka. With its straightforward and rather simple shape, it is a true all-rounder and blends pleasantly into any room setting. The Spiral Smart is particularly suitable for families with children and pets – thanks to the stable wooden steps and the closely spaced balusters, it allows the whole family to climb up and down safely.

    Flexible design.

    The spiral staircase Spiral Smart is available in four different sizes. The diameter can be 100, 120, 140 or 160 cm. But the Spiral Smart also offers a wide range of design options. The steps are made of either oak or beech wood. Optionally, the beech steps can also be stained to a darker walnut look or to white. The metal parts of the staircase and the handrail made of high-quality PVC can be chosen in black, grey or white. This means that you can have your staircase customised to match your interior style perfectly.

    Sustainable use.

    The wood for the steps of all Minka staircases comes from European forests and is packed together with the rest of the parts in Austria. The metal elements are surface-finished with a high-quality Minka powder coating and are therefore extremely resistant to scratches and other forms of wear and tear. So you can be sure that you will enjoy your spiral staircase Spiral Smart for a long time.

  • Technical data

    Basic data
    Steps Beech, oak, beech stained to walnut or beech stained white
    Wood surface Transparent lacquered
    Spindle tubes Steel powder-coated in grey, black or white
    Railing rods Steel powder-coated in grey, black or white
    Handrail PVC grey, black or white
    Number of steps 12 + 1 platform
    Spiral Smart 100
    Radius 500 mm
    Max. storey height 3055 mm

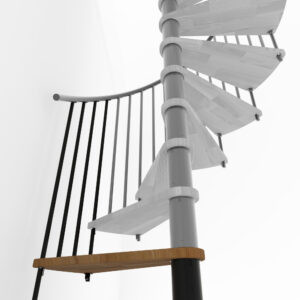

    Max. storey height with one height extension 3290 mm
    Max. storey height with two height extensions 3525 mm
    Tread depth 180 mm
    Free passage width 386 mm
    Tread thickness 35 mm
    Rise per step 190-235 mm
    Rotation per step 25°
    Platform width 550 mm
    Rotation of platform 50°
    Spindle diameter 108 mm
    Railing height 1000 mm
    Handrail diameter 40 mm
    Spiral Smart 120
    Radius 600 mm
    Max. storey height 3055 mm
    Max. storey height with one height extension 3290 mm
    Max. storey height with two height extensions 3525 mm
    Tread depth 210 mm
    Free passage width 486 mm
    Tread thickness 35 mm
    Rise per step 190-235 mm
    Rotation per step 30,2°
    Platform width 650 mm
    Rotation of platform 50°
    Spindle diameter 108 mm
    Railing height 1000 mm
    Handrail diameter 40 mm
    Spiral Smart 140
    Radius 700 mm
    Max. storey height 3055 mm
    Max. storey height with one height extension 3290 mm
    Max. storey height with two height extensions 3525 mm
    Tread depth 236 mm
    Free passage width 586 mm
    Tread thickness 35 mm
    Rise per step 190-235 mm
    Rotation per step 26,2°
    Platform width 750 mm
    Rotation of platform 50°
    Spindle diameter 108 mm
    Railing height 1000 mm
    Handrail diameter 40 mm
    Spiral Smart 160
    Radius 800 mm
    Max. storey height 3055 mm
    Max. storey height with one height extension 3290 mm
    Max. storey height with two height extensions 3525 mm
    Tread depth 244 mm
    Free passage width 686 mm
    Tread thickness 35 mm
    Rise per step 190-235 mm
    Rotation per step 22,2°
    Platform width 850 mm
    Rotation of platform 50°
    Spindle diameter 108 mm
    Railing height 1000 mm
    Handrail diameter 40 mm
