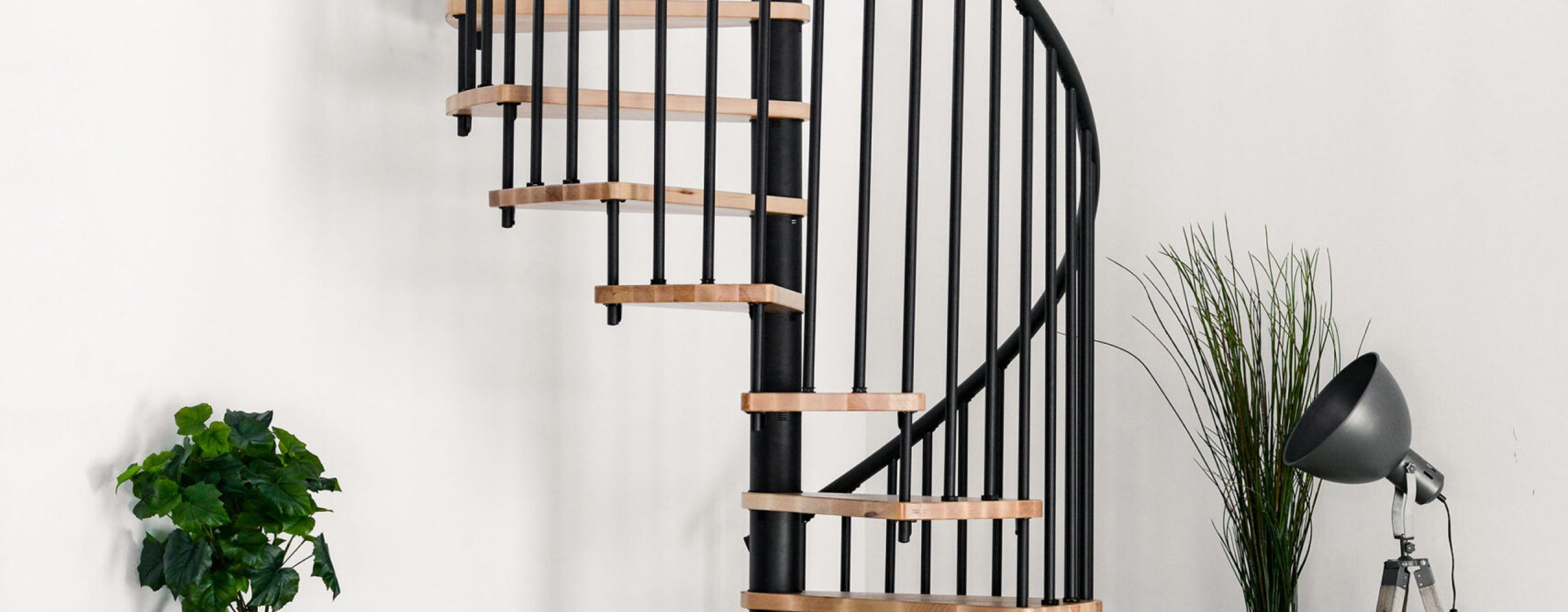

Spiral staircase Spiral Smart with black metal railing with PVC handrail and beech steps that spiral around a black centre column. To the left is a grey sofa with white cushions and a plant. To the right, a plant and a grey floor lamp.

Spiral Smart

  • Particularly suitable for families thanks to sturdy wooden steps and safe rod railing
  • Steps available in four variants: beech, walnut, oak and white
  • Metal parts powder-coated in black, grey or white
  • Handrail made of high-quality PVC
  • Four diameters: 100, 120, 140 and 160 cm
  • Maximum storey height: 3055 mm

The validation text should appear here.The stairs are suitable for this floor height.
Add to wishlist

2.330,40 € – 3.355,20 € incl. tax excl. shipping costs*

SKU: N/A Categories: , , Tags: ,

Description

The Spiral Smart spiral staircase combines a clean design with a wide range of configuration options. Its understated look suits different interior styles. Sturdy wooden treads and closely spaced railing posts provide additional support when climbing up and down. This also makes the staircase a good choice for homes with children or pets.

Four sizes to choose from

The Spiral Smart is available with a diameter of 100, 120, 140 or 160 cm. This allows you to select the size that suits the available space and ceiling opening.

A wide range of colour combinations

The treads are available in oak or beech. The beech treads also come with a darker walnut-effect or white finish. The metal components and PVC handrail are available in black, grey or white.

The powder coating gives the metal components an even finish and protects them against scratches and everyday wear.

Technical data

Basic data
Steps Beech, oak, beech stained to walnut or beech stained white
Wood surface Transparent lacquered
Spindle tubes Steel powder-coated in grey, black or white
Railing rods Steel powder-coated in grey, black or white
Handrail PVC grey, black or white
Number of steps 12 + 1 platform
Spiral Smart 100
Radius 500 mm
Max. storey height 3055 mm
Max. storey height with one height extension 3290 mm
Max. storey height with two height extensions 3525 mm
Tread depth 180 mm
Free passage width 386 mm
Tread thickness 35 mm
Rise per step 190-235 mm
Rotation per step 25°
Platform width 550 mm
Rotation of platform 50°
Spindle diameter 108 mm
Railing height 1000 mm
Handrail diameter 40 mm
Spiral Smart 120
Radius 600 mm
Max. storey height 3055 mm
Max. storey height with one height extension 3290 mm
Max. storey height with two height extensions 3525 mm
Tread depth 210 mm
Free passage width 486 mm
Tread thickness 35 mm
Rise per step 190-235 mm
Rotation per step 30,2°
Platform width 650 mm
Rotation of platform 50°
Spindle diameter 108 mm
Railing height 1000 mm
Handrail diameter 40 mm
Spiral Smart 140
Radius 700 mm
Max. storey height 3055 mm
Max. storey height with one height extension 3290 mm
Max. storey height with two height extensions 3525 mm
Tread depth 236 mm
Free passage width 586 mm
Tread thickness 35 mm
Rise per step 190-235 mm
Rotation per step 26,2°
Platform width 750 mm
Rotation of platform 50°
Spindle diameter 108 mm
Railing height 1000 mm
Handrail diameter 40 mm
Spiral Smart 160
Radius 800 mm
Max. storey height 3055 mm
Max. storey height with one height extension 3290 mm
Max. storey height with two height extensions 3525 mm
Tread depth 244 mm
Free passage width 686 mm
Tread thickness 35 mm
Rise per step 190-235 mm
Rotation per step 22,2°
Platform width 850 mm
Rotation of platform 50°
Spindle diameter 108 mm
Railing height 1000 mm
Handrail diameter 40 mm

Downloads

Assembly instructions

Technical datasheet

Installation Video
