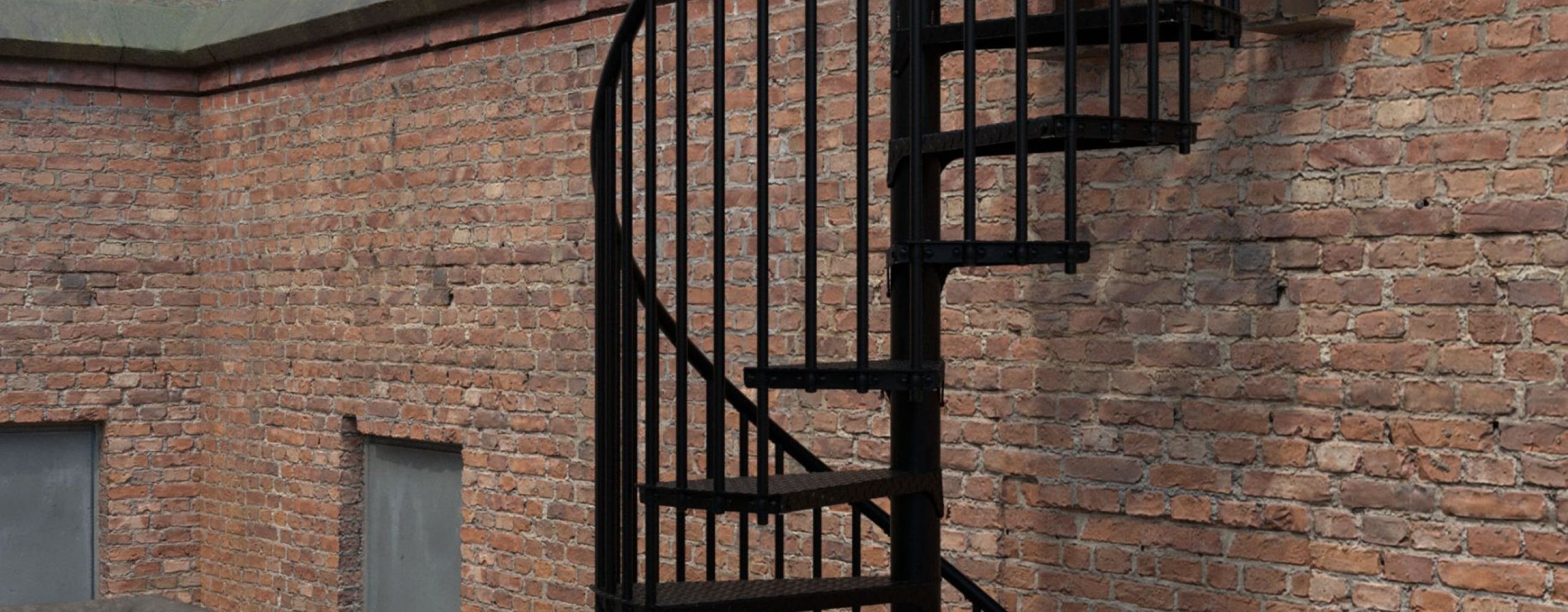

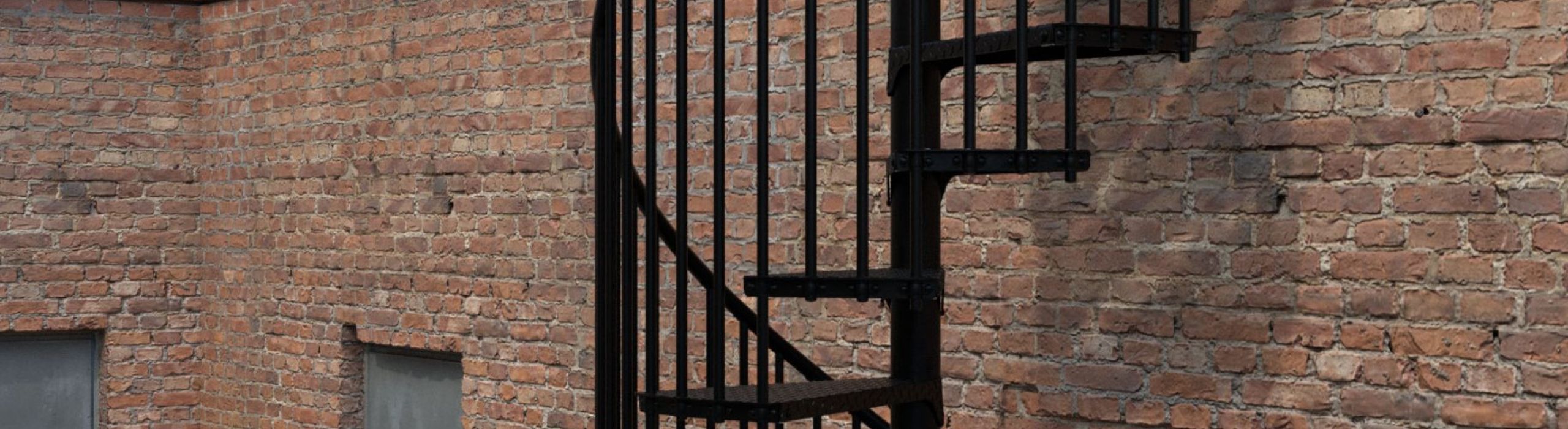

Rondo Zink Color

  • Powder-coated spiral staircase for outdoors
  • Galvanised steel parts powder-coated in black, anthracite or white
  • Handrail made of robust plastic
  • Rippled treads ensure a good grip when climbing stairs
  • Four diameters: 120, 140, 160 and 180 cm
  • Maximum storey height: 3055 mm

The validation text should appear here.The stairs are suitable for this room height.

2.852,40 € – 3.662,40 € incl. tax excl. shipping costs*

Description

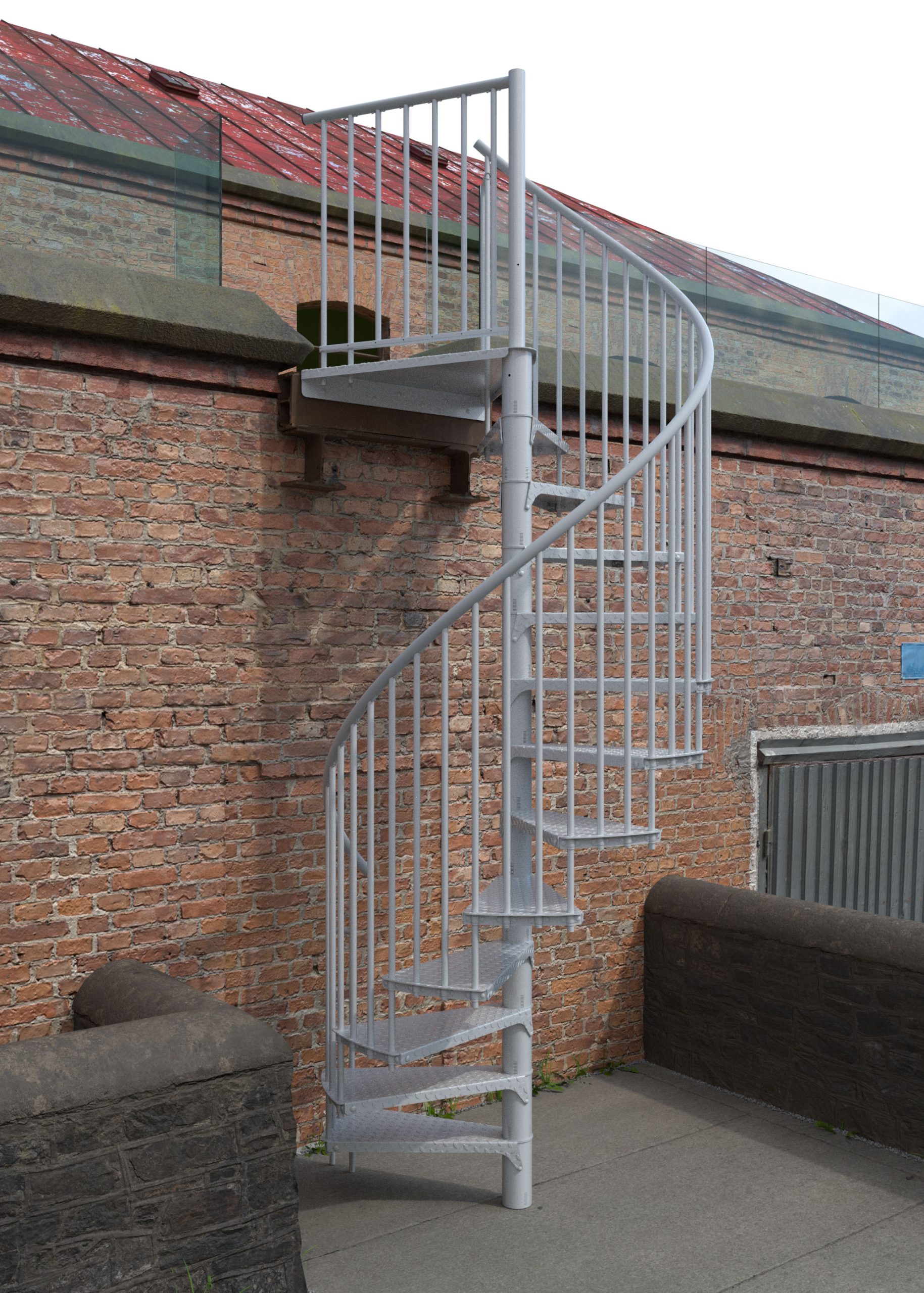

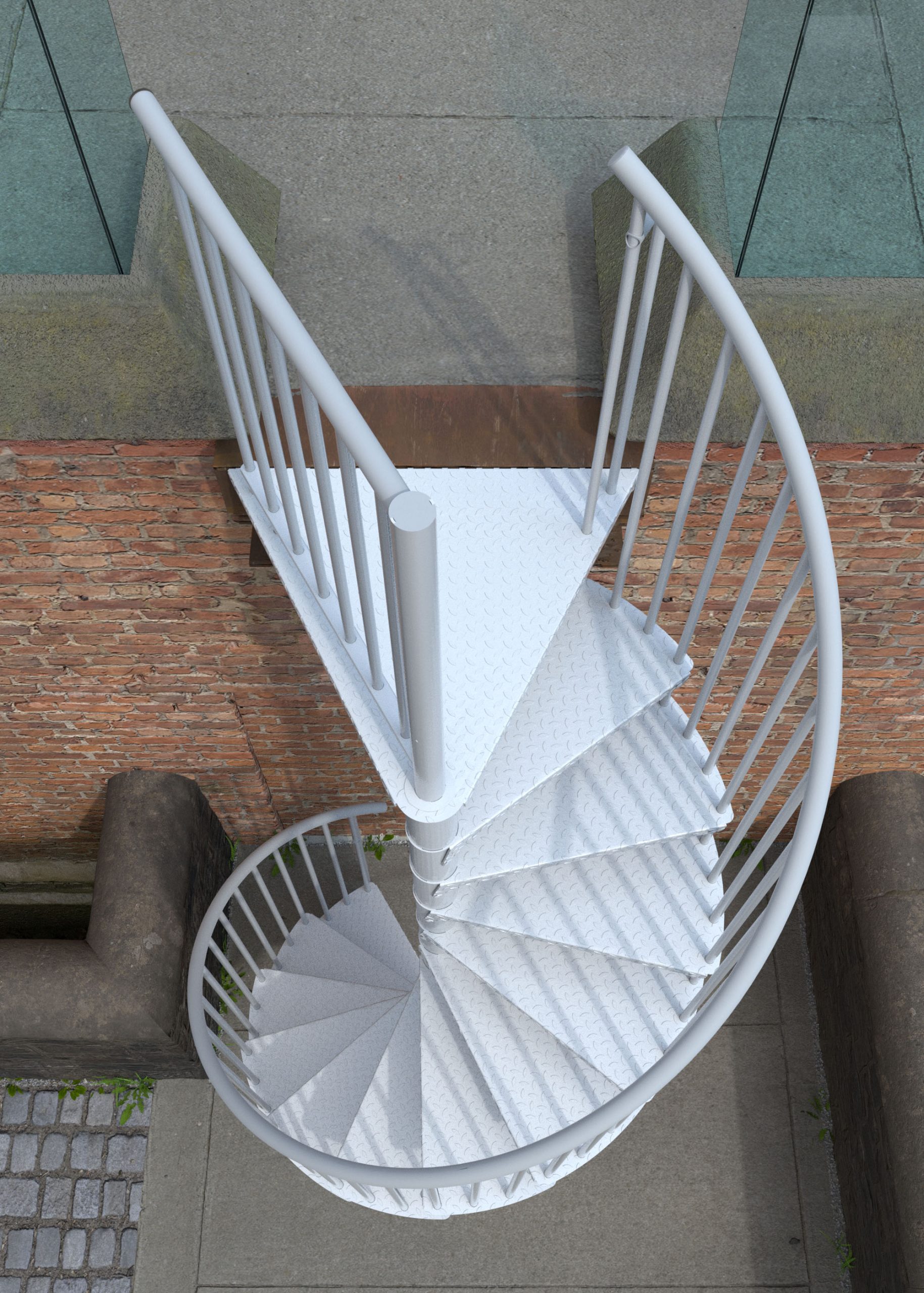

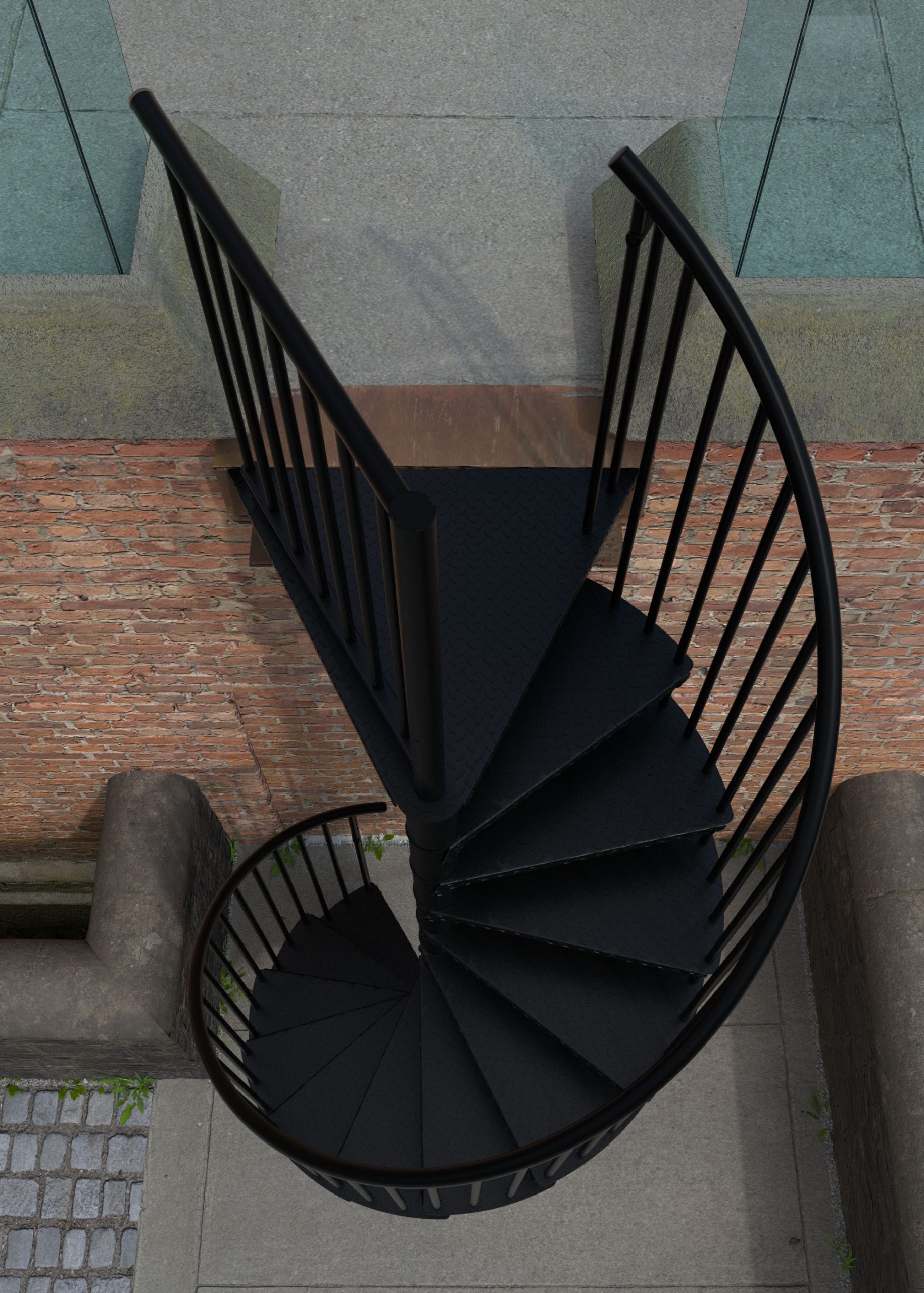

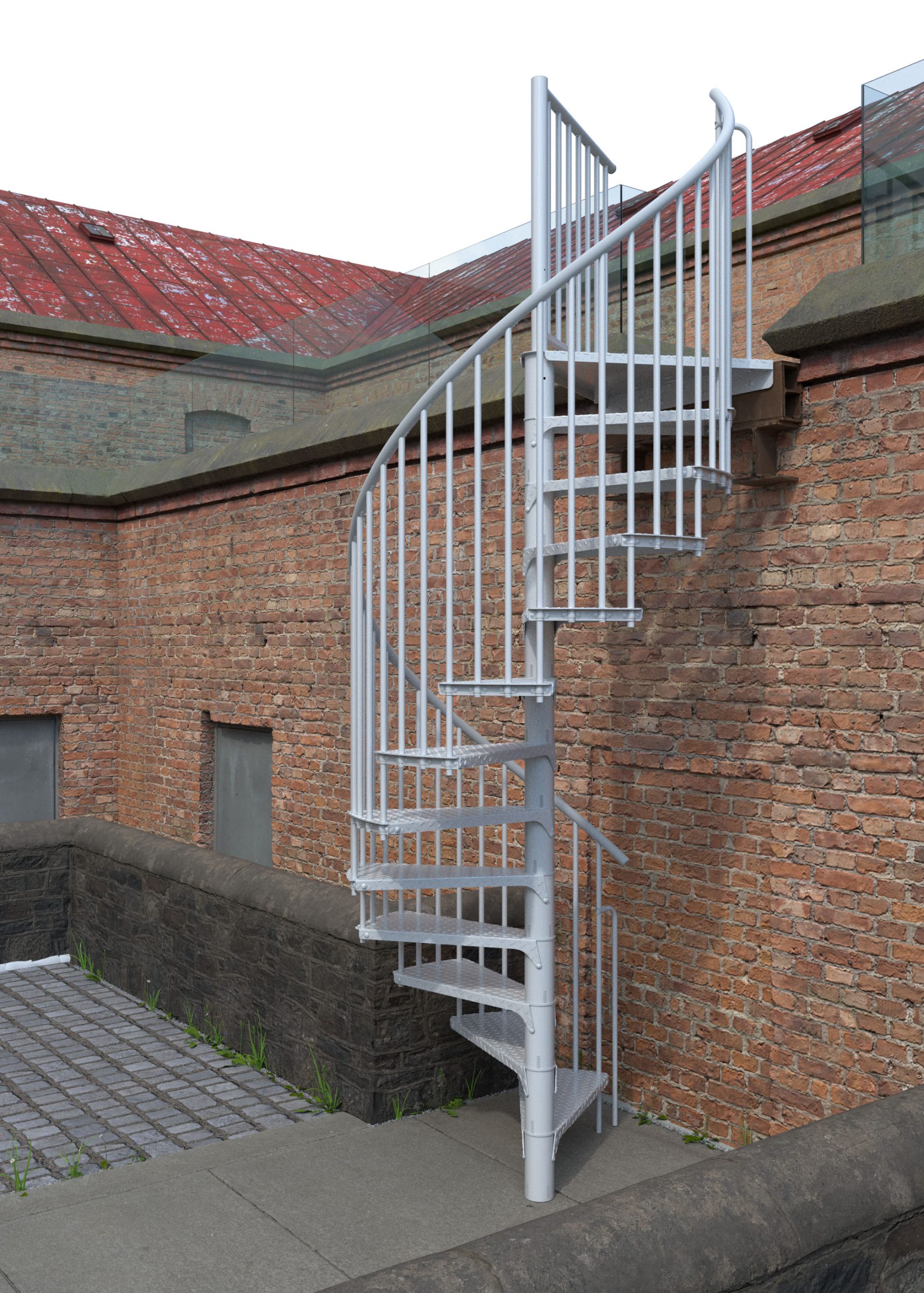

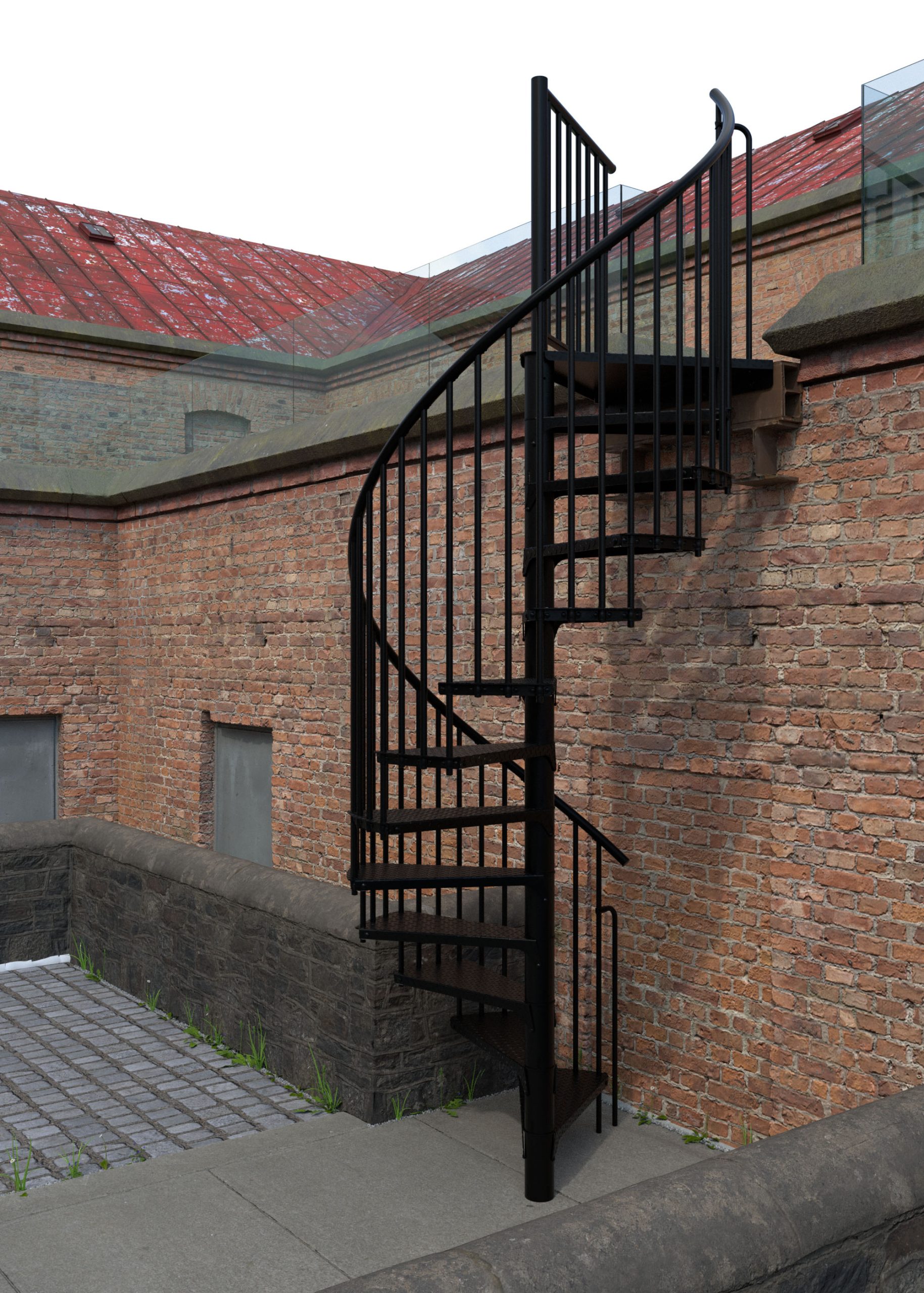

The Rondo Zink Color outdoor spiral staircase combines a robust steel construction with a coloured finish. The steel components are first galvanised and then powder-coated. This gives the staircase its colour and provides additional protection for outdoor use.

Three colours and four sizes

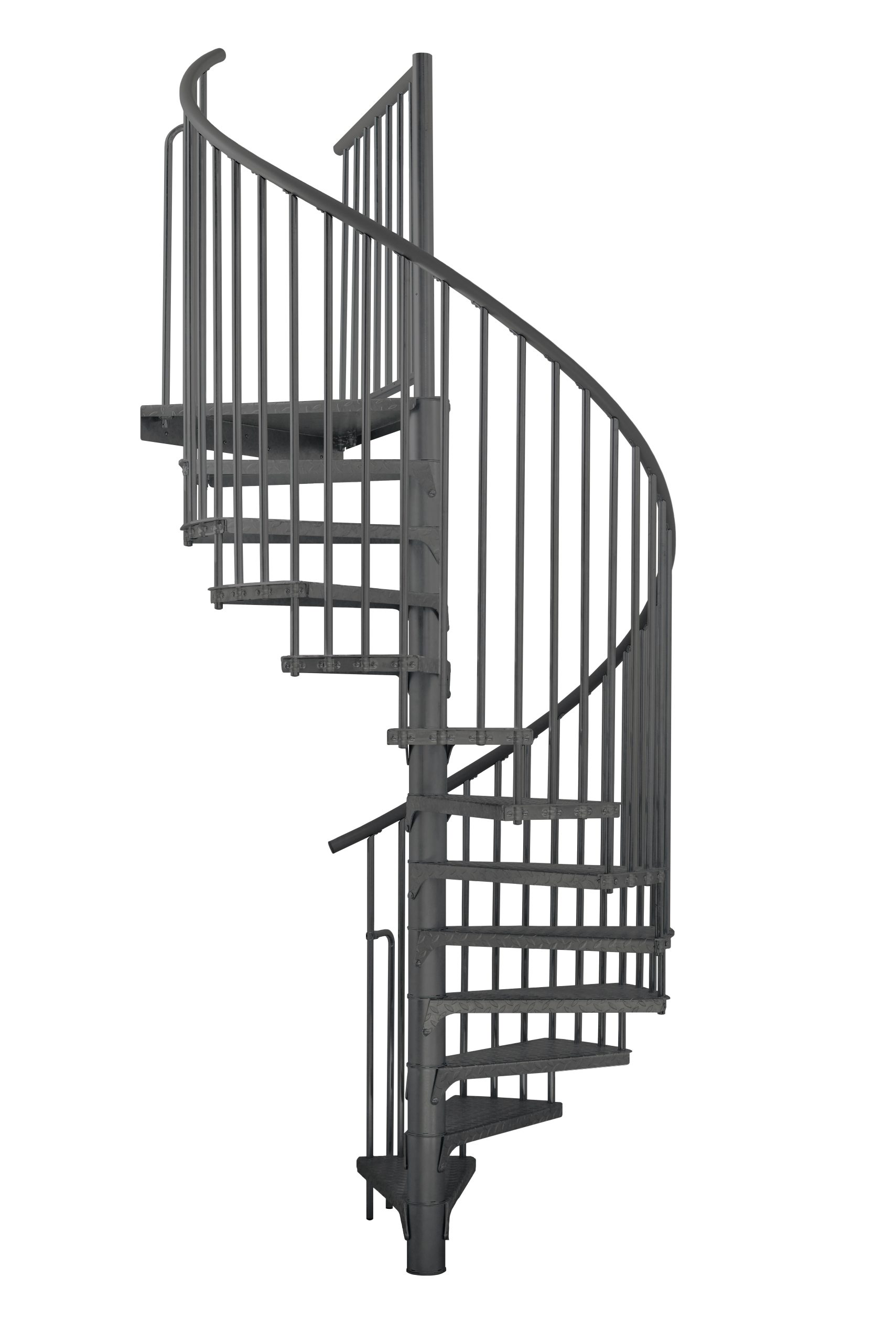

The Rondo Zink Color is available in black, anthracite or white. The PVC handrail is supplied in the matching colour.

You can choose between diameters of 120, 140, 160 and 180 cm. This allows you to select the staircase size to suit the available space.

Designed for outdoor use

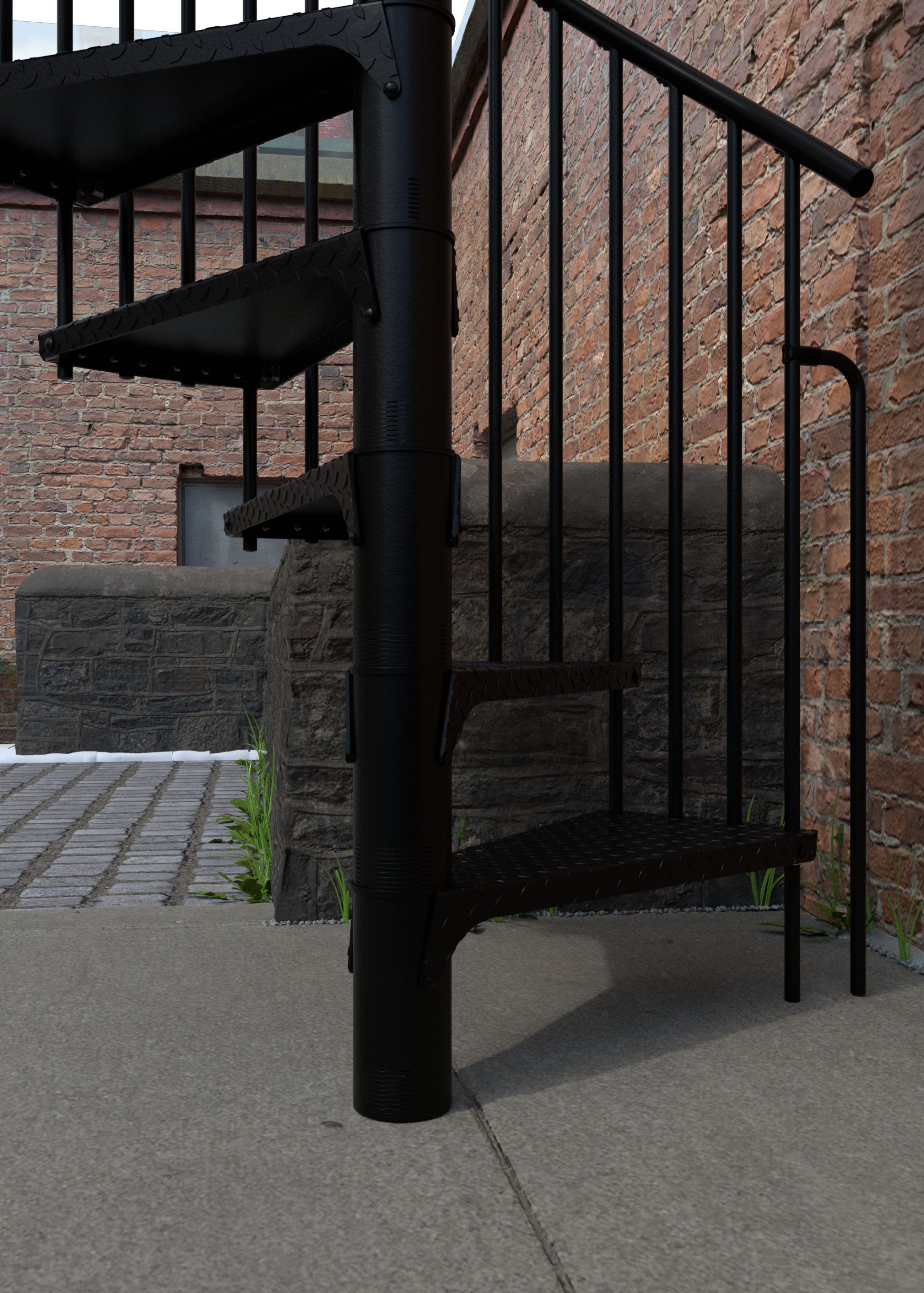

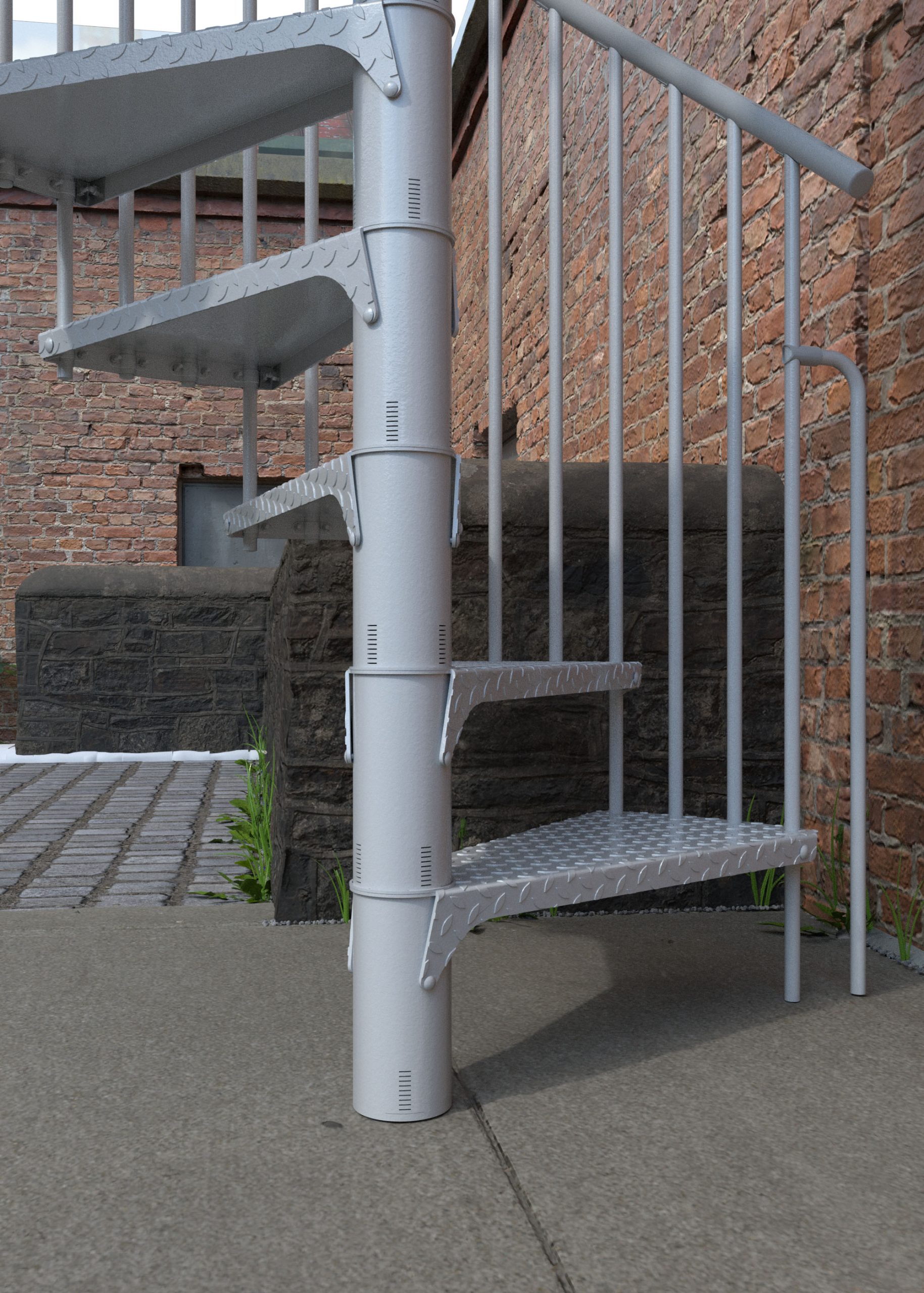

The galvanised finish protects the steel components against corrosion and weather conditions. The treads are made of 3 mm thick chequered steel. Their textured surface improves grip when climbing up and down.

Technical data

Basic data
Steps Steel galvanised and powder-coated in black, anthracite or white
Spindle tubes Steel galvanised and powder-coated in black, anthracite or white
Railing rods Steel galvanised and powder-coated in black, anthracite or white
Handrail PVC black or white
Number of steps 12 + 1 platform
120
Radius 600 mm
Max. storey height 3055 mm
Max. storey height with one height extension 3290 mm
Max. storey height with two height extensions 3525 mm
Tread depth 196 mm
Free passage width 486 mm
Tread thickness 3 mm
Rise per step 190-235 mm
Rotation per step 29,6°
Platform width 650 mm
Rotation of platform 54°
Spindle diameter 108 mm
Railing height 1000 mm
Handrail diameter 40 mm
140
Radius 700 mm
Max. storey height 3055 mm
Max. storey height with one height extension 3290 mm
Max. storey height with two height extensions 3525 mm
Tread depth 213 mm
Free passage width 586 mm
Tread thickness 3 mm
Rise per step 190-235 mm
Rotation per step 25°
Platform width 750 mm
Rotation of platform 54°
Spindle diameter 108 mm
Railing height 1000 mm
Handrail diameter 40 mm
160
Radius 800 mm
Max. storey height 3055 mm
Max. storey height with one height extension 3290 mm
Max. storey height with two height extensions 3525 mm
Tread depth 223 mm
Free passage width 686 mm
Tread thickness 3 mm
Rise per step 190-235 mm
Rotation per step 21,9°
Platform width 850 mm
Rotation of platform 54°
Spindle diameter 108 mm
Railing height 1000 mm
Handrail diameter 40 mm
180
Radius 900 mm
Max. storey height 3055 mm
Max. storey height with one height extension 3290 mm
Max. storey height with two height extensions 3525 mm
Tread depth 233 mm
Free passage width 786 mm
Tread thickness 3 mm
Rise per step 190-235 mm
Rotation per step 19,4°
Platform width 950 mm
Rotation of platform 54°
Spindle diameter 108 mm
Railing height 1000 mm
Handrail diameter 40 mm
