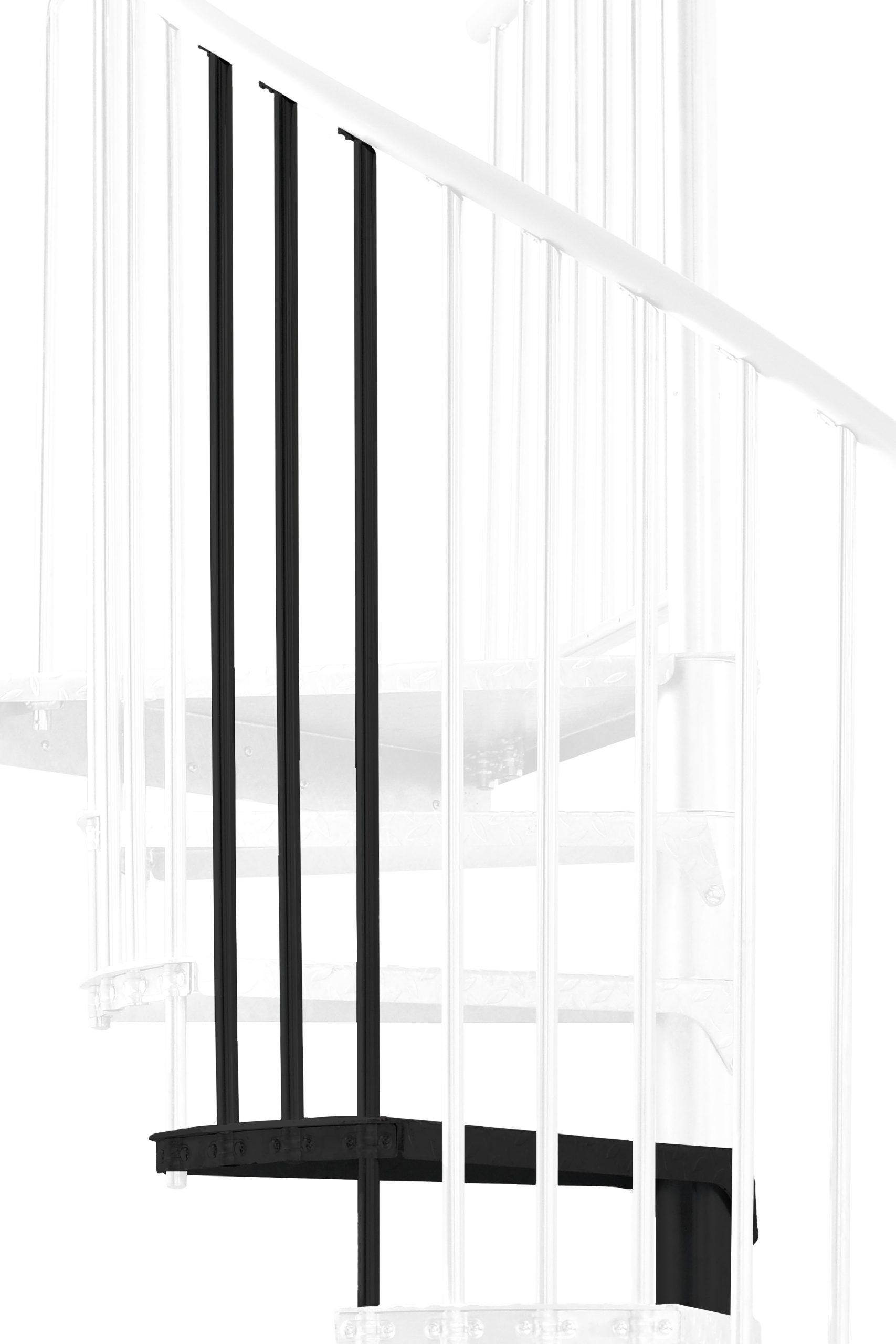

Height extension Rondo Zink Color black
Height extension Rondo Zink Color black

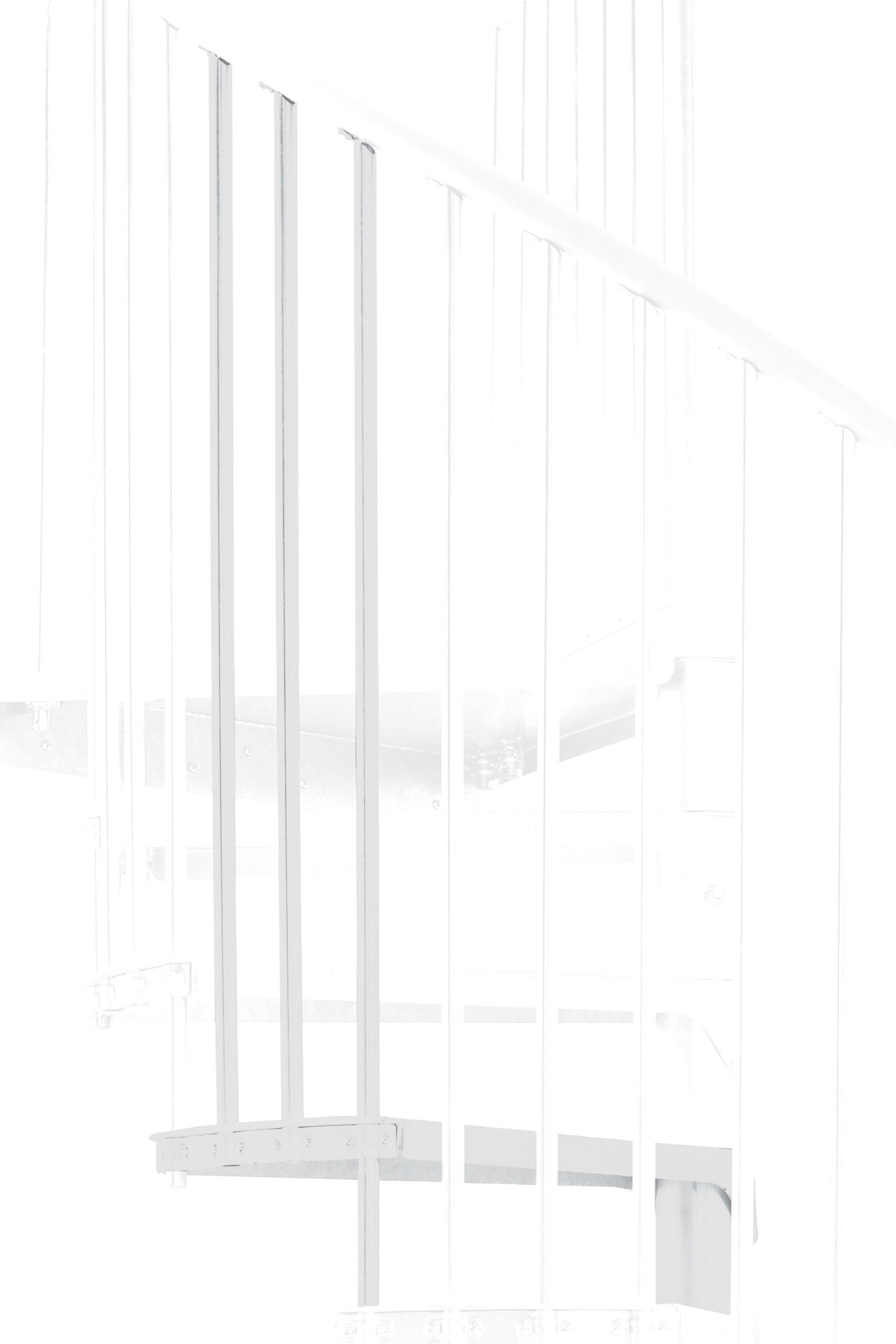

Height extension Rondo Zink Color white

Height extension for Rondo Zink Color

  • Additional step for spiral staircase Rondo Zink Color
  • Extension of Rondo Zink Color by 190-235 mm
  • Maximum attainable storey height with one height extension: 3290 mm
  • Maximum attainable storey height with two height extensions: 3525 mm
  • When purchasing, please ensure that the height extension has the same configuration as your staircase and install a maximum of two height extensions per staircase.

Export as PDF
Add to wishlist

€ 333.60 incl. Tax excl. Shipping Costs*

SKU: N/A Category: Tags: ,

  • Description

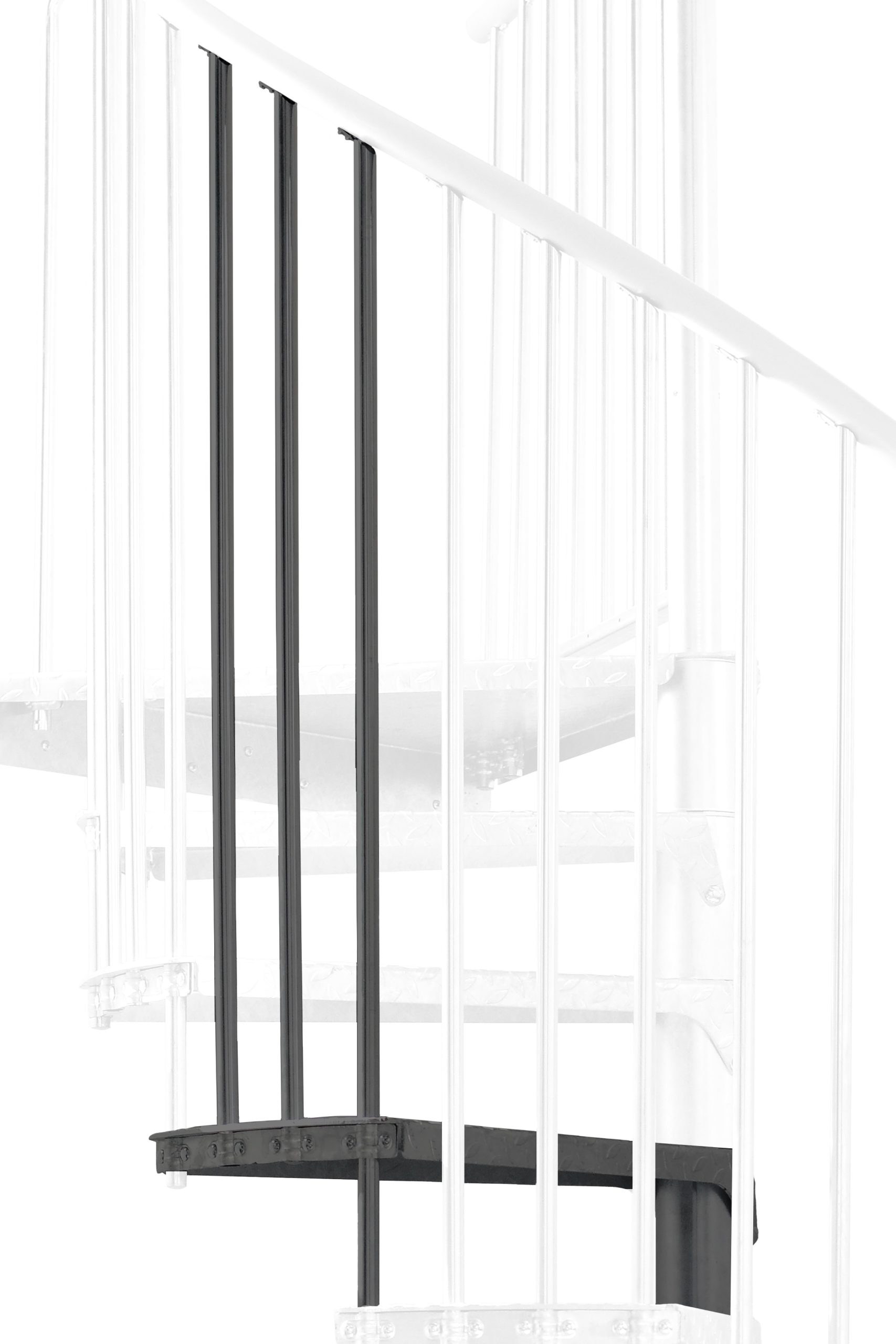

    Do you like the outdoor staircase Rondo Zink Color, but it is a little too low? Then you can increase the maximum storey height of the staircase with this height extension. The height extension consists of an additional step, a spindle element, additional balusters and various small parts. All the parts can be customised in terms of both colour and size. When personalising, please ensure that the data matches your staircase Rondo Zink Color.

    With the height extension, you can extend the exterior staircase Rondo Zink Color by 190-235 mm. Overall, the maximum storey height increases from 3055 mm to 3290 mm with one additional step. If you install two height extensions, you can even achieve storeys with a height of up to 3525 mm.

    Please install a maximum of two height extensions per staircase! If three or more additional steps are installed, stability is no longer guaranteed.

  • Technical data

    Basic data
    Steps Steel galvanised and powder-coated in black or white
    Spindle tubes Steel galvanised and powder-coated in black or white
    Railing rods Steel galvanised and powder-coated in black or white
    Handrail PVC black or white
    Number of steps 12 + 1 platform
    120
    Radius 600 mm
    Max. storey height 3055 mm
    Max. storey height with one height extension 3290 mm
    Max. storey height with two height extensions 3525 mm
    Tread depth 196 mm
    Free passage width 486 mm
    Tread thickness 4 mm
    Rise per step 190-235 mm
    Rotation per step 29,6°
    Platform width 650 mm
    Rotation of platform 54°
    Spindle diameter 108 mm
    Railing height 1000 mm
    Handrail diameter 40 mm
    140
    Radius 700 mm
    Max. storey height 3055 mm
    Max. storey height with one height extension 3290 mm
    Max. storey height with two height extensions 3525 mm
    Tread depth 213 mm
    Free passage width 586 mm
    Tread thickness 4 mm
    Rise per step 190-235 mm
    Rotation per step 25°
    Platform width 750 mm
    Rotation of platform 54°
    Spindle diameter 108 mm
    Railing height 1000 mm
    Handrail diameter 40 mm
    160
    Radius 800 mm
    Max. storey height 3055 mm
    Max. storey height with one height extension 3290 mm
    Max. storey height with two height extensions 3525 mm
    Tread depth 223 mm
    Free passage width 686 mm
    Tread thickness 4 mm
    Rise per step 190-235 mm
    Rotation per step 21,9°
    Platform width 850 mm
    Rotation of platform 54°
    Spindle diameter 108 mm
    Railing height 1000 mm
    Handrail diameter 40 mm
    180
    Radius 900 mm
    Max. storey height 3055 mm
    Max. storey height with one height extension 3290 mm
    Max. storey height with two height extensions 3525 mm
    Tread depth 233 mm
    Free passage width 786 mm
    Tread thickness 4 mm
    Rise per step 190-235 mm
    Rotation per step 19,4°
    Platform width 950 mm
    Rotation of platform 54°
    Spindle diameter 108 mm
    Railing height 1000 mm
    Handrail diameter 40 mm

  • Downloads

    Assembly instructions Rondo Zink Color

    Assembly instructions Rondo Zink Color 180

    Assembly instructions height extension

    Assembly instructions height extension 180

    Technical datasheet
