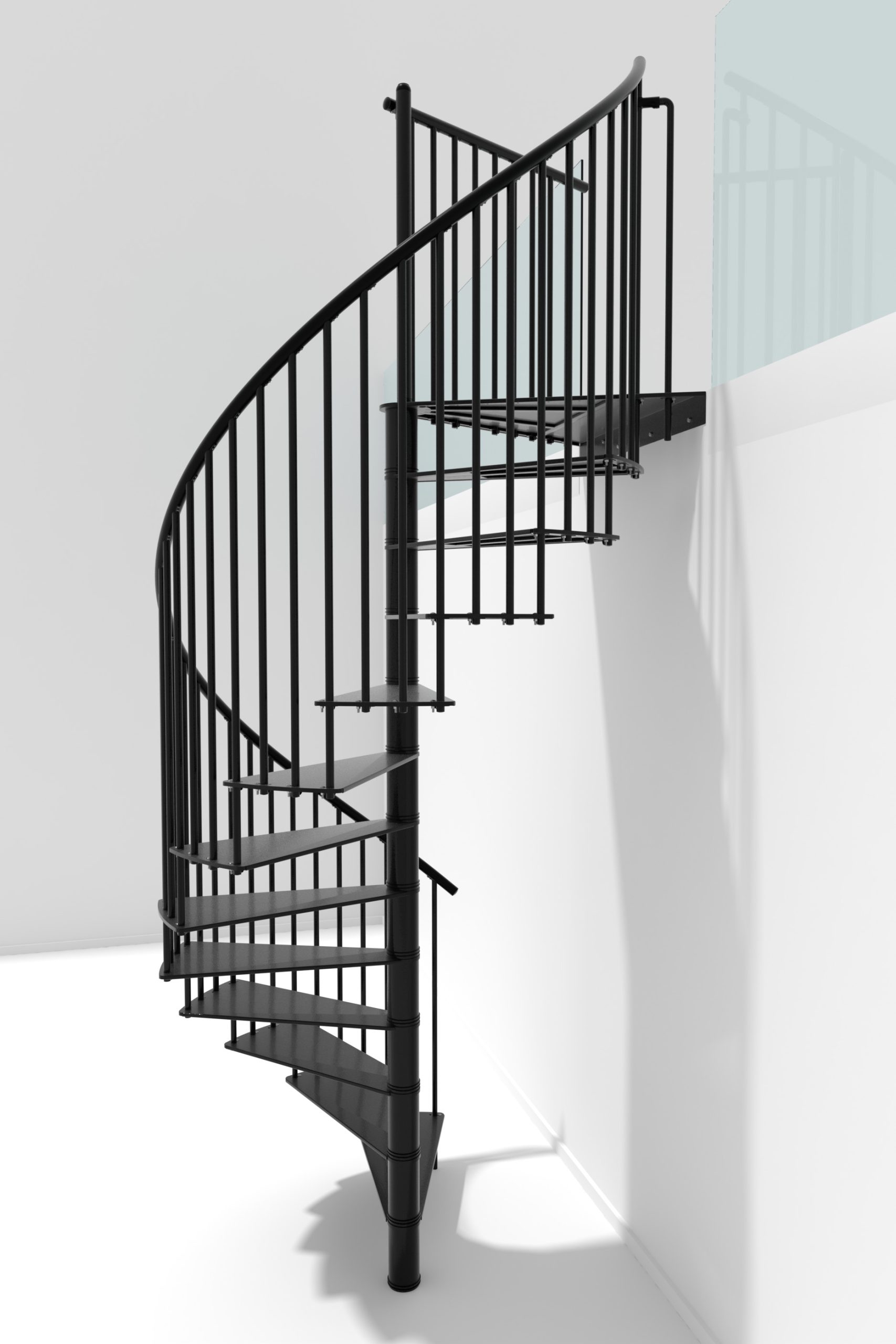

Portofino spiral staircase made of black metal with vertical railing bars and a PVC handrail, installed in a modern white interior. The staircase elegantly spirals upwards.
Portofino spiral staircase made of black metal with vertical railing bars and a PVC handrail, installed in a modern white interior. The staircase elegantly spirals upwards.
Detailed view of the Portofino spiral staircase made of black metal. The image shows the upward-winding steps, vertical metal balusters, and a black PVC handrail along a central support pole.

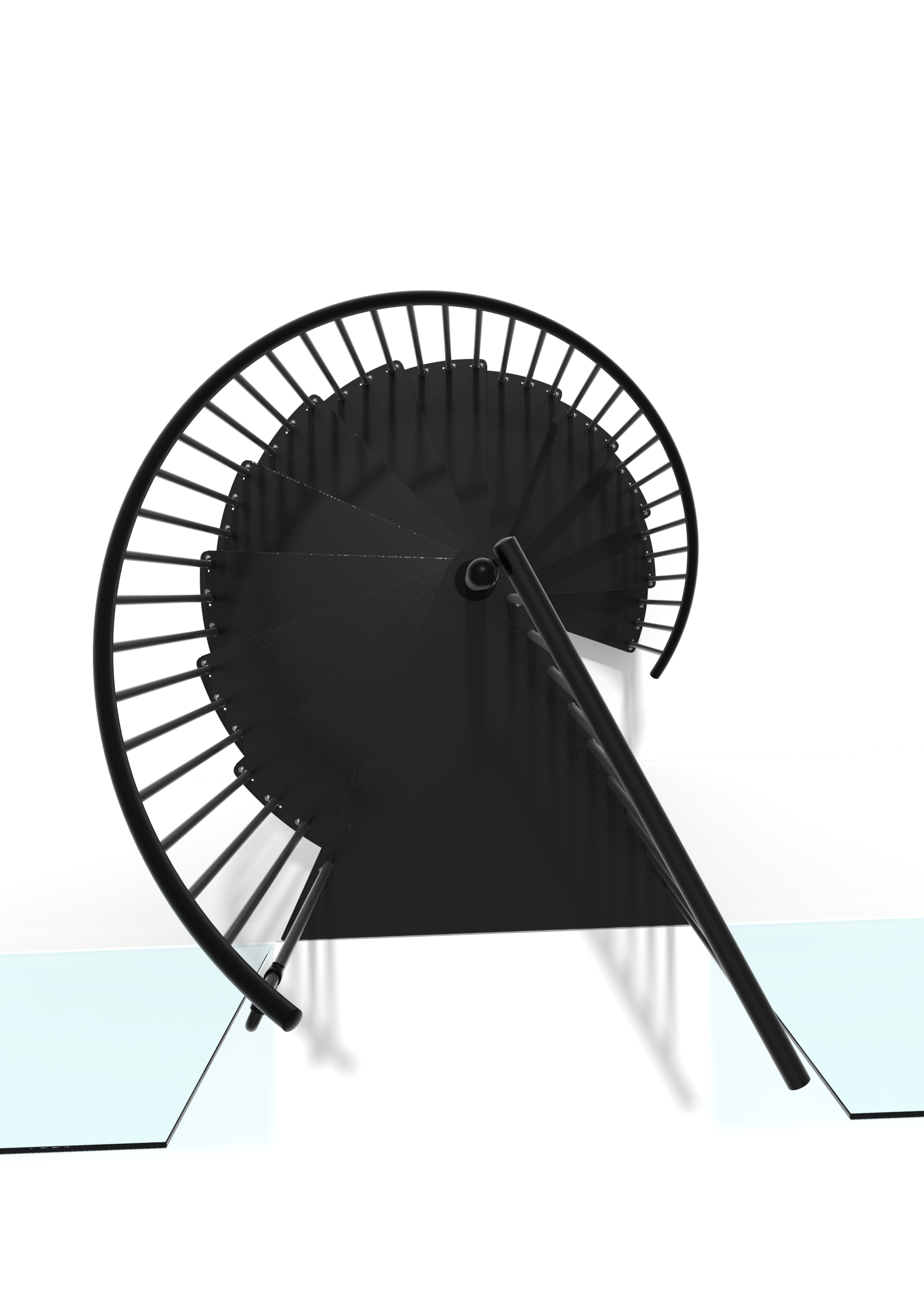

Top-down view of the Portofino spiral staircase in black. The metal steps spiral around a central pole. Evenly spaced vertical metal balusters and a curved PVC handrail trace the path of the staircase.

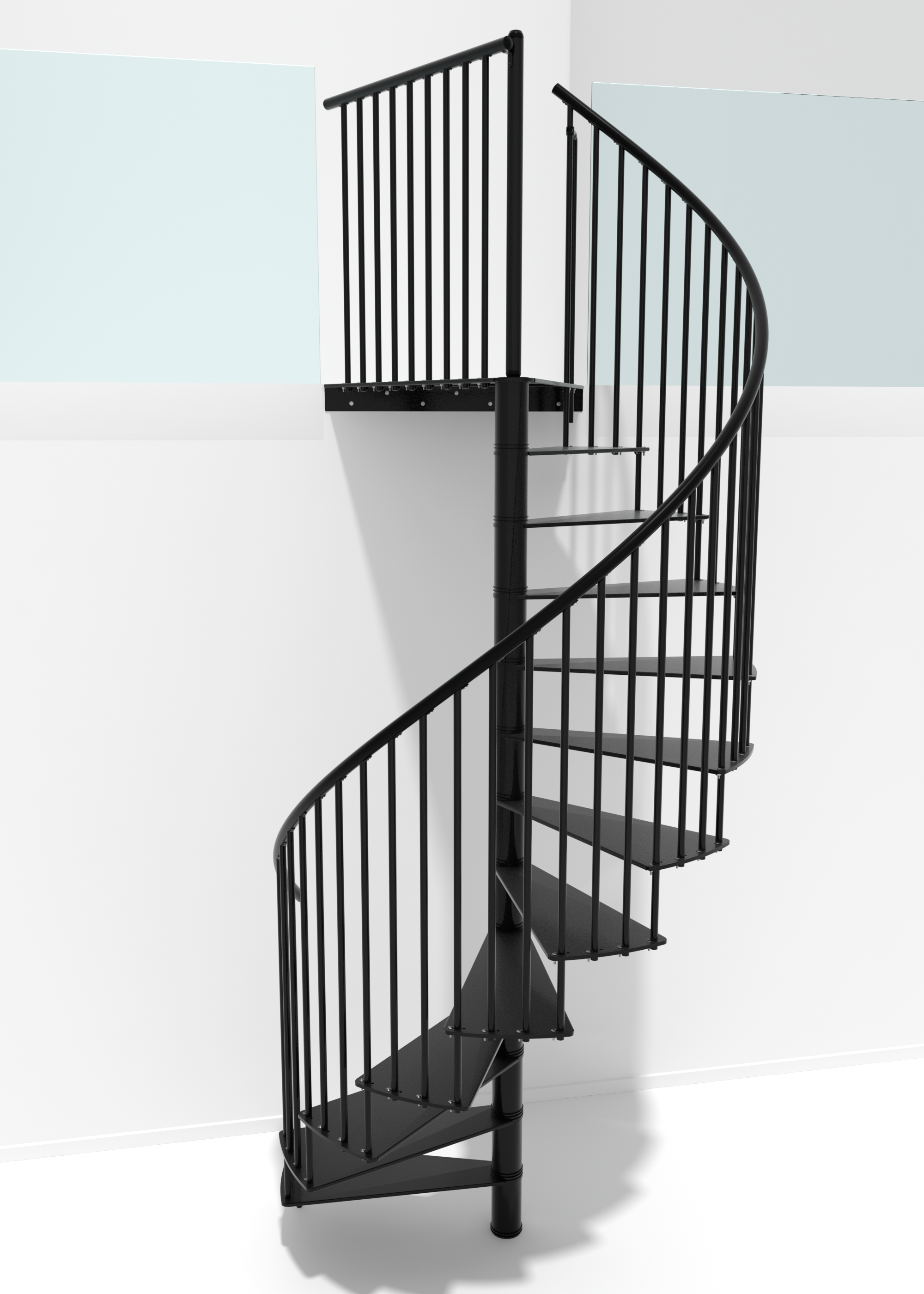

The black Portofino spiral staircase winds upwards in a compact spiral. The metal steps wrap around a central post. A continuous railing with vertical metal balusters and a PVC handrail ensures safe movement. At the top, a landing with additional railing provides extra protection.

Portofino

  • Elegant metal staircase with flat steps for indoor use
  • Sturdy frame and rod railing allow for comfortable ascent
  • No danger of slipping thanks to slightly roughened steps
  • Metal powder-coated in black, grey or white
  • Handrail made of high-quality PVC ensures a pleasant feel
  • Available in three diameters: 120, 140 or 160 cm
  • Maximum room height: 3003 mm

The validation text should appear here.The stairs are suitable for this room height.
Export as PDF
Add to wishlist

3.957,60 € – 4.262,40 € incl. tax excl. shipping costs*

SKU: N/A Categories: , Tags: ,

Description

The metal spiral staircase Portofino skilfully combines elegance and stability. Although its steps are flat, they are made of powder-coated steel and are therefore extremely resistant. As the treads are slightly roughened, there is no risk of slipping when climbing the stairs. The 1 m high banister and the handrail made of high-quality PVC also ensure that all residents can get up and down the stairs safely.

Flexible design.

This model is available in three different diameters: 120, 140 or 160 cm. This makes it suitable for both narrower rooms and more space. But the Portofino also leaves nothing to be desired in terms of colour: If you want to set a contrast in the living area, the colour black is a good choice. Grey and white, on the other hand, blend more discreetly into the room.

Sustainable use.

Thanks to the high-quality powder coating of all metal parts, the Portofino is resistant to scratches, abrasion and other influences. In addition, the sturdy steel construction ensures a high load-bearing capacity and a long service life. This means that you can enjoy your staircase for a long time.

Technical data

Basic data
Steps Steel powder-coated in grey, black or white
Spindle tubes Steel powder-coated in grey, black or white
Railing rods Steel powder-coated in grey, black or white
Handrail PVC grey, black or white
Number of steps 12 + 1 platform
Portofino 120
Radius 600 mm
Max. storey height 3003 mm

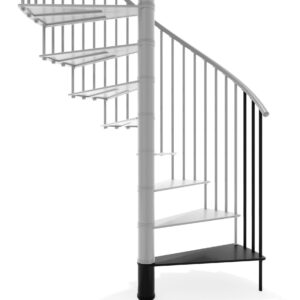

Max. storey height with one height extension 3234 mm
Max. storey height with two height extensions 3465 mm
Tread depth 210 mm
Free passage width 486 mm
Tread thickness 12 mm
Rise per step 210-231 mm
Rotation per step 29°
Platform width 650 mm
Rotation of platform 53°
Spindle diameter 108 mm
Railing height 1000 mm
Handrail diameter 40 mm
Portofino 140
Radius 700 mm
Max. storey height 3003 mm
Max. storey height with one height extension 3234 mm
Max. storey height with two height extensions 3465 mm
Tread depth 236 mm
Free passage width 586 mm
Tread thickness 12 mm
Rise per step 210-231 mm
Rotation per step 25°
Platform width 750 mm
Rotation of platform 53°
Spindle diameter 108 mm
Railing height 1000 mm
Handrail diameter 40 mm
Portofino 160
Radius 800 mm
Max. storey height 3003 mm
Max. storey height with one height extension 3234 mm
Max. storey height with two height extensions 3465 mm
Tread depth 244 mm
Free passage width 686 mm
Tread thickness 12 mm
Rise per step 210-231 mm
Rotation per step 22°
Platform width 850 mm
Rotation of platform 53°
Spindle diameter 108 mm
Railing height 1000 mm
Handrail diameter 40 mm

Downloads

Assembly instructions

Technical datasheet
