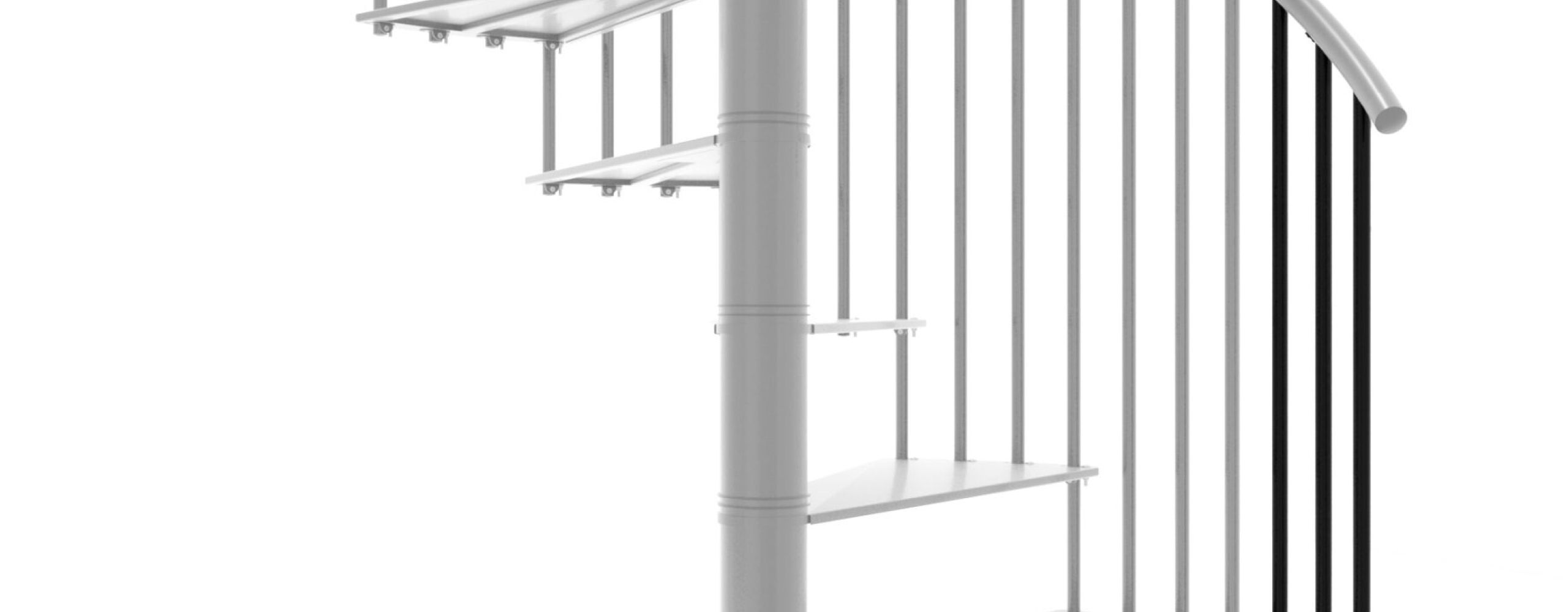

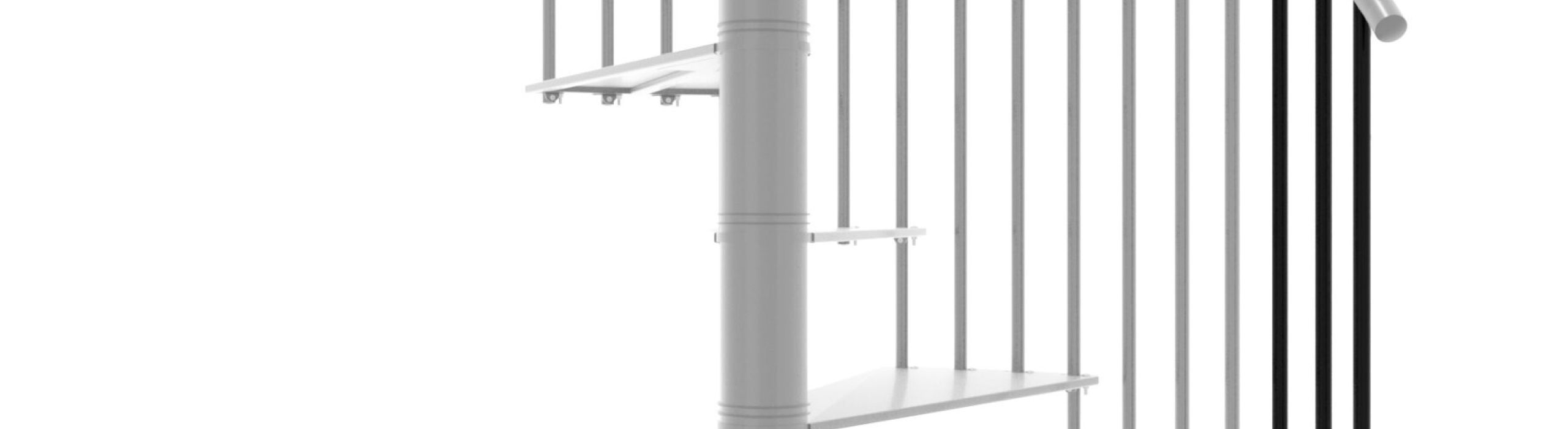

Height extension Portofino black
Height extension Portofino black
Height extension Portofino grey
Height extension Portofino white

Height extension for Portofino

  • Additional step for the metal spiral staircase Portofino
  • Extension of the Portofino by 210-231 mm
  • Maximum attainable storey height with one height extension: 3234 mm
  • Maximum attainable storey height with two height extensions: 3465 mm
  • When purchasing, please ensure that the height extension has the same configuration as your staircase and install a maximum of two height extensions per staircase.

Export as PDF
Add to wishlist

€ 333.60 incl. Tax excl. Shipping Costs*

SKU: N/A Category: Tags: ,

  • Description

    The height extension for the Portofino consists of an additional metal step, a spindle tube, some railing bars and various small parts for assembly. You must select the metal colour and the diameter of the height extension manually – please ensure that it matches your configured Portofino spiral staircase.

    With each additional step, you can increase the Portofino by 210-231 mm. This means that with one height extension you can achieve a maximum storey height of 3234 mm. With two height extensions, even storeys with a maximum height of 3465 mm are no problem.

    Please install a maximum of two height extensions per staircase! If three or more additional steps are installed, stability is no longer guaranteed.

  • Technical data

    Basic data
    Steps Steel powder-coated in grey, black or white
    Spindle tubes Steel powder-coated in grey, black or white
    Railing rods Steel powder-coated in grey, black or white
    Handrail PVC grey, black or white
    Number of steps 12 + 1 platform
    Portofino 120
    Radius 600 mm
    Max. storey height 3003 mm
    Max. storey height with one height extension 3234 mm
    Max. storey height with two height extensions 3465 mm
    Tread depth 210 mm
    Free passage width 486 mm
    Tread thickness 12 mm
    Rise per step 210-231 mm
    Rotation per step 29°
    Platform width 650 mm
    Rotation of platform 53°
    Spindle diameter 108 mm
    Railing height 1000 mm
    Handrail diameter 40 mm
    Portofino 140
    Radius 700 mm
    Max. storey height 3003 mm
    Max. storey height with one height extension 3234 mm
    Max. storey height with two height extensions 3465 mm
    Tread depth 236 mm
    Free passage width 586 mm
    Tread thickness 12 mm
    Rise per step 210-231 mm
    Rotation per step 25°
    Platform width 750 mm
    Rotation of platform 53°
    Spindle diameter 108 mm
    Railing height 1000 mm
    Handrail diameter 40 mm
    Portofino 160
    Radius 800 mm
    Max. storey height 3003 mm
    Max. storey height with one height extension 3234 mm
    Max. storey height with two height extensions 3465 mm
    Tread depth 244 mm
    Free passage width 686 mm
    Tread thickness 12 mm
    Rise per step 210-231 mm
    Rotation per step 22°
    Platform width 850 mm
    Rotation of platform 53°
    Spindle diameter 108 mm
    Railing height 1000 mm
    Handrail diameter 40 mm

  • Downloads

    Assembly instructions

    Technical datasheet
