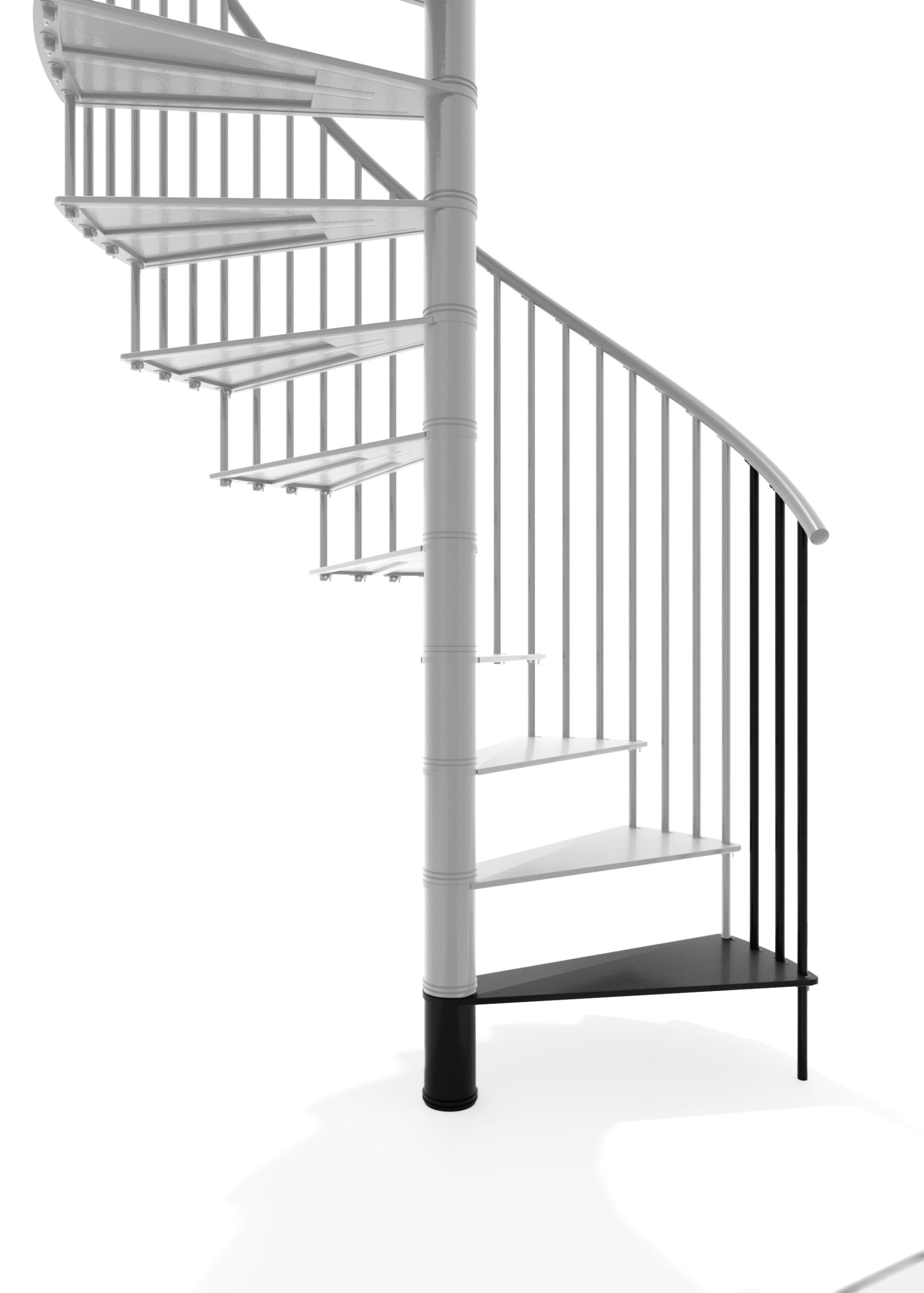

Height extension for the Portofino staircase made of black metal. Shown is a detail of the additional step, the railing bars, and the handrail.
Height extension for the Portofino staircase made of black metal. Shown is a detail of the additional step, the railing bars, and the handrail.

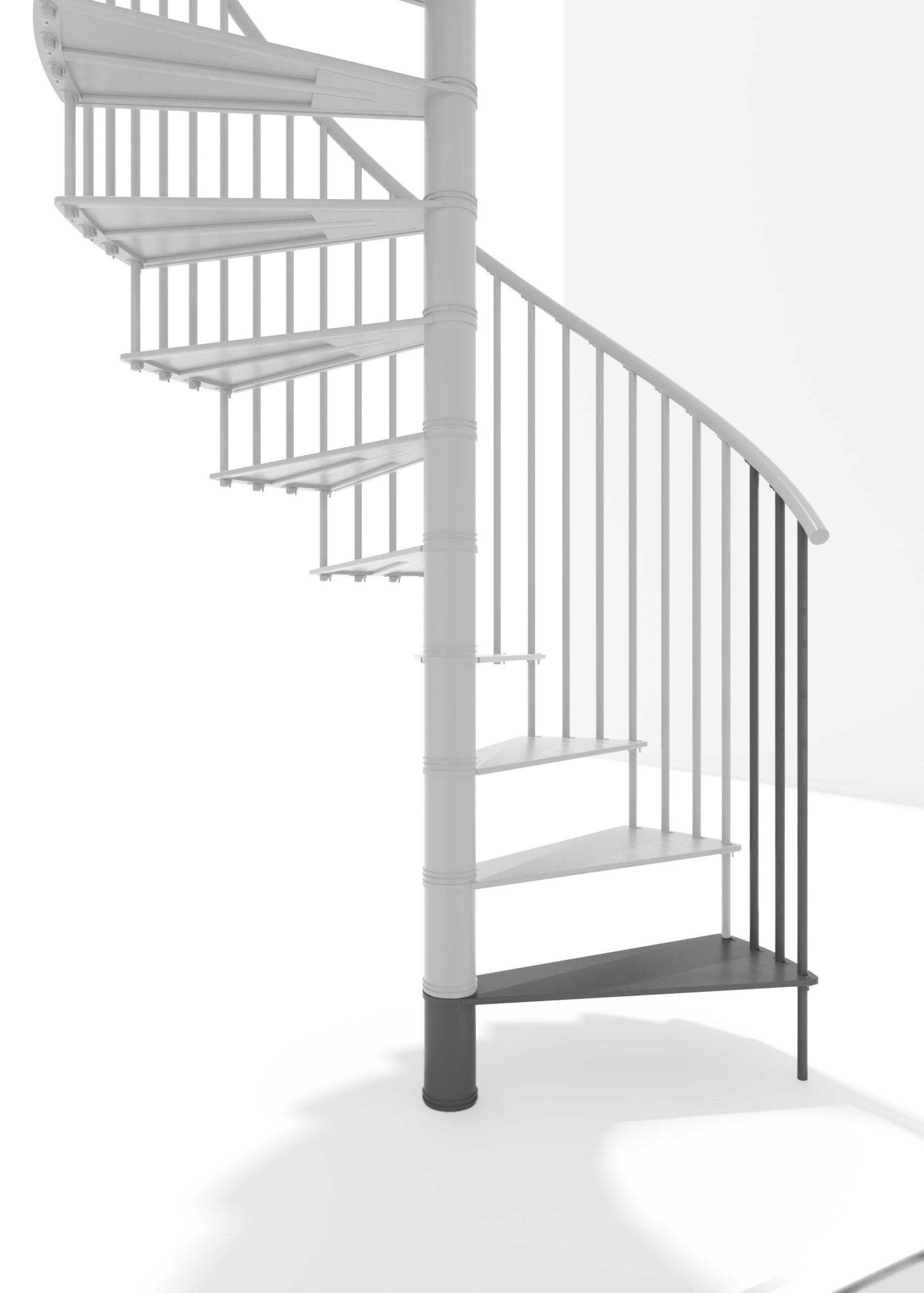

Height extension for the Portofino staircase made of grey metal. Shown is a detail of the additional step, the railing bars, and the handrail.

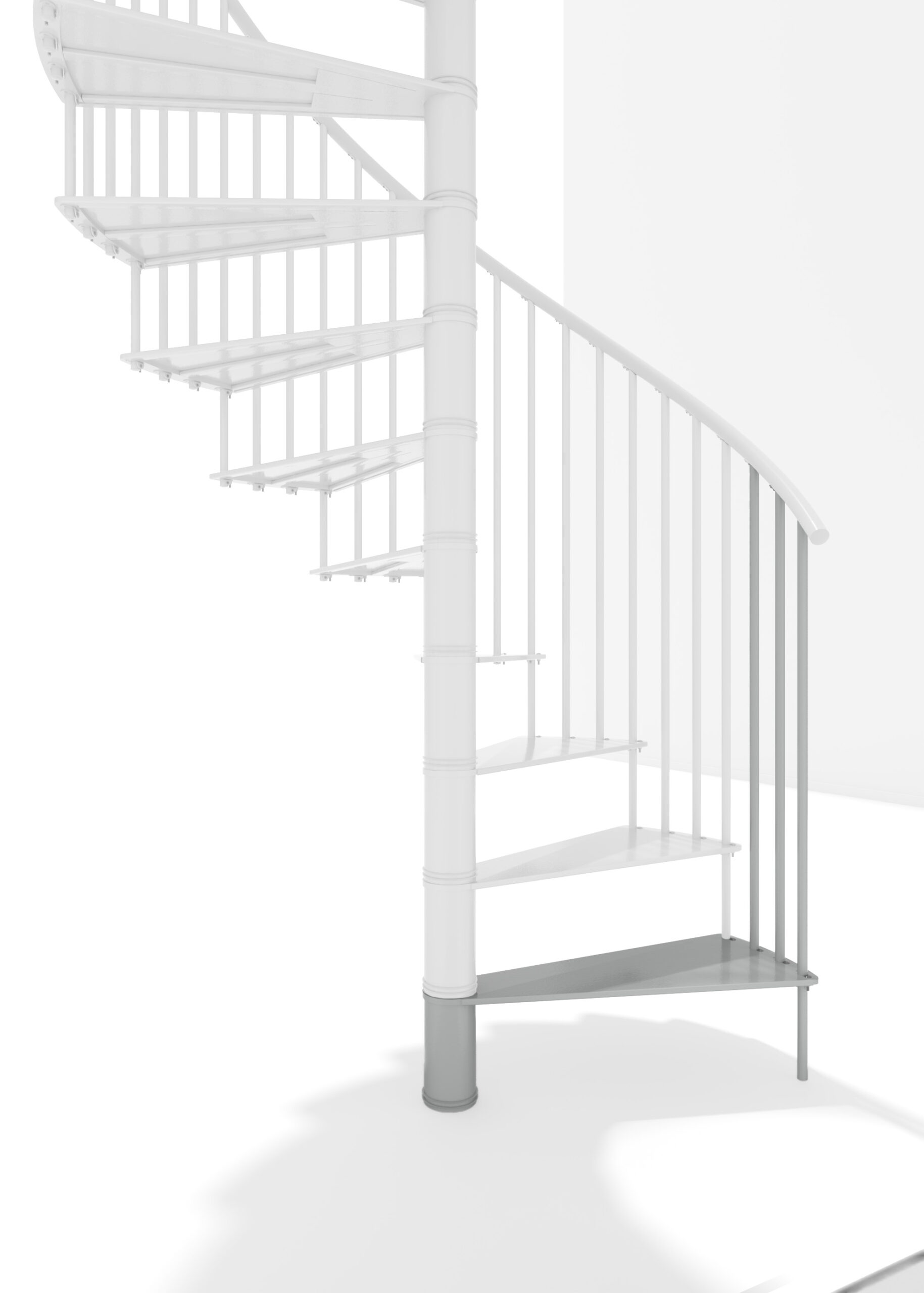

Height extension for the Portofino staircase made of white metal. Shown is a detail of the additional step, the railing bars, and the handrail.

Height extension for Portofino

  • Additional step for the metal spiral staircase Portofino
  • Extension of the Portofino by 210-231 mm
  • Maximum attainable storey height with one height extension: 3234 mm
  • Maximum attainable storey height with two height extensions: 3465 mm
  • When purchasing, please ensure that the height extension has the same configuration as your staircase and install a maximum of two height extensions per staircase.
Export as PDF
Add to wishlist

333,60 € incl. tax excl. shipping costs*

SKU: N/A Category: Tags: ,

Description

The height extension for the Portofino consists of an additional metal step, a spindle tube, some railing bars and various small parts for assembly. You must select the metal colour and the diameter of the height extension manually – please ensure that it matches your configured Portofino spiral staircase.

With each additional step, you can increase the Portofino by 210-231 mm. This means that with one height extension you can achieve a maximum storey height of 3234 mm. With two height extensions, even storeys with a maximum height of 3465 mm are no problem.

Please install a maximum of two height extensions per staircase! If three or more additional steps are installed, stability is no longer guaranteed.

Technical data

Basic data
Steps Steel powder-coated in grey, black or white
Spindle tubes Steel powder-coated in grey, black or white
Railing rods Steel powder-coated in grey, black or white
Handrail PVC grey, black or white
Number of steps 12 + 1 platform
Portofino 120
Radius 600 mm
Max. storey height 3003 mm
Max. storey height with one height extension 3234 mm
Max. storey height with two height extensions 3465 mm
Tread depth 210 mm
Free passage width 486 mm
Tread thickness 12 mm
Rise per step 210-231 mm
Rotation per step 29°
Platform width 650 mm
Rotation of platform 53°
Spindle diameter 108 mm
Railing height 1000 mm
Handrail diameter 40 mm
Portofino 140
Radius 700 mm
Max. storey height 3003 mm
Max. storey height with one height extension 3234 mm
Max. storey height with two height extensions 3465 mm
Tread depth 236 mm
Free passage width 586 mm
Tread thickness 12 mm
Rise per step 210-231 mm
Rotation per step 25°
Platform width 750 mm
Rotation of platform 53°
Spindle diameter 108 mm
Railing height 1000 mm
Handrail diameter 40 mm
Portofino 160
Radius 800 mm
Max. storey height 3003 mm
Max. storey height with one height extension 3234 mm
Max. storey height with two height extensions 3465 mm
Tread depth 244 mm
Free passage width 686 mm
Tread thickness 12 mm
Rise per step 210-231 mm
Rotation per step 22°
Platform width 850 mm
Rotation of platform 53°
Spindle diameter 108 mm
Railing height 1000 mm
Handrail diameter 40 mm

Downloads

Assembly instructions

Technical datasheet

Matching products
