Spiral staircase Spiral Effect

Spiral Effect

  • Timeless and robust spiral staircase
  • Four color options for the wooden steps: Beech, walnut, oak and white
  • Metal elements powder coated in black, gray or white
  • Sturdy rod railing with aluminum handrail
  • Available with diameters of 120, 140 and 160 cm
  • Maximum storey height: 3094 mm

The validation text should appear here.The stairs are suitable for this room height.

2.176,00 2.796,00  incl. Tax excl. Shipping Costs*

Description

The Spiral Effect skillfully combines wood and metal to create a spiral staircase that catches everyone’s eye. Thanks to the many personalization options, you can optimally adapt the Spiral Effect to your interior design. However, it scores not only with a wide range of colors, but also with a particularly stable railing with a handrail made of aluminum.

Flexible design.

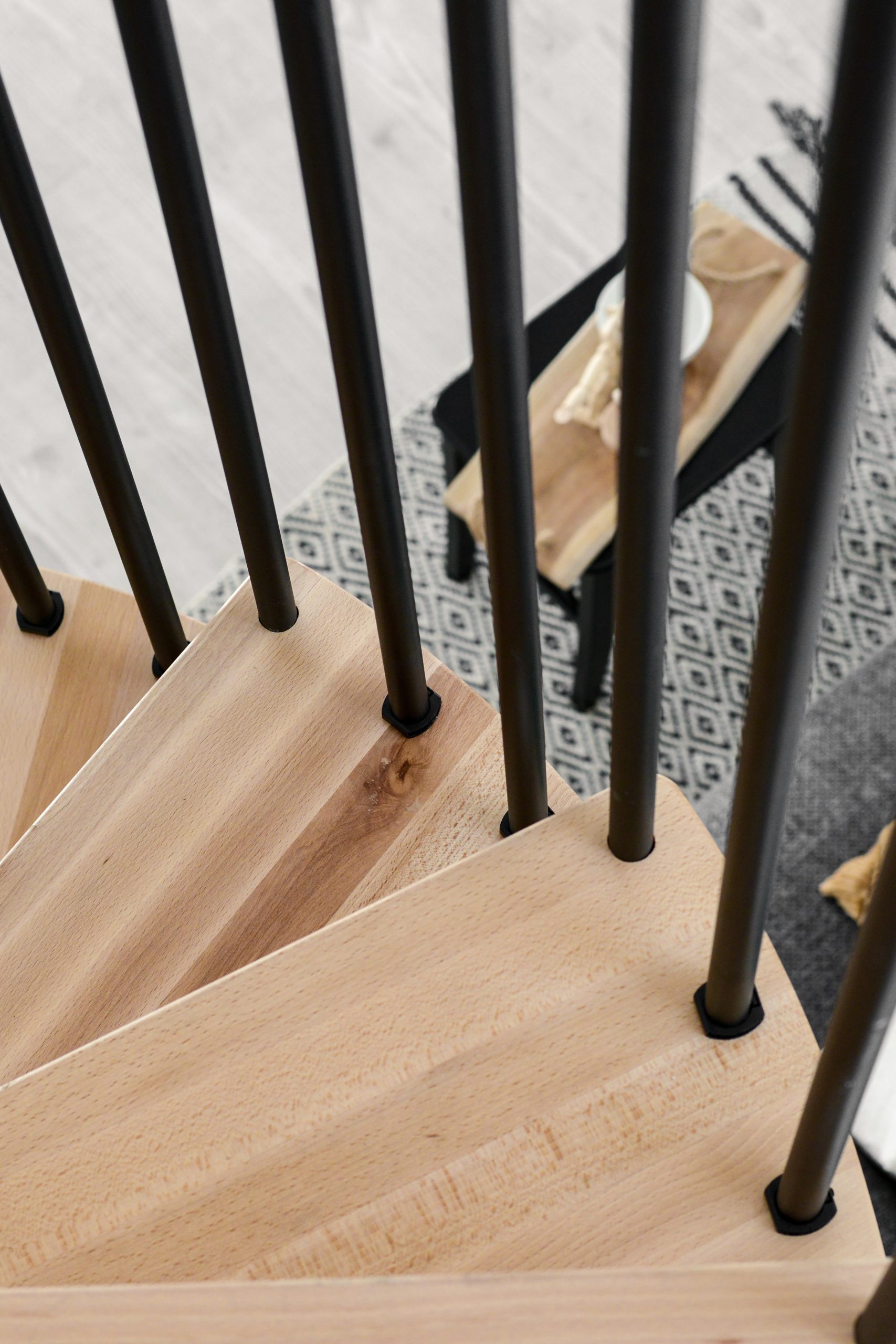

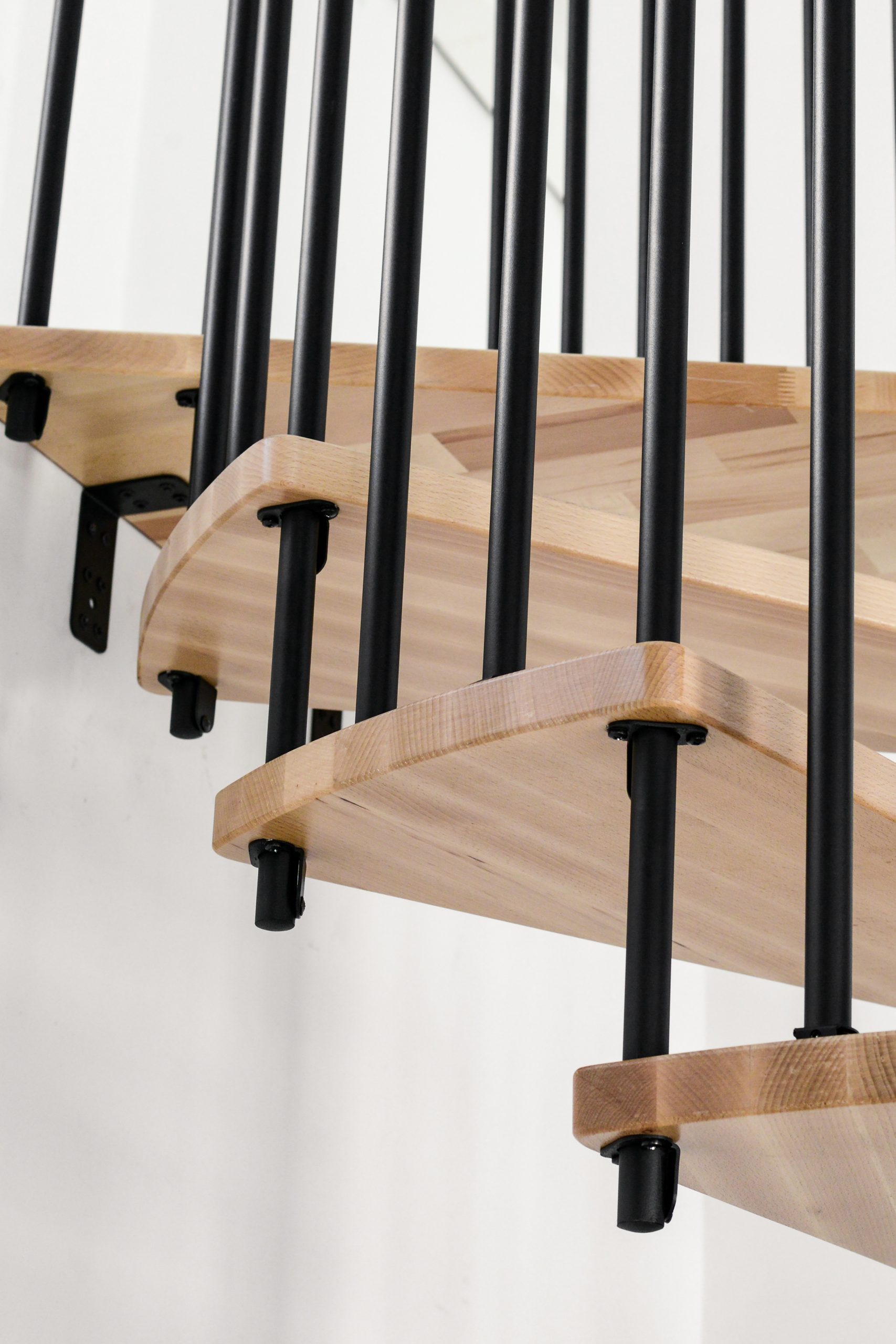

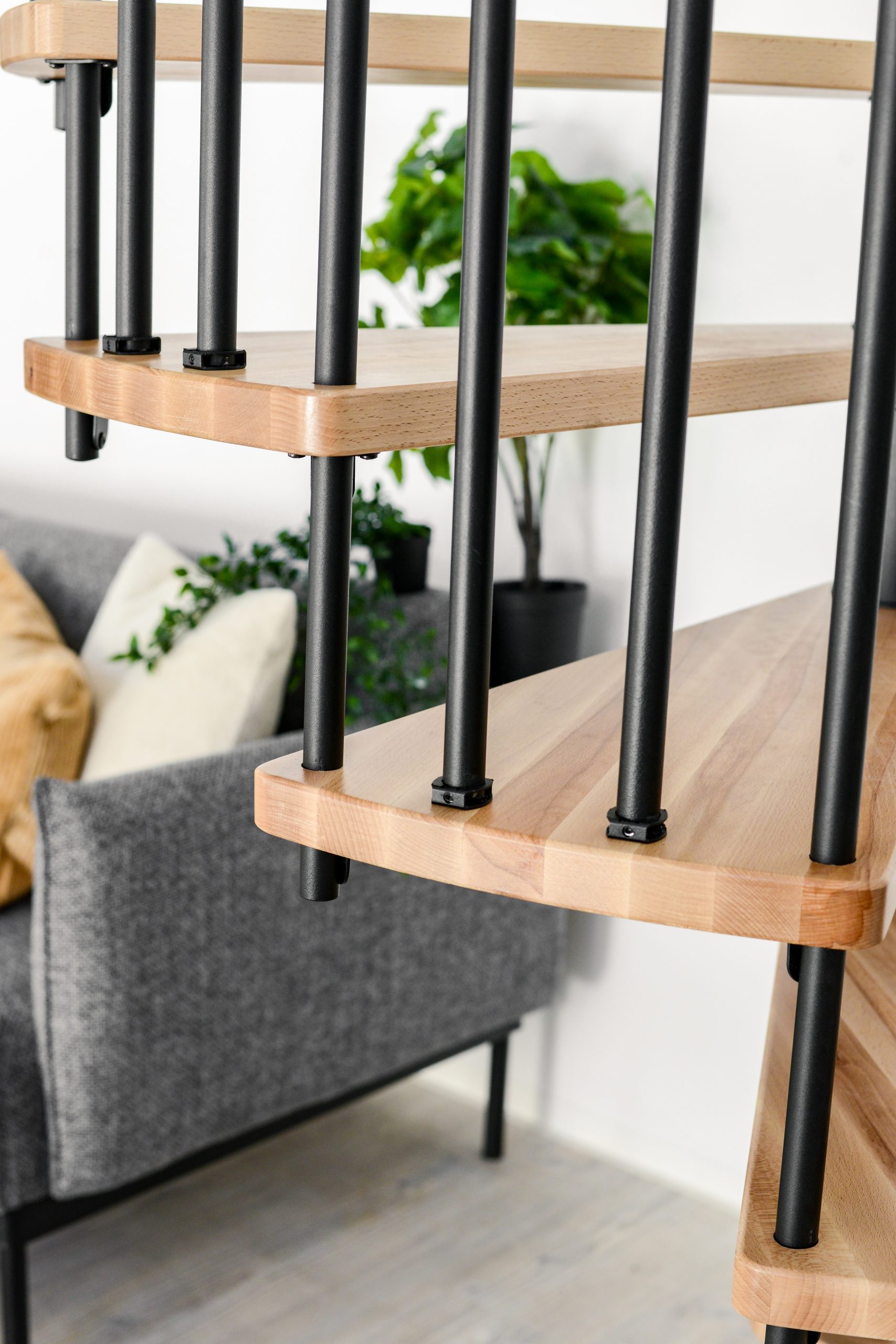

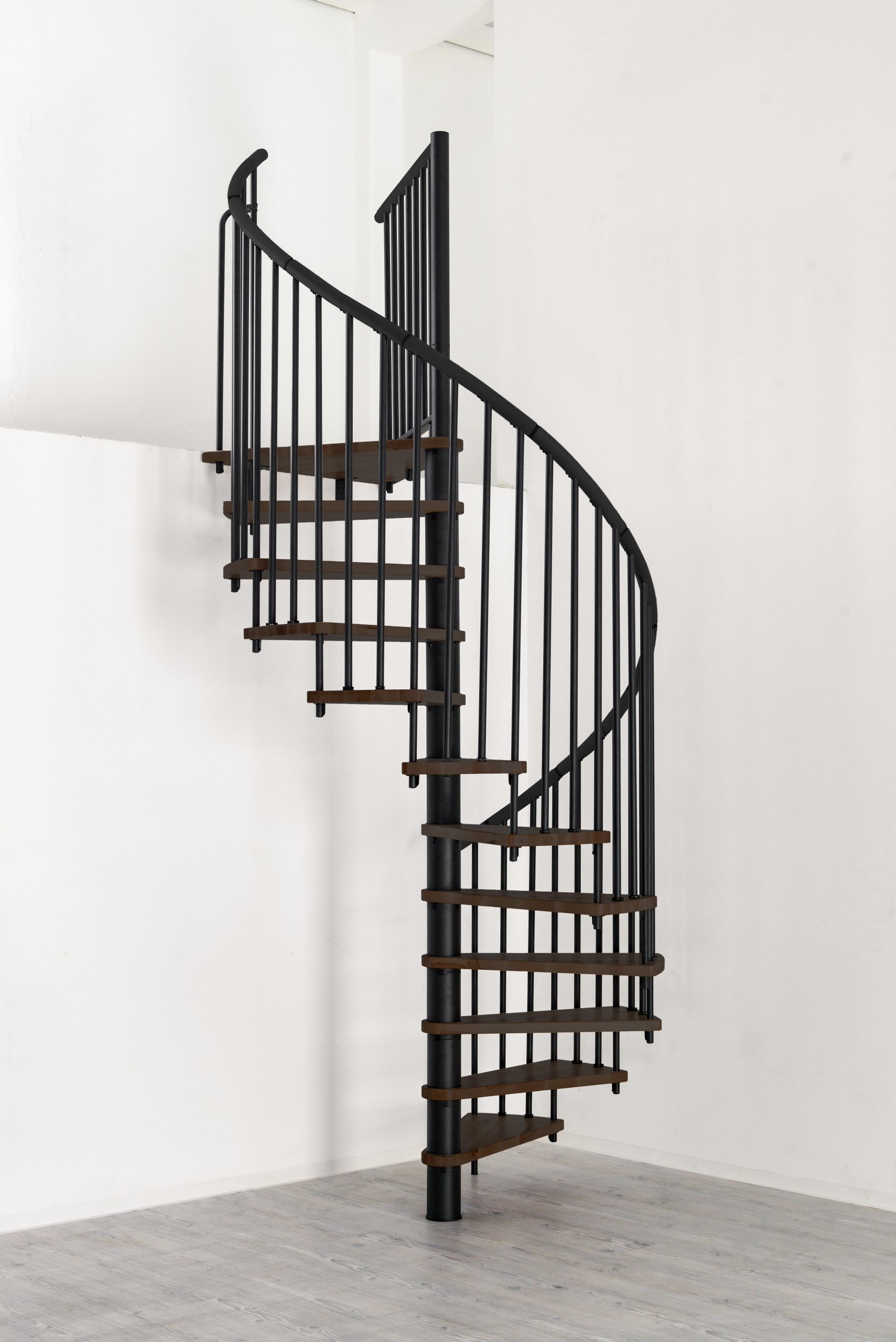

For the wooden steps of the Spiral Effect, you can choose between beech, beech stained on walnut, oak and beech painted white. The steel elements as well as the aluminum handrail can be powder coated in black, gray or white. But not only the colors can be customized to your wishes, you also have certain flexibility in terms of size. The spiral staircase Spiral Effect is available in three diameters: 120, 140 and 160 cm.

Sustainable use.

The steps of the Spiral Effect are covered with a high-quality lacquer. This provides a slight shine and, most importantly, protection against wear and scratches. The metal parts are surface-finished by Minka in its in-house powder coating department. Thanks to the high quality materials, the Spiral Effect is an extremely durable spiral staircase.

Technical data

Basic data
Steps Beech, oak, beech stained to walnut or beech white lacquered
Spindle tubes Steel powder-coated in grey, black or white
Railing rods Steel powder-coated in grey, black or white
Handrail Aluminium powder-coated in grey, black or white
Number of steps 12 + 1 platform
Spiral Effect 120
Radius 600 mm
Max. storey height 3094 mm
Max. storey height with one height extension 3332 mm
Max. storey height with two height extensions 3570 mm
Rise per step 220-238 mm
Tread depth 210 mm
Free passage width 486 mm
Tread thickness 35 mm
Rotation per step 26°
Platform width 650 mm
Rotation of platform 60°
Spindle diameter 127 mm
Railing height 900 mm
Handrail diameter 50 mm
Spiral Effect 140
Radius 700 mm
Max. storey height 3094 mm
Max. storey height with one height extension 3332 mm
Max. storey height with two height extensions 3570 mm
Rise per step 220-238 mm
Tread depth 236 mm
Free passage width 586 mm
Tread thickness 35 mm
Rotation per step 26°
Platform width 750 mm
Rotation of platform 60°
Spindle diameter 127 mm
Railing height 900 mm
Handrail diameter 50 mm
Spiral Effect 160
Radius 800 mm
Max. storey height 3094 mm
Max. storey height with one height extension 3332 mm
Max. storey height with two height extensions 3570 mm
Rise per step 220-238 mm
Tread depth 244 mm
Free passage width 686 mm
Tread thickness 35 mm
Rotation per step 23°
Platform width 850 mm
Rotation of platform 60°
Spindle diameter 127 mm
Railing height 900 mm
Handrail diameter 50 mm
