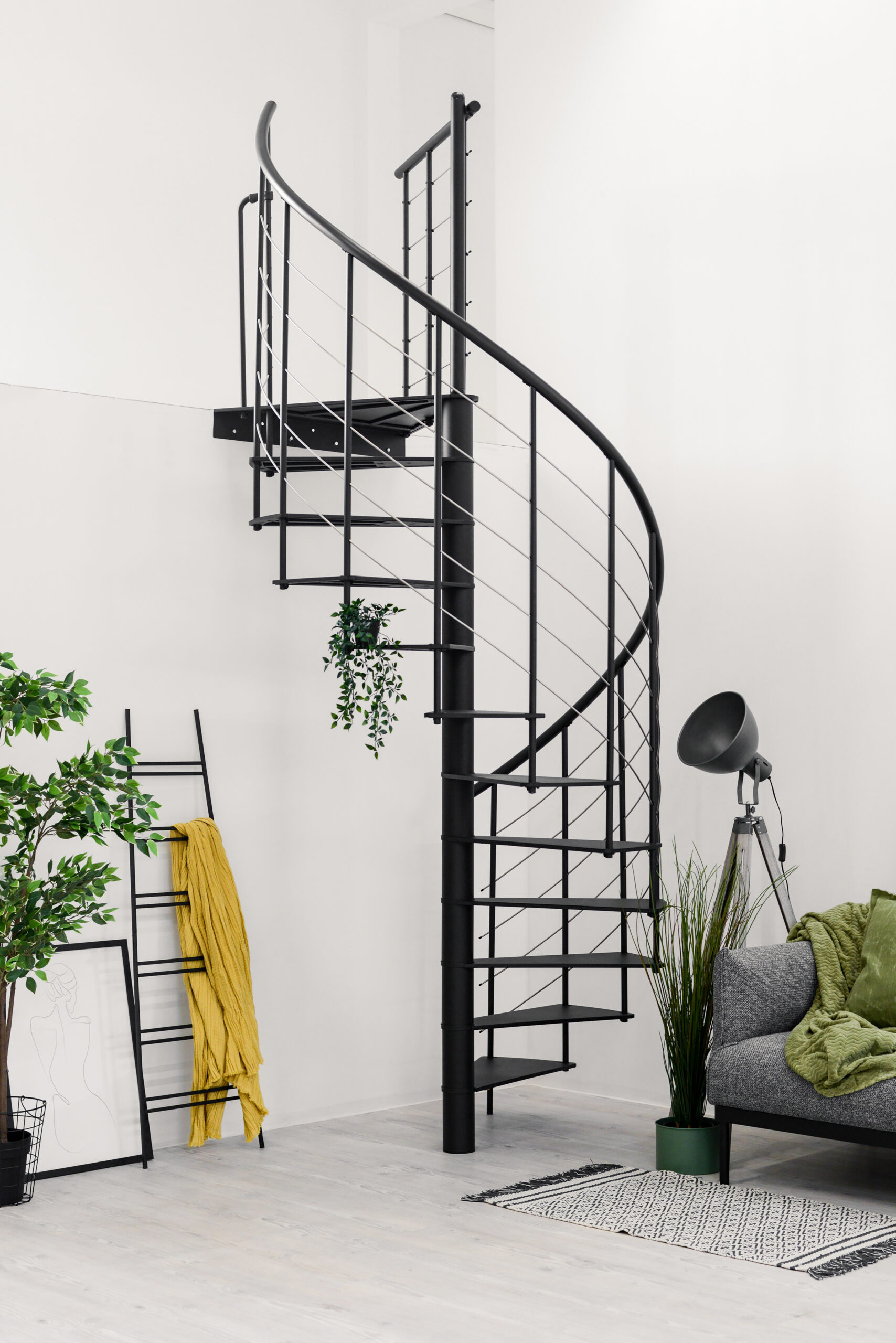

Modern “Milano” spiral staircase made of black metal. The staircase features open metal steps, a railing with vertical rods, horizontal base bars (underguards), and a black PVC handrail.

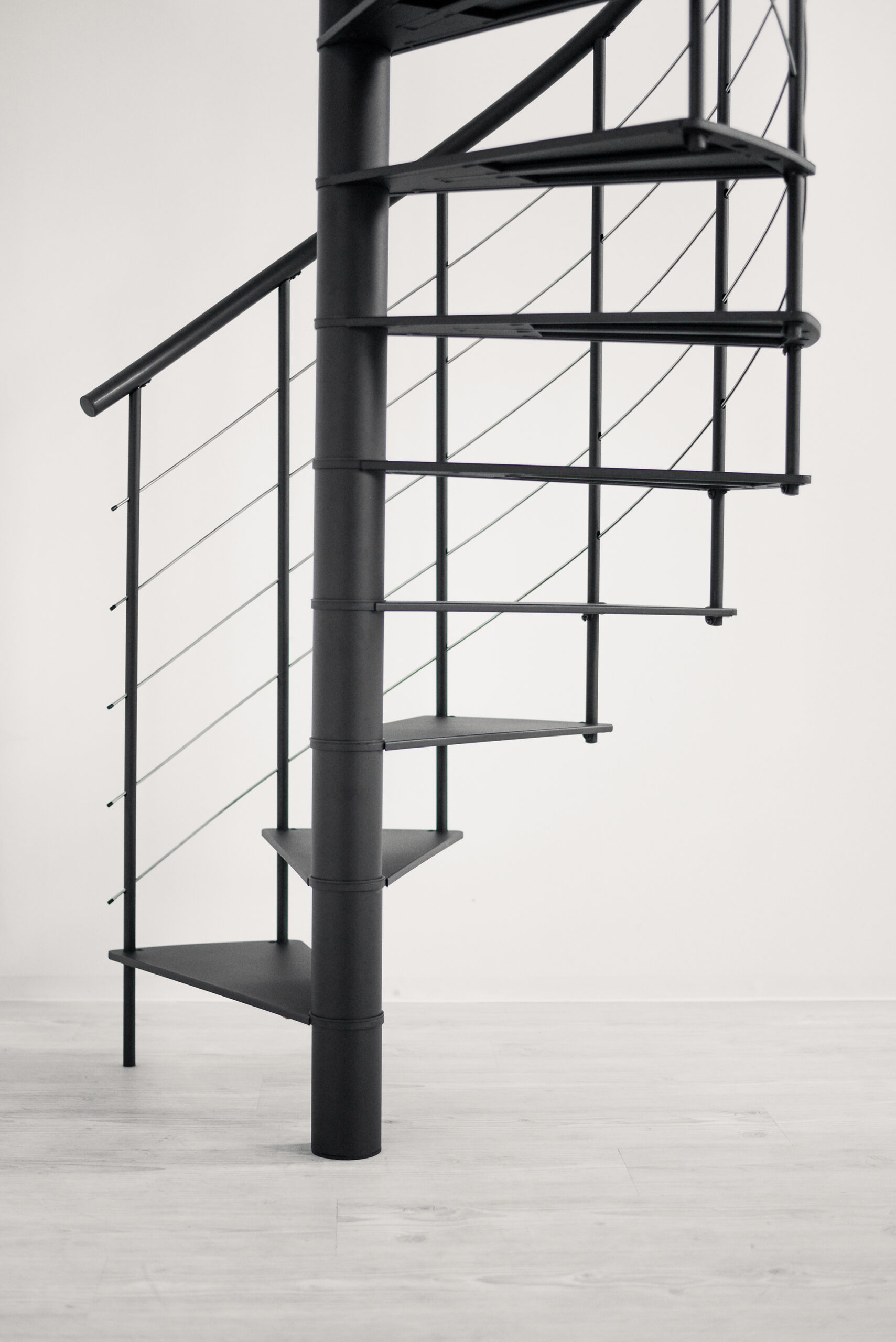

Side view of the modern “Milano” spiral staircase made of black metal, featuring open steps, a central round support post, and a railing with vertical metal rods and horizontal tension cables.

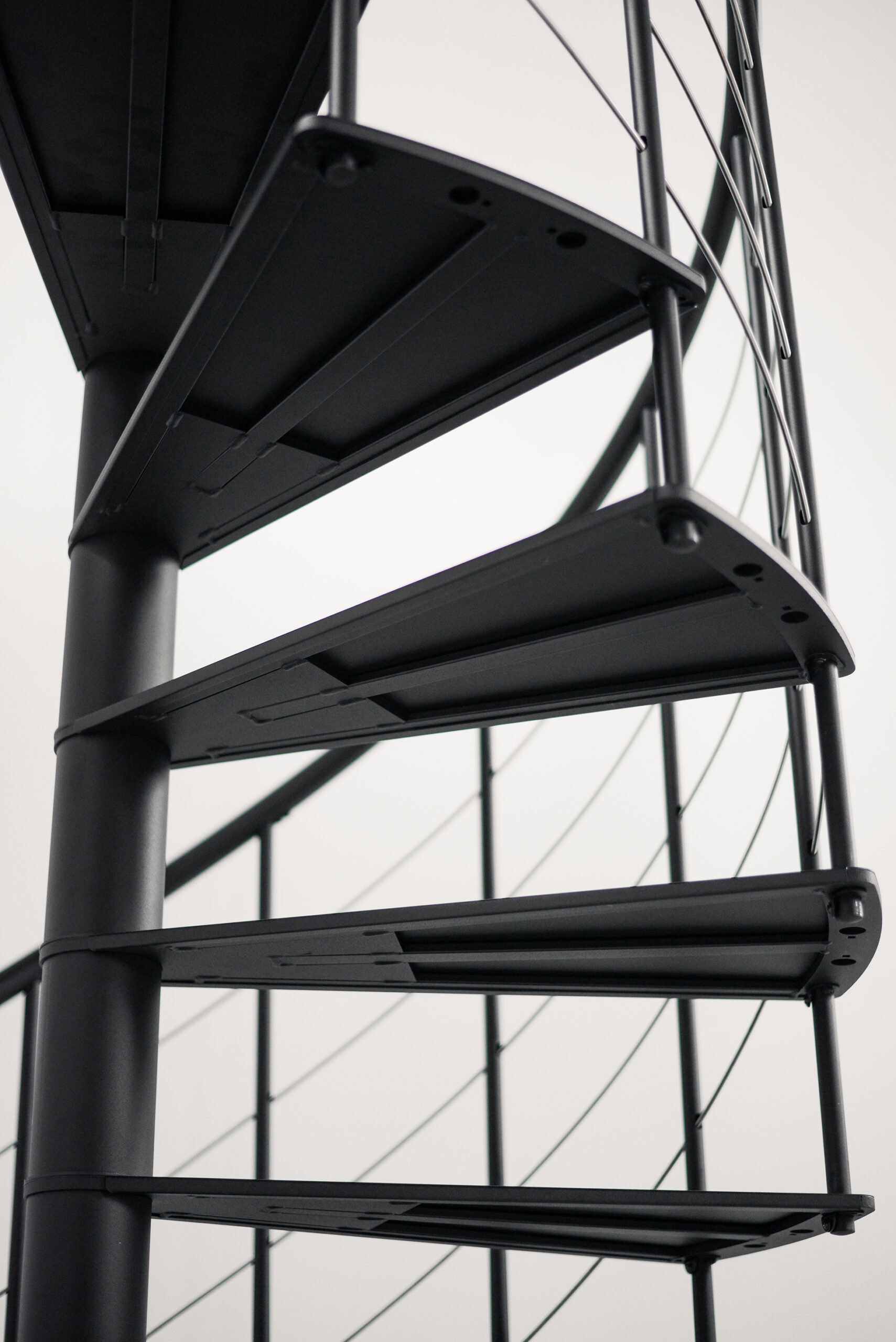

Close-up of the “Milano” metal spiral staircase featuring black, triangular steps and a surrounding railing with vertical bars and horizontal tension cables.

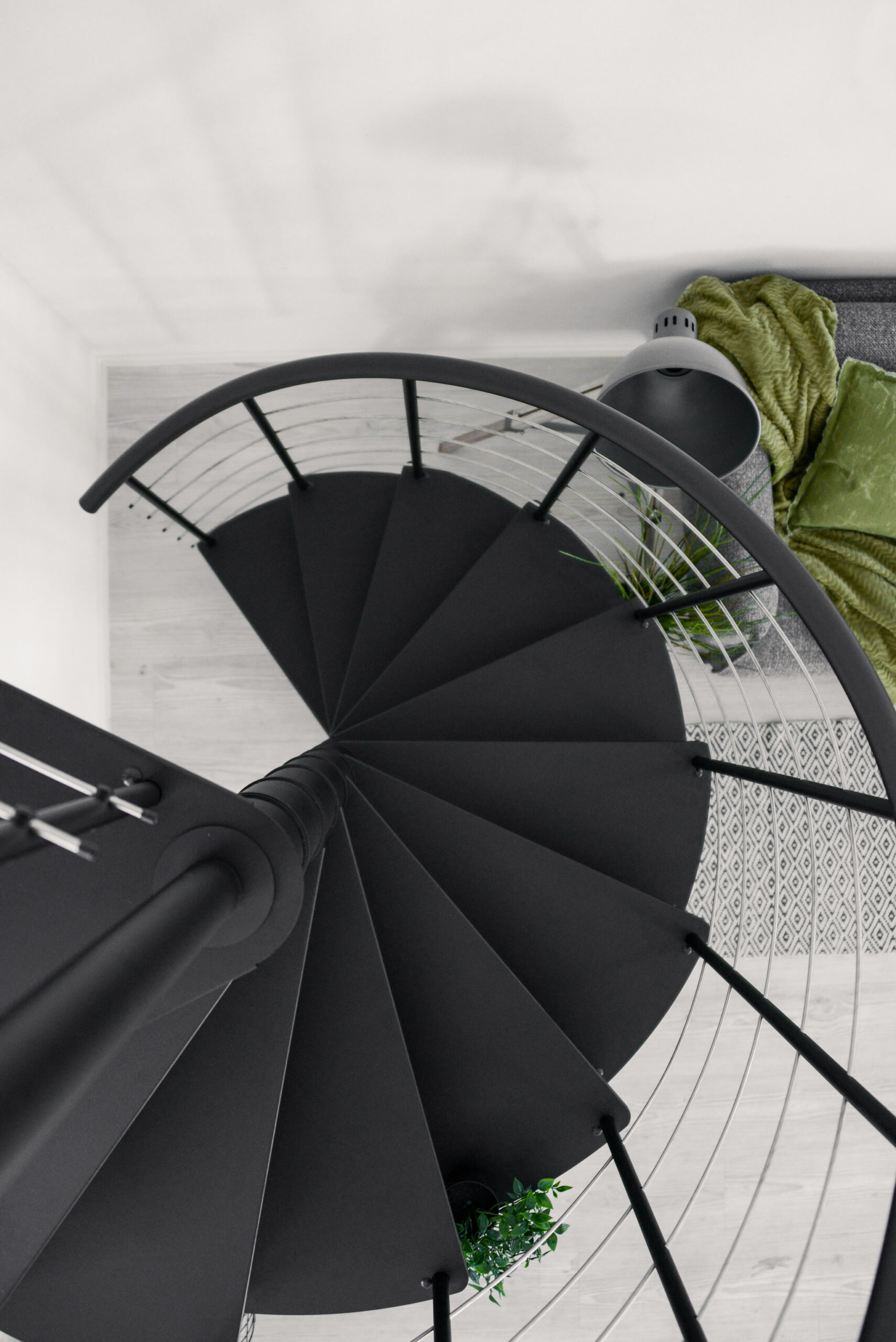

Top-down view of the black “Milano” spiral staircase with triangular metal steps and a curved PVC handrail. The railing features vertical metal rods with horizontal base bars.

Milano

  • Timeless elegance thanks to thin steps
  • Perfectly suited for minimalist and modern interior styles
  • Metal powder-coated in black, grey and white
  • No risk of slipping due to slightly roughened steps
  • Pleasant handrail made of high-quality PVC
  • Available in three different diameters: 120, 140 or 160 cm
  • Maximum storey height: 3003 mm

The validation text should appear here.The stairs are suitable for this floor height.
Add to wishlist

3.957,60 € – 4.262,40 € incl. tax excl. shipping costs*

SKU: N/A Categories: , , Tags: ,

Description

The Milano spiral staircase combines flat metal treads with a railing featuring horizontal rails. This creates a clean, minimalist look. Its all-metal construction adds a modern accent to your living space.

Three sizes and three colours

The Milano is available in black, grey or white. You can choose between diameters of 120, 140 and 160 cm. This makes the staircase suitable for different ceiling openings and for accessing a gallery.

The Milano can be installed with a clockwise or anticlockwise rotation. The continuous PVC handrail feels comfortable to hold.

Secure footing

The lightly textured surface of the metal treads improves grip when climbing up and down. The powder coating protects the staircase against scratches and everyday wear.

Technical data

Basic data
Steps Steel powder-coated in grey, black or white
Spindle tubes Steel powder-coated in grey, black or white
Railing rods Steel powder-coated in grey, black or white
Handrail PVC grey, black or white
Bottom chords Stainless steel
Number of steps 12 + 1 platform
Milano 120
Radius 600 mm
Max. storey height 3003 mm
Max. storey height with one height extension 3234 mm
Max. storey height with two height extensions 3465 mm
Tread depth 210 mm
Free passage width 486 mm
Tread thickness 12 mm
Rise per step 210-231 mm
Rotation per step 29°
Platform width 650 mm
Rotation of platform 53°
Spindle diameter 108 mm
Railing height 1000 mm
Handrail diameter 40 mm
Milano 140
Radius 700 mm
Max. storey height 3003 mm
Max. storey height with one height extension 3234 mm
Max. storey height with two height extensions 3465 mm
Tread depth 236 mm
Free passage width 586 mm
Tread thickness 12 mm
Rise per step 210-231 mm
Rotation per step 25°
Platform width 750 mm
Rotation of platform 53°
Spindle diameter 108 mm
Railing height 1000 mm
Handrail diameter 40 mm
Milano 160
Radius 800 mm
Max. storey height 3003 mm
Max. storey height with one height extension 3234 mm
Max. storey height with two height extensions 3465 mm
Tread depth 244 mm
Free passage width 686 mm
Tread thickness 12 mm
Rise per step 210-231 mm
Rotation per step 22°
Platform width 850 mm
Rotation of platform 53°
Spindle diameter 108 mm
Railing height 1000 mm
Handrail diameter 40 mm

Downloads

Assembly instructions

Technical datasheet

Installation Video
