Inspection door wood

  • Four sizes: 79×54, 109×54, 59×59 and 69×69 cm
  • Top U-value of 0.4 W/m2K thanks to 87 mm cover thickness
  • Frame made of spruce wood, cover made of a white MDF panel

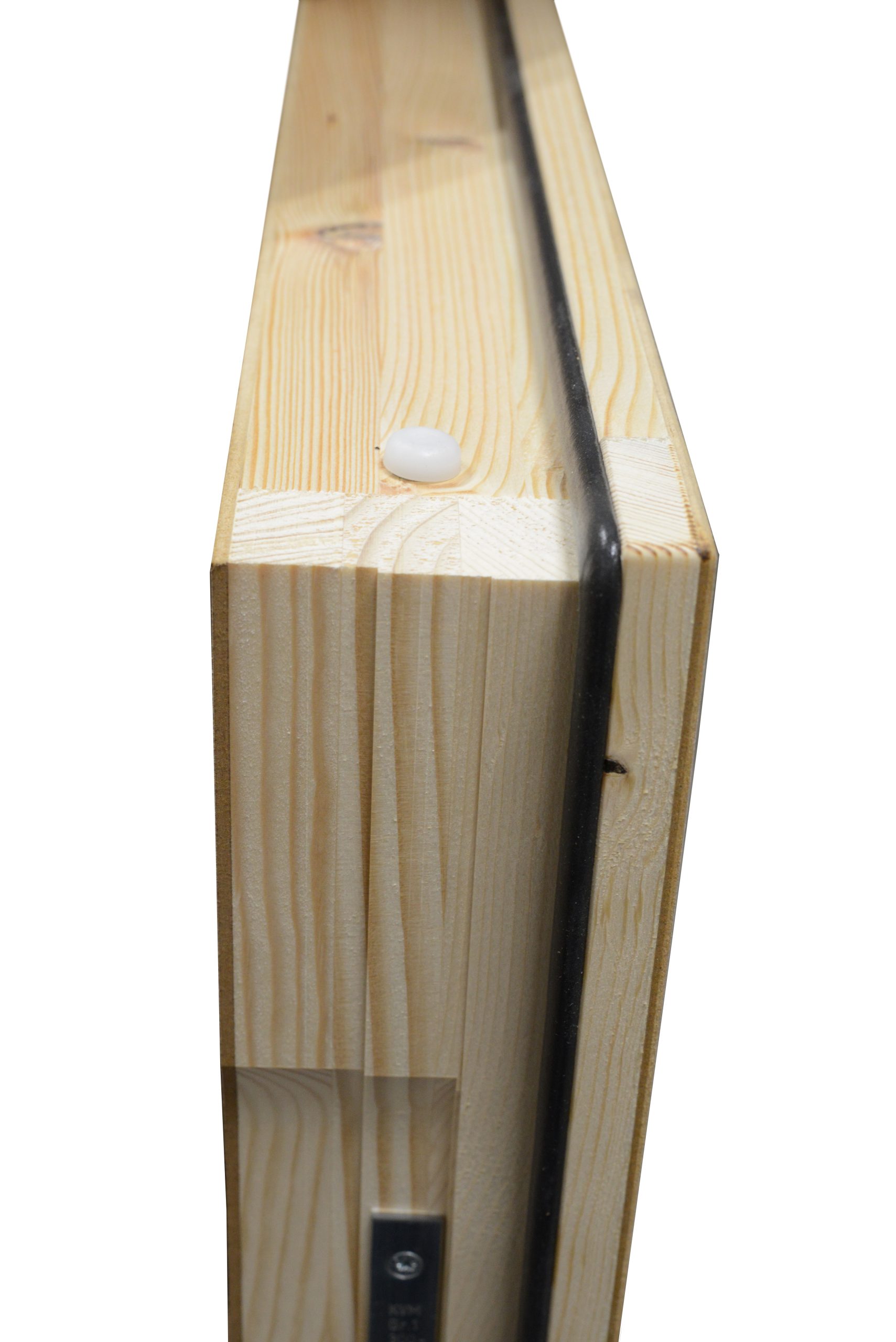

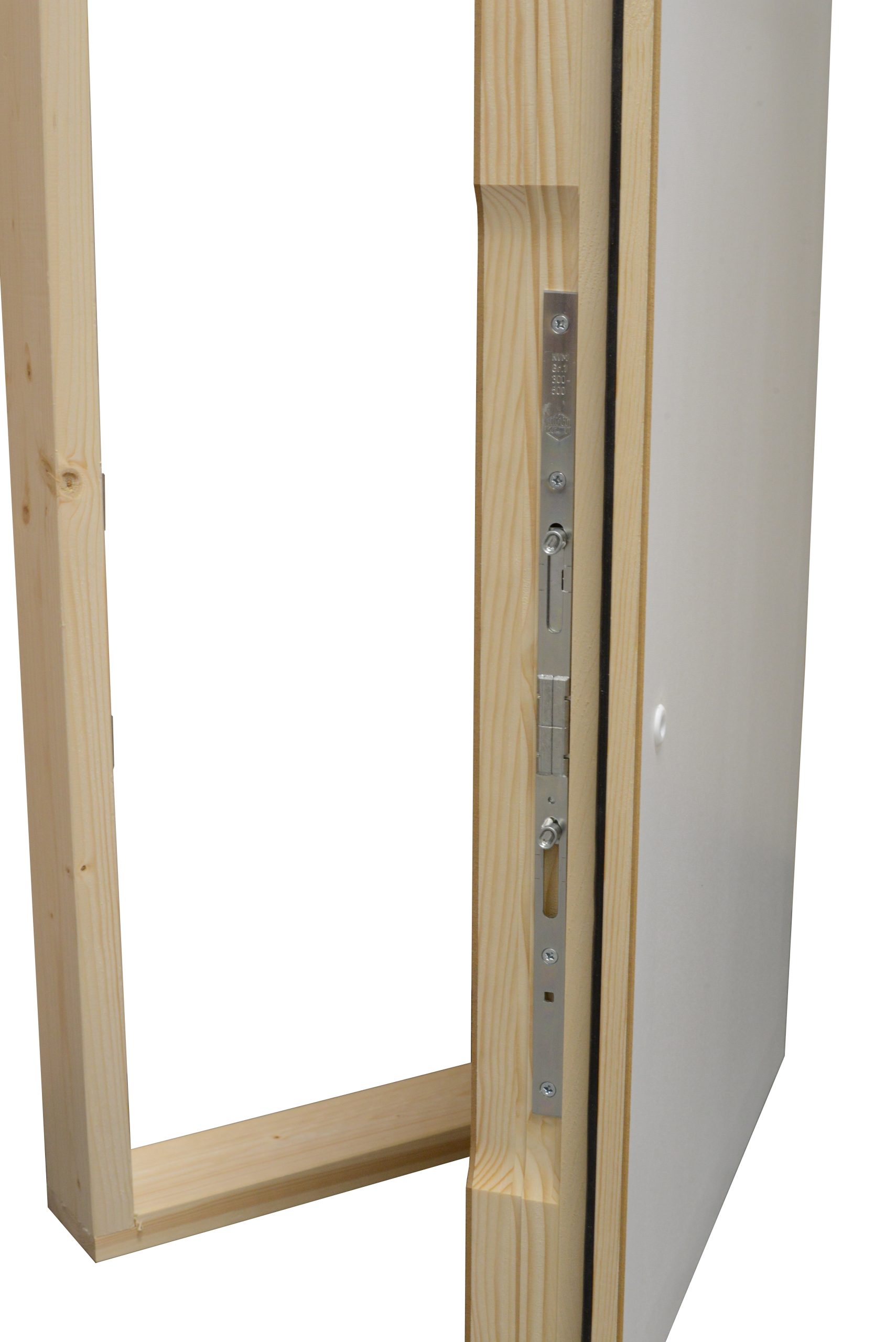

  • 2-point twist lock and seamless all-round seal
  • Class 4 airtightness

Export as PDF
Add to wishlist

189,00 € incl. Tax excl. Shipping Costs*

SKU: N/A Categories: , Tag:

Description

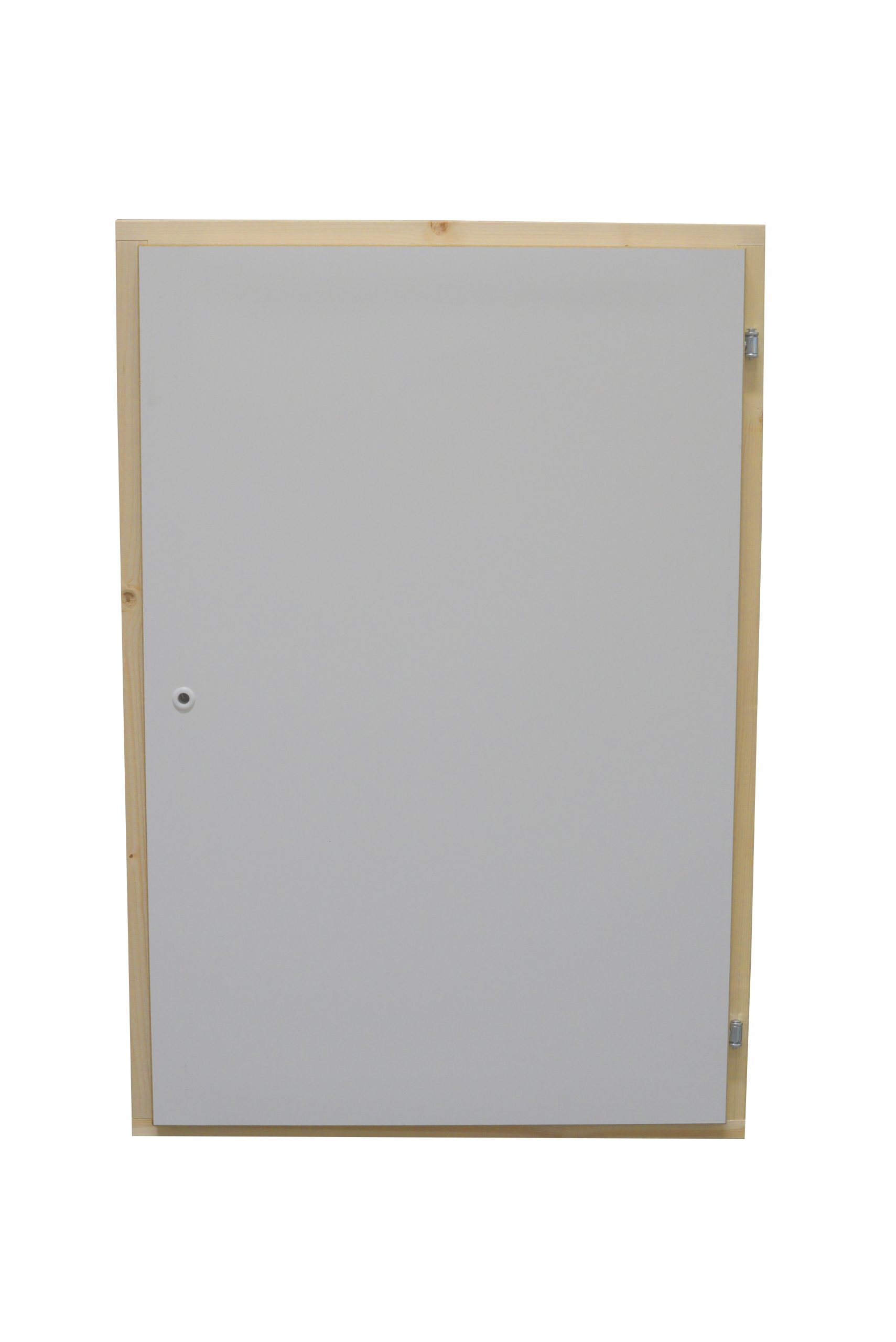

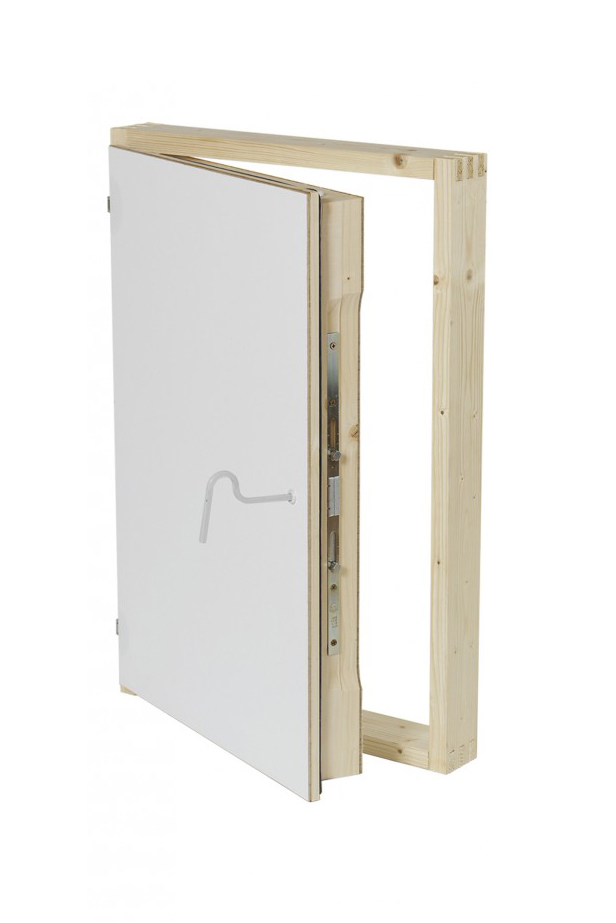

The wooden inspection door from Minka impresses with its high-quality workmanship with a frame made of solid spruce wood and a cover made of a white MDF panel. Thanks to the jointless all-round seal, the inspection door is extremely airtight when closed. However, the flap can also be opened easily using the 2-point twist lock.

The wooden inspection door is available in four different sizes. The frame measures either 79×54, 109×54, 59×59 or 69×69 cm length by width. The cover thickness is 87 mm for all versions, resulting in an excellent U-value of 0.4 W/m2K.

Technical data

Data
Minimum opening size 800x550 mm, 1100x550 mm, 600x600 mm, 700x700 mm
Frame size 790x540x80 mm, 1090x540x80 mm, 590x590x80 mm, 690x690x80 mm
Thickness of lid 87 mm
U-value 0,4 W/m2K
Material Spruce natural, MDF panel white

Downloads

Installation instructions

Technical datasheet

Matching products

Reviews

There are no reviews yet.
