Home Turn

  • Quarter-turned solid wood staircase
  • Two variants: left-turning (Home Turn L) and right-turning (Home Turn R)
  • Available with or without railing
  • Railing with vertical wooden rods or horizontal stainless steel bottom chords optionally available
  • Maximum storey height: 3000 mm

1.664,40 € – 2.344,80 € incl. tax excl. shipping costs*

Description

The Home Turn is the quarter-turn version of the Home stringer staircase. It is made of solid wood and features closed risers. This eliminates open gaps between the treads, providing additional safety and making the staircase a good choice for homes with children or pets.

Left- or right-turning

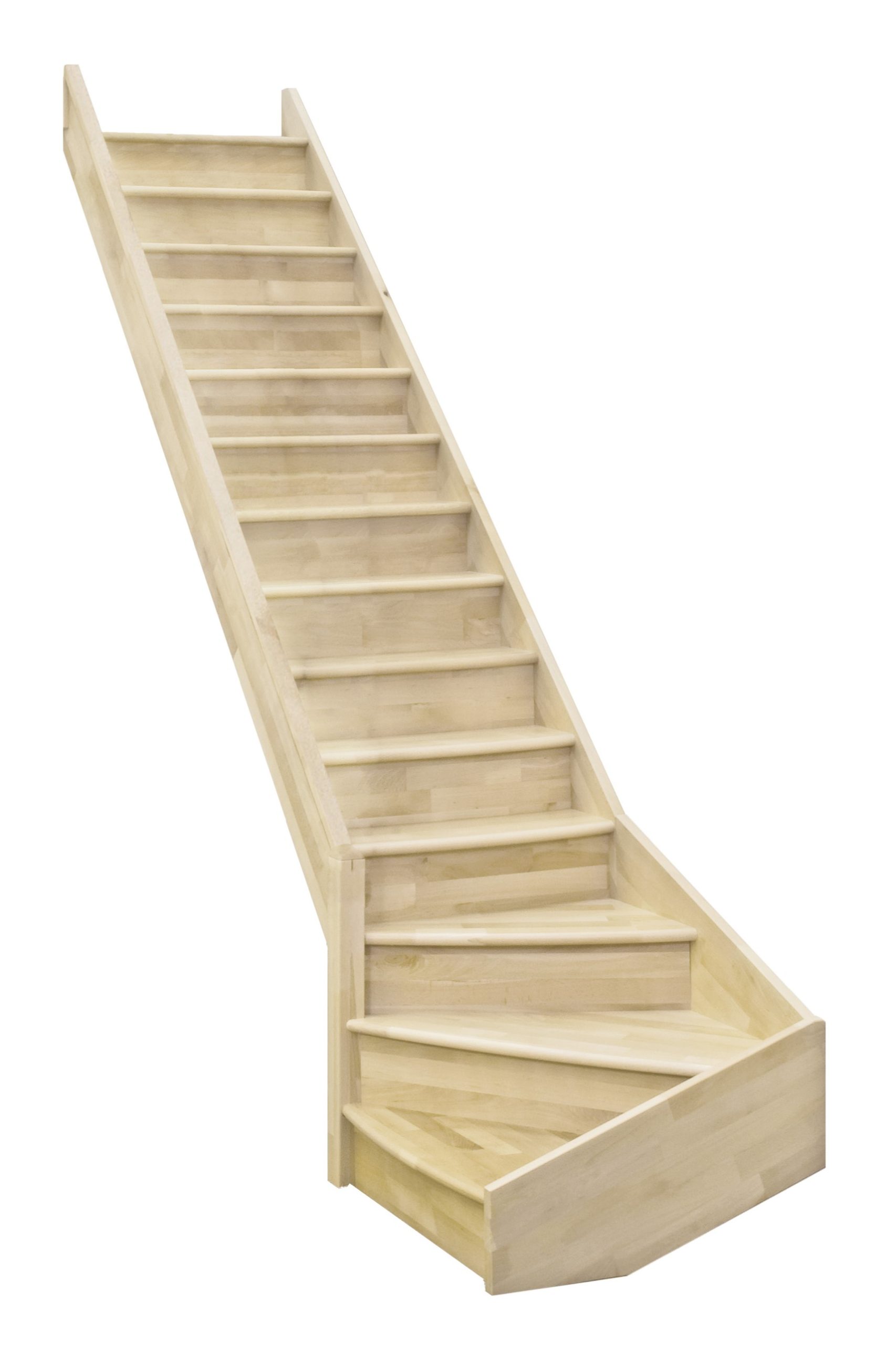

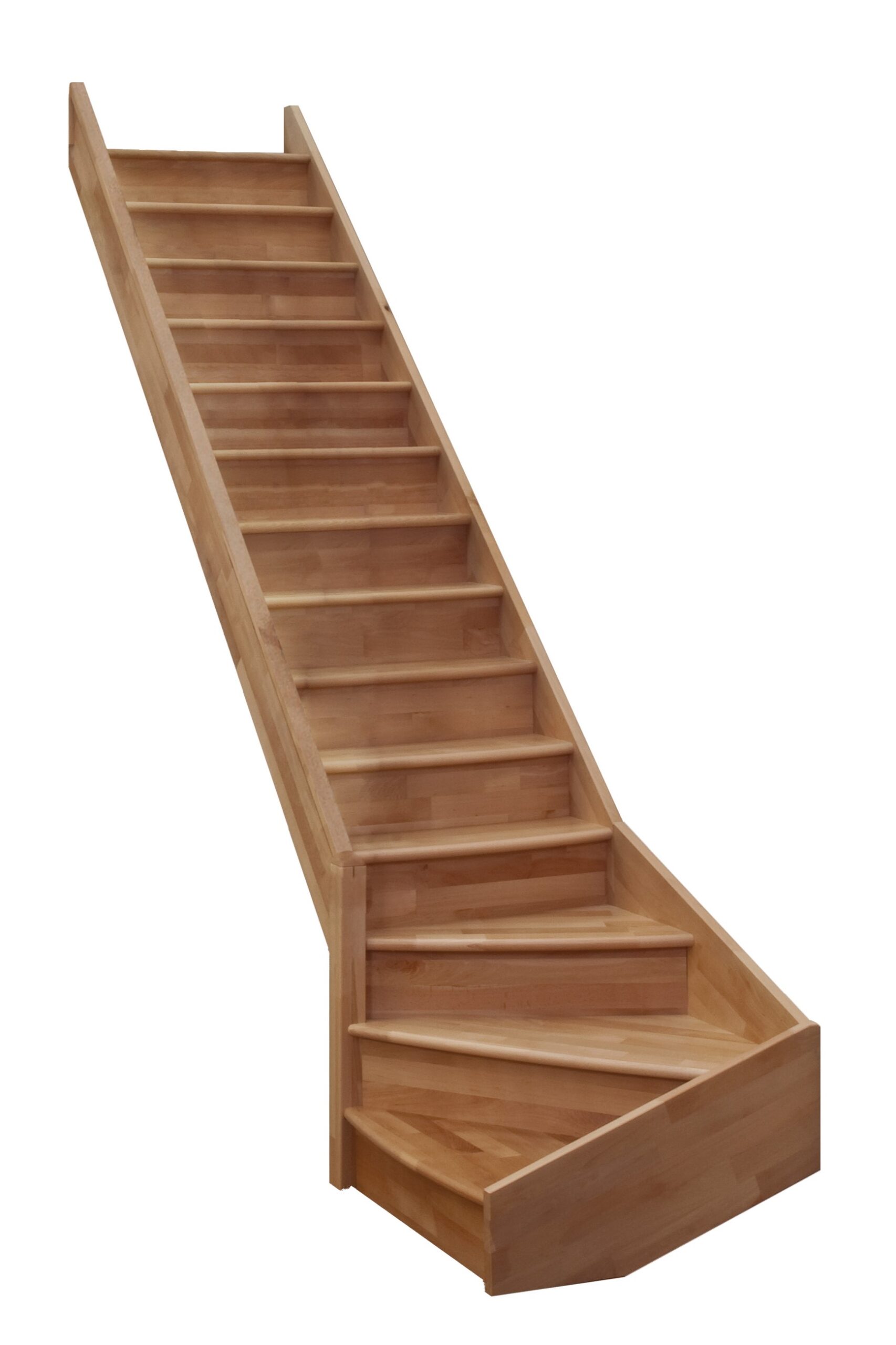

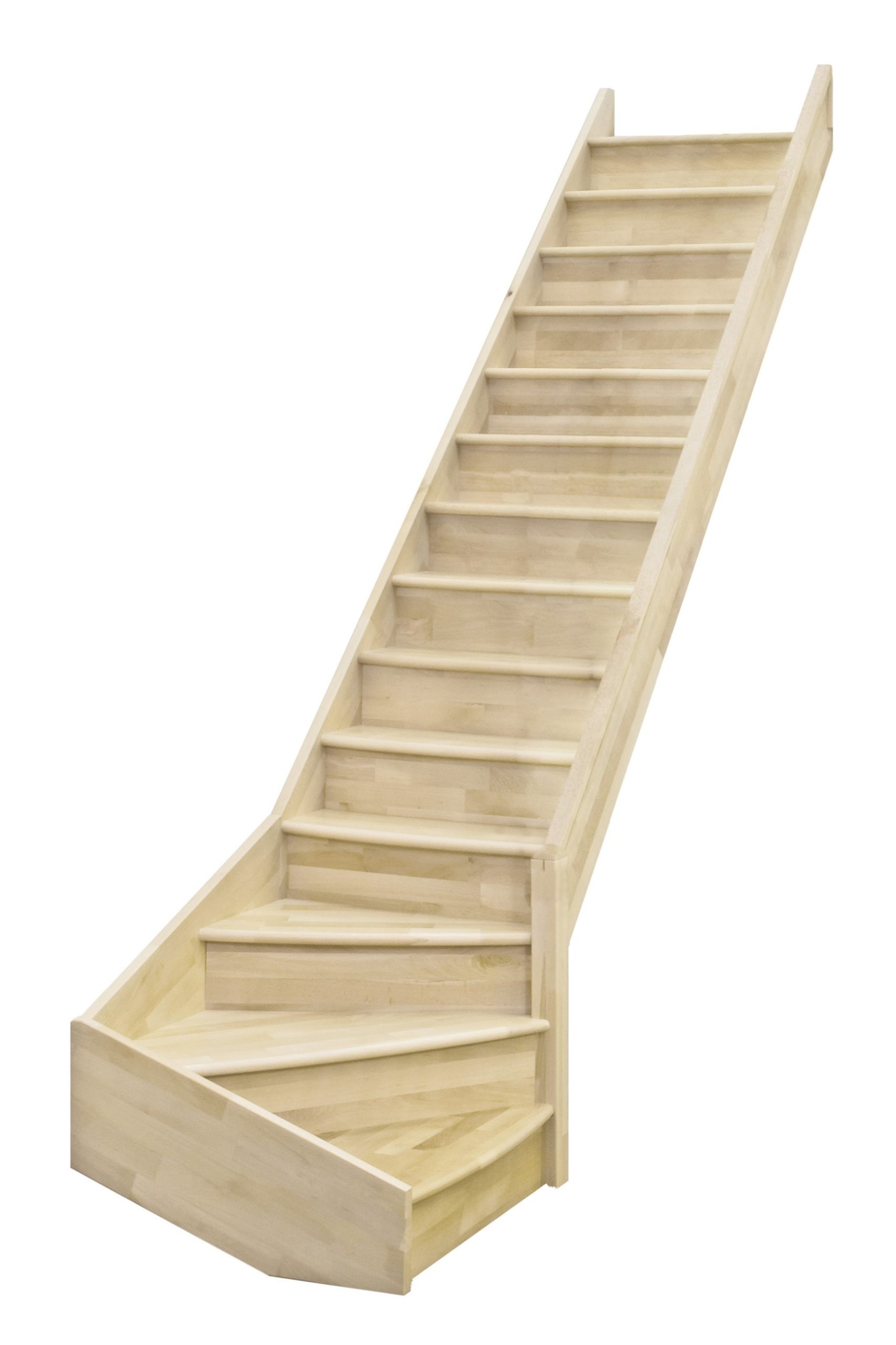

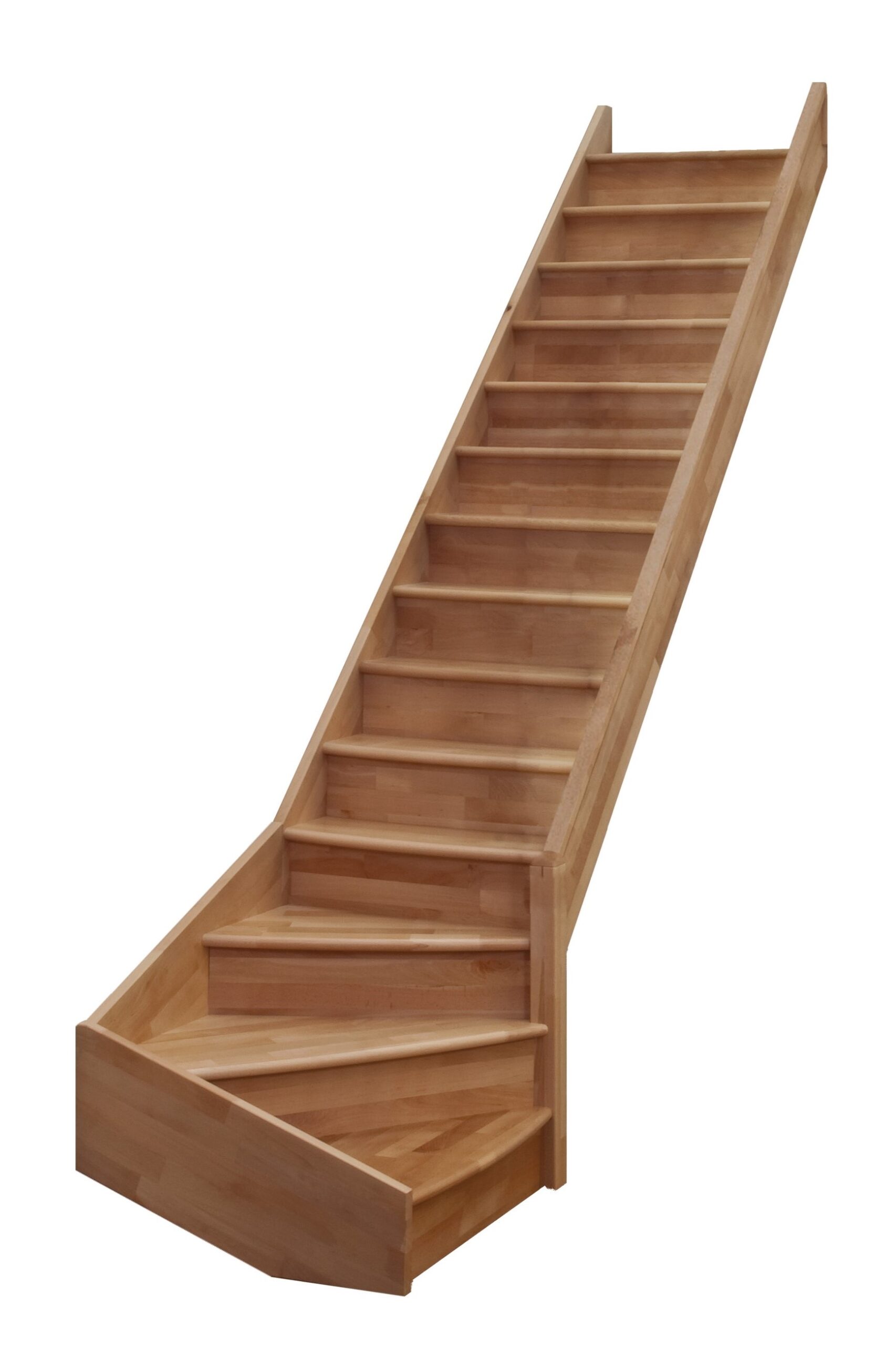

The Home Turn is available in two versions to suit your room layout: the left-turning Home Turn L and the right-turning Home Turn R.

Choose your wood and railing

You can choose between beech and spruce. The staircase can also be fitted with an optional railing. Available options include an all-wood railing with vertical balusters and a wooden railing with horizontal stainless steel rails.

The 30 mm thick treads and risers create a sturdy construction and provide secure access to the next floor.

Technical data

Basic data
Steps Solid beech or spruce
Stair stringers Solid beech or spruce
Handrail Solid beech or spruce
Railing Wooden railing with stainless steel bottom chords or pure wooden railing
Version 1/4 turned to the left or right
Number of steps 14
Dimensions
Basic size 2970 x 850 mm
Max. storey height 3000 mm
Rise per step 200 mm
Angle of incline 45°
Free passage width 800 mm
Tread depth 230 mm
Tread thickness 30 mm
Width of stair stringers 220 mm
Thickness of stair stringers 30 mm
Railing height 900 mm
Diameter of handrail for bottom chord railing 50 mm
Thickness of handrail for wooden railing 55 x 55 mm
