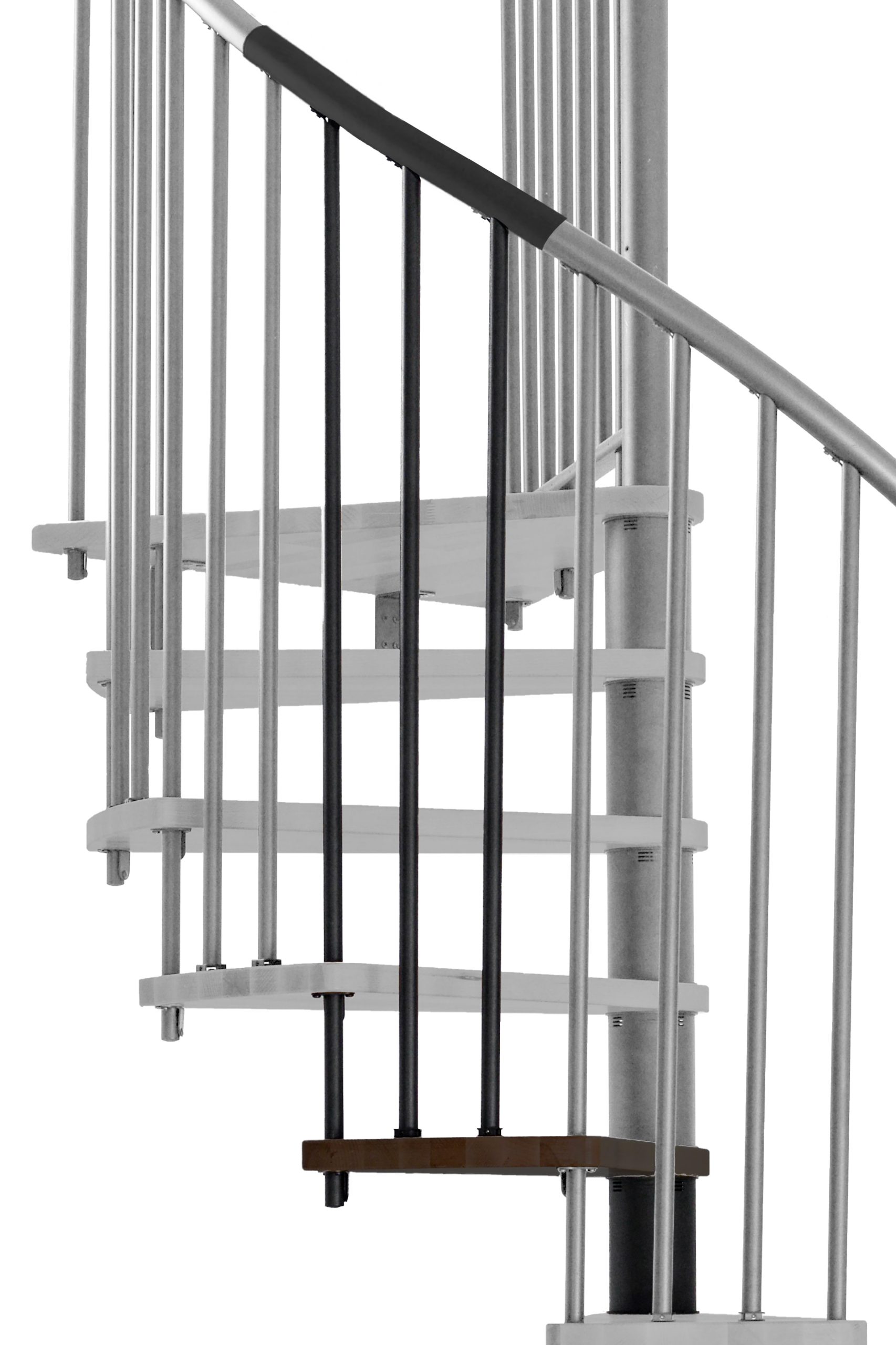

Height extension for the Spiral Effect staircase with steps in beech stained to walnut and black metal. A detail of the additional step, the balusters and the handrail is shown.
Height extension for the Spiral Effect staircase with steps in beech stained to walnut and black metal. A detail of the additional step, the balusters and the handrail is shown.
Height extension for the Spiral Effect staircase with steps in beech and white metal. A detail of the additional step, the balusters and the handrail is shown.
Height extension for the Spiral Effect staircase with steps in oak and grey metal. A detail of the additional step, the balusters and the handrail is shown.
Height extension for the Spiral Effect staircase with steps in beech and black metal. A detail of the additional step, the balusters and the handrail is shown.

Height extension for Spiral Effect

  • Additional step for spiral staircase Spiral Effect
  • Extension of Spiral Effect by 190-235 mm
  • Maximum attainable storey height with one height extension: 3290 mm
  • Maximum attainable storey height with two height extensions: 3525 mm
  • When purchasing, please ensure that the height extension has the same configuration as your staircase and install a maximum of two height extensions per staircase.
Export as PDF
Add to wishlist

333,60 € incl. tax excl. shipping costs*

SKU: N/A Category: Tags: , ,

Description

To extend the spiral staircase Spiral Effect to a height of up to 352 cm, you can order matching height extensions. These include an additional wooden step, a steel spindle tube and further railing rods. When purchasing, please ensure that the diameter and colours of the height extension match your staircase.

Per height extension you can extend the Spiral Effect spiral staircase by 190-235 mm. The maximum storey height with one additional step is 3290 mm. With two height extensions you can reach floors with a height of up to 3525 mm.

Please install a maximum of two height extensions per staircase! If three or more additional steps are installed, stability is no longer guaranteed.

Technical data

Basic data
Steps Beech, oak, beech stained to walnut or beech stained white
Spindle tubes Steel powder-coated in grey, black or white
Railing rods Steel powder-coated in grey, black or white
Handrail Aluminium powder-coated in grey, black or white
Number of steps 12 + 1 platform
Spiral Effect 120
Radius 600 mm
Max. storey height 3055 mm
Max. storey height with one height extension 3290 mm
Max. storey height with two height extensions 3525 mm
Rise per step 190-235 mm
Tread depth 210 mm
Free passage width 486 mm
Tread thickness 35 mm
Rotation per step 30,2°
Platform width 650 mm
Rotation of platform 50°
Spindle diameter 108 mm
Railing height 1000 mm
Handrail diameter 50 mm
Spiral Effect 140
Radius 700 mm
Max. storey height 3055 mm
Max. storey height with one height extension 3290 mm
Max. storey height with two height extensions 3525 mm
Rise per step 190-235 mm
Tread depth 236 mm
Free passage width 586 mm
Tread thickness 35 mm
Rotation per step 26,2°
Platform width 750 mm
Rotation of platform 50°
Spindle diameter 108 mm
Railing height 1000 mm
Handrail diameter 50 mm
Spiral Effect 160
Radius 800 mm
Max. storey height 3055 mm
Max. storey height with one height extension 3290 mm
Max. storey height with two height extensions 3525 mm
Rise per step 190-235 mm
Tread depth 244 mm
Free passage width 686 mm
Tread thickness 35 mm
Rotation per step 22,2°
Platform width 850 mm
Rotation of platform 50°
Spindle diameter 108 mm
Railing height 1000 mm
Handrail diameter 50 mm

Downloads

Assembly instructions height extension

Assembly instructions staircase

Technical datasheet
