Height extension Rondo Color

Height extension for Rondo Color

  • Additional step for spiral staircase Rondo Color
  • Extension of Rondo Color by 207-231 mm
  • Maximum attainable storey height with one height extension: 3234 mm
  • Maximum attainable storey height with two height extensions: 3465 mm
  • When purchasing, please ensure that the height extension has the same configuration as your staircase and install a maximum of two height extensions per staircase.

 333.60 incl. Tax excl. Shipping Costs*

Description

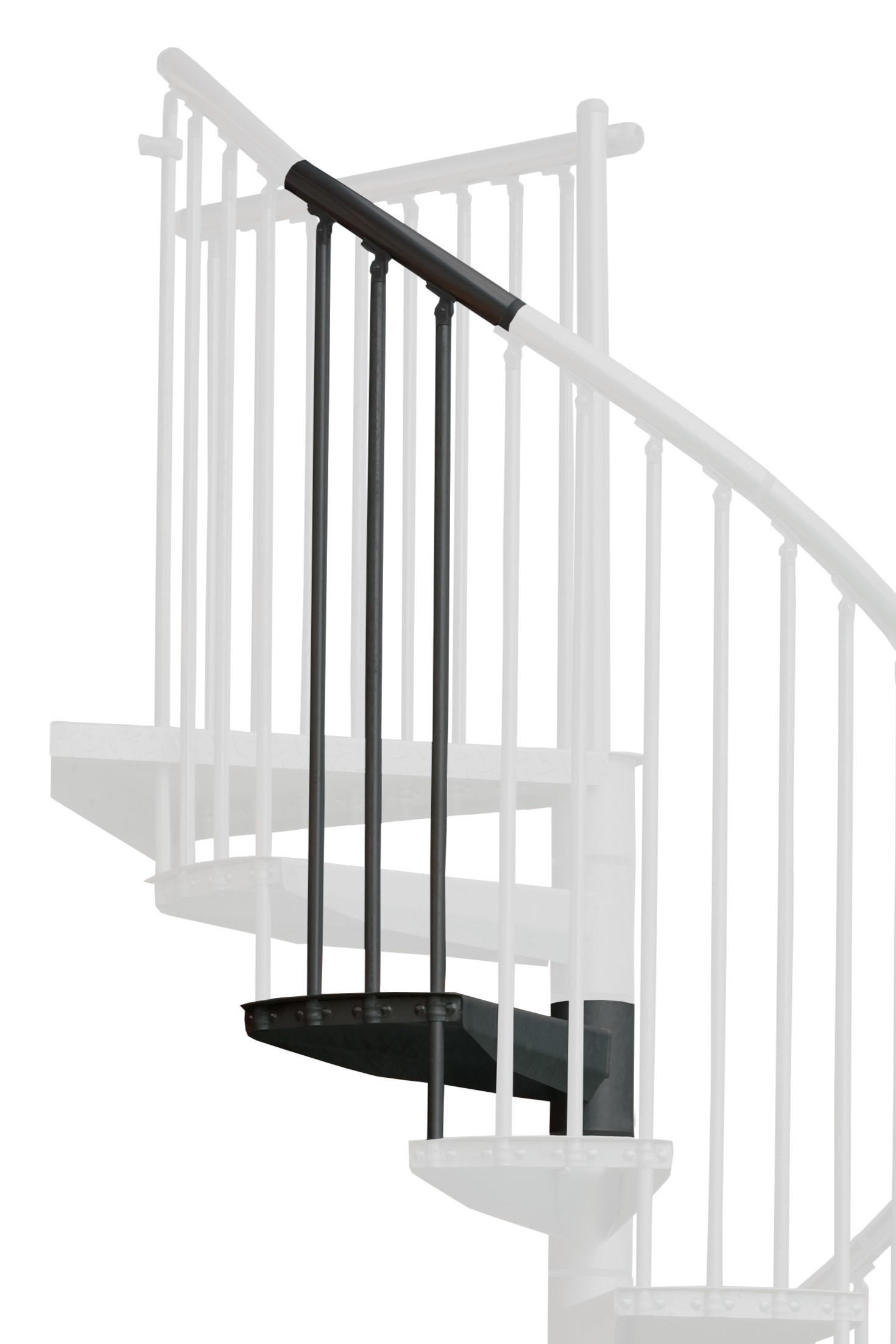

If you want to climb floors of more than three meters with the Rondo Color, you can extend the spiral staircase with the help of a height extension. The scope of delivery includes an additional step, more railing rods and a spindle tube. Like the staircase, these parts are powder-coated in anthracite. You can choose a diameter of 120, 140 or 160 cm to match the Rondo Color staircase.

Per step, you can increase the height of the Rondo Color spiral staircase by 207-231 mm. With one height extension installed, the maximum attainable storey height is 3234 mm. With two additional steps, even floors with a height of up to 3465 mm are no problem.

Please install a maximum of two height extensions per staircase! If three or more additional steps are installed, stability is no longer guaranteed.

Technical data

Basic data
Steps Steel powder-coated in anthracite
Spindle tubes Steel powder-coated in anthracite
Railing rods Steel powder-coated in anthracite
Handrail Aluminium powder-coated in anthracite
Number of steps 12 + 1 platform
Rondo Color 120
Radius 600 mm
Max. storey height 3003 mm
Max. storey height with one height extension 3234 mm
Max. storey height with two height extensions 3465 mm
Rise per step 207-231 mm
Tread depth 196 mm
Free passage width 486 mm
Tread thickness 1,5 mm
Rotation per step 29,6°
Platform width 650 mm
Rotation of platform 60°
Spindle diameter 127 mm
Railing height 1000 mm
Handrail diameter 50 mm
Rondo Color 140
Radius 700 mm
Max. storey height 3003 mm
Max. storey height with one height extension 3234 mm
Max. storey height with two height extensions 3465 mm
Rise per step 207-231 mm
Tread depth 213 mm
Free passage width 586 mm
Tread thickness 1,5 mm
Rotation per step 25°
Platform width 750 mm
Rotation of platform 60°
Spindle diameter 127 mm
Railing height 1000 mm
Handrail diameter 50 mm
Rondo Color 160
Radius 800 mm
Max. storey height 3003 mm
Max. storey height with one height extension 3234 mm
Max. storey height with two height extensions 3465 mm
Rise per step 207-231 mm
Tread depth 223 mm
Free passage width 686 mm
Tread thickness 1,5 mm
Rotation per step 21,9°
Platform width 850 mm
Rotation of platform 60°
Spindle diameter 127 mm
Railing height 1000 mm
Handrail diameter 50 mm
