Height extension Paris beech black
Height extension Paris beech black
Height extension Paris beech grey
Height extension Paris beech white

Height extension for Paris

  • Additional step for spiral staircase Paris
  • Extension of Paris by 190-235 mm
  • Maximum attainable storey height with one height extension: 3055 mm
  • Maximum attainable storey height with two height extensions: 3290 mm
  • When purchasing, please ensure that the height extension has the same configuration as your staircase and install a maximum of two height extensions per staircase.

Export as PDF
Add to wishlist

€ 333.60 incl. Tax excl. Shipping Costs*

SKU: N/A Category: Tags: ,

  • Description

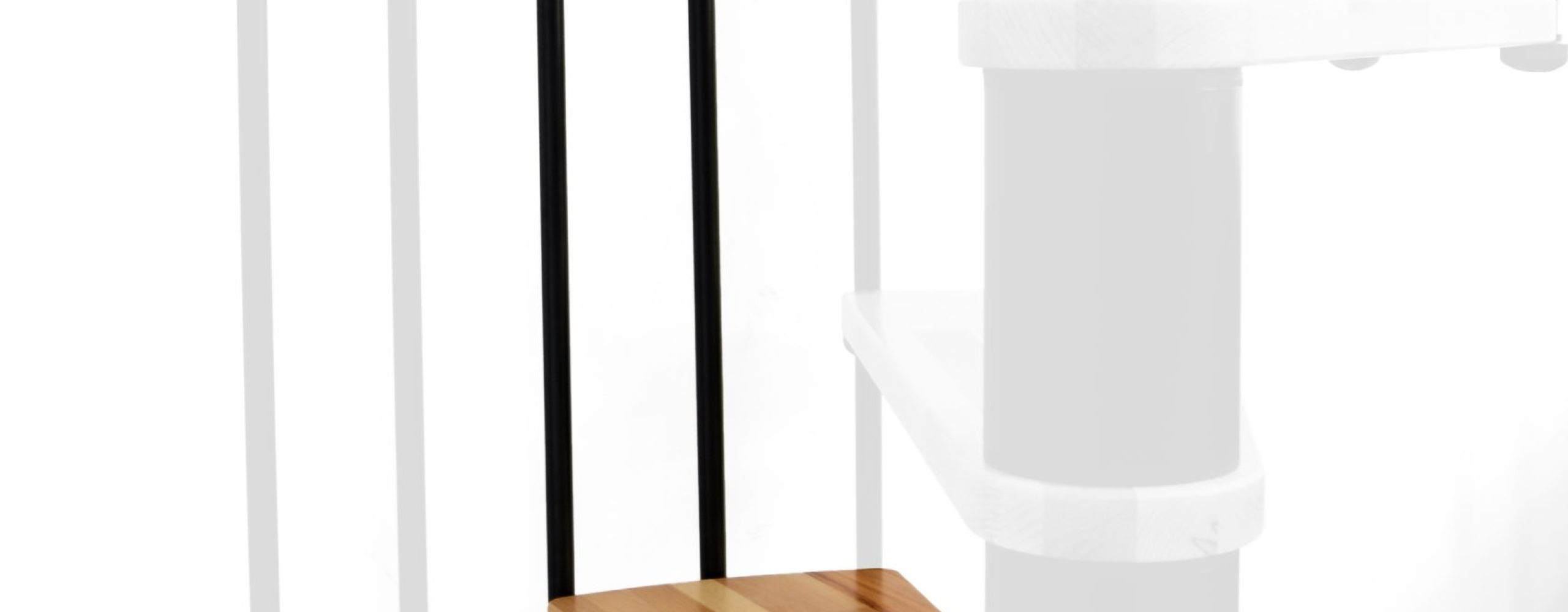

    To increase the maximum height of the spiral staircase Paris, you can order a height extension. It consists of an additional step made of beech wood, a spindle tube and two balusters. As with the staircase, the diameter is 140 cm. The metal parts are powder-coated in black, grey or white to match the spiral staircase Paris. When purchasing, please ensure that the metal colour of the staircase and the height extension match.

    The height extension enables an additional rise of 190-235 mm. If you install one additional step, you can therefore extend the maximum storey height of the spiral staircase Paris from 2820 mm to 3055 mm. With two height extensions, you can even reach storeys with a height of up to 3290 mm.

    Please install a maximum of two height extensions per staircase! If three or more additional steps are installed, stability is no longer guaranteed.

  • Technical data

    Basic data
    Steps Beech lacquered
    Spindle tubes Steel powder-coated in grey, black or white
    Railing rods Steel powder-coated in grey, black or white
    Number of steps 11 + 1 platform
    Paris 140
    Basic size 1400 x 1450 mm
    Radius 700 mm
    Max. storey height 2820 mm
    Max. storey height with one height extension 3055 mm
    Max. storey height with two height extensions 3290 mm
    Tread depth 172 mm
    Free passage width 600 mm
    Tread thickness 35 mm
    Rise per step 190-235 mm
    Rotation per step 22°
    Rotation of platform 50°
    Spindle diameter 108 mm
    Railing height 1000 mm

  • Downloads

    Assembly instructions height extension

    Assembly instructions staircase

    Technical datasheet
